NSN 5930-01-214-5267 9012GAW6, 9012GAW-6, 01-214-5267
Product Details | PRESSURE SWITCH

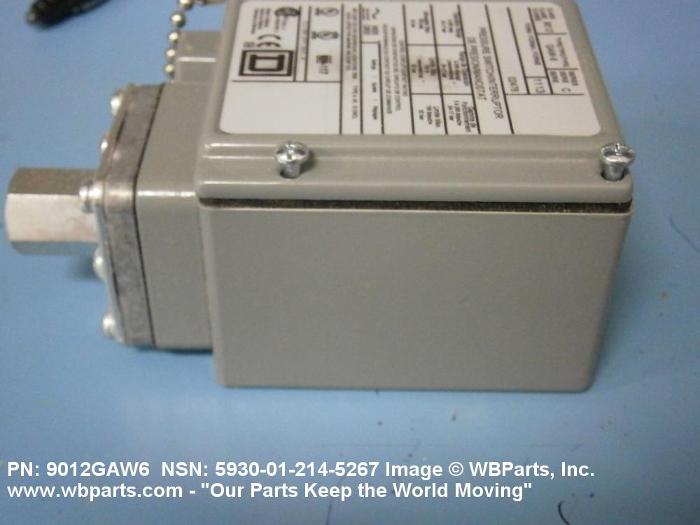

5930-01-214-5267 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 9012GAW6, 9012GAW-6, 5930-01-214-5267, 01-214-5267, 5930012145267, 012145267
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 AUG 1985 | 01-214-5267 | 00206 ( SWITCH, PRESSURE ) |

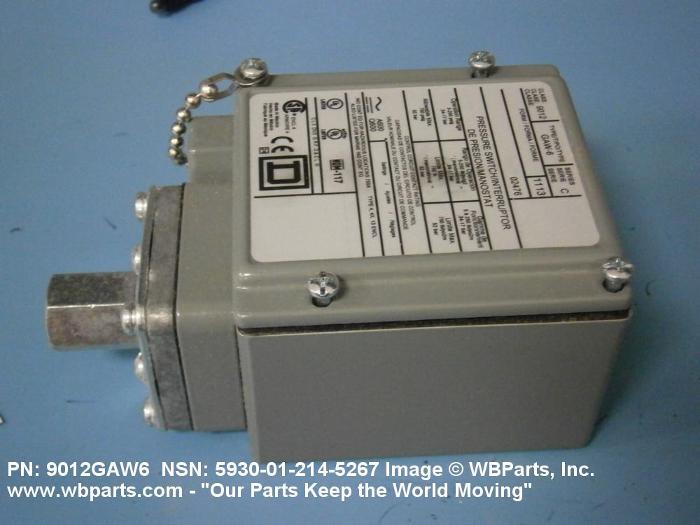

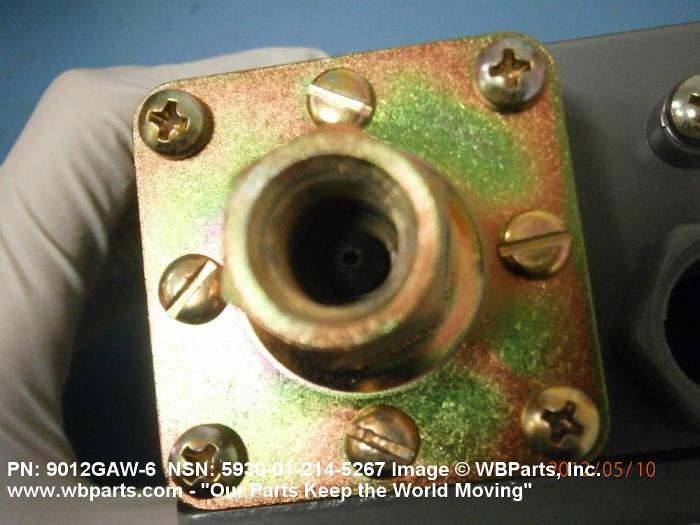

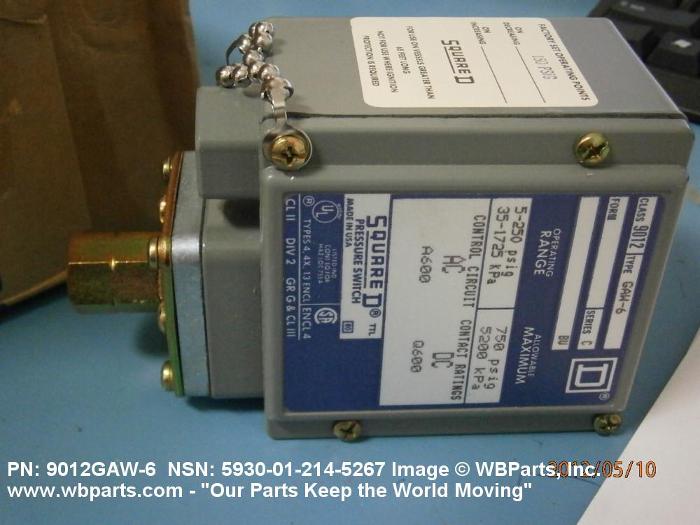

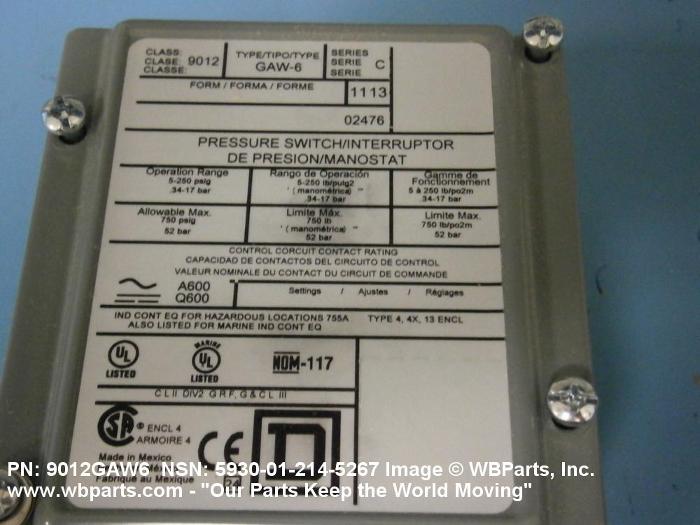

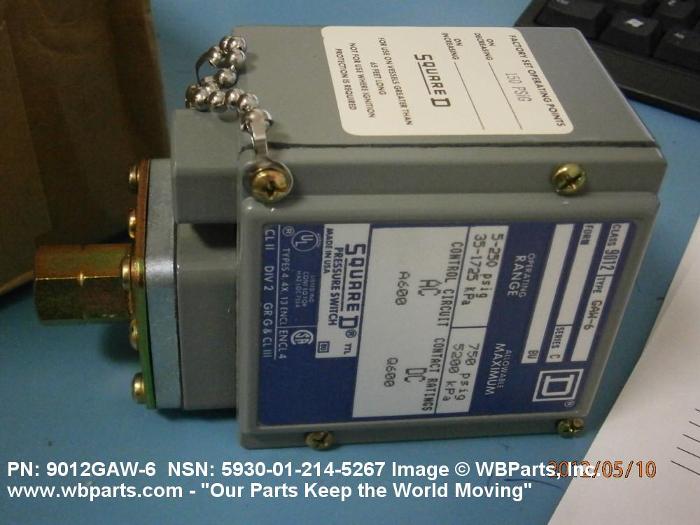

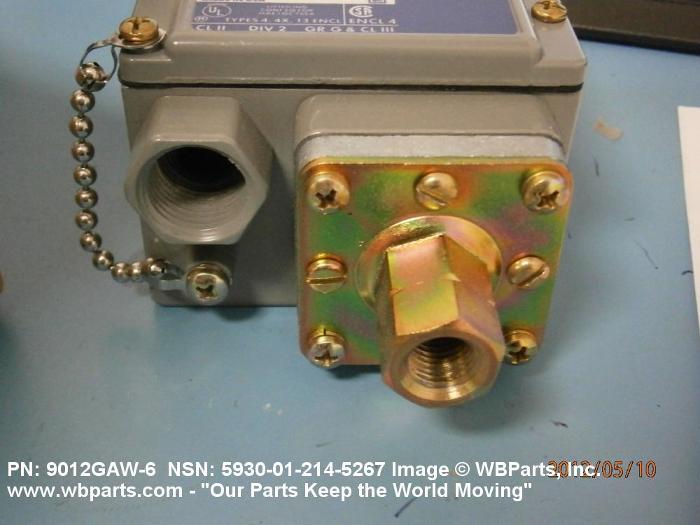

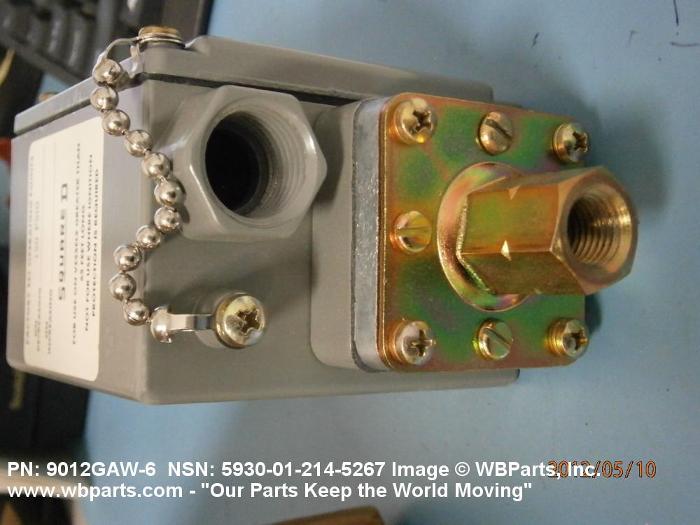

Drawings & Photos | NSN 5930-01-214-5267
Demand History | NSN 5930-01-214-5267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9012GAW-6 | 2023-04-114 | 1 | DIBBS |
| 9012GAW-6 | 2022-08-240 | 2 | DIBBS |
| 9012GAW-6 | 2021-07-201 | 2 | DIBBS |
| 5930-01-214-5267 | 2018-09-273 | 1 | DIBBS |
| 5930-01-214-5267 | 2018-09-256 | 1 | DIBBS |
| 5930-01-214-5267 | 2013-09-262 | 1 | DIBBS |
| 9012GAW6 | 2012-05-136 | 1 | Malaysia |
| 9012GAW6 | 2012-05-136 | 2 | Malaysia |
| 9012GAW6 | 2012-05-136 | 1 | MY |
| 9012GAW6 | 2012-05-136 | 2 | MY |
| 9012GAW6 | 2012-04-96 | 3 | Malaysia |
| 5930-01-214-5267 | 2011-06-174 | 10 | DIBBS |
| 5930-01-214-5267 | 2011-05-139 | 1 | DIBBS |
| 5930-01-214-5267 | 2011-05-125 | 10 | DIBBS |
| 5930-01-214-5267 | 2010-04-95 | 1 | DIBBS |
| 5930-01-214-5267 | 2009-09-251 | 7 | DIBBS |
| 5930-01-214-5267 | 2009-04-93 | 2 | DIBBS |
| 5930-01-214-5267 | 2009-02-37 | 4 | DIBBS |
| 5930-01-214-5267 | 2007-12-338 | 13 | DIBBS |
| 5930-01-214-5267 | 2007-07-197 | 1 | DIBBS |
| 5930-01-214-5267 | 2007-05-132 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-214-5267
Related Products | NSN 5930-01-214-5267

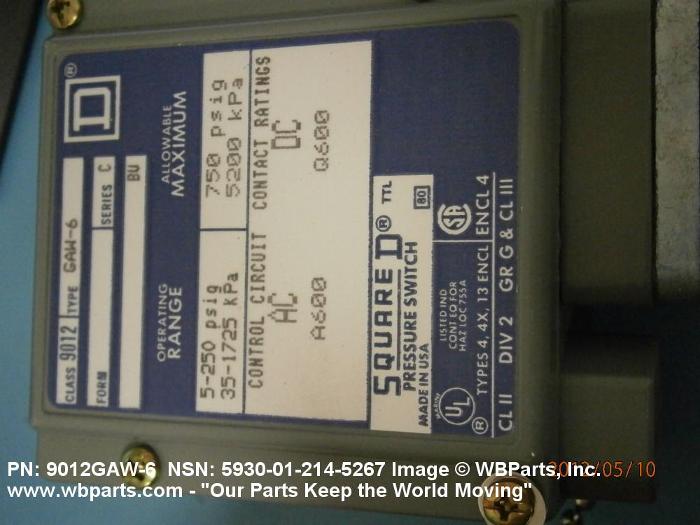

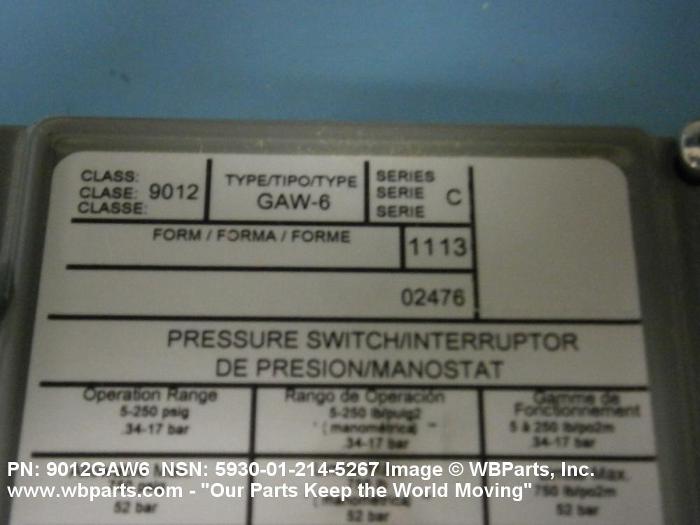

Technical Data | NSN 5930-01-214-5267
| Characteristic | Specifications |
|---|---|
| CONTACT LOAD CURRENT RATING | 0.1 AMPERES RESISTIVE LOAD FOURTH VOLTAGE |
| OVERALL WIDTH | 2.580 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY |
| CONTACT LOAD CURRENT RATING | 0.55 AMPERES RESISTIVE LOAD THIRD VOLTAGE |
| PRESSURE SWITCH TYPE | GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 600.0 AC AT SEA LEVEL SECOND VOLTAGE |
| BODY HEIGHT | 3.500 INCHES NOMINAL |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.720 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 DC AT SEA LEVEL THIRD VOLTAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 600.0 DC AT SEA LEVEL FOURTH VOLTAGE |
| OVERALL HEIGHT | 5.450 INCHES NOMINAL |
| OVERALL LENGTH | 3.500 INCHES NOMINAL |

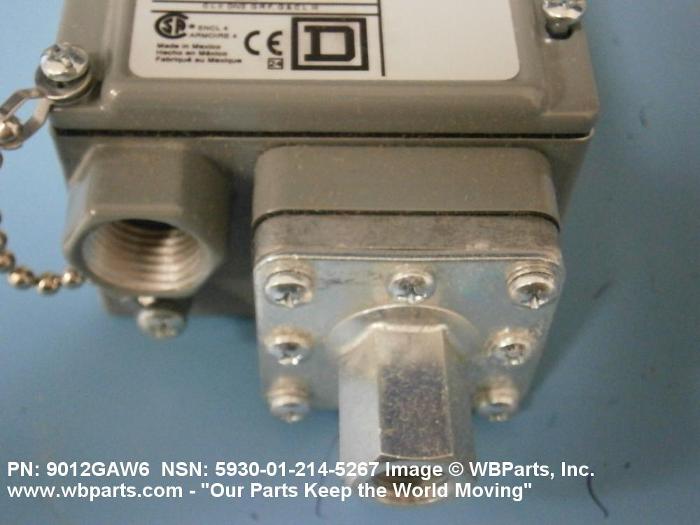

| NOMINAL THREAD SIZE | 0.250 INCHES SINGLE PRESSURE CONNECTION |
| PROOF PRESSURE | 750.00 POUNDS PER SQUARE INCH GAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.270 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION DIAGONAL |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE AND DEACTUATION POINT ADJUSTABLE |
| CONTACT VOLTAGE RATING IN VOLTS | 120.0 AC AT SEA LEVEL FIRST VOLTAGE |
| FEATURES PROVIDED | ELECTRICAL ACCESS PORT |
| THREAD QUANTITY PER INCH | 18 SINGLE PRESSURE CONNECTION |
| CONTACT LOAD CURRENT RATING | 1.2 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.720 INCHES NOMINAL |
| CONTACT LOAD CURRENT RATING | 6.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE |
| STYLE DESIGNATOR | RECTANGULAR |
| CONTACT ADJUSTMENT RANGE | +36.00 TO 299.00 ACTUATION POINT POUNDS PER SQUARE INCH GAGE AND +30.00 TO 250.00 DEACTUATION POINT POUNDS PER SQUARE INCH GAGE |
