Product Details | PUSH SWITCH
5930-01-227-1677 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: PC-61E/3P, PC61E3P, 5930-01-227-1677, 01-227-1677, 5930012271677, 012271677
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 FEB 1986 | 01-227-1677 | 00406 ( SWITCH, PUSH ) |
Drawings & Photos | NSN 5930-01-227-1677
Cross Reference | NSN 5930-01-227-1677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PC-61E/3P | 28722 | HUNT ELECTRONICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5930-01-227-1677
5930-01-227-1726, 5930-01-227-1847, 5930-01-227-1904, 5930-01-227-1905, 5930-01-227-1906
Technical Data | NSN 5930-01-227-1677
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE AC |

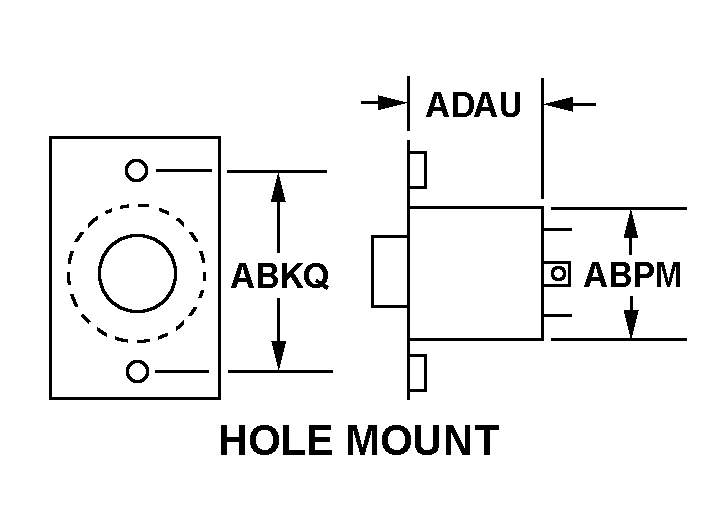

| BODY STYLE | 11K HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 4.062 INCHES NOMINAL |
| BODY DIAMETER | 2.625 INCHES NOMINAL |
| BODY HEIGHT | 1.437 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR DIAMETER | 1.750 INCHES NOMINAL |
| ACTUATOR HEIGHT | 1.000 INCHES NOMINAL |
| ACTUATOR COLOR | WHITE SINGLE ACTUATOR |
| ACTUATOR INSCRIPTION | INCANDESCENT ONLY SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| INCLOSURE TYPE | FULLY INCLOSED |
| FEATURES PROVIDED | ACTUATOR SEAL |
| SPECIAL FEATURES | VAR RESISTOR INCLUDED IN SWITCH TO BE USED TO DIM OR BRIGHTED INCANDESCENT LIGHT |
Restrictions/Controls & Freight Information | NSN 5930-01-227-1677
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
