NSN 5930-01-234-5798 506019-11-0, 01-234-5798, 506019110
Product Details | PRESSURE SWITCH
5930-01-234-5798 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 506019-11-0, 5930-01-234-5798, 01-234-5798, 5930012345798, 506019110, 012345798
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUN 1986 | 01-234-5798 | 00206 ( SWITCH, PRESSURE ) |

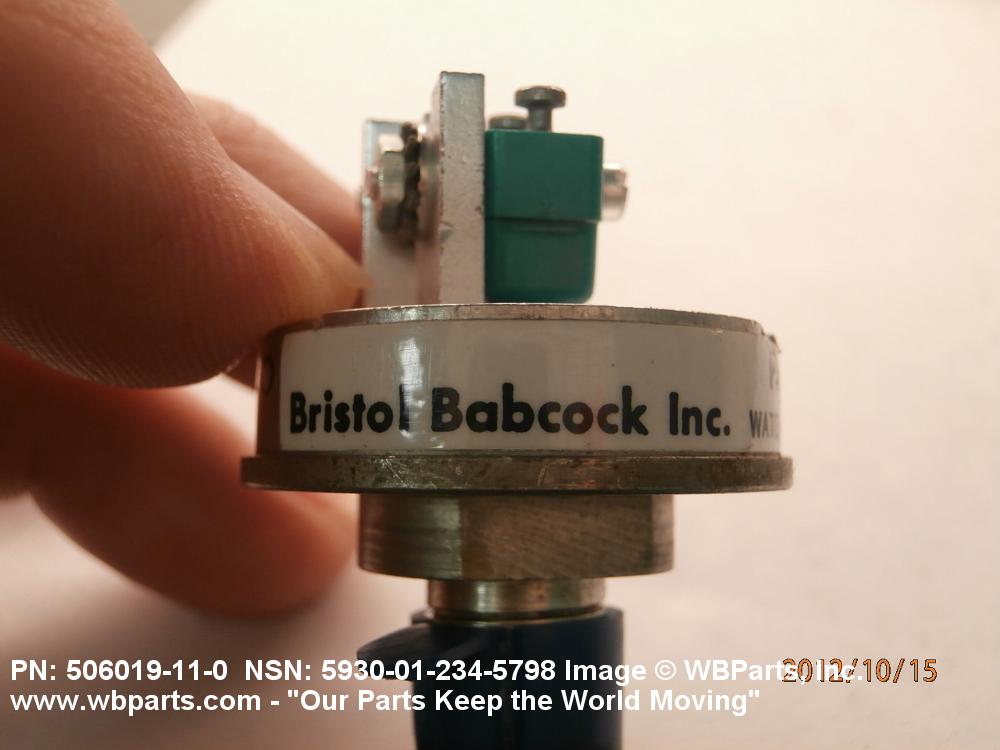

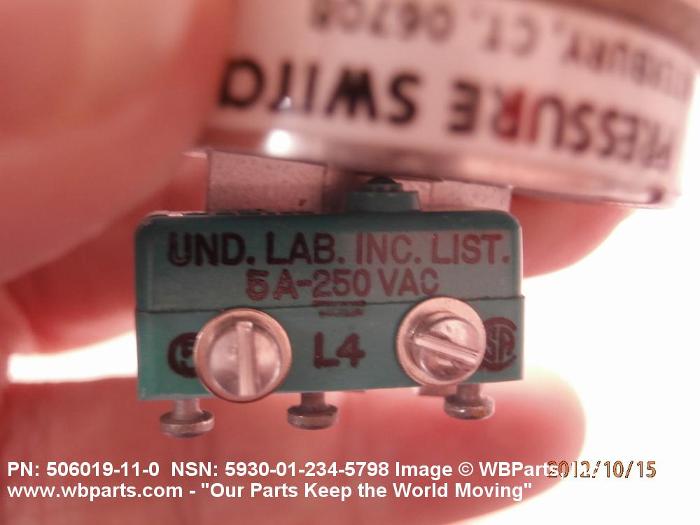

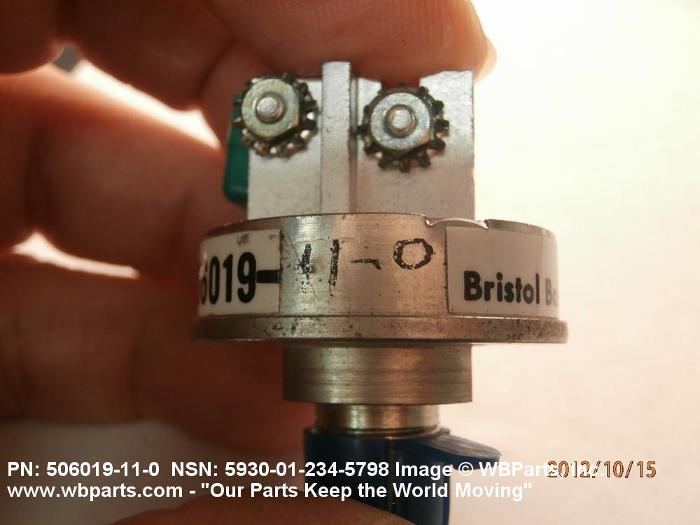

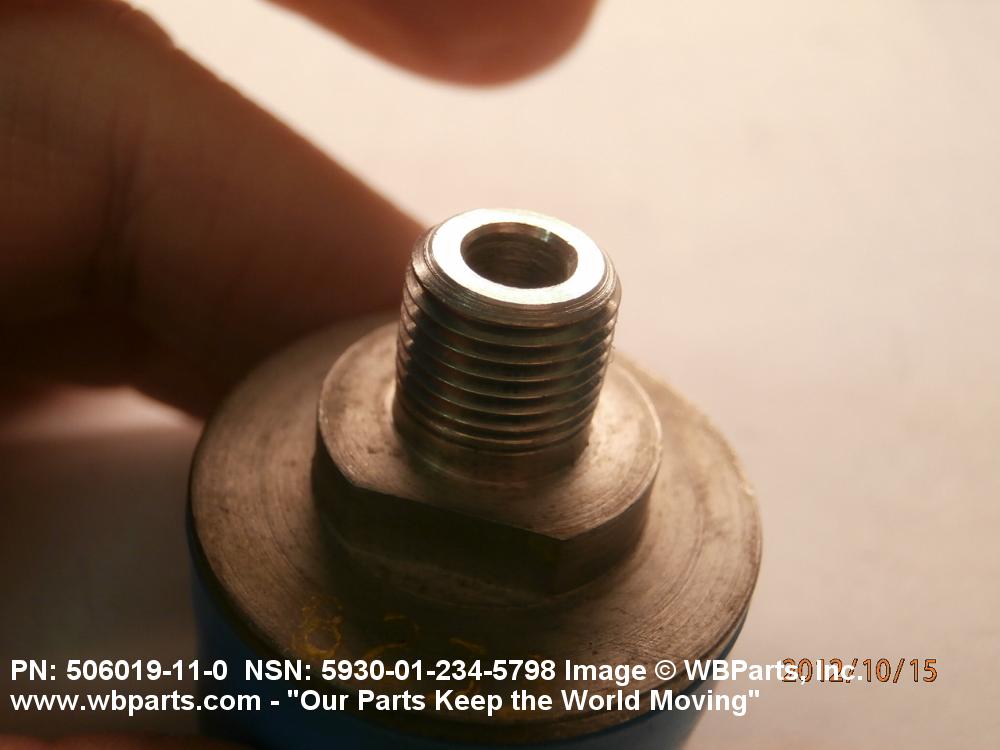

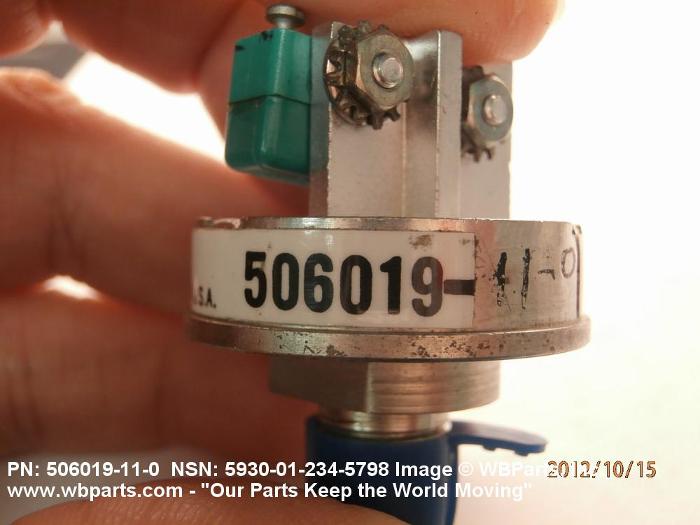

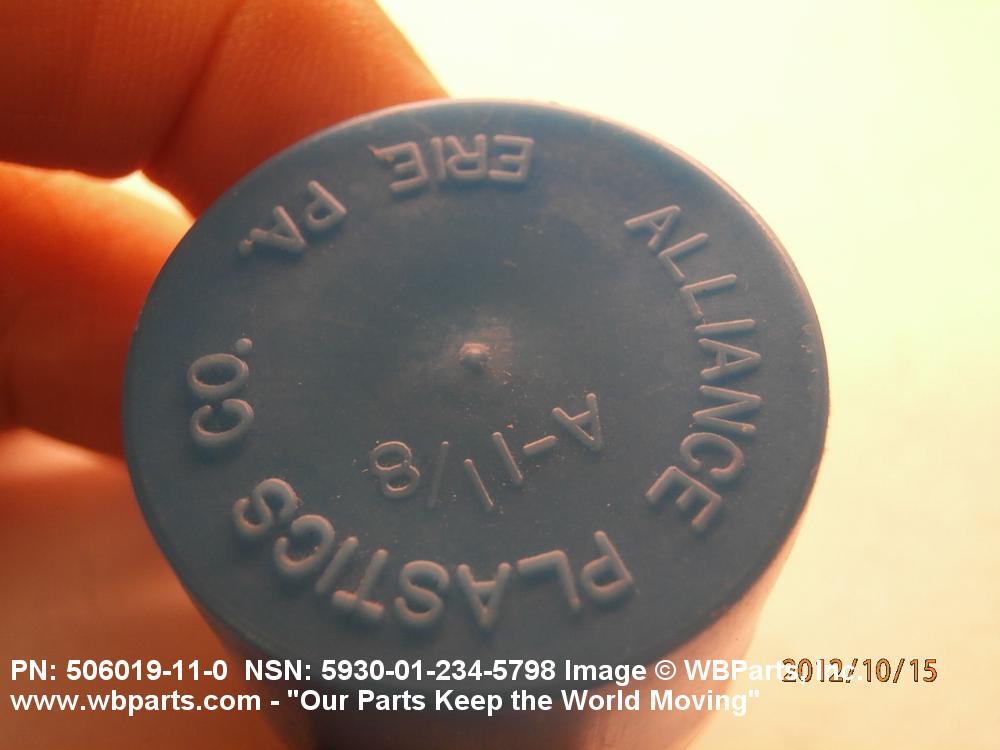

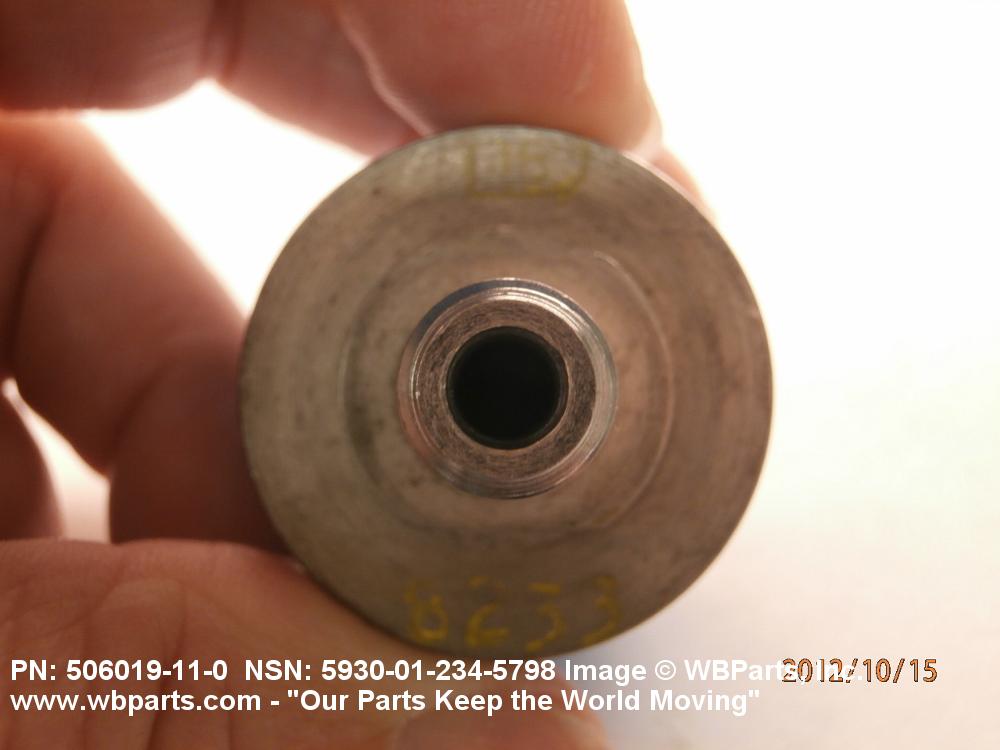

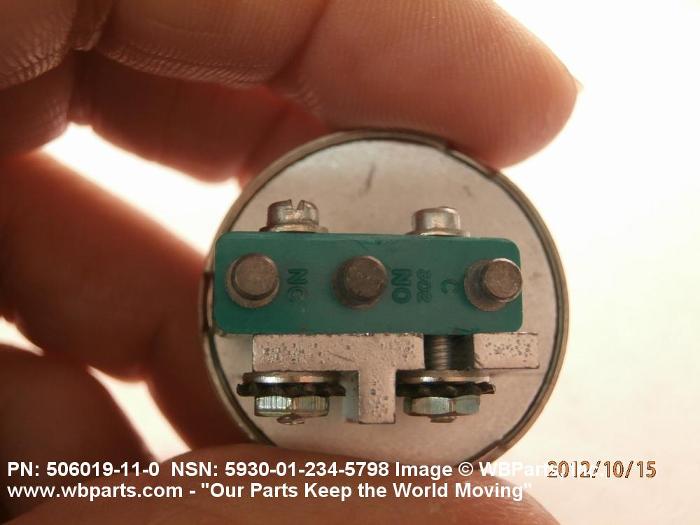

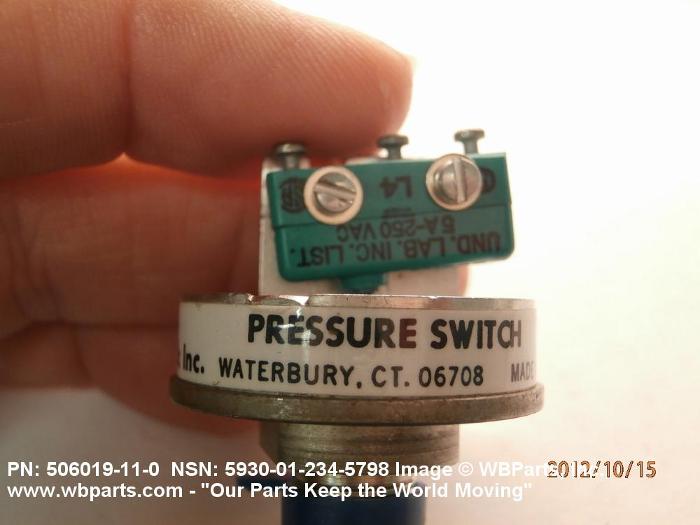

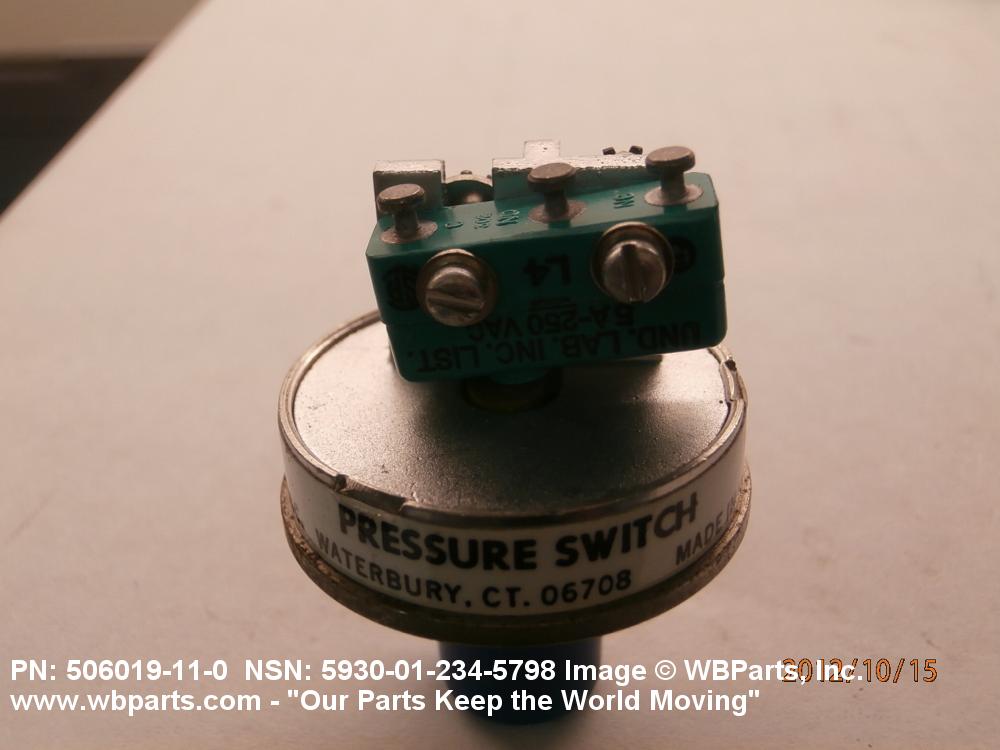

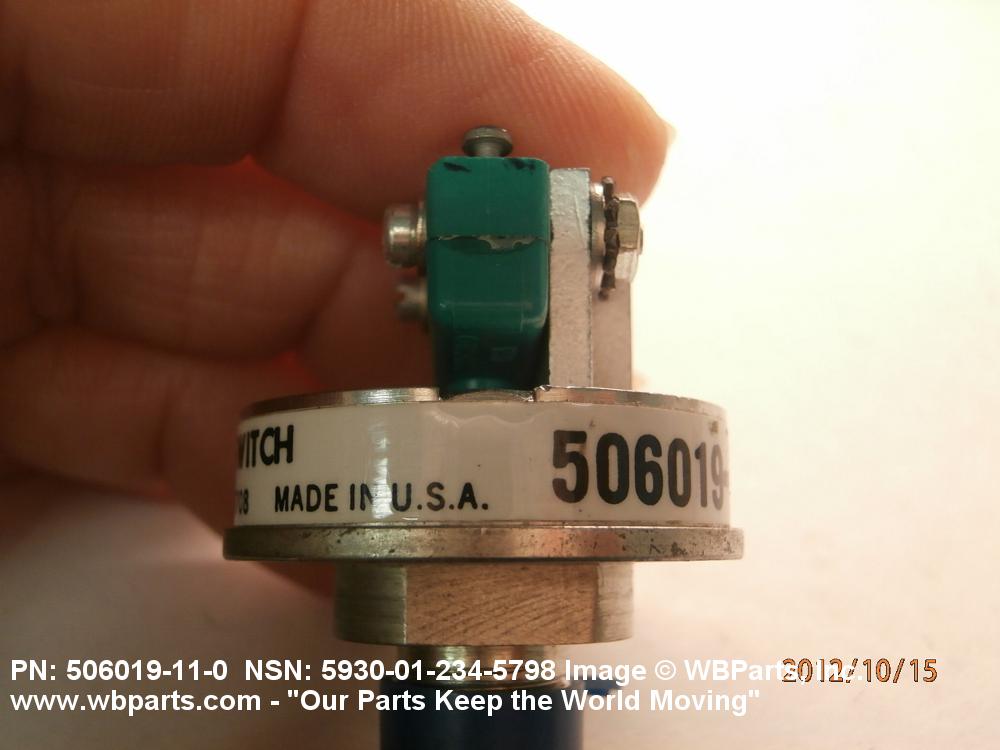

Drawings & Photos | NSN 5930-01-234-5798
Demand History | NSN 5930-01-234-5798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-234-5798 | 2012-08-241 | 1 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-234-5798
Technical Data | NSN 5930-01-234-5798
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 17 CYLINDRICAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| BODY LENGTH | 1.078 INCHES NOMINAL |
| OVERALL DIAMETER | 1.218 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE AND DEACTUATION POINT ADJUSTABLE |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES INDUCTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| PRESSURE CONNECTOR TYPE | FLARED, THREADED EXTERNAL SINGLE CONNECTION |
| OUTSIDE DIAMETER | 0.125 INCHES NOMINAL SINGLE CONNECTION |
| TERMINAL TYPE | TAB, SOLDER LUG |
Restrictions/Controls & Freight Information | NSN 5930-01-234-5798
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
