NSN 5930-01-251-5634 MTA106F, MTA-106F, 275619
Product Details | TOGGLE SWITCH
5930-01-251-5634 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MTA106F, MTA-106F, 275619, 275-619, 5930-01-251-5634, 01-251-5634, 5930012515634, 012515634
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 MAR 1987 | 01-251-5634 | 00184 ( SWITCH, TOGGLE ) |

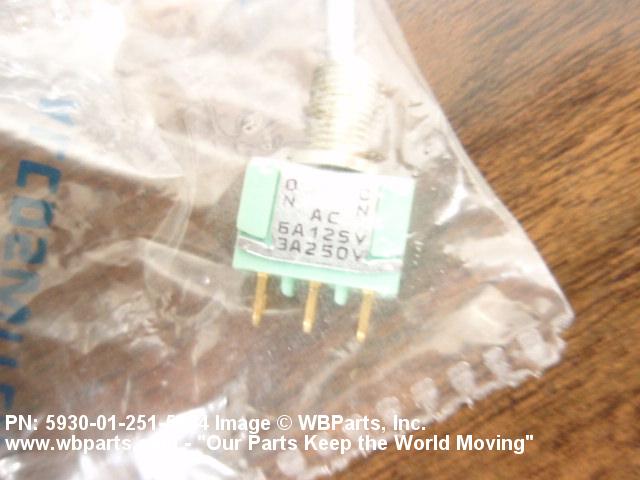

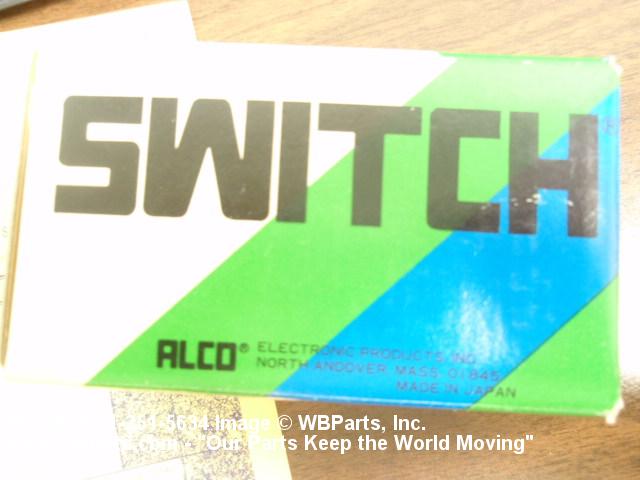

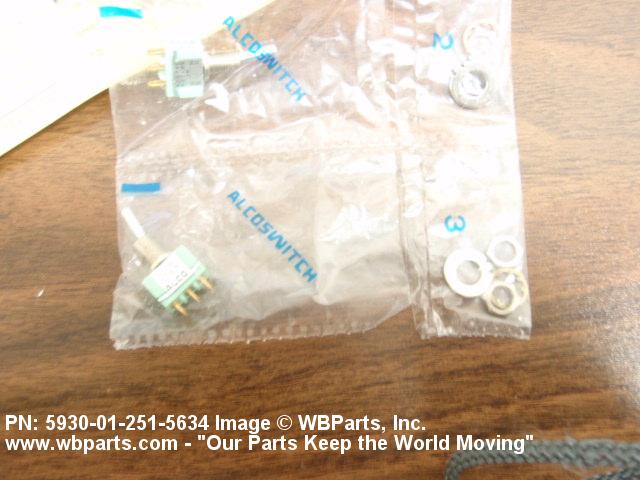

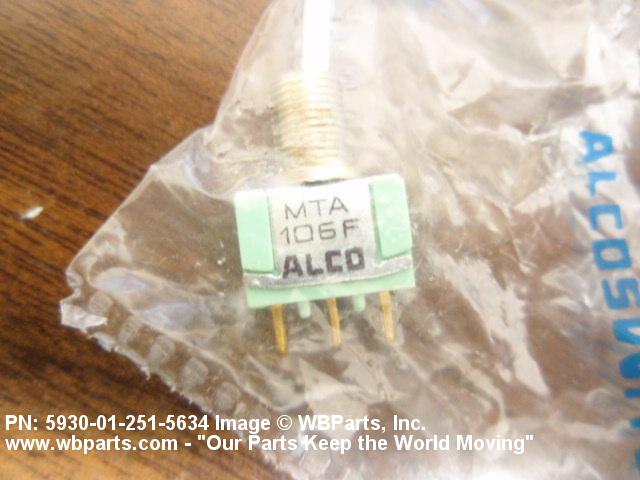

Drawings & Photos | NSN 5930-01-251-5634
Demand History | NSN 5930-01-251-5634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-251-5634 | 2009-12-337 | 20 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-251-5634
Technical Data | NSN 5930-01-251-5634
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 4.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |
| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.320 INCHES NOMINAL |
| BODY LENGTH | 0.510 INCHES NOMINAL |
| BODY WIDTH | 0.390 INCHES NOMINAL |
| BODY HEIGHT | 0.320 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.120 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.410 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| III OVERALL LENGTH | 0.510 INCHES NOMINAL |
| III OVERALL WIDTH | 0.320 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.280 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 4920-01-054-5637 ADAPTER,TEST |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND TERMINAL SURFACES GOLD AND CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-251-5634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
