NSN 5930-01-260-4113 158F861, 158F86-1, 59747441
Product Details | FLOW SWITCH
5930-01-260-4113 A switch which is specifically designed to operate by the influence of a gaseous, liquid, or solid media velocity on its actuator.
Part Alternates: 158F861, 158F86-1, 59747441, 5974744-1, 5930-01-260-4113, 01-260-4113, 5930012604113, 012604113
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUL 1987 | 01-260-4113 | 36841 ( SWITCH, FLOW ) |

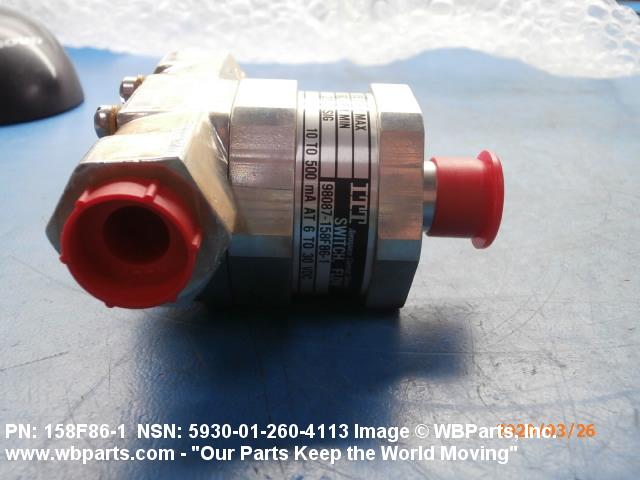

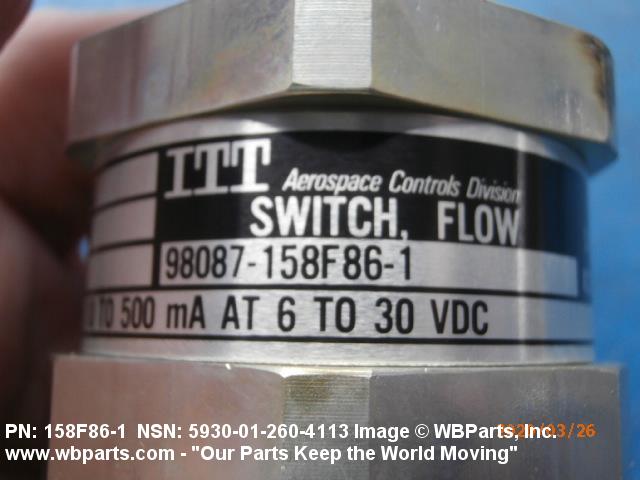

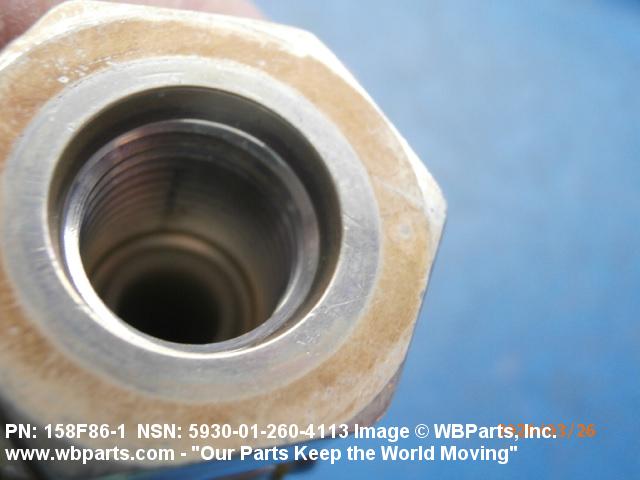

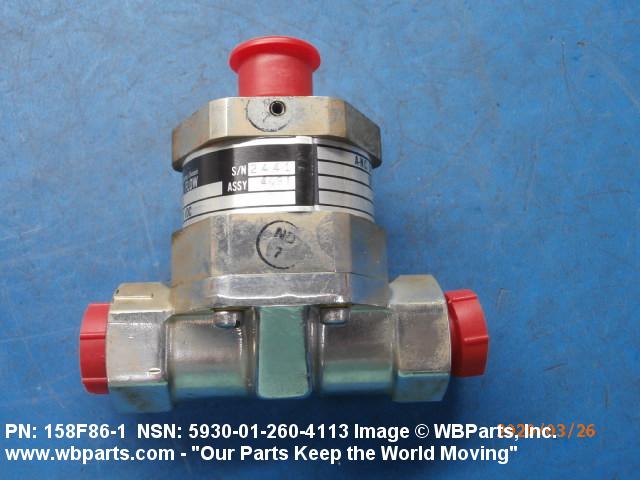

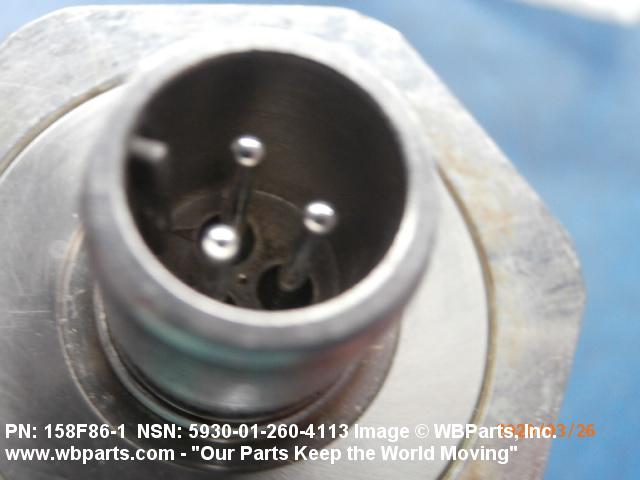

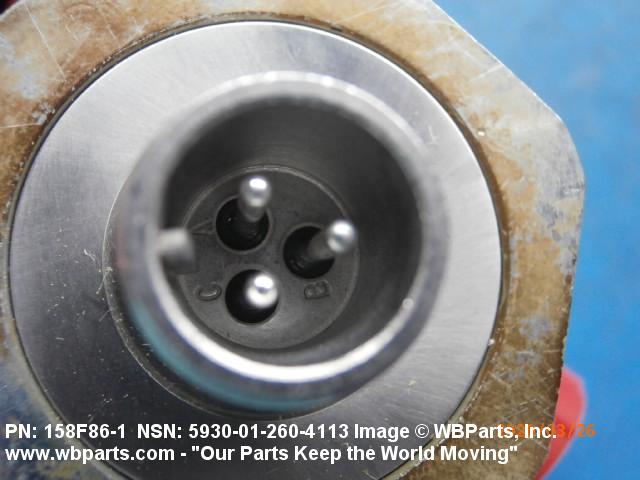

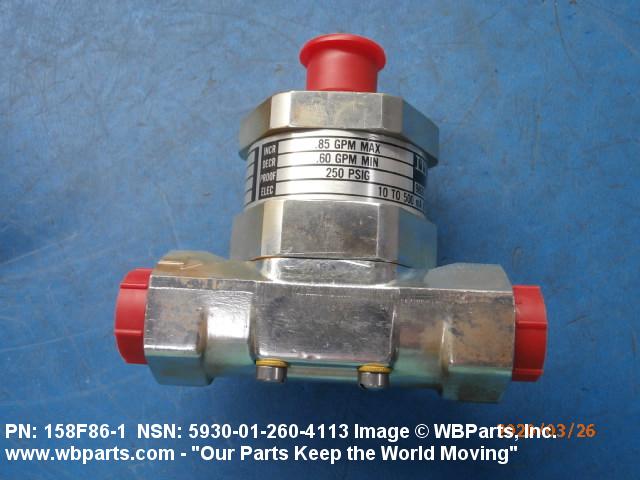

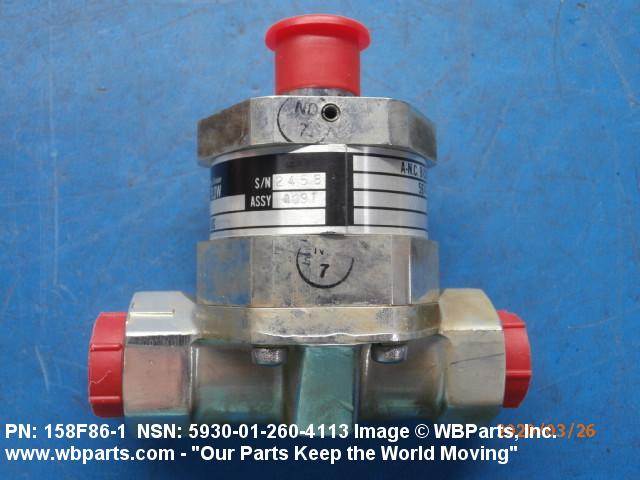

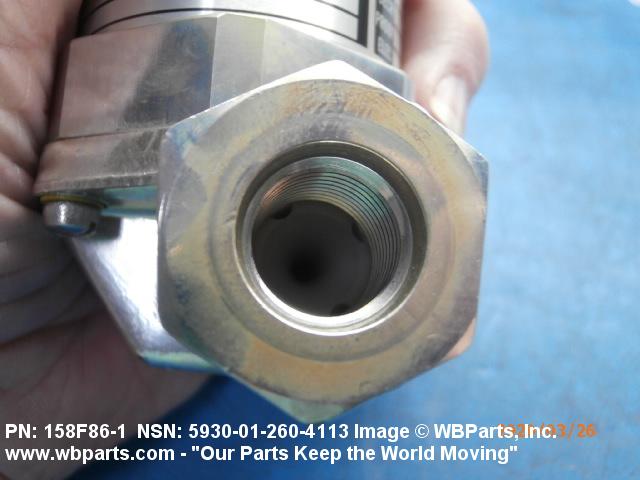

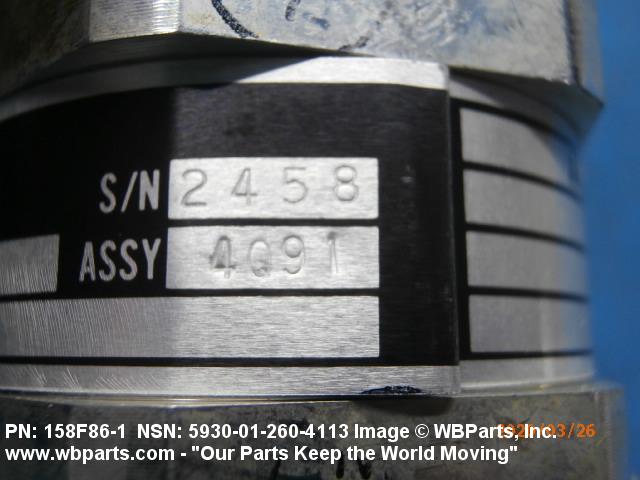

Drawings & Photos | NSN 5930-01-260-4113
Demand History | NSN 5930-01-260-4113
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 158F86-1 | 2022-10-300 | 35 | DIBBS |
| 158F86-1 | 2022-05-130 | 103 | DIBBS |
| 158F86-1 | 2022-04-111 | 43 | DIBBS |
| 158F86-1 | 2022-03-81 | 60 | DIBBS |
| 158F86-1 | 2021-08-213 | 60 | DIBBS |
| 5930-01-260-4113 | 2020-03-79 | 6 | United States |
| 5930-01-260-4113 | 2020-03-76 | 6 | United States |
| 158F86-1 | 2020-03-72 | 54 | DIBBS |
| 158F86-1 | 2019-12-335 | 32 | DIBBS |
| 158F86-1 | 2019-11-317 | 39 | DIBBS |
| 158F86-1 | 2019-05-140 | 74 | DIBBS |
| 158F86-1 | 2019-05-129 | 74 | DIBBS |
| 158F86-1 | 2019-05-123 | 26 | DIBBS |
| 158F86-1 | 2019-04-112 | 26 | DIBBS |
| 158F86-1 | 2019-03-84 | 26 | DIBBS |
| 158F86-1 | 2019-03-73 | 26 | DIBBS |
| 5930-01-260-4113 | 2018-11-312 | 13 | DIBBS |
| 5930-01-260-4113 | 2018-10-284 | 25 | DIBBS |
| 5930-01-260-4113 | 2018-01-16 | 16 | DIBBS |
| 5930-01-260-4113 | 2017-12-340 | 31 | DIBBS |
| 5930-01-260-4113 | 2017-08-235 | 32 | DIBBS |
| 5930-01-260-4113 | 2014-01-29 | 39 | DIBBS |
| 5930-01-260-4113 | 2014-01-06 | 53 | DIBBS |
| 5930-01-260-4113 | 2013-12-336 | 20 | DIBBS |
| 5930-01-260-4113 | 2013-11-328 | 24 | DIBBS |
| 5930-01-260-4113 | 2013-10-296 | 20 | DIBBS |
| 5930-01-260-4113 | 2013-08-240 | 33 | DIBBS |
| 5930-01-260-4113 | 2013-07-202 | 16 | DIBBS |
| 5930-01-260-4113 | 2013-06-155 | 15 | DIBBS |
| 5930-01-260-4113 | 2012-10-299 | 47 | DIBBS |
| 5930-01-260-4113 | 2012-10-277 | 19 | DIBBS |
| 5930-01-260-4113 | 2011-10-284 | 35 | DIBBS |
| 5930-01-260-4113 | 2011-09-245 | 56 | DIBBS |
| 5930-01-260-4113 | 2011-02-55 | 34 | DIBBS |
| 5930-01-260-4113 | 2011-02-38 | 6 | DIBBS |
| 5930-01-260-4113 | 2011-02-34 | 15 | DIBBS |
| 5930-01-260-4113 | 2010-12-357 | 14 | DIBBS |
| 5930-01-260-4113 | 2010-10-298 | 30 | DIBBS |
| 5930-01-260-4113 | 2010-08-242 | 10 | DIBBS |
| 5930-01-260-4113 | 2010-08-224 | 11 | DIBBS |
| 5930-01-260-4113 | 2010-07-190 | 9 | DIBBS |
| 5930-01-260-4113 | 2010-03-71 | 5 | DIBBS |
| 5930-01-260-4113 | 2010-01-29 | 6 | DIBBS |
| 5930-01-260-4113 | 2009-11-334 | 10 | DIBBS |
| 5930-01-260-4113 | 2009-09-247 | 15 | DIBBS |
| 5930-01-260-4113 | 2008-11-317 | 25 | DIBBS |
| 5930-01-260-4113 | 2008-09-263 | 15 | DIBBS |
| 5930-01-260-4113 | 2008-08-214 | 16 | DIBBS |
| 5930-01-260-4113 | 2008-07-185 | 11 | DIBBS |
| 5930-01-260-4113 | 2007-06-177 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-260-4113
Related Products | NSN 5930-01-260-4113
Technical Data | NSN 5930-01-260-4113
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 37 CYLINDRICAL |
| OVERALL LENGTH | 2.970 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE OR DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 0.85 ACTUATION POINT NOMINAL GALLONS PER MINUTE AND 0.60 DEACTUATION POINT NOMINAL GALLONS PER MINUTE |
| CONTACT VOLTAGE RATING IN VOLTS | 30.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 500.0 MILLIAMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | LIQUID |

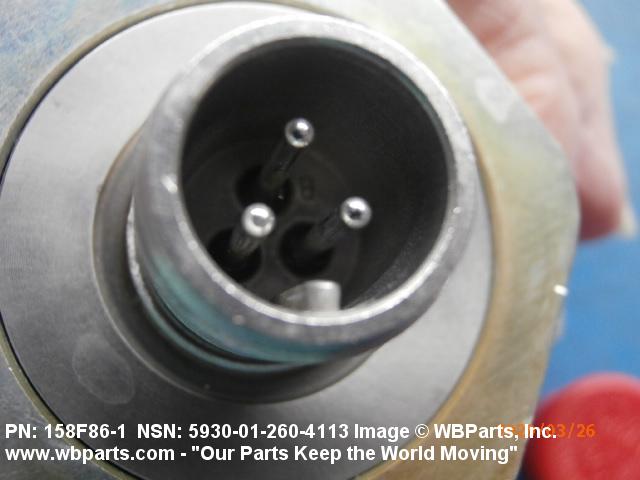

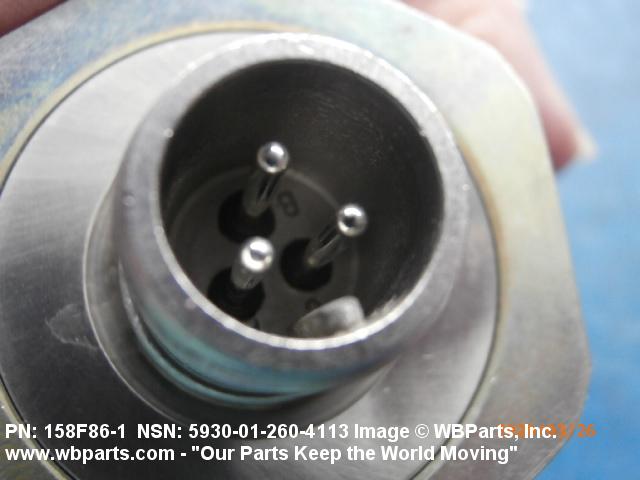

| TERMINAL TYPE | CONNECTOR, RECEPTACLE |

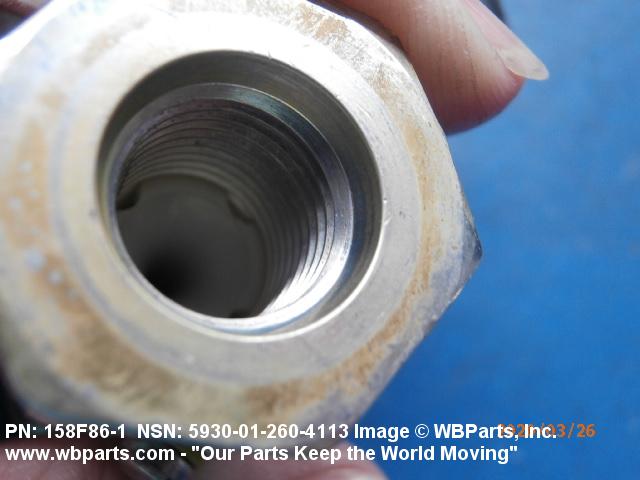

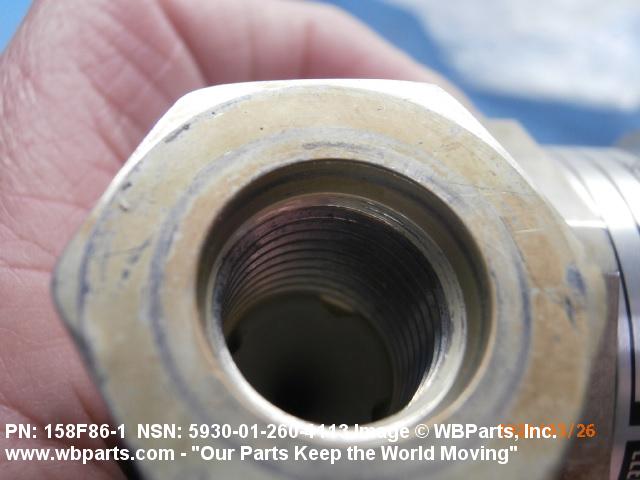

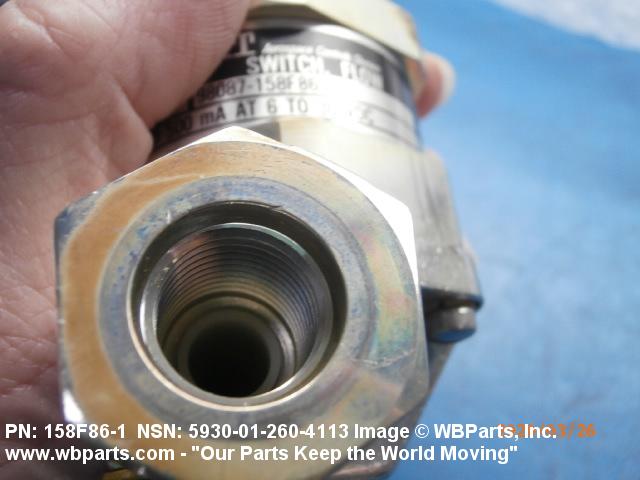

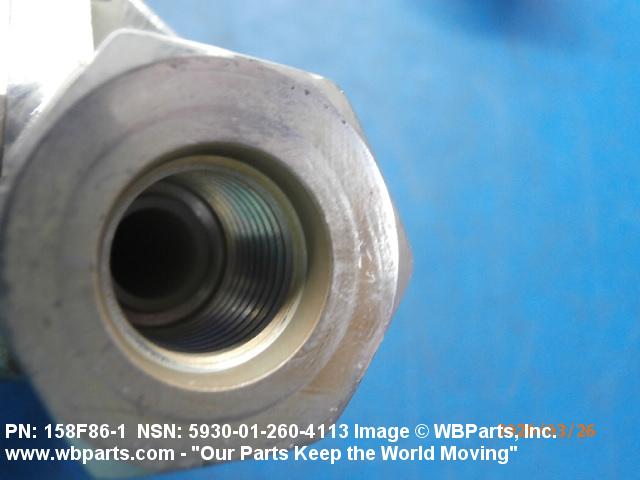

| MOUNTING METHOD | INLET CONNECTION AND OUTLET CONNECTION |
Restrictions/Controls & Freight Information | NSN 5930-01-260-4113
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-260-4113
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
