NSN 5930-01-266-0613 29150732, 2915073-2, 9750299010
Product Details | THERMOSTATIC SWITCH
5930-01-266-0613 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 29150732, 2915073-2, 9750299010, 975-0299-010, 5930-01-266-0613, 01-266-0613, 5930012660613, 012660613
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 OCT 1987 | 01-266-0613 | 00451 ( SWITCH, THERMOSTATIC ) |

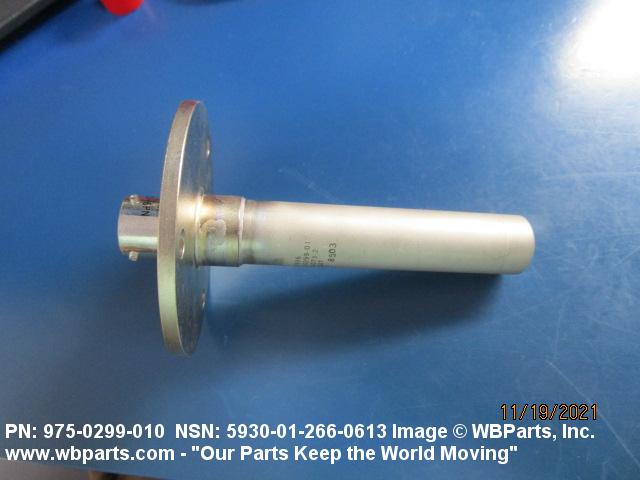

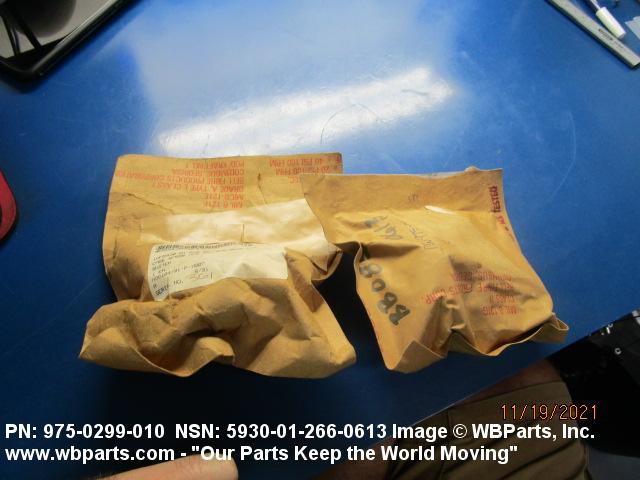

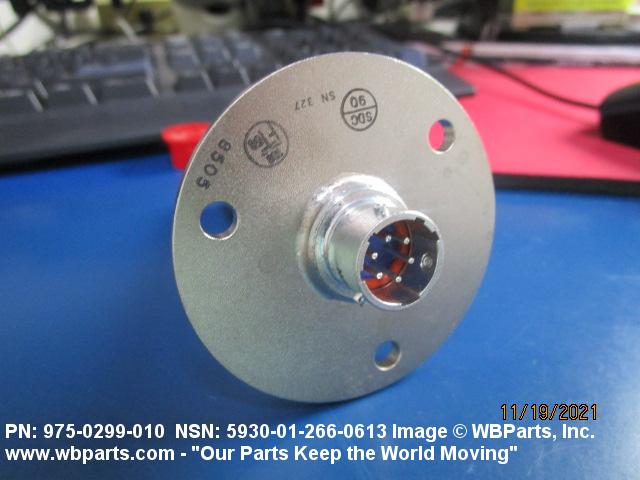

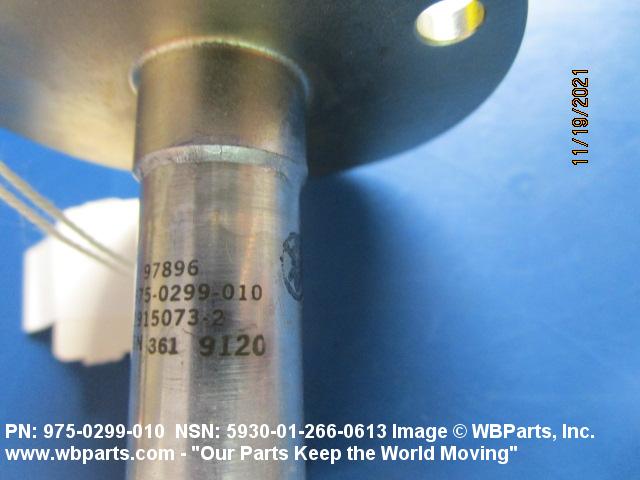

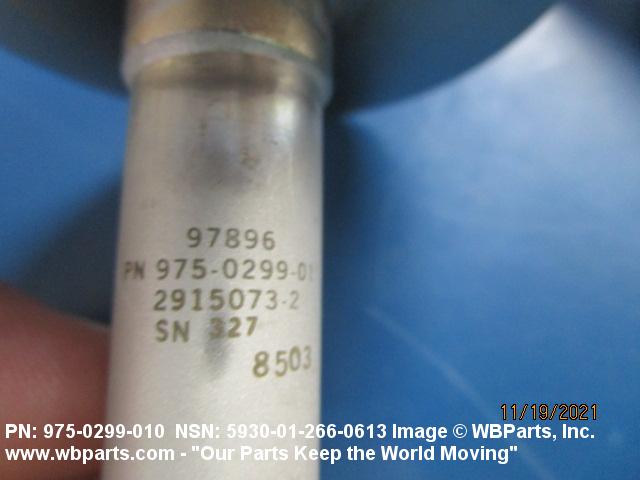

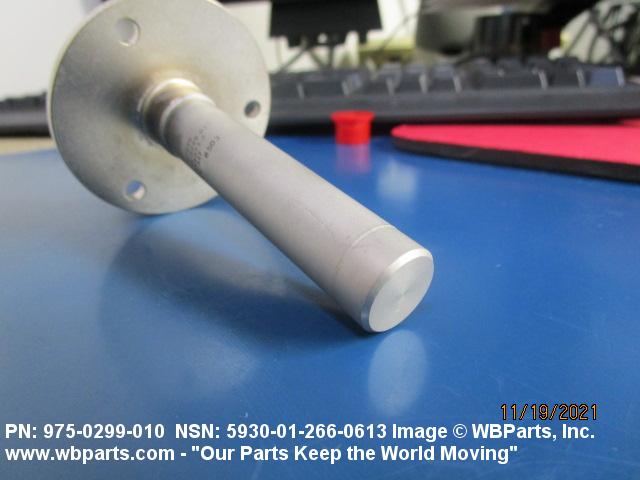

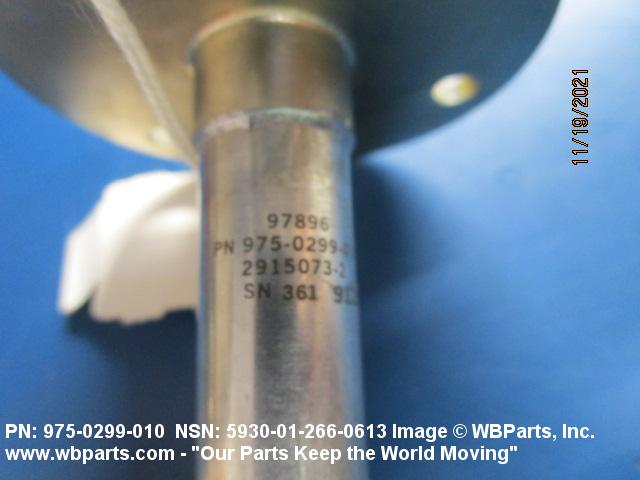

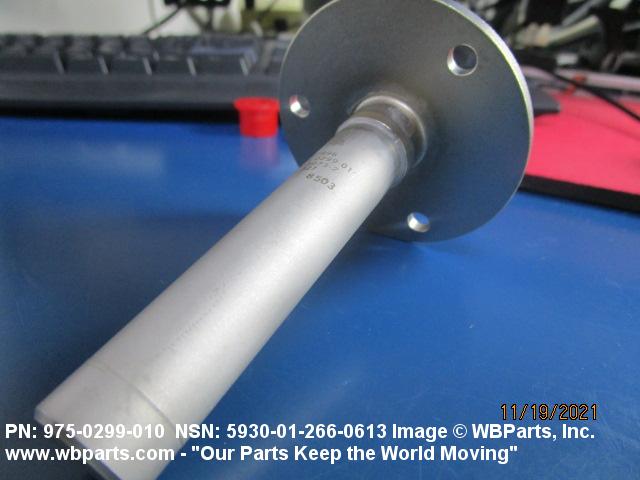

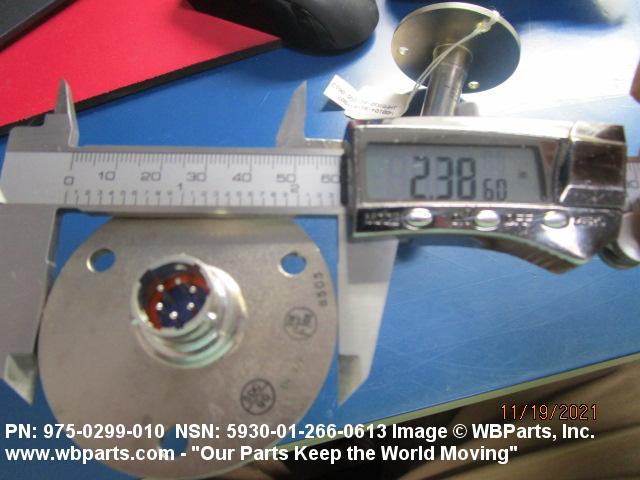

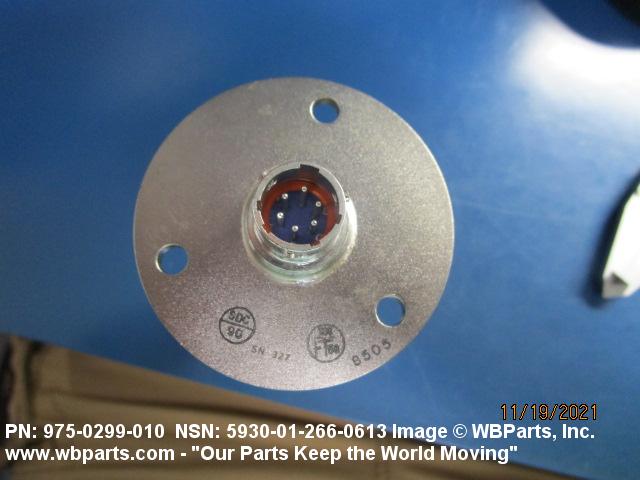

Drawings & Photos | NSN 5930-01-266-0613
Demand History | NSN 5930-01-266-0613
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-266-0613 | 2021-11-320 | 2 | United States |
| 5930-01-266-0613 | 2021-08-238 | 1 | DIBBS |
| 975-0299-010 | 2021-06-158 | 3 | DIBBS |
| 975-0299-010 | 2021-05-125 | 3 | DIBBS |
| 975-0299-010 | 2021-03-90 | 1 | DIBBS |
| 5930-01-266-0613 | 2008-09-255 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-266-0613
Related Products | NSN 5930-01-266-0613
Technical Data | NSN 5930-01-266-0613
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 67 CYLINDRICAL W/FLANGE |

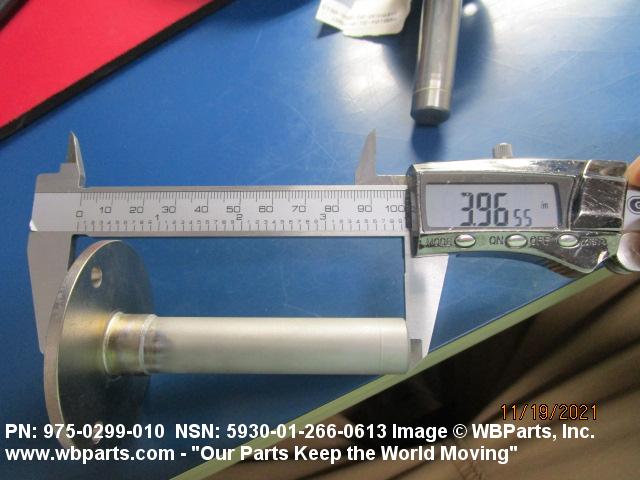

| OVERALL LENGTH | 3.950 INCHES MINIMUM AND 4.110 INCHES MAXIMUM |

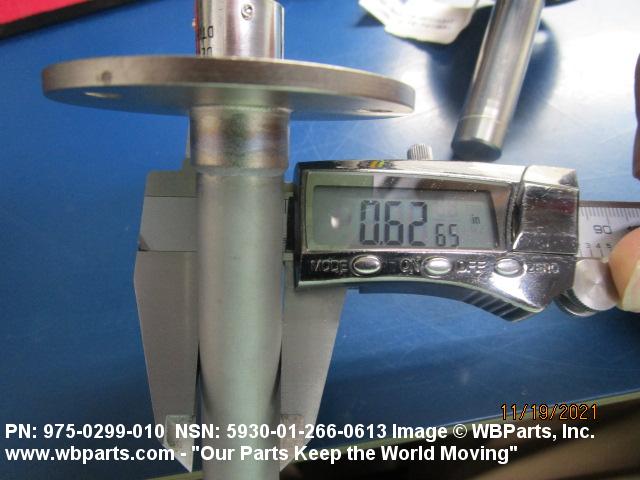

| BODY DIAMETER | 0.688 INCHES NOMINAL |
| BODY LENGTH | 3.230 INCHES MINIMUM AND 3.390 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.230 INCHES MINIMUM AND 2.530 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED |
| CONTACT ACTION STIMULUS | DECREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT ADJUSTABLE, PRESET OR DEACTUATION POINT ADJUSTABLE, PRESET |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 AC AT SEA LEVEL SINGLE VOLTAGE |
| FREQUENCY IN HERTZ | 600.0 SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD AND 2.5 AMPERES INDUCTIVE LOAD AND 1.0 AMPERES LAMP LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | CONNECTOR, PLUG |
| MOUNTING METHOD | FLANGE |
| MOUNTING FACILITY PATTERN | THREE POSITION CIRCULAR |
| MOUNTING FACILITY CIRCLE RADIUS | 1.875 INCHES MINIMUM AND 1.885 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5930-01-266-0613
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-266-0613
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
