NSN 5930-01-279-5025 3455RMB209T101BA14, 01-279-5025, 012795025
Product Details | THERMOSTATIC SWITCH
5930-01-279-5025 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: 3455RMB209T101BA14, 5930-01-279-5025, 01-279-5025, 5930012795025, 012795025
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAY 1988 | 01-279-5025 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-01-279-5025
Cross Reference | NSN 5930-01-279-5025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3455RMB209T101BA14 | 14604 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-279-5025
Technical Data | NSN 5930-01-279-5025
| Characteristic | Specifications |
|---|---|

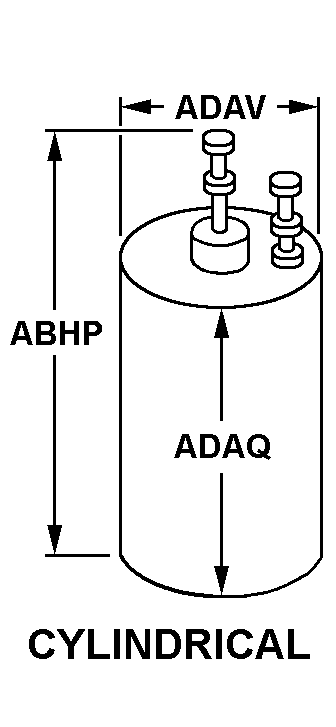

| STYLE DESIGNATOR | 14 CYLINDRICAL |
| OVERALL LENGTH | 1.217 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED |
| CONTACT ACTION STIMULUS | DECREASE |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MOUNTING METHOD | BRACKET |
| SPECIAL FEATURES | HORIZONTAL SOLDER TYPE BRACKETS LOCATED 180.0 DEG APART |
Restrictions/Controls & Freight Information | NSN 5930-01-279-5025
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
