NSN 5930-01-334-9749 U11J50ZQE1 , U11J50ZQECHINA WHITE, U11J50ZQECHINAWHITE

Product Details | TOGGLE SWITCH

5930-01-334-9749 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: U11J50ZQE1 , U11J50ZQECHINA WHITE, U11J50ZQECHINAWHITE, 31010613, 3101-0613 , 31012915, 3101-2915, 5930-01-334-9749, 01-334-9749, 5930013349749, 013349749

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 MAR 1991	01-334-9749	00184 ( SWITCH, TOGGLE )

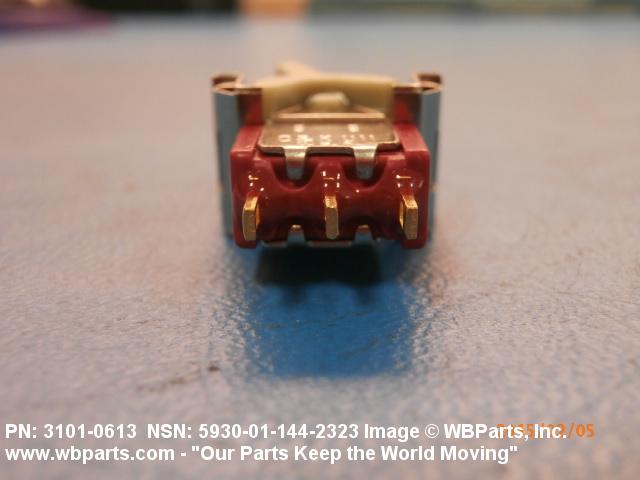

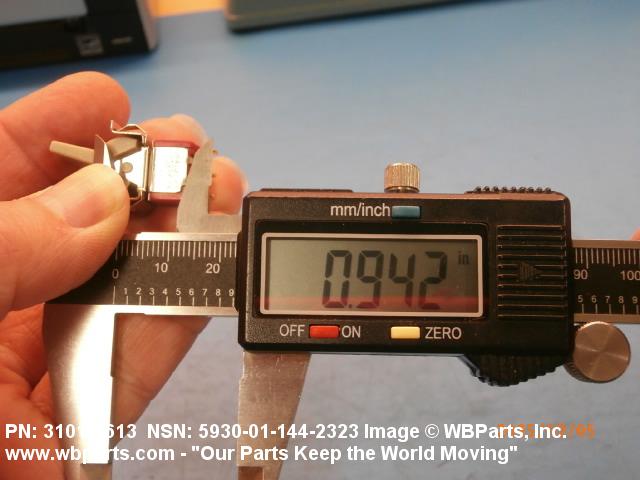

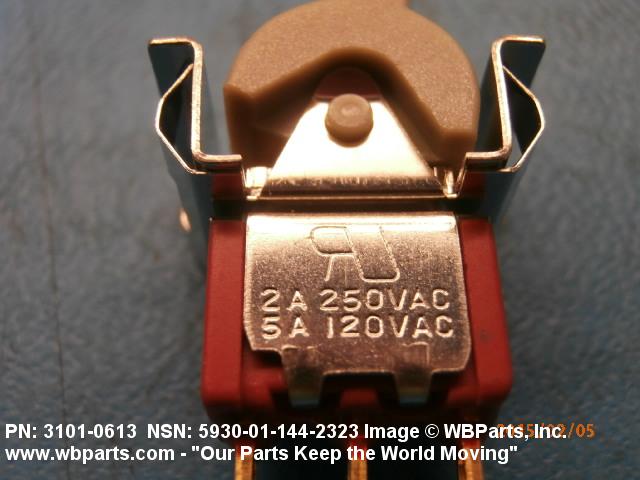

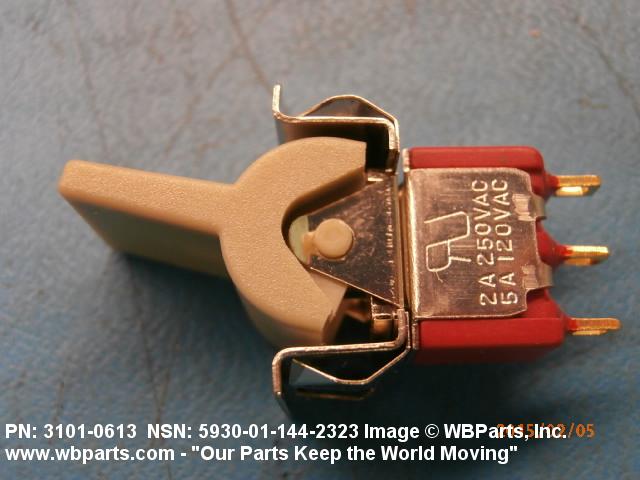

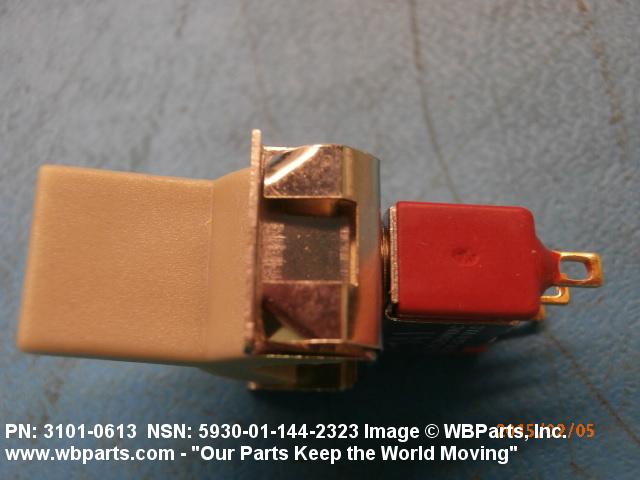

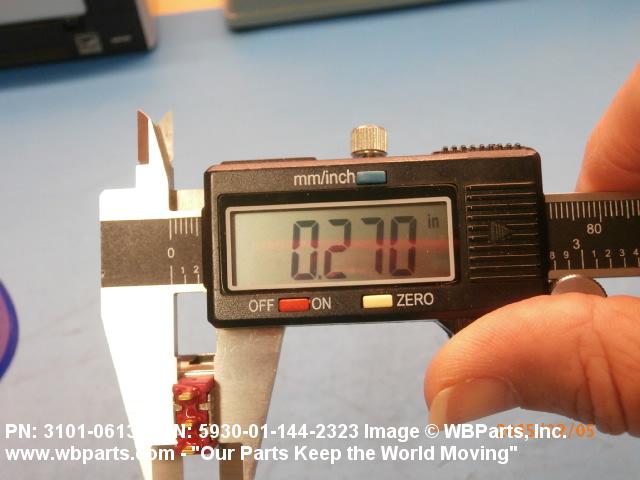

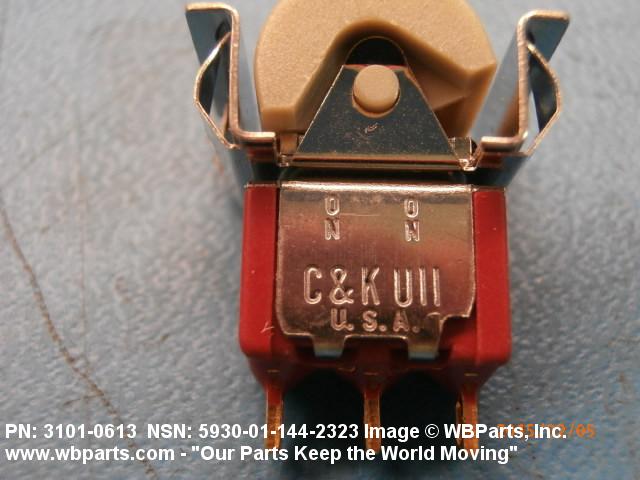

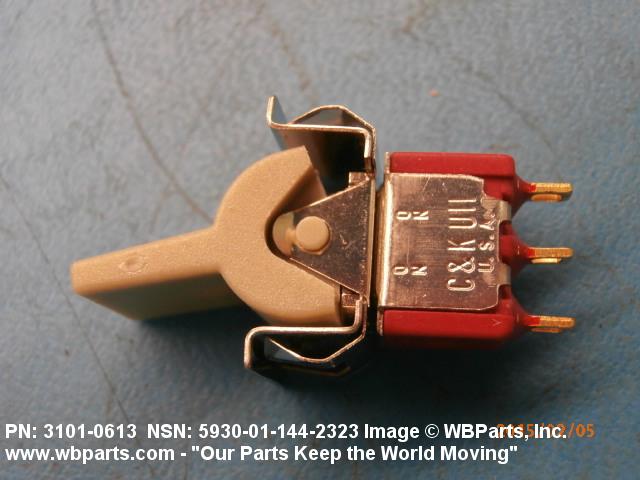

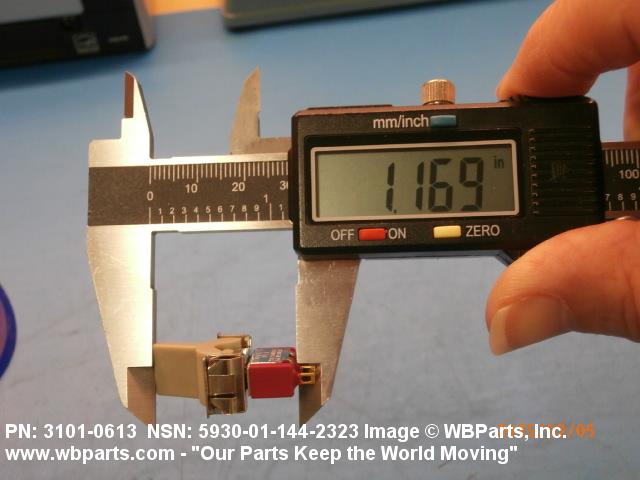

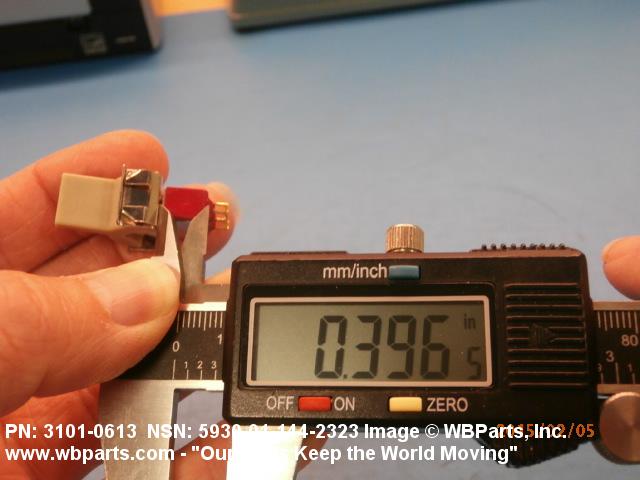

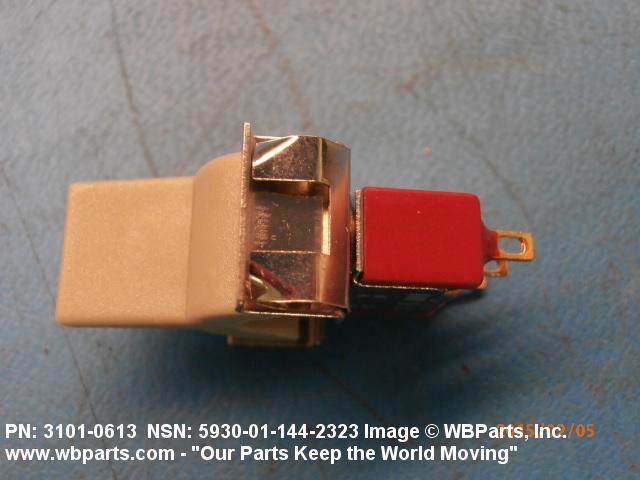

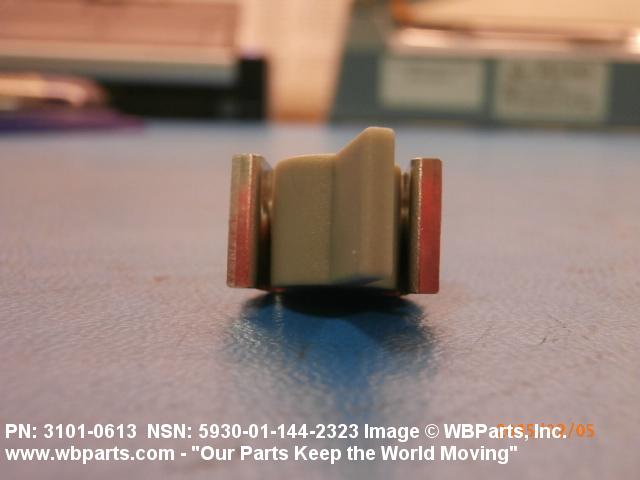

Drawings & Photos | NSN 5930-01-334-9749

Part Number	Request Date	QTY	Origin
3101-2915	2019-06-169	25	DIBBS
U11J50ZQE1	2019-06-169	25	DIBBS
31010613	2014-11-321	2	United States
5930-01-334-9749	2010-05-121	10	DIBBS
5930-01-334-9749	2010-04-95	10	DIBBS
5930-01-334-9749	2010-03-64	2	DIBBS
5930-01-334-9749	2010-01-25	7	DIBBS
5930-01-334-9749	2009-12-356	6	DIBBS
5930-01-334-9749	2009-11-309	2	DIBBS
5930-01-334-9749	2009-10-302	1	DIBBS
5930-01-334-9749	2009-10-302	3	DIBBS
5930-01-334-9749	2009-08-243	1	DIBBS
5930-01-334-9749	2009-07-200	1	DIBBS
5930-01-334-9749	2009-05-147	1	DIBBS
5930-01-334-9749	2009-04-93	1	DIBBS
5930-01-334-9749	2008-02-34	1	DIBBS
5930-01-334-9749	2007-02-39	1	DIBBS
5930-01-334-9749	2006-04-109	1	DIBBS

Cross Reference | NSN 5930-01-334-9749

Part Number	Cage Code	Manufacturer
3101-0613	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
3101-2915	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
3101-2915	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
U11J50ZQE1	09353	C AND K COMPONENTS INC
U11J50ZQECHINA WHITE	09353	C AND K COMPONENTS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-01-334-9749

Compare

Related Products | NSN 5930-01-334-9749

5930-01-334-9750, 5930-01-334-9844, 5930-01-334-9845, 5930-01-335-0188, 5930-01-335-0189

Technical Data | NSN 5930-01-334-9749

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	250.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC
BODY STYLE	22P PANEL MOUNT
BODY LENGTH	0.500 INCHES NOMINAL
BODY WIDTH	0.270 INCHES NOMINAL
BODY HEIGHT	0.495 INCHES NOMINAL
ACTUATOR STYLE	55 PIVOTED
ACTUATOR LENGTH	0.362 INCHES NOMINAL
ACTUATOR HEIGHT	0.203 INCHES NOMINAL
ACTUATOR WIDTH	0.450 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	LEFT POSITION MAINTAINED AND RIGHT POSITION MAINTAINED
ACTUATOR COLOR	WHITE SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY	3 TAB, SOLDER LUG
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	PANEL
SPECIFICATION/STANDARD DATA	28480-3101-2915 MANUFACTURERS SPECIFICATION CONTROL
III CASE MATERIAL	PLASTIC
III OVERALL LENGTH	0.715 INCHES NOMINAL
III OVERALL WIDTH	0.475 INCHES NOMINAL
III OVERALL HEIGHT	1.105 INCHES NOMINAL
III END ITEM IDENTIFICATION	ARLEIGH BURKE CLASS DDG, NIMITZ CLASS CVN, TICONDEROGA CLASS CG (47), OLIVER PERRY CLASS FFG. CALIBRATION STANDARDS EQUIPMENT.
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	TERMINAL SURFACES AND CONTACTS SILVER

Restrictions/Controls & Freight Information | NSN 5930-01-334-9749

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-01-334-9749

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
