NSN 5930-01-339-9099 7105L1PYAQE, 7105-L1P-Y-A-Q-E, 01-339-9099
Product Details | TOGGLE SWITCH
5930-01-339-9099 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 7105L1PYAQE, 7105-L1P-Y-A-Q-E, 5930-01-339-9099, 01-339-9099, 5930013399099, 013399099
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 JUN 1991 | 01-339-9099 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-01-339-9099
Cross Reference | NSN 5930-01-339-9099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7105-L1P-Y-A-Q-E | 09353 | C AND K COMPONENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-339-9099
Related Products | NSN 5930-01-339-9099
Technical Data | NSN 5930-01-339-9099
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, TWO POSITIONS MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC AND 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC |

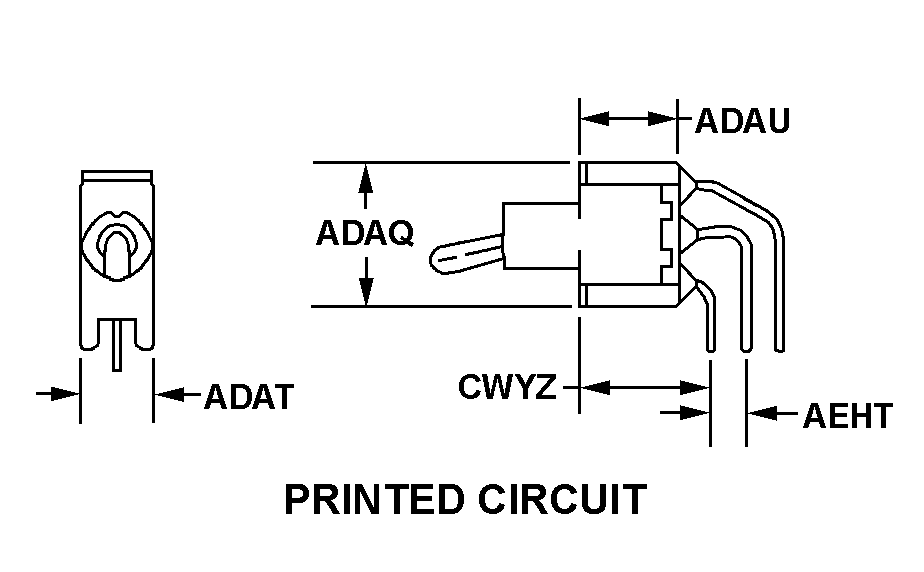

| BODY STYLE | 28P PRINTED CIRCUIT |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.270 INCHES NOMINAL |
| BODY HEIGHT | 0.350 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR DIAMETER | 0.130 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.640 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MOMENTARY AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 PRINTED CIRCUIT |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | PRINTED CIRCUIT AND THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 40 |
| III CASE MATERIAL | PLASTIC |
| III OVERALL LENGTH | 0.500 INCHES NOMINAL |
| III OVERALL WIDTH | 0.395 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.515 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | 1430-01-286-1314 GUIDED MISSILE BATTERY CONTROL CENTRAL,VEHICLE MOUNTED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND TERMINAL SURFACES SILVER |
