NSN 5930-01-350-2038 9939003, 993-9003, 01-350-2038
Product Details | TOGGLE SWITCH
5930-01-350-2038 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 9939003, 993-9003, 5930-01-350-2038, 01-350-2038, 5930013502038, 013502038
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 DEC 1991 | 01-350-2038 | 00184 ( SWITCH, TOGGLE ) |

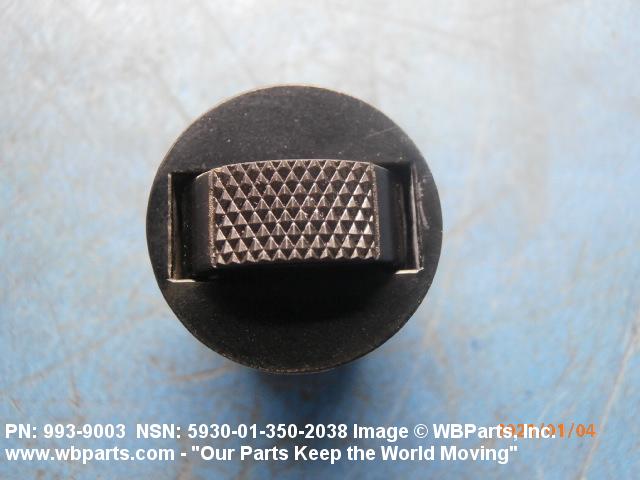

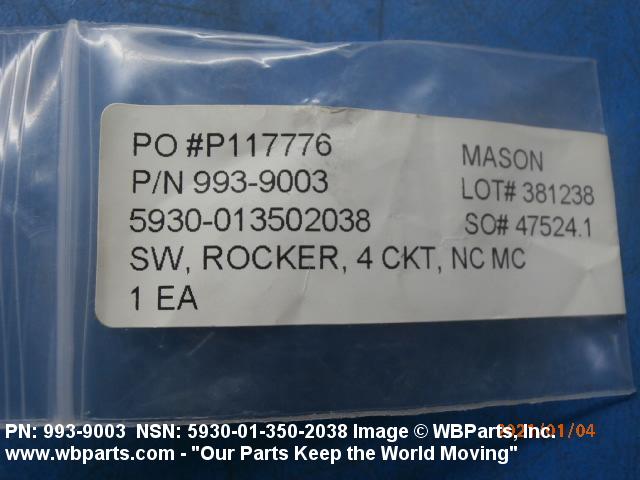

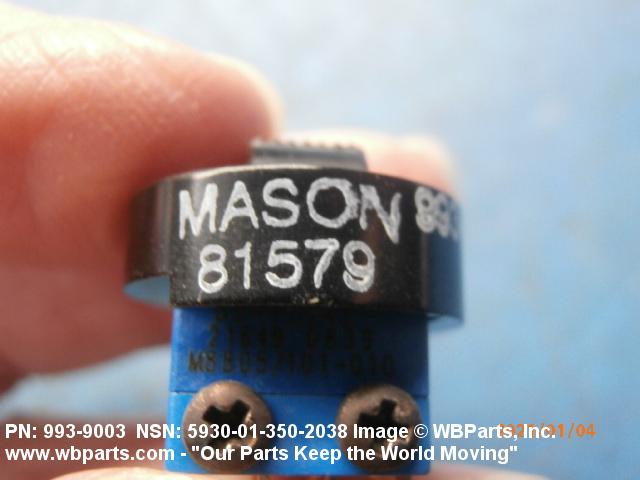

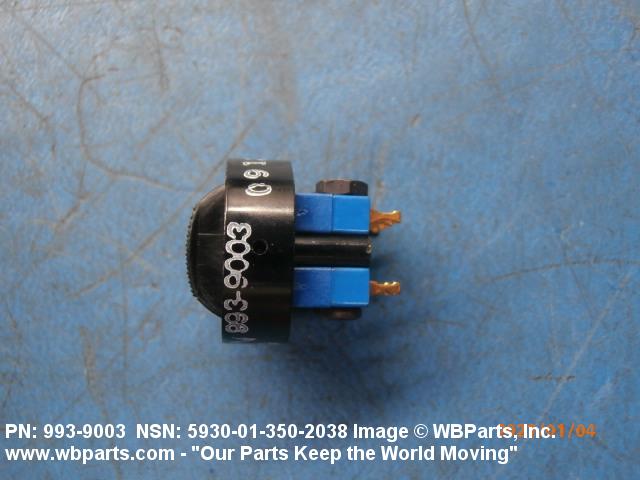

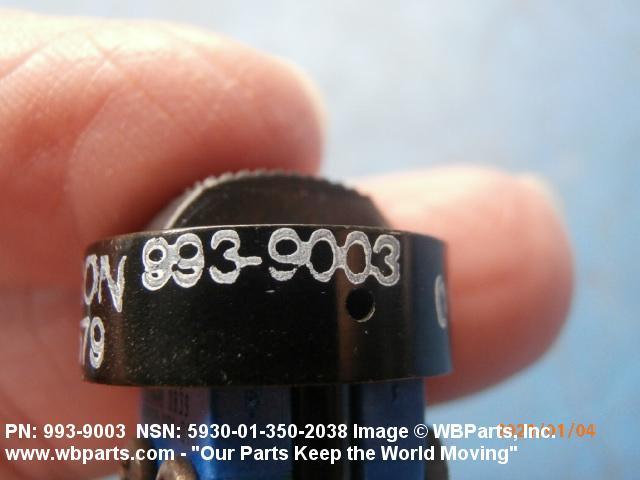

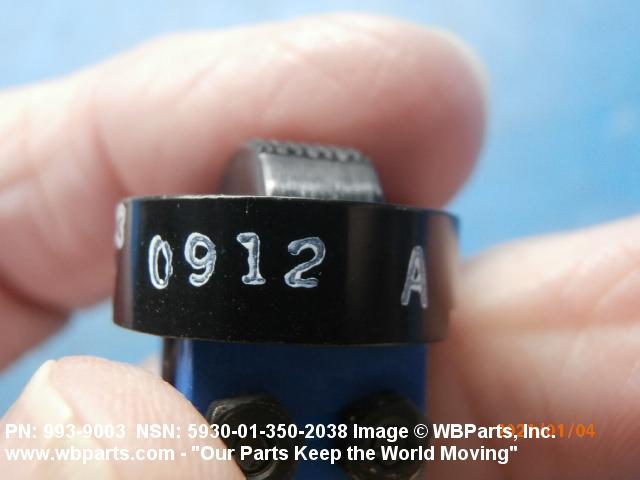

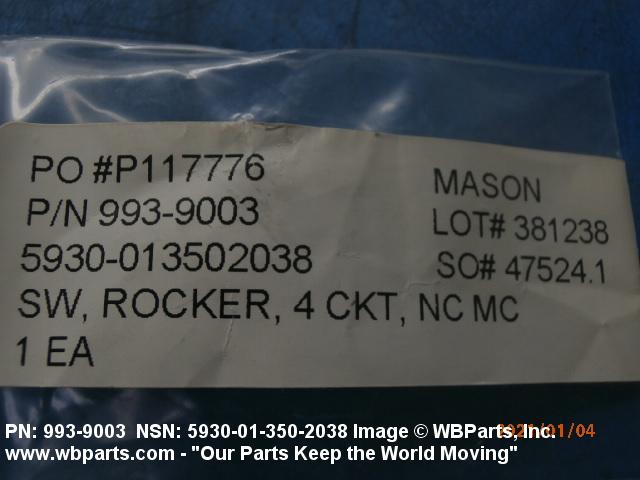

Drawings & Photos | NSN 5930-01-350-2038
Demand History | NSN 5930-01-350-2038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-350-2038 | 2025-09-252 | 2 | US |
| 9939003 | 2025-08-238 | 2 | US |
| 5930-01-350-2038 | 2025-08-231 | 4 | Australia |
| 993-9003 | 2024-02-39 | 9 | DIBBS |
| 993-9003 | 2023-10-299 | 8 | DIBBS |
| 5930-01-350-2038 | 2023-01-30 | 1 | US |
| 5930-01-350-2038 | 2023-01-25 | 5 | US |
| 993-9003 | 2022-11-331 | 12 | DIBBS |
| 993-9003 | 2022-11-317 | 12 | DIBBS |
| 993-9003 | 2022-09-270 | 6 | DIBBS |
| 993-9003 | 2022-09-251 | 6 | DIBBS |
| 993-9003 | 2022-07-188 | 10 | DIBBS |
| 993-9003 | 2022-02-55 | 5 | DIBBS |
| 993-9003 | 2021-10-280 | 8 | DIBBS |
| 993-9003 | 2021-08-220 | 8 | DIBBS |
| 993-9003 | 2021-06-161 | 4 | DIBBS |
| 993-9003 | 2021-03-77 | 4 | DIBBS |
| 9939003 | 2020-12-352 | 1 | United States |
| 993-9003 | 2020-07-203 | 22 | DIBBS |
| 993-9003 | 2020-04-97 | 6 | DIBBS |
| 993-9003 | 2020-03-86 | 6 | DIBBS |
| 993-9003 | 2019-11-325 | 16 | DIBBS |
| 5930-01-350-2038 | 2019-09-269 | 15 | US |
| 993-9003 | 2019-09-255 | 4 | DIBBS |
| 993-9003 | 2019-06-178 | 10 | DIBBS |
| 5930-01-350-2038 | 2018-08-228 | 25 | DIBBS |
| 5930-01-350-2038 | 2017-09-247 | 13 | DIBBS |
| 5930-01-350-2038 | 2016-04-102 | 11 | DIBBS |
| 5930-01-350-2038 | 2016-03-91 | 11 | DIBBS |
| 5930-01-350-2038 | 2014-10-295 | 6 | US |
| 5930-01-350-2038 | 2012-07-207 | 19 | DIBBS |
| 5930-01-350-2038 | 2012-05-125 | 24 | DIBBS |
| 5930-01-350-2038 | 2012-02-40 | 12 | DIBBS |
| 5930-01-350-2038 | 2011-09-273 | 9 | DIBBS |
| 9939003 | 2011-09-259 | 3 | Italy |
| 5930-01-350-2038 | 2011-03-67 | 9 | DIBBS |
| 5930-01-350-2038 | 2008-07-205 | 13 | DIBBS |
| 5930-01-350-2038 | 2008-03-88 | 14 | DIBBS |
| 5930-01-350-2038 | 2007-12-337 | 14 | DIBBS |
| 5930-01-350-2038 | 2007-05-145 | 16 | DIBBS |
Cross Reference | NSN 5930-01-350-2038
| Part Number | Cage Code | Manufacturer |
|---|---|---|

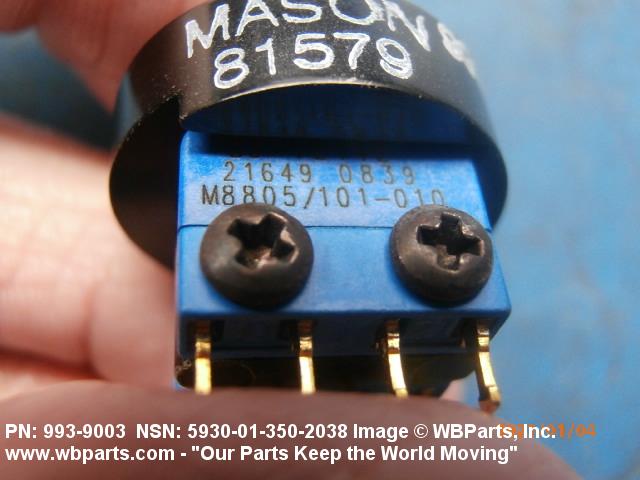

| 993-9003 | 81579 | MASON ELECTRIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-350-2038
Related Products | NSN 5930-01-350-2038
Technical Data | NSN 5930-01-350-2038
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 TWO CIRCUIT, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.0 MILLIAMPERES INDUCTIVE DC AND 1.000 AMPERES RESISTIVE DC |
| BODY STYLE | 3P HOLE MOUNT |

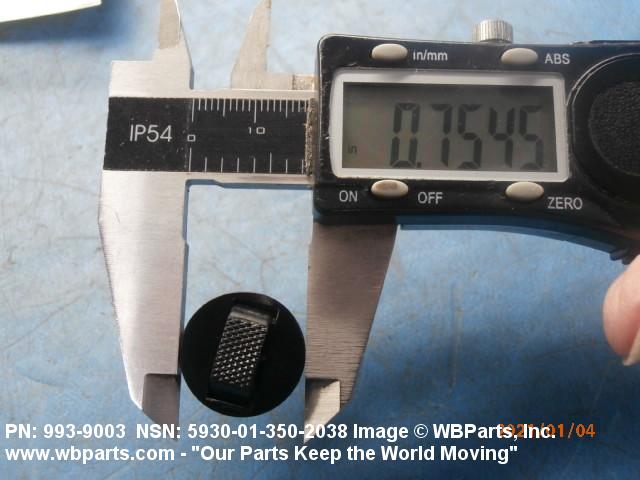

| BODY DIAMETER | 0.750 INCHES NOMINAL |

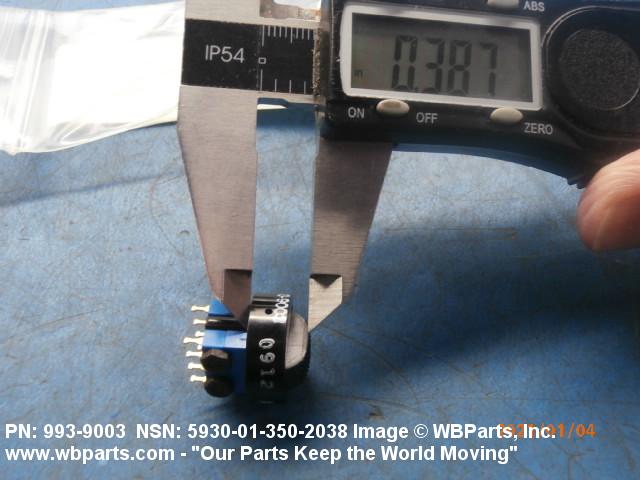

| BODY LENGTH | 0.360 INCHES NOMINAL |

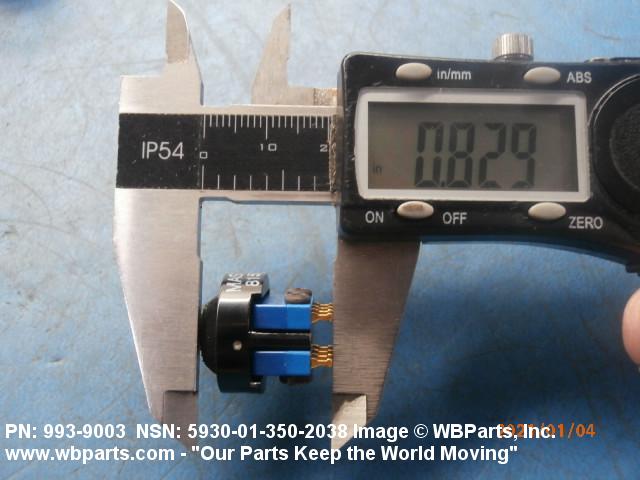

| OVERALL LENGTH | 0.820 INCHES NOMINAL |
| OVERALL DIAMETER | 0.750 INCHES NOMINAL |

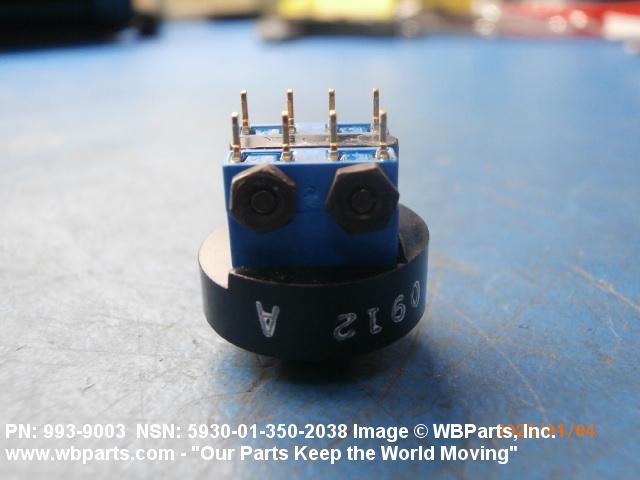

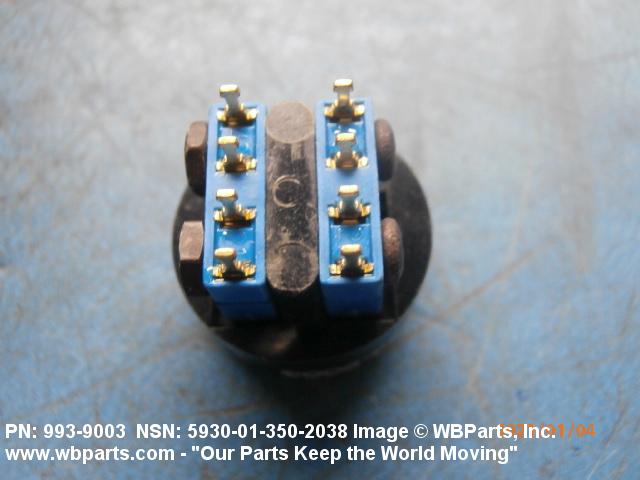

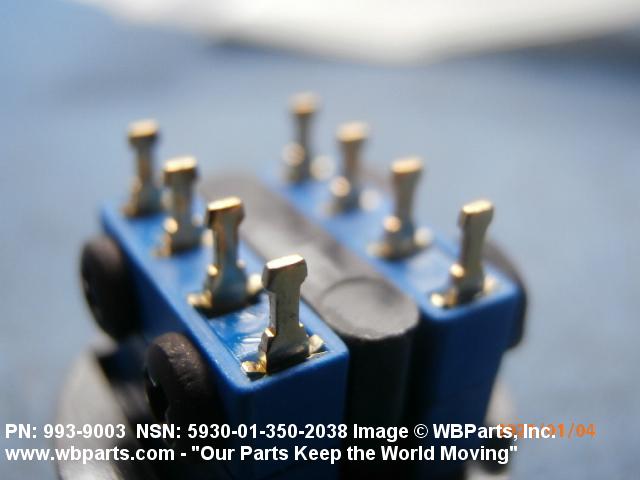

| TERMINAL TYPE AND QUANTITY | 8 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| III CASE MATERIAL | PLASTIC |
Restrictions/Controls & Freight Information | NSN 5930-01-350-2038
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-350-2038
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
