NSN 5930-01-353-0423 7109P3YWQE, 01-353-0423, 013530423
Product Details | PUSH-PULL SWITCH
5930-01-353-0423 A switch which is actuated in one direction by pushing and in the opposite direction by pulling. Excludes LIGHT-SWITCH ASSEMBLY.
Part Alternates: 7109P3YWQE, 5930-01-353-0423, 01-353-0423, 5930013530423, 013530423
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 FEB 1992 | 01-353-0423 | 00407 ( SWITCH, PUSH-PULL ) |

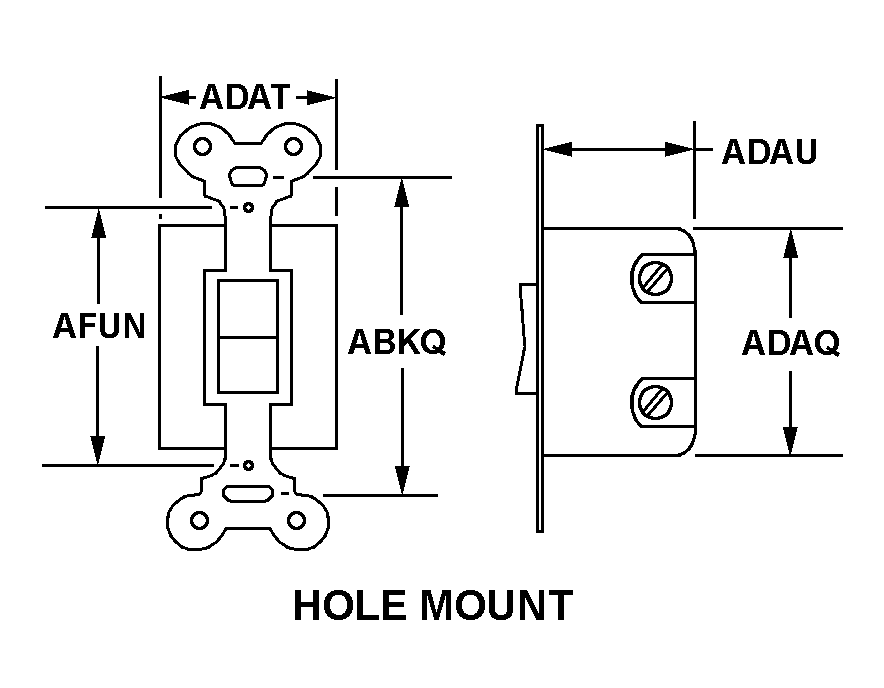

Drawings & Photos | NSN 5930-01-353-0423
Cross Reference | NSN 5930-01-353-0423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7109P3YWQE | 09353 | C AND K COMPONENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-353-0423
Technical Data | NSN 5930-01-353-0423
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 120.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES INDUCTIVE AC |
| BODY STYLE | 49K HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.156 INCHES NOMINAL |
| BODY HEIGHT | 0.370 INCHES NOMINAL |
| ACTUATOR STYLE | 55 PIVOTED |
| ACTUATOR COLOR | BLACK SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| MOUNTING METHOD | BRACKET |
| SPECIAL FEATURES | ACTUATOR MATL NYLON |
Restrictions/Controls & Freight Information | NSN 5930-01-353-0423
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
