NSN 5930-01-357-1078 10412055, 10412-055, 13713047
Product Details | PUSH SWITCH
5930-01-357-1078 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 10412055, 10412-055, 13713047, 13713-047, 70902-84851-101, 5930-01-357-1078, 01-357-1078, 7090284851101, 5930013571078, 013571078
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 APR 1992 | 01-357-1078 | 00406 ( SWITCH, PUSH ) |

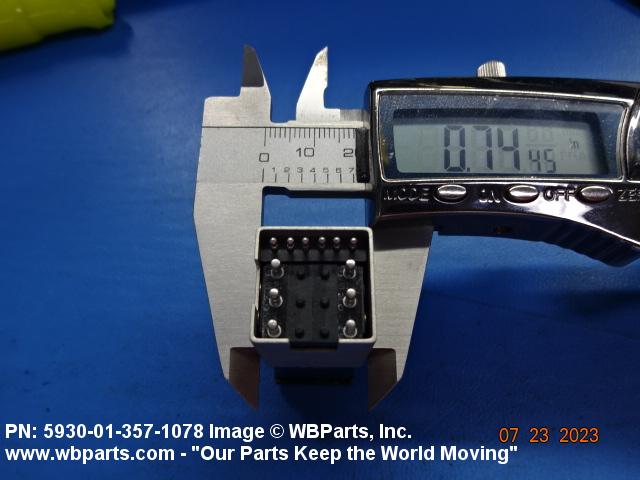

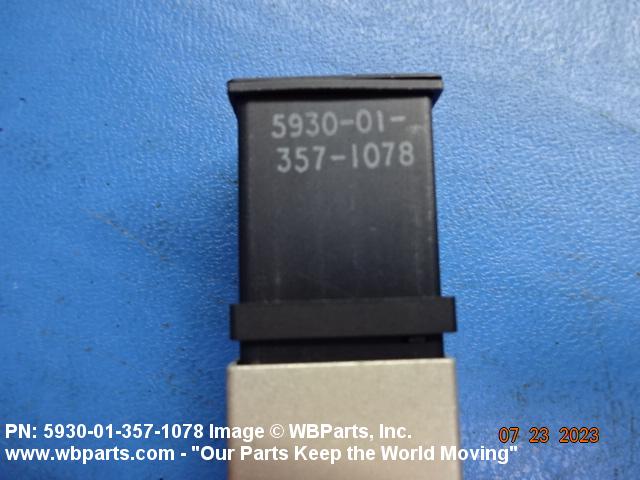

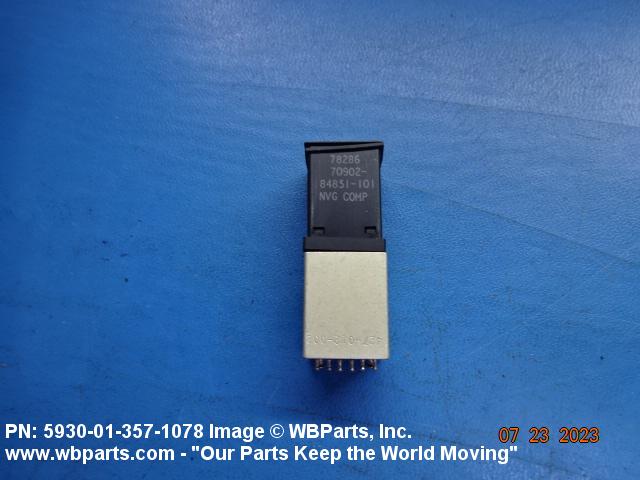

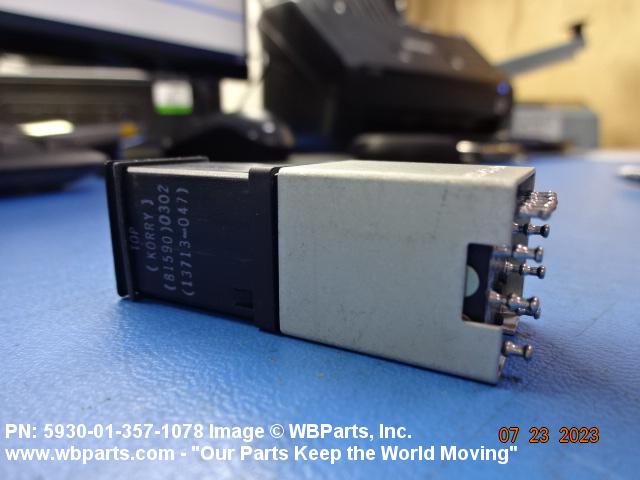

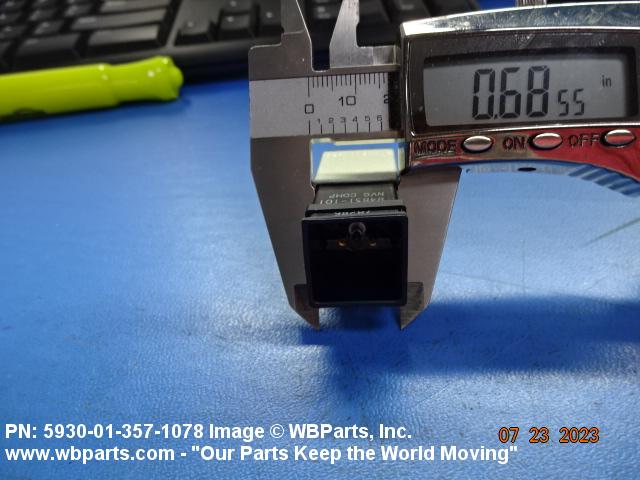

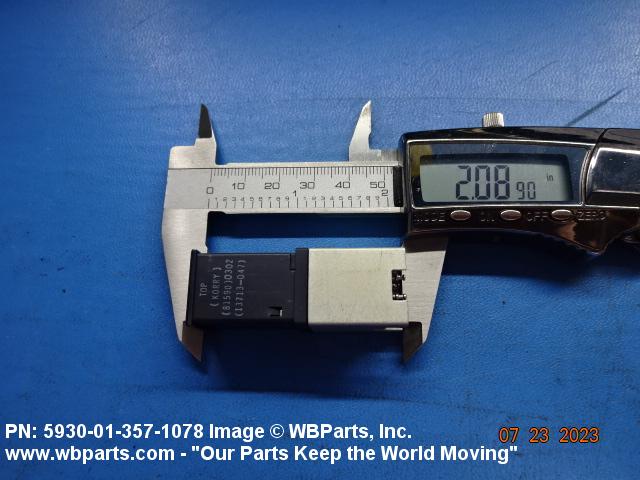

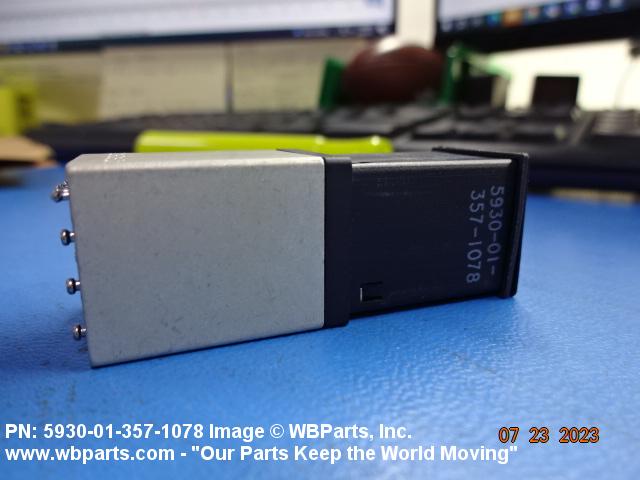

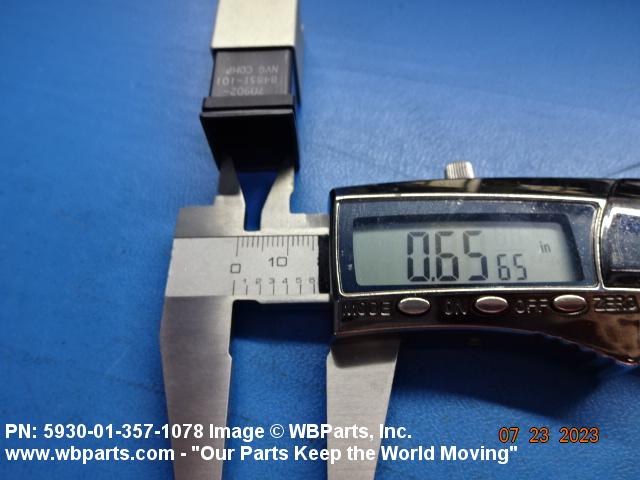

Drawings & Photos | NSN 5930-01-357-1078
Demand History | NSN 5930-01-357-1078
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 13713-047 | 2025-01-28 | 133 | DIBBS |
| 5930-01-357-1078 | 2025-01-10 | 30 | US |
| 5930-01-357-1078 | 2025-01-09 | 30 | US |
| 5930-01-357-1078 | 2025-01-09 | 30 | US |
| 13713-047 | 2024-07-212 | 41 | DIBBS |
| 13713-047 | 2024-07-200 | 41 | DIBBS |
| 13713-047 | 2024-06-158 | 24 | DIBBS |
| 13713-047 | 2024-03-78 | 19 | DIBBS |
| 13713-047 | 2024-03-67 | 19 | DIBBS |
| 13713-047 | 2024-03-64 | 92 | DIBBS |
| 13713-047 | 2024-02-51 | 92 | DIBBS |
| 13713-047 | 2024-02-39 | 92 | DIBBS |
| 13713-047 | 2023-09-264 | 24 | DIBBS |
| 13713-047 | 2023-08-233 | 44 | DIBBS |
| 13713-047 | 2023-08-220 | 15 | DIBBS |
| 13713-047 | 2023-08-220 | 25 | DIBBS |
| 13713-047 | 2023-08-220 | 44 | DIBBS |
| 13713-047 | 2023-08-213 | 17 | DIBBS |
| 5930-01-357-1078 | 2023-07-200 | 3 | United States |
| 5930-01-357-1078 | 2023-06-173 | 3 | United States |
| 13713-047 | 2022-07-199 | 44 | DIBBS |
| 13713-047 | 2022-07-186 | 44 | DIBBS |
| 13713-047 | 2022-06-165 | 25 | DIBBS |
| 13713-047 | 2022-04-111 | 15 | DIBBS |
| 13713-047 | 2022-04-104 | 31 | DIBBS |
| 13713-047 | 2022-03-65 | 19 | DIBBS |
| 13713-047 | 2022-01-20 | 17 | DIBBS |
| 13713-047 | 2021-04-91 | 31 | DIBBS |
| 13713-047 | 2020-10-282 | 33 | DIBBS |
| 13713-047 | 2020-09-261 | 7 | DIBBS |
| 13713-047 | 2020-06-177 | 20 | DIBBS |
| 13713-047 | 2019-10-290 | 30 | DIBBS |
| 13713-047 | 2019-07-197 | 22 | DIBBS |
| 13713-047 | 2019-05-150 | 23 | DIBBS |
| 13713-047 | 2019-05-139 | 23 | DIBBS |
| 5930-01-357-1078 | 2017-11-311 | 22 | DIBBS |
| 5930-01-357-1078 | 2017-08-240 | 17 | DIBBS |
| 5930-01-357-1078 | 2017-04-116 | 16 | DIBBS |
| 5930-01-357-1078 | 2016-11-312 | 17 | DIBBS |
| 5930-01-357-1078 | 2016-10-301 | 17 | DIBBS |
| 5930-01-357-1078 | 2016-09-250 | 21 | DIBBS |
| 5930-01-357-1078 | 2016-08-237 | 21 | DIBBS |
| 5930-01-357-1078 | 2015-12-348 | 18 | DIBBS |
| 5930-01-357-1078 | 2015-03-76 | 27 | DIBBS |
| 5930-01-357-1078 | 2014-11-320 | 21 | DIBBS |
| 5930-01-357-1078 | 2013-12-363 | 25 | DIBBS |
| 5930-01-357-1078 | 2013-09-267 | 26 | DIBBS |
| 5930-01-357-1078 | 2013-09-262 | 46 | DIBBS |
| 5930-01-357-1078 | 2013-09-251 | 26 | DIBBS |
| 5930-01-357-1078 | 2013-09-247 | 46 | DIBBS |
| 5930-01-357-1078 | 2012-09-249 | 2 | US |
| 5930-01-357-1078 | 2011-12-350 | 30 | DIBBS |
| 5930-01-357-1078 | 2011-05-147 | 19 | DIBBS |
| 5930-01-357-1078 | 2011-03-82 | 2 | United States |
| 5930-01-357-1078 | 2011-03-61 | 10 | United States |
| 13713047 | 2011-02-54 | 5 | US |
| 5930-01-357-1078 | 2011-02-48 | 5 | United States |
| 5930-01-357-1078 | 2011-02-34 | 1 | United States |
| 13713047 | 2010-12-343 | 1 | US |
| 5930-01-357-1078 | 2010-10-295 | 15 | DIBBS |
| 5930-01-357-1078 | 2010-03-74 | 4 | DIBBS |
| 5930-01-357-1078 | 2007-12-338 | 112 | DIBBS |
| 5930-01-357-1078 | 2007-10-296 | 80 | DIBBS |
| 5930-01-357-1078 | 2007-10-289 | 32 | DIBBS |
| 5930-01-357-1078 | 2007-08-219 | 24 | DIBBS |
| 5930-01-357-1078 | 2007-05-129 | 24 | DIBBS |
| 5930-01-357-1078 | 2007-03-67 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-357-1078
Related Products | NSN 5930-01-357-1078
Technical Data | NSN 5930-01-357-1078
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 46K PANEL MOUNTED |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.300 INCHES NOMINAL |
| ACTUATOR COLOR | GREEN SINGLE ACTUATOR |
| ILLUMINATED ACTUATOR COLOR | GREEN SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 12 TURRET |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | HELICOPTER, SEARCH AND RESCUE, HH-60H; HELICOPTER, LAMPS MARK III, SH-60B; HELICOPTER, CARRIER BASED ASW, SH-60F; AIRCRAFT BLACK HAWK (MH-60K SPECIAL OPERATIONS AIRCRAFT) |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | 70902-84851-101 |
Restrictions/Controls & Freight Information | NSN 5930-01-357-1078
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-357-1078
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | KH | HH-60H, HH-60J configuration helicopters |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
