NSN 5930-01-363-5685 PA-31, PA31, 01-363-5685
Product Details | ROTARY SWITCH SECTION
5930-01-363-5685 An item consisting of electrical contacts mounted on an insulated plate which together form a section of a switch or relay. It includes both rotor and stator but does not include drive or actuating mechanism.
Part Alternates: PA-31, PA31, 5930-01-363-5685, 01-363-5685, 5930013635685, 013635685
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1992 | 01-363-5685 | 15315 ( SWITCH SECTION, ROTARY ) |

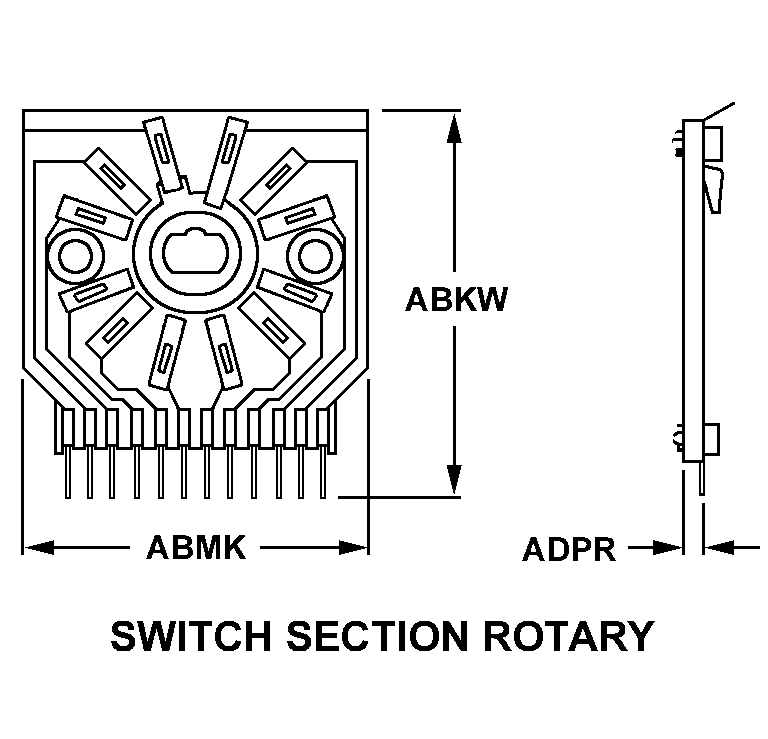

Drawings & Photos | NSN 5930-01-363-5685
Cross Reference | NSN 5930-01-363-5685
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PA-31 | 79692 | ELECTRO SWITCH CORP. DBA ELECTROSWITCH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-363-5685
Technical Data | NSN 5930-01-363-5685
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 25 SWITCH SECTION, ROTARY |
| OVERALL HEIGHT | 1.335 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| TERMINAL TYPE | CLIP |
Restrictions/Controls & Freight Information | NSN 5930-01-363-5685
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
