NSN 5930-01-379-4039 20PS001FB285K180K, 01-379-4039, 013794039
Product Details | PRESSURE SWITCH
5930-01-379-4039 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 20PS001FB285K180K, 5930-01-379-4039, 01-379-4039, 5930013794039, 013794039
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 AUG 1993 | 01-379-4039 | 00206 ( SWITCH, PRESSURE ) |

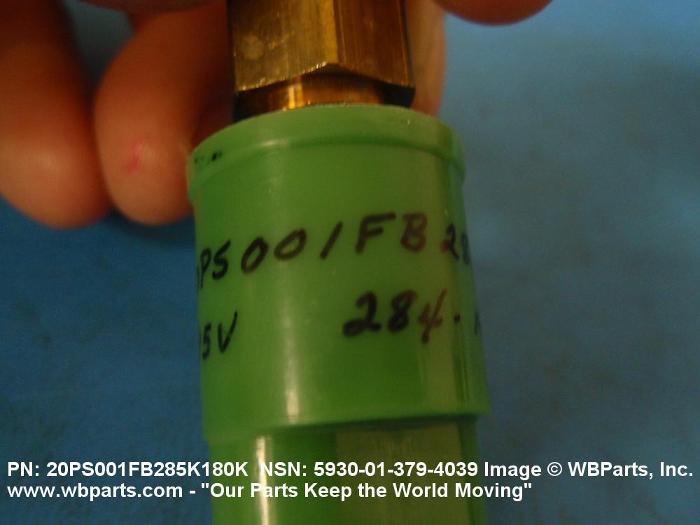

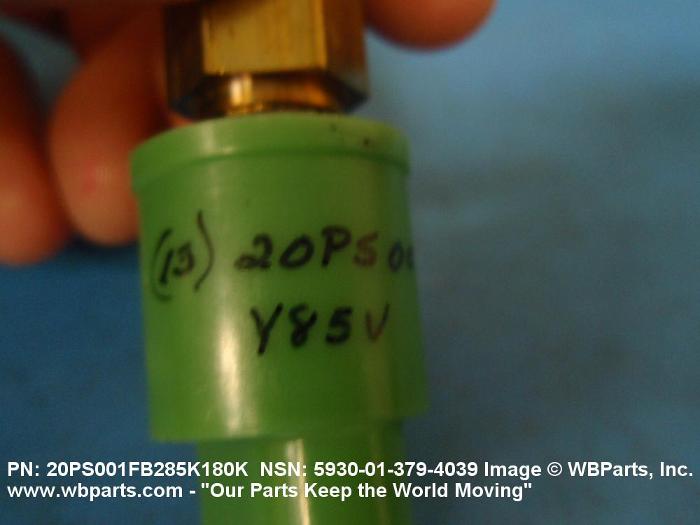

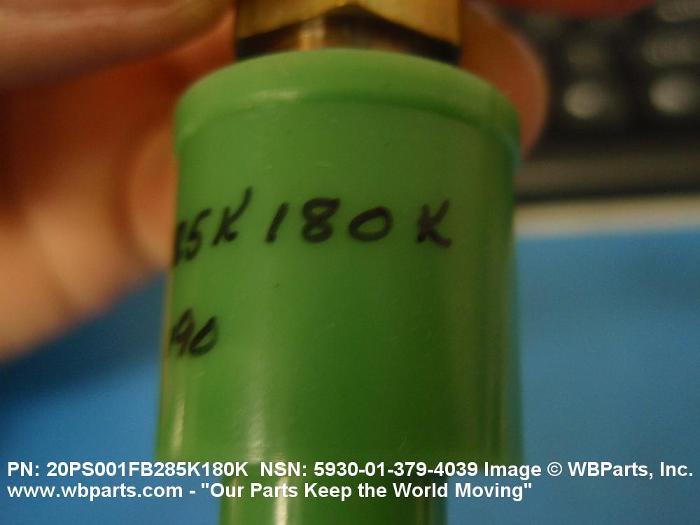

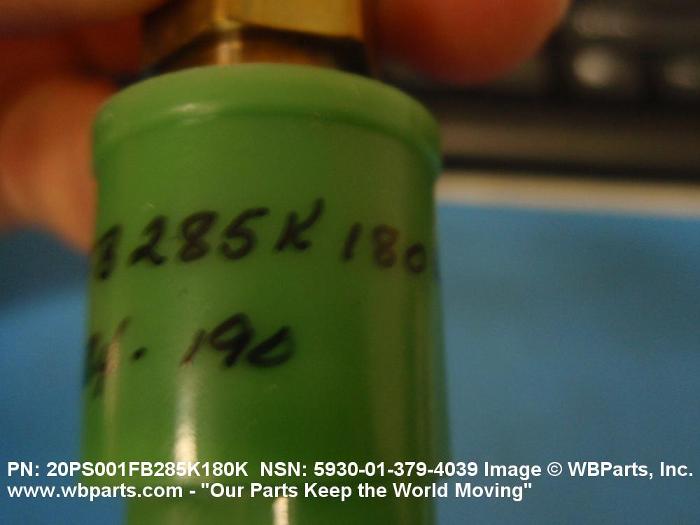

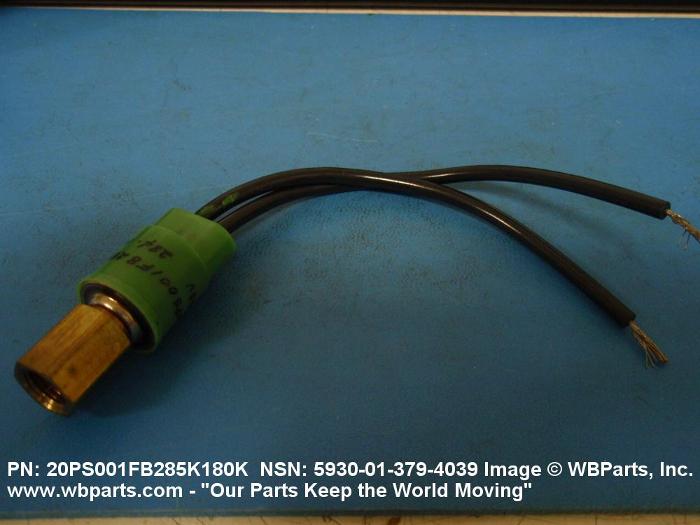

Drawings & Photos | NSN 5930-01-379-4039
Demand History | NSN 5930-01-379-4039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-379-4039 | 2020-09-260 | 2 | United States |
| 5930-01-379-4039 | 2020-03-79 | 10 | US |
| 5930-01-379-4039 | 2017-12-335 | 2 | United States |
| 5930-01-379-4039 | 2015-06-177 | 6 | US |
| 20PS001FB285K180K | 2013-09-268 | 50 | |
| 20PS001FB285K180K | 2013-08-239 | 6 | |
| 20PS001FB285K180K | 2011-01-21 | 1 | United States |
Cross Reference | NSN 5930-01-379-4039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20PS001FB285K180K | 14589 | WESTERN ORDNANCE REPAIR CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-379-4039
Technical Data | NSN 5930-01-379-4039
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.180 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.950 INCHES MAXIMUM |
| PRESSURE SWITCH TYPE | GAGE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 285.00 ACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE AND 180.00 DEACTUATION POINT NOMINAL POUNDS PER SQUARE INCH GAGE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 2.0 AMPERES RESISTIVE LOAD SINGLE VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TERMINAL TYPE | WIRE LEAD |
Restrictions/Controls & Freight Information | NSN 5930-01-379-4039
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
