NSN 5930-01-385-9923 11449133-3, 90733, 9073-3
Product Details | PRESSURE SWITCH
5930-01-385-9923 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: 11449133-3, 90733, 9073-3, 5930-01-385-9923, 01-385-9923, 5930013859923, 114491333, 013859923
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JAN 1994 | 01-385-9923 | 00206 ( SWITCH, PRESSURE ) |

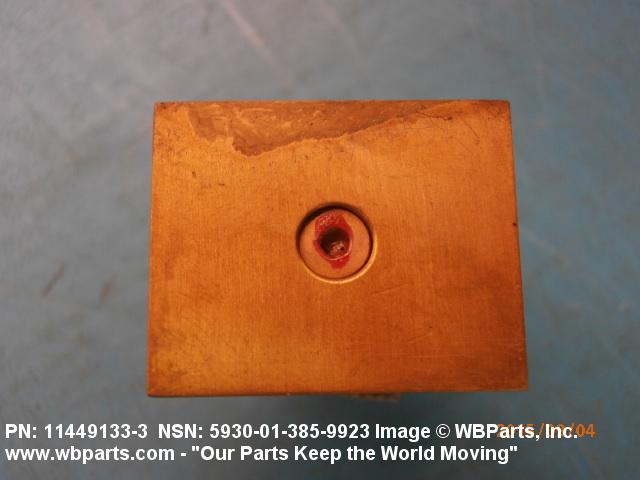

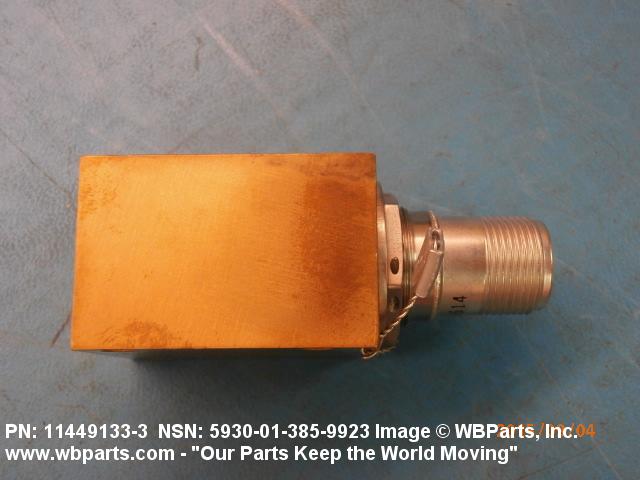

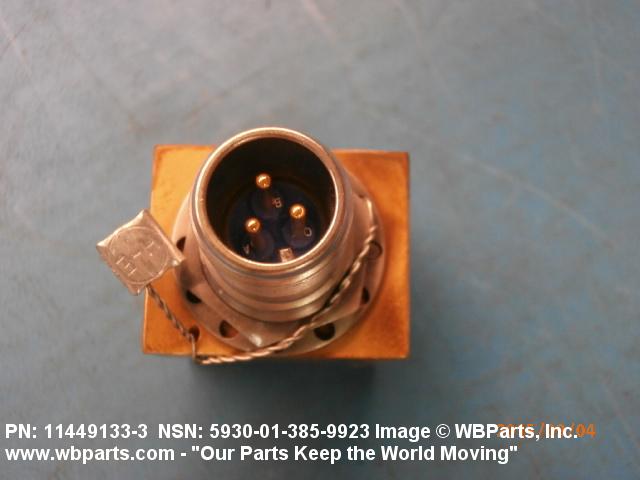

Drawings & Photos | NSN 5930-01-385-9923
Demand History | NSN 5930-01-385-9923
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9073-3 | 2025-08-241 | 58 | DIBBS |
| 9073-3 | 2025-06-181 | 39 | DIBBS |
| 5930-01-385-9923 | 2025-06-174 | 1 | us |
| 9073-3 | 2024-02-60 | 2 | DIBBS |
| 9073-3 | 2023-08-242 | 15 | DIBBS |
| 9073-3 | 2023-08-229 | 5 | DIBBS |
| 9073-3 | 2023-04-114 | 10 | DIBBS |
| 9073-3 | 2023-02-58 | 18 | DIBBS |
| 9073-3 | 2023-01-08 | 4 | DIBBS |
| 9073-3 | 2022-12-338 | 5 | DIBBS |
| 9073-3 | 2022-09-265 | 9 | DIBBS |
| 5930-01-385-9923 | 2022-05-126 | 4 | United States |
| 5930-01-385-9923 | 2022-05-125 | 1 | United States |
| 9073-3 | 2022-04-110 | 7 | DIBBS |
| 9073-3 | 2022-01-20 | 5 | DIBBS |
| 5930-01-385-9923 | 2021-04-99 | 9 | United States |
| 5930-01-385-9923 | 2020-06-156 | 2 | United States |
| 5930-01-385-9923 | 2020-05-138 | 5 | United States |
| 5930-01-385-9923 | 2020-04-111 | 5 | United States |
| 5930-01-385-9923 | 2020-04-109 | 5 | United States |
| 9073-3 | 2020-02-37 | 13 | DIBBS |
| 5930-01-385-9923 | 2020-02-35 | 27 | United States |
| 90733 | 2020-02-35 | 27 | United States |
| 5930-01-385-9923 | 2019-12-345 | 1 | DIBBS-RFPs |
| 5930-01-385-9923 | 2019-11-319 | 6 | United States |
| 5930-01-385-9923 | 2019-10-302 | 6 | United States |
| 9073-3 | 2019-07-192 | 6 | DIBBS |
| 9073-3 | 2019-02-52 | 11 | DIBBS |
| 5930-01-385-9923 | 2018-12-352 | 22 | DIBBS |
| 5930-01-385-9923 | 2018-01-30 | 7 | United States |
| 5930-01-385-9923 | 2017-11-327 | 28 | DIBBS |
| 5930-01-385-9923 | 2017-08-219 | 18 | DIBBS |
| 5930-01-385-9923 | 2017-06-173 | 2 | United States |
| 5930-01-385-9923 | 2016-12-341 | 13 | DIBBS |
| 5930-01-385-9923 | 2016-05-122 | 7 | DIBBS |
| 5930-01-385-9923 | 2015-08-226 | 1 | United States |
| 5930-01-385-9923 | 2015-08-225 | 54 | DIBBS |
| 5930-01-385-9923 | 2014-12-357 | 37 | DIBBS |
| 5930-01-385-9923 | 2013-03-77 | 58 | DIBBS |
| 5930-01-385-9923 | 2012-04-96 | 60 | DIBBS |
| 5930-01-385-9923 | 2010-12-337 | 50 | DIBBS |
| 5930-01-385-9923 | 2009-03-82 | 3 | DIBBS |
| 5930-01-385-9923 | 2007-06-158 | 11 | DIBBS |
| 5930-01-385-9923 | 2007-03-90 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-385-9923
Related Products | NSN 5930-01-385-9923
Technical Data | NSN 5930-01-385-9923
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 8 RECTANGULAR |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.060 INCHES NOMINAL |

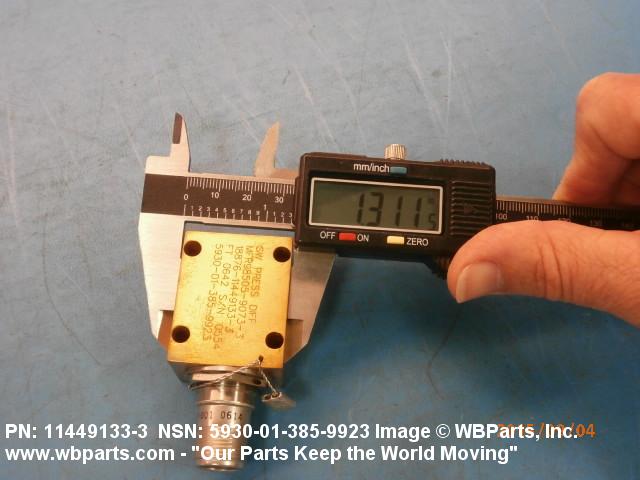

| OVERALL WIDTH | 1.310 INCHES NOMINAL |

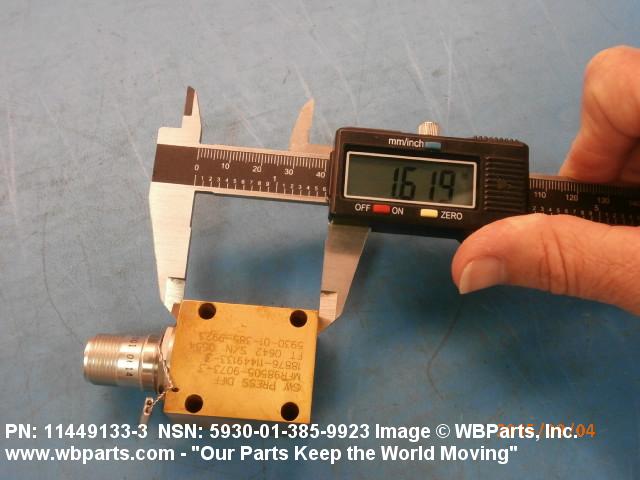

| BODY LENGTH | 1.620 INCHES NOMINAL |
| BODY HEIGHT | 1.060 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | DIFFERENTIAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 20.00 DIFFERENTIAL POINT NOMINAL POUNDS PER SQUARE INCH ABSOLUTE |
| CONTACT VOLTAGE RATING IN VOLTS | 120.0 AC AT SEA LEVEL FIRST VOLTAGE 28.0 DC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 0.5 AMPERES RESISTIVE LOAD FIRST VOLTAGE 0.5 AMPERES RESISTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -50.0 DEG FAHRENHEIT MINIMUM AND 160.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| PROOF PRESSURE | 260.00 POUNDS PER SQUARE INCH GAGE |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| MOUNTING METHOD | UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5930-01-385-9923
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-385-9923
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
