NSN 5930-01-386-6805 MPL-503-T-5.0, MPL503T50, C51989261
Product Details | PRESSURE SWITCH
5930-01-386-6805 A switch which is actuated by changes in pressure of any gas or liquid or by changes in a vacuum acting upon its sensing element. Excludes BAROSWITCH; SWITCH, PRESSURE-THERMOSTATIC; and SWITCH, SENSITIVE.
Part Alternates: MPL-503-T-5.0, MPL503T50, C51989261, C5-19-8926-1, 5930-01-386-6805, 01-386-6805, 5930013866805, 013866805
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 FEB 1994 | 01-386-6805 | 00206 ( SWITCH, PRESSURE ) |

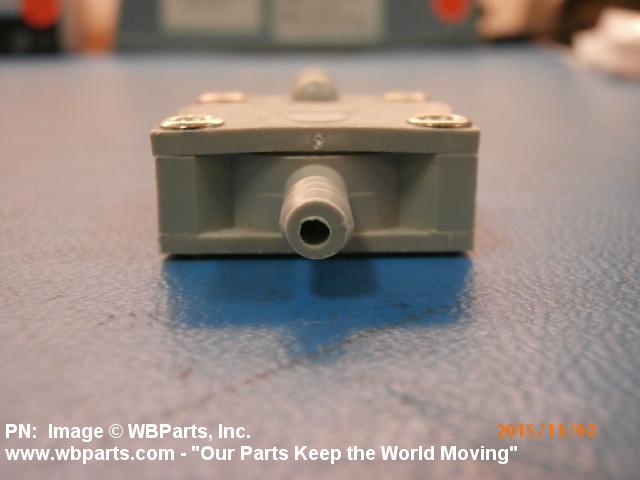

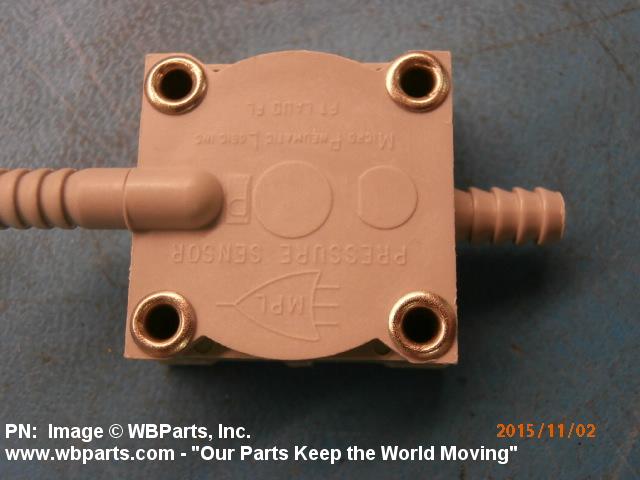

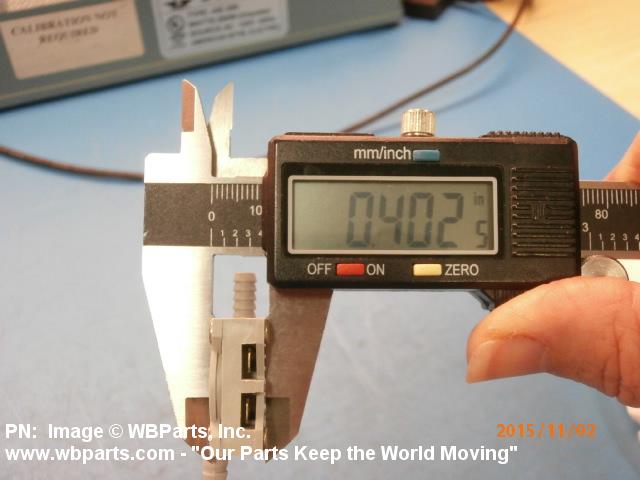

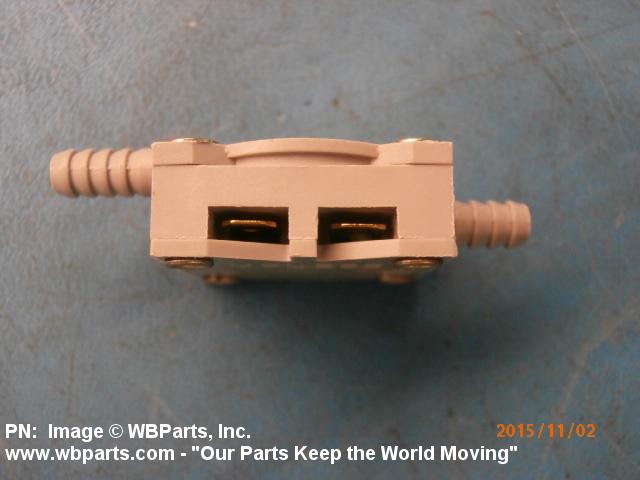

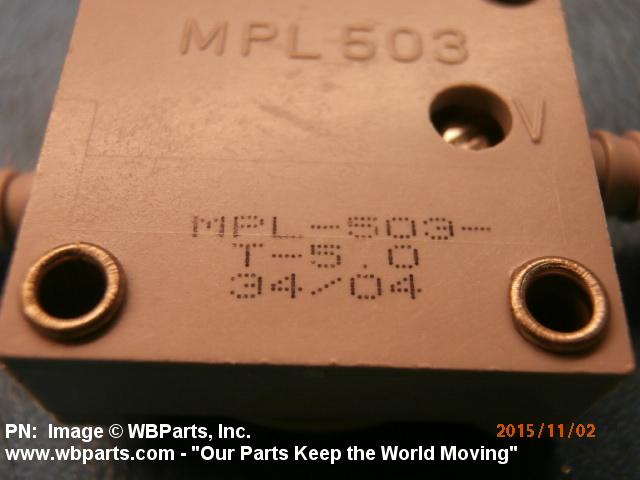

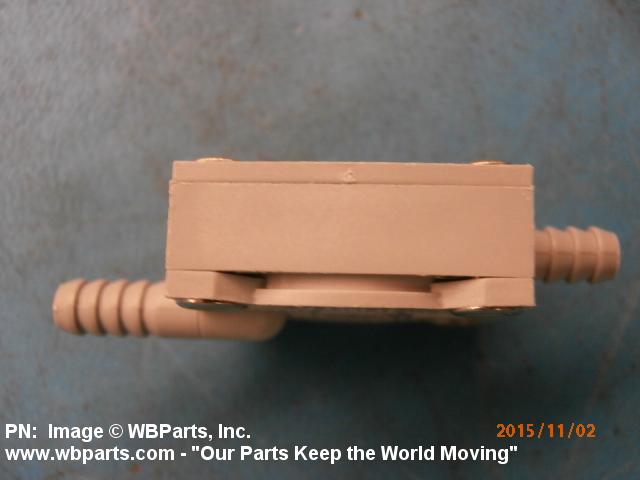

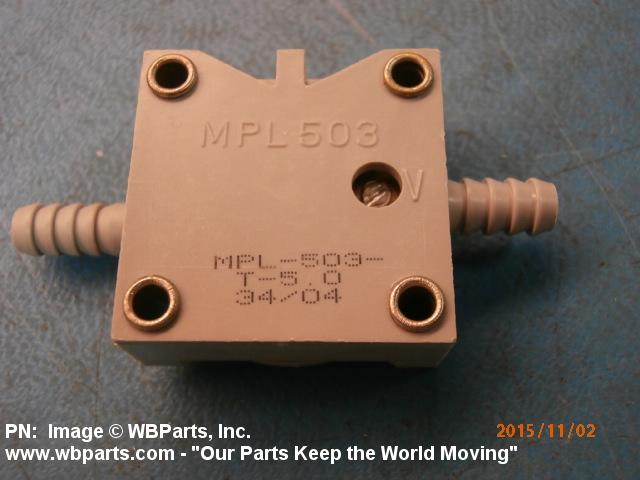

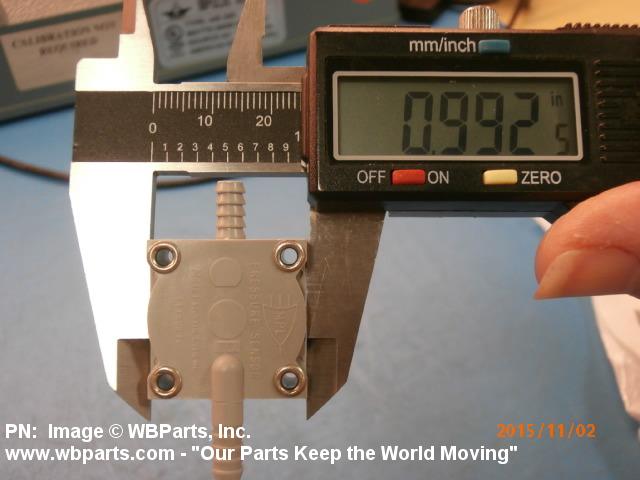

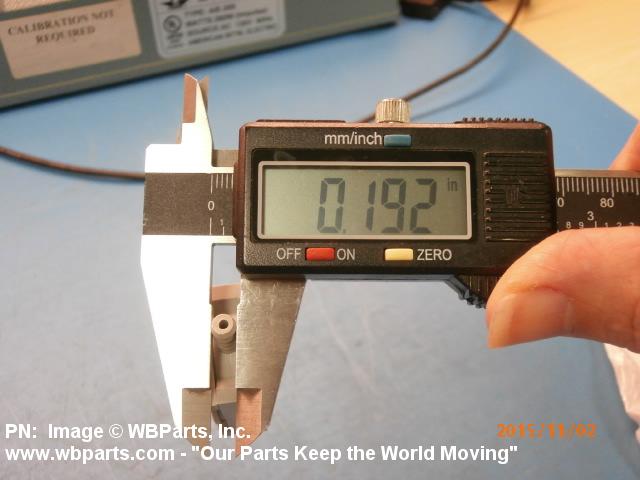

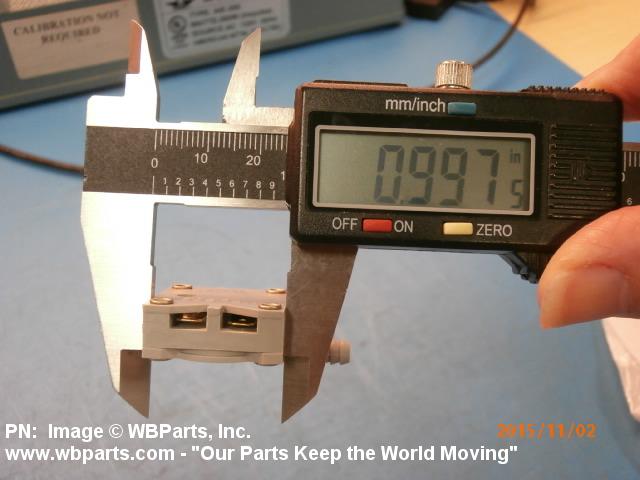

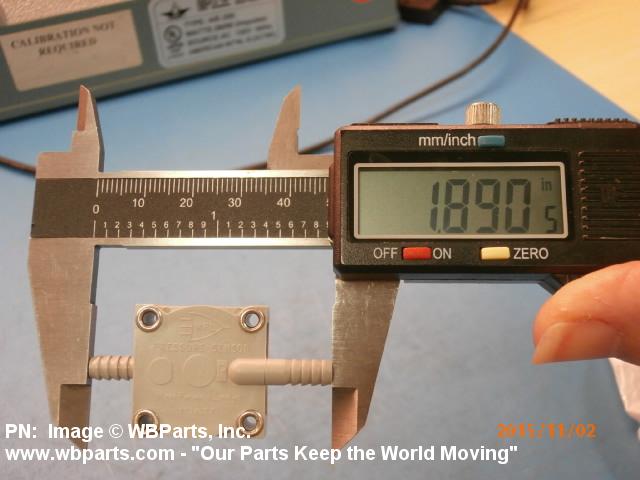

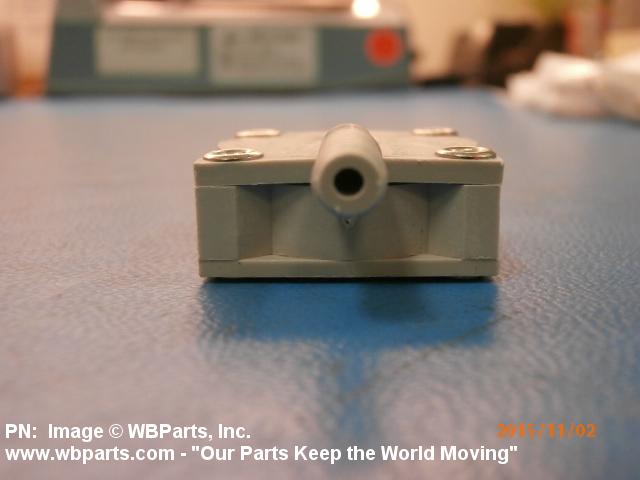

Drawings & Photos | NSN 5930-01-386-6805
Demand History | NSN 5930-01-386-6805
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MPL-503-T-5.0 | 2024-08-228 | 28 | DIBBS |
| 5930-01-386-6805 | 2023-04-109 | 1 | PT |
| MPL-503-T-5.0 | 2021-08-243 | 16 | DIBBS |
| C51989261 | 2020-05-142 | 1 | US |
| MPL503T50 | 2020-03-69 | 35 | US |
| 5930-01-386-6805 | 2020-03-65 | 40 | us |
| 5930-01-386-6805 | 2018-04-95 | 25 | DIBBS |
| 5930-01-386-6805 | 2018-03-84 | 25 | DIBBS |
| 5930-01-386-6805 | 2015-10-297 | 5 | us |
| 5930-01-386-6805 | 2012-03-61 | 38 | DIBBS |
| 5930-01-386-6805 | 2011-12-354 | 7 | DIBBS |
| 5930-01-386-6805 | 2011-09-271 | 8 | DIBBS |
| 5930-01-386-6805 | 2011-08-238 | 8 | DIBBS |
| MPL503T50 | 2009-08-219 | 15 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-386-6805
Related Products | NSN 5930-01-386-6805
Technical Data | NSN 5930-01-386-6805
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3 CYLINDRICAL |
| OVERALL LENGTH | 1.880 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| PRESSURE SWITCH TYPE | GAGE |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | GAS |
Restrictions/Controls & Freight Information | NSN 5930-01-386-6805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-386-6805
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
