Product Details | TOGGLE SWITCH

5930-01-417-3767 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS277084, MS27708-4, A21810111705, A218-101117-05, MILDTL9419, MIL-DTL-9419, 5930-01-417-3767, 01-417-3767, 5930014173767, 014173767

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	06 AUG 1995	01-417-3767	00184 ( SWITCH, TOGGLE )

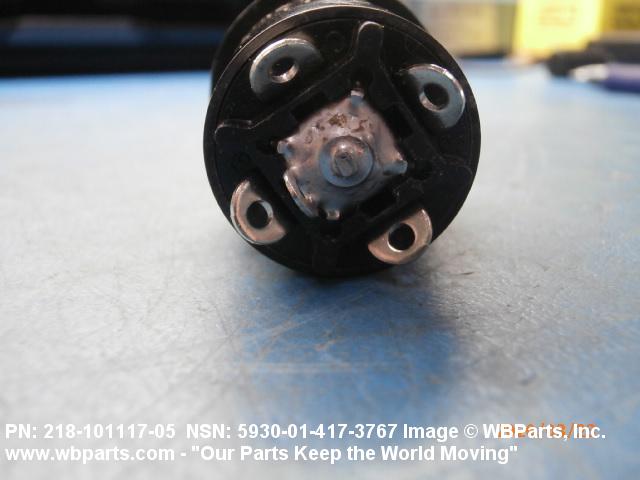

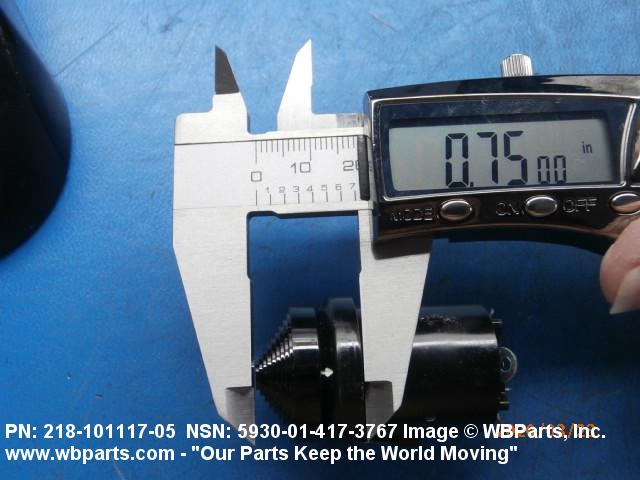

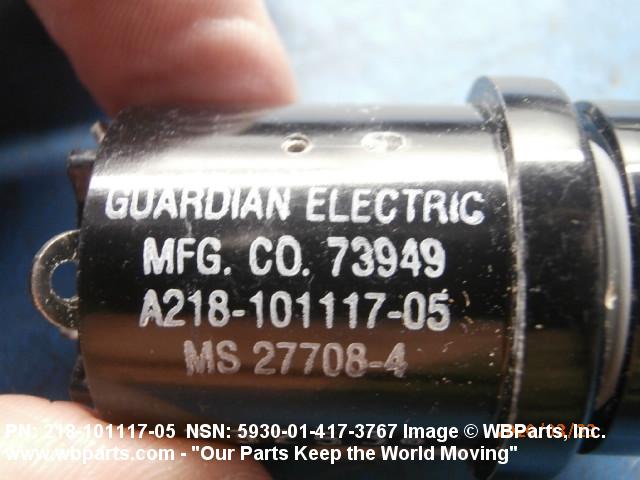

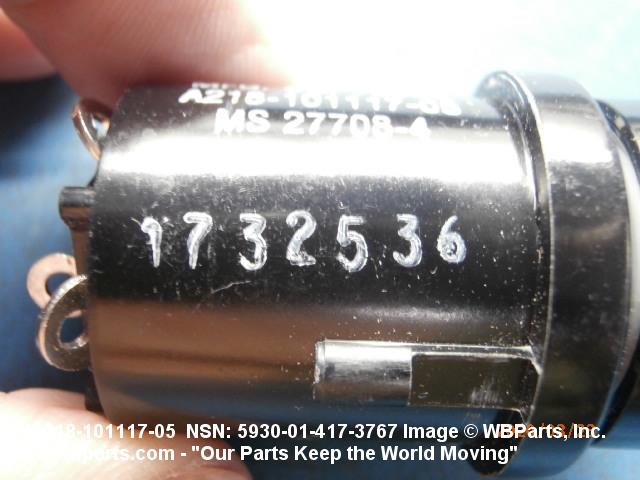

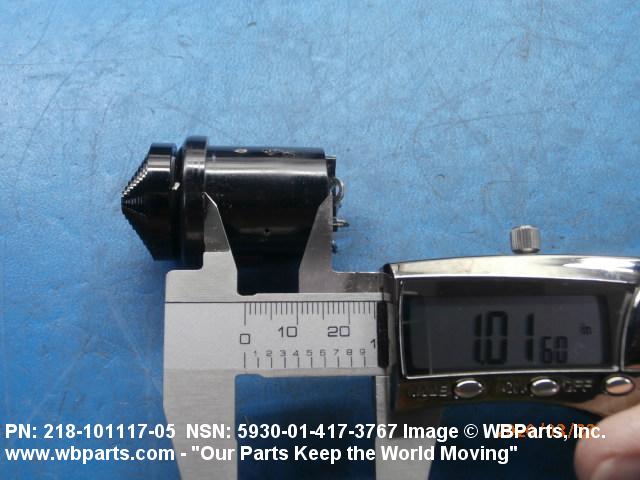

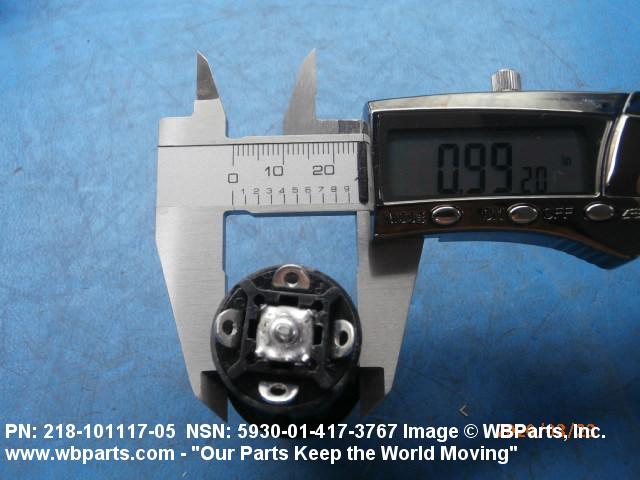

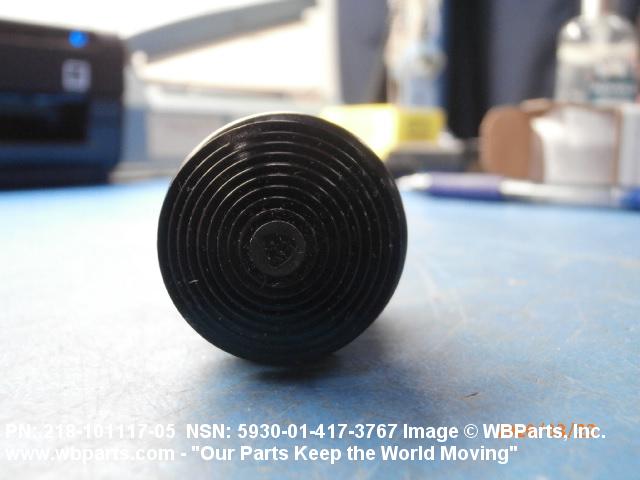

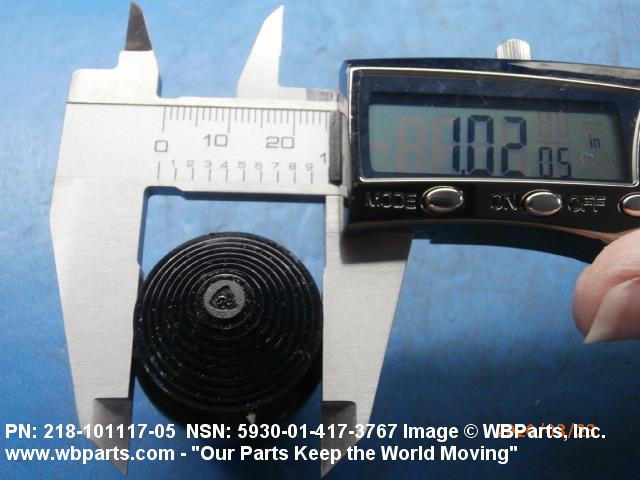

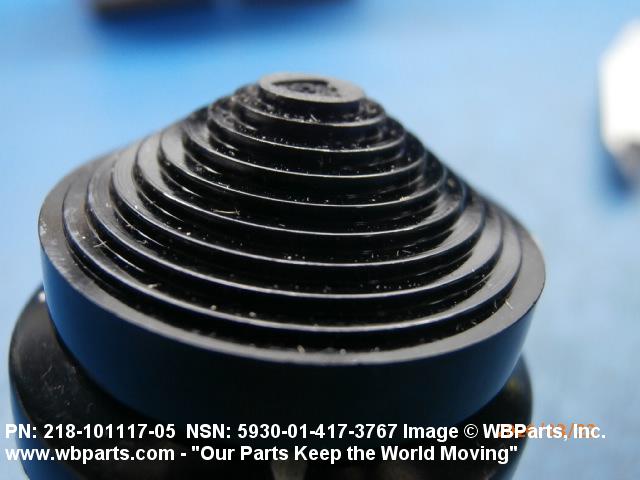

Drawings & Photos | NSN 5930-01-417-3767
