NSN 5930-01-478-0245 2830086010, 283-0086-010, 01-478-0245
Product Details | PUSH SWITCH
5930-01-478-0245 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: 2830086010, 283-0086-010, 5930-01-478-0245, 01-478-0245, 5930014780245, 014780245
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 AUG 2000 | 01-478-0245 | 00406 ( SWITCH, PUSH ) |

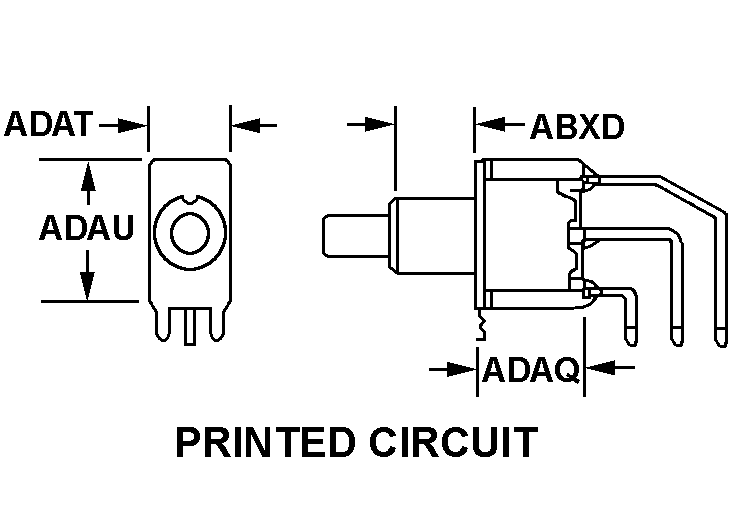

Drawings & Photos | NSN 5930-01-478-0245
Cross Reference | NSN 5930-01-478-0245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 283-0086-010 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-478-0245
Technical Data | NSN 5930-01-478-0245
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC AND 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 6.000 AMPERES RESISTIVE AC AND 3.000 AMPERES RESISTIVE DC |
| BODY STYLE | 48K PRINTED CIRCUIT |
| BUSHING LENGTH | 0.300 INCHES NOMINAL |
| BODY LENGTH | 0.450 INCHES NOMINAL |
| BODY WIDTH | 0.450 INCHES NOMINAL |
| BODY HEIGHT | 0.500 INCHES NOMINAL |
| ACTUATOR STYLE | 4 ROUND |
| ACTUATOR DIAMETER | 0.375 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.740 INCHES NOMINAL |
| ACTUATOR COLOR | GRAY SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 6 PRINTED CIRCUIT |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 40 |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINALS GOLD AND TERMINALS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-01-478-0245
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
