NSN 5930-01-488-8315 G41436, G4-1436, 01-488-8315
Product Details | THERMOSTATIC SWITCH
5930-01-488-8315 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: G41436, G4-1436, 5930-01-488-8315, 01-488-8315, 5930014888315, 014888315
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 SEP 2001 | 01-488-8315 | 00451 ( SWITCH, THERMOSTATIC ) |

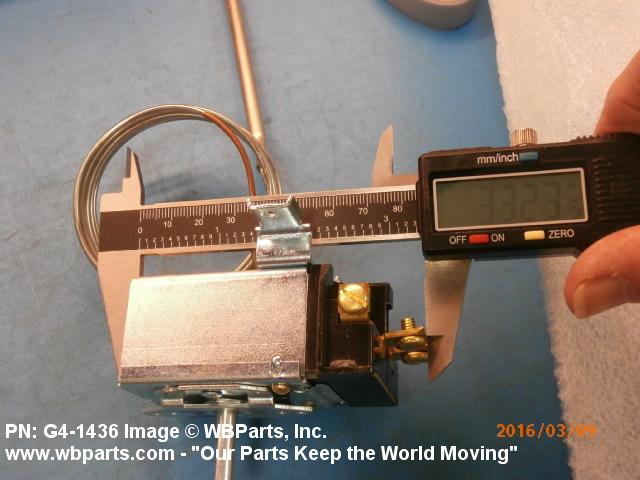

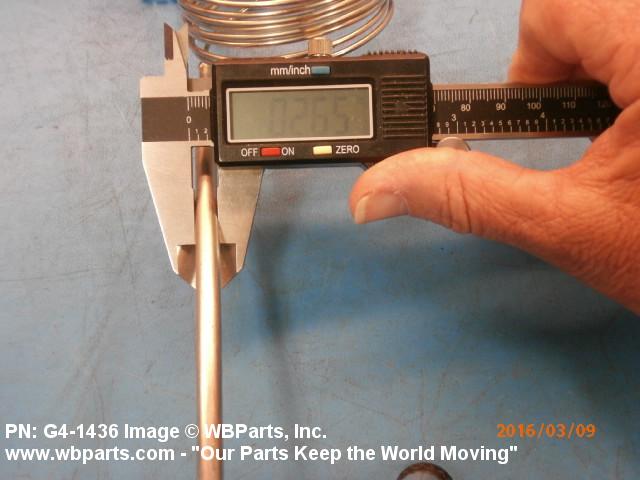

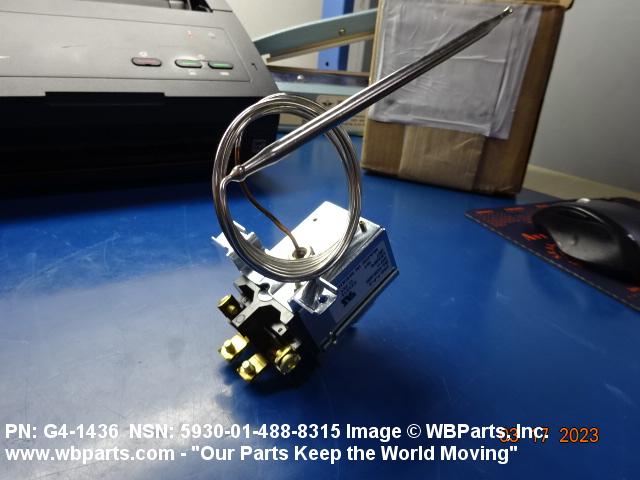

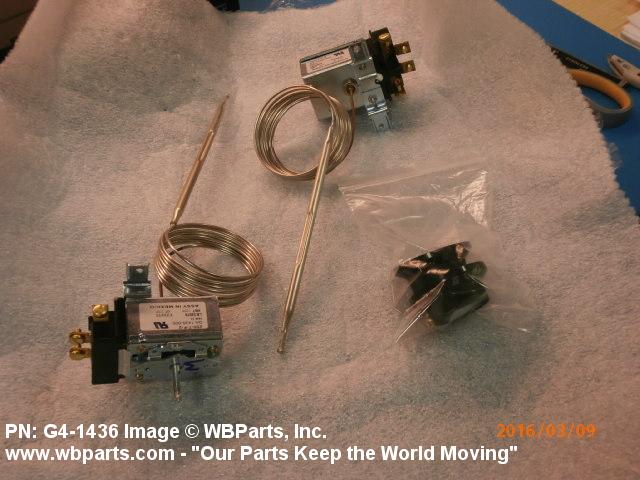

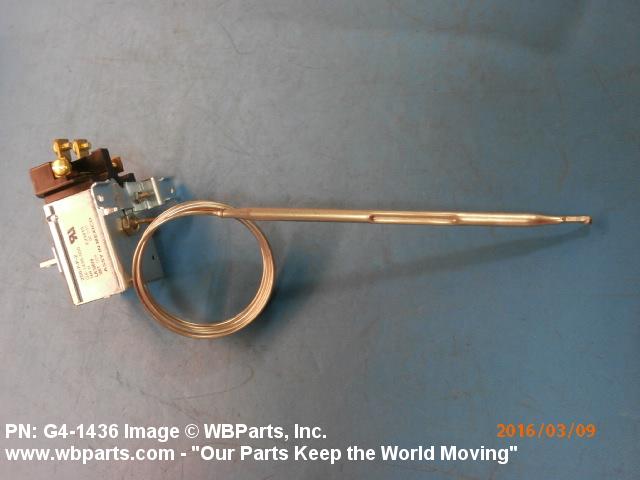

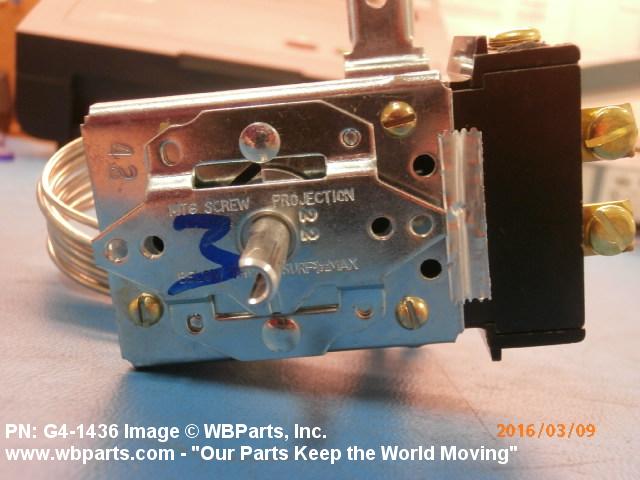

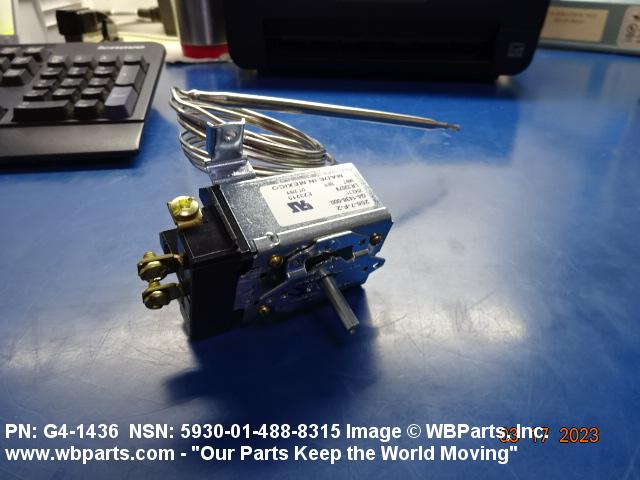

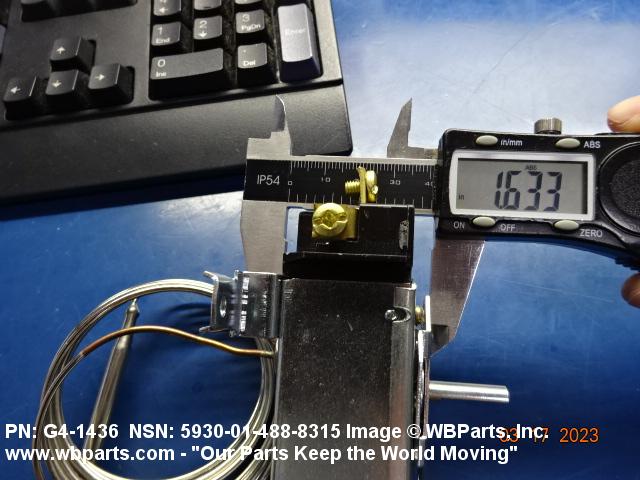

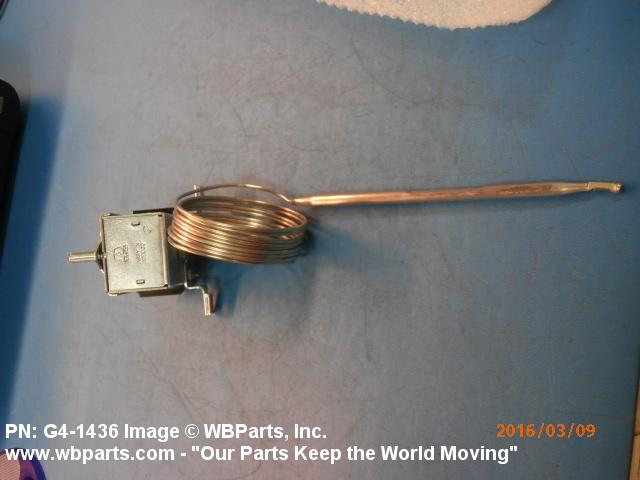

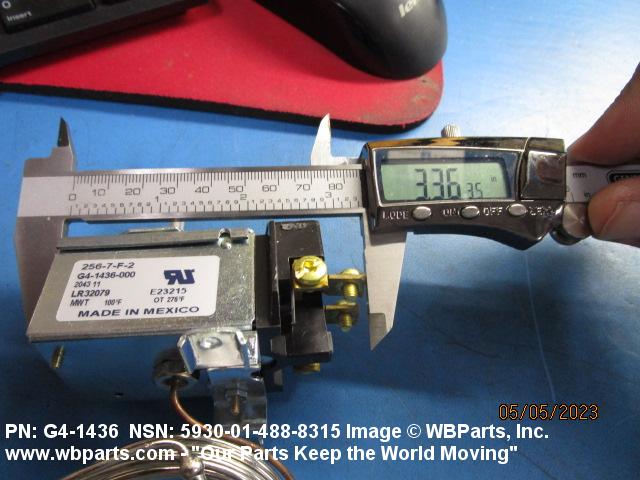

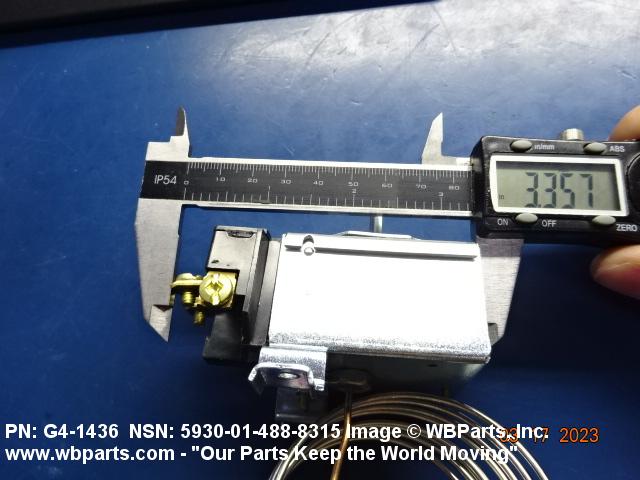

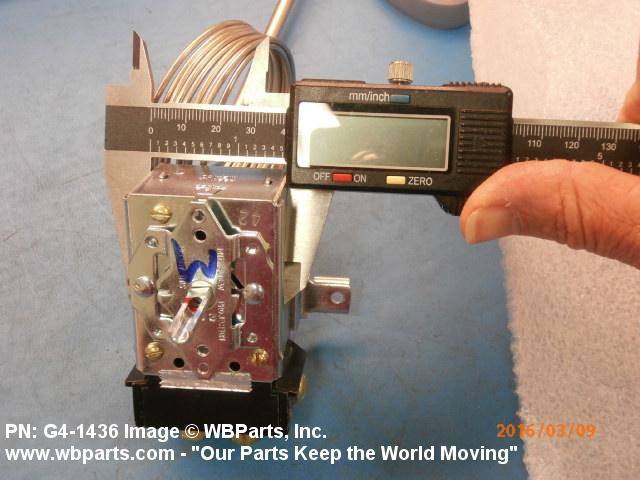

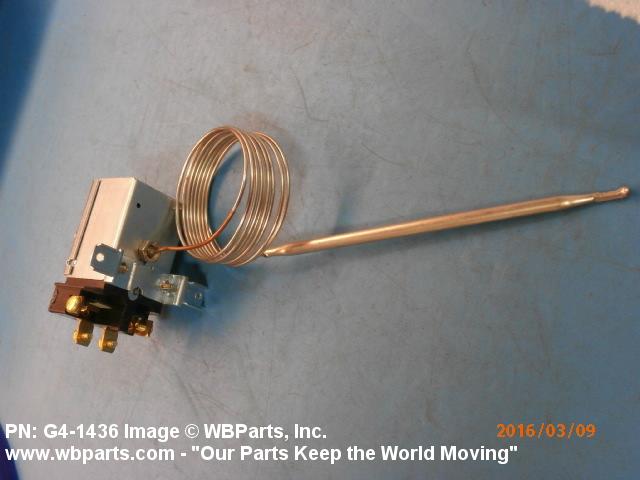

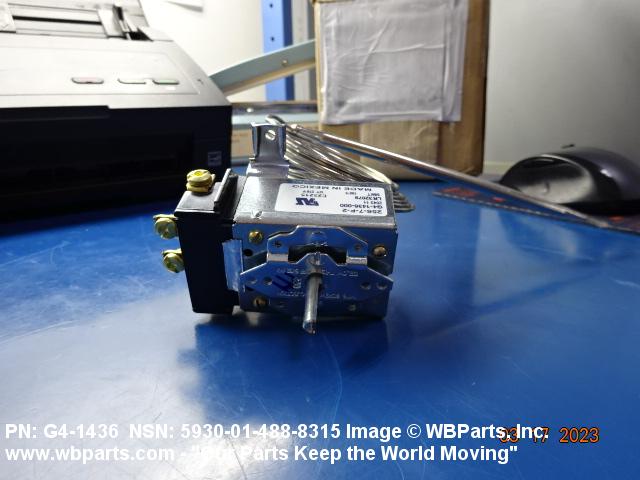

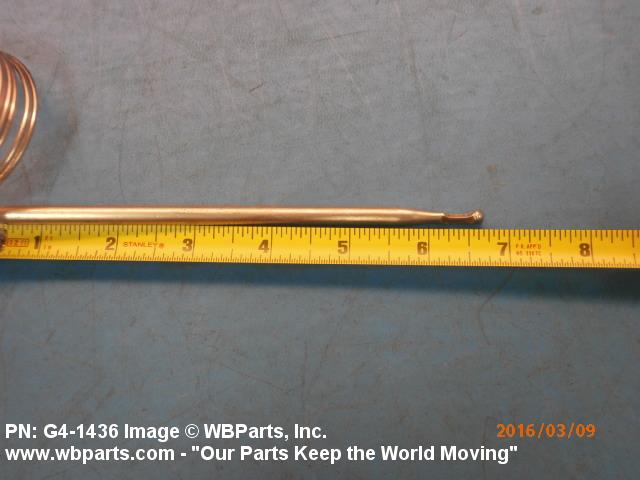

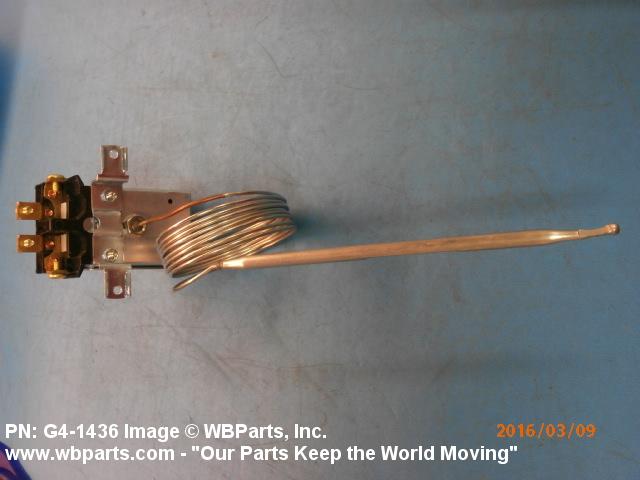

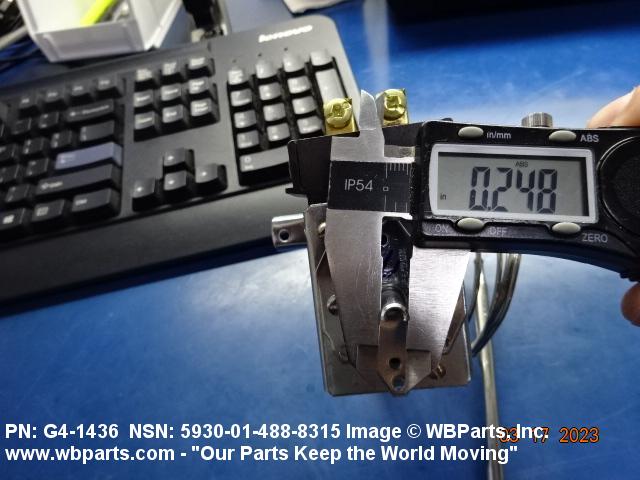

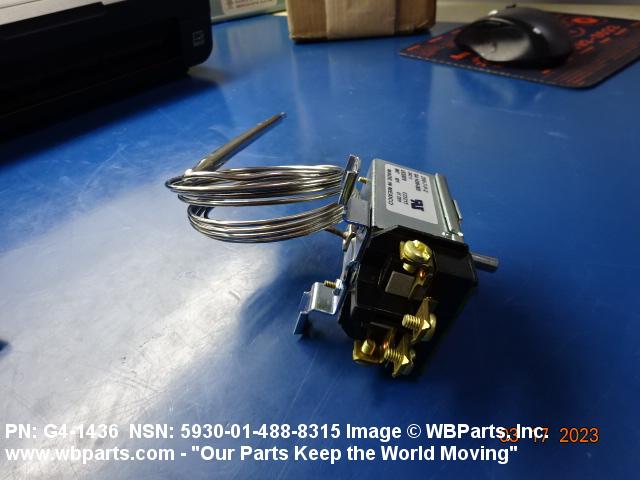

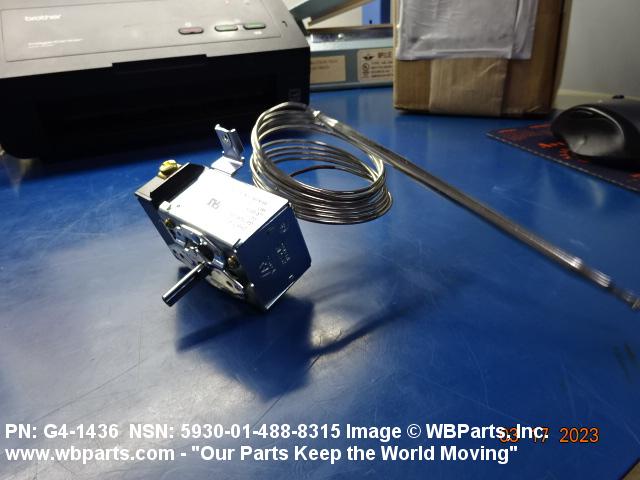

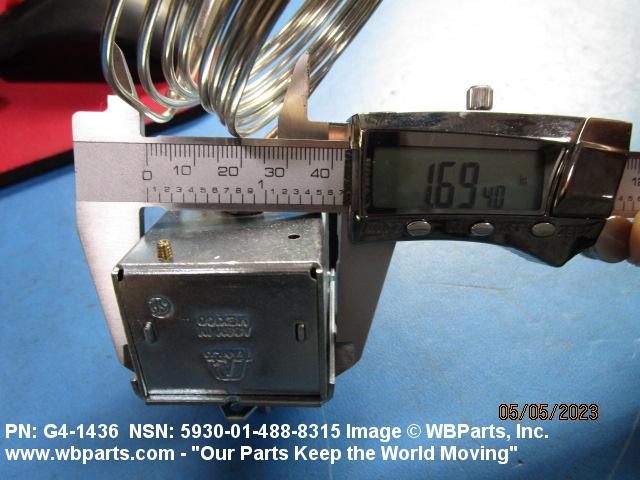

Drawings & Photos | NSN 5930-01-488-8315
Demand History | NSN 5930-01-488-8315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-488-8315 | 2023-03-79 | 1 | United States |
| 5930-01-488-8315 | 2023-03-68 | 1 | United States |
| 5930-01-488-8315 | 2016-02-33 | 2 | United States |
| 5930-01-488-8315 | 2015-01-26 | 1 | US |
Cross Reference | NSN 5930-01-488-8315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G4-1436 | 7R305 | GAUMER COMPANY INC. DBA GAUMER PROCESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-488-8315
Technical Data | NSN 5930-01-488-8315
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5 CYLINDRICAL W/FLANGE |
| OVERALL LENGTH | 3.380 INCHES MAXIMUM |
| OVERALL WIDTH | 1.690 INCHES MAXIMUM |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| TEMP SENSING ELEMENT TYPE | CAPILLARY TUBE-BULB |
| CAPILLARY TUBE LENGTH | 72.0 INCHES NOMINAL |
| BULB LENGTH | 6.375 INCHES NOMINAL |
| BULB DIAMETER | 0.250 INCHES NOMINAL |
| TERMINAL TYPE | SCREW |
| MOUNTING METHOD | BRACKET |
| III END ITEM IDENTIFICATION | 4410-01-488-8266 HEATING ELEMENT,ELECTRICAL,IMMERSION TYPE ONBOARD 225 FT "B" CLASS COAST GUARD VESSELS |
| MANUFACTURERS CODE | 7R305 |
| DESIGN CONTROL REFERENCE | G4-1436 |
Restrictions/Controls & Freight Information | NSN 5930-01-488-8315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5930-01-488-8315
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
