NSN 5930-01-523-7018 NC3030H, NC3030H M12-1, NC3030HM121
Product Details | DUST AND MOISTURE SEAL BOOT
5930-01-523-7018 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: NC3030H, NC3030H M12-1, NC3030HM121, NC303H M12-1, NC303HM121, NF00176, 10197340 , 110896, 110-896, 5930-01-523-7018, 01-523-7018, 5930015237018, 015237018
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 SEP 2004 | 01-523-7018 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |

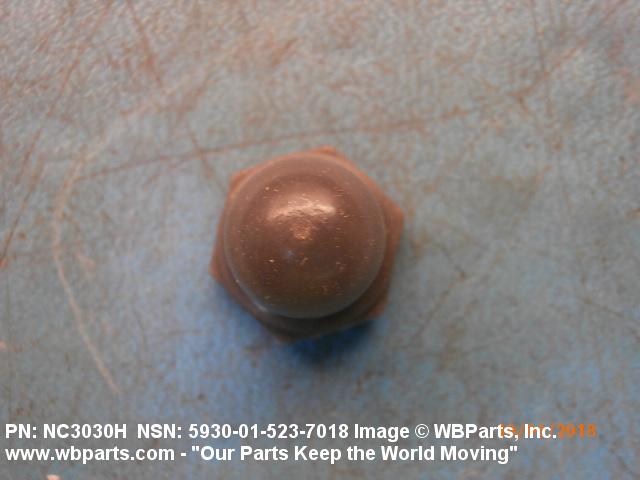

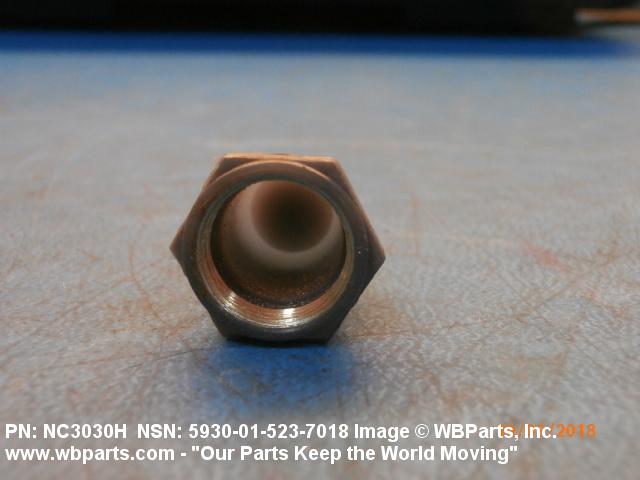

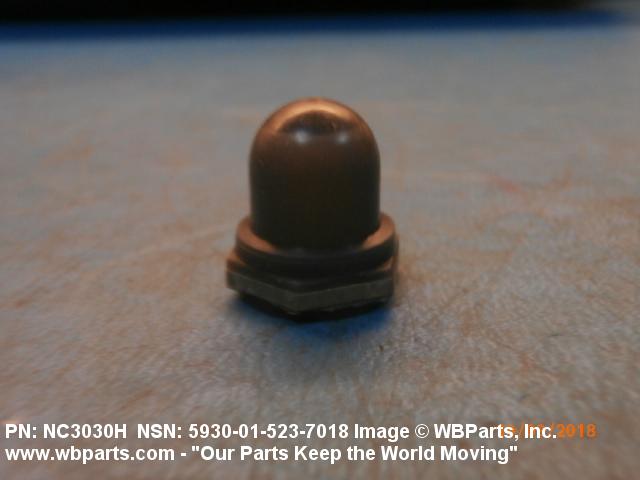

Drawings & Photos | NSN 5930-01-523-7018
Demand History | NSN 5930-01-523-7018
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-523-7018 | 2022-11-333 | 200 | UK |
| NC3030H | 2022-10-301 | 10 | UK |
| 5930-01-523-7018 | 2018-10-275 | 50 | United States |
| 110896 | 2012-08-244 | 47 | |
| NC3030HM121 | 2011-10-294 | 500 | US |
| NC3030HM121 | 2011-10-294 | 1000 | US |
| 110896 | 2011-08-215 | 30 |
Cross Reference | NSN 5930-01-523-7018
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-523-7018
Technical Data | NSN 5930-01-523-7018
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A24 CLOSED END |

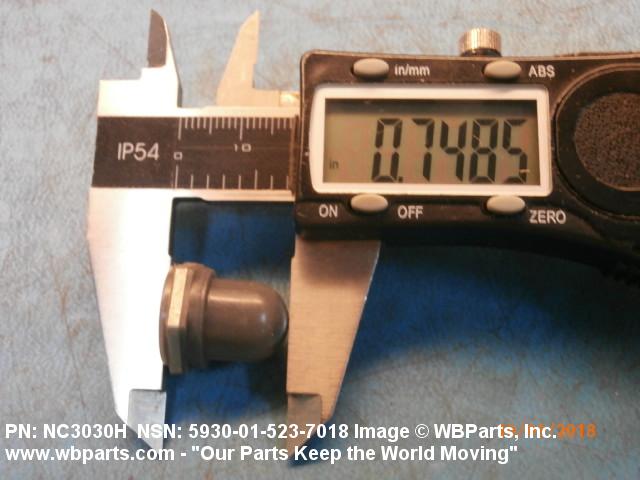

| OVERALL HEIGHT | 0.734 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.075 INCHES NOMINAL |

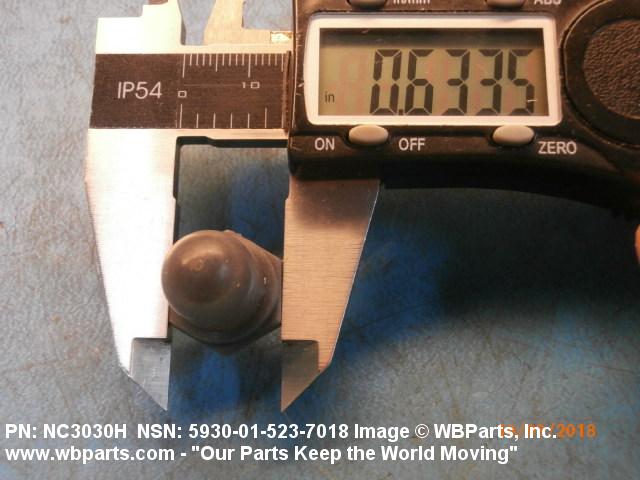

| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |

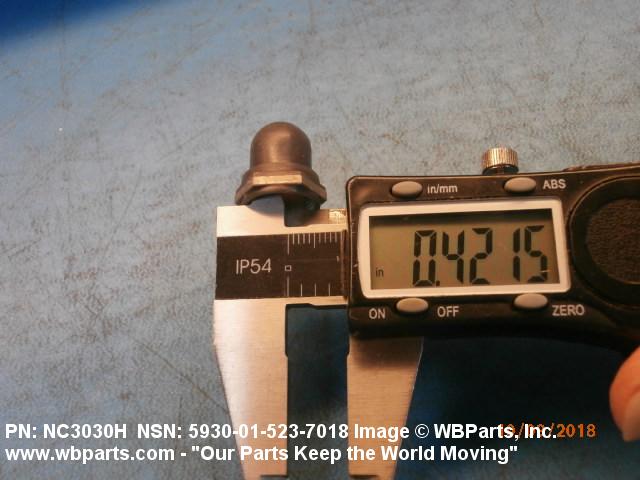

| OPENING INSIDE DIAMETER | 0.422 INCHES NOMINAL |
| MATERIAL | RUBBER SILICONE BODY |
| MOUNTING METHOD | INTEGRAL THREADED NUT |
| MOUNTING DEVICE QUANTITY | 1 |
| BASE THREAD LOCATION | INTERNAL |
| THREAD SERIES | UNS |

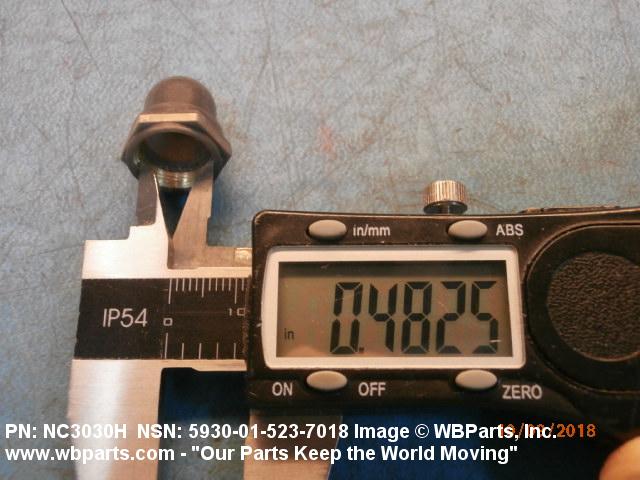

| NOMINAL THREAD SIZE | 0.500 INCHES |

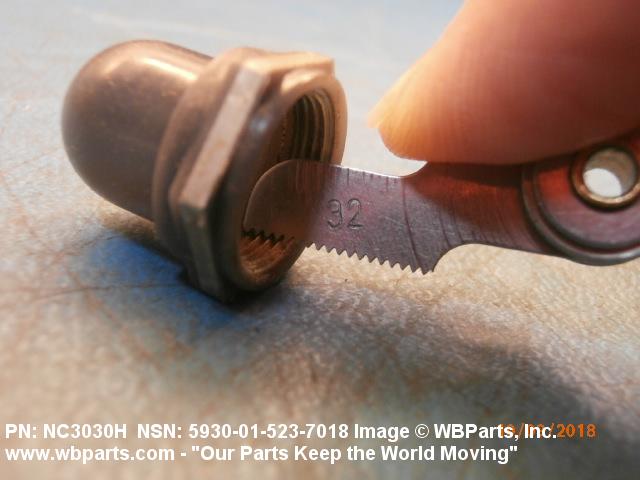

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5930-01-523-7018
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
