NSN 5930-01-591-5905 XS3P30MB230A, 01-591-5905, 015915905
Product Details | PROXIMITY SWITCH
5930-01-591-5905 A switch designed to perform the function of opening and/or closing one or more electrical circuits. The switching function is accomplished by means of separable contacts, semiconductor devices, or a combination of separable contacts and semiconductor devices. The item functions in response to electrical changes in its internal circuit caused by capacitance, inductance, or magnetic flux changes. It is activated by permanent magnets, metallic materials, or nonmetallic materials which come within its sensing range. For sensing switches which respond to changes other than capacitance, inductance, or magnetic flux, see SWITCH, AIRFLOW; SWITCH, CENTRIFUGAL; SWITCH, INERTIA; SWITCH, PRESSURE; SWITCH, PRESSURE-THERMOSTATIC; SWITCH, THERMOSTATIC; and SWITCH, TILT.
Part Alternates: XS3P30MB230A, 5930-01-591-5905, 01-591-5905, 5930015915905, 015915905
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 FEB 2011 | 01-591-5905 | 35487 ( SWITCH, PROXIMITY ) |

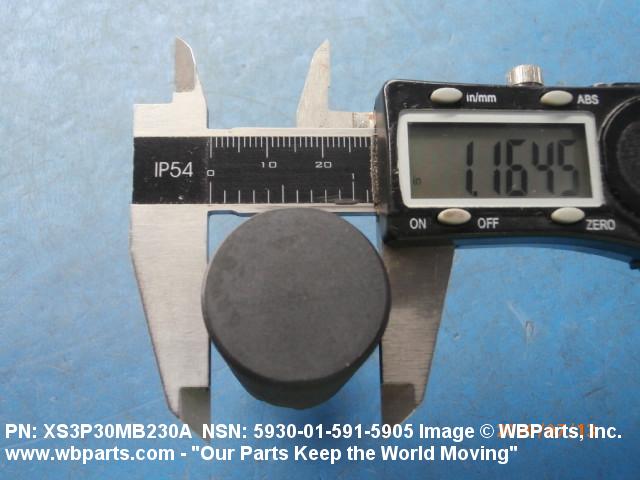

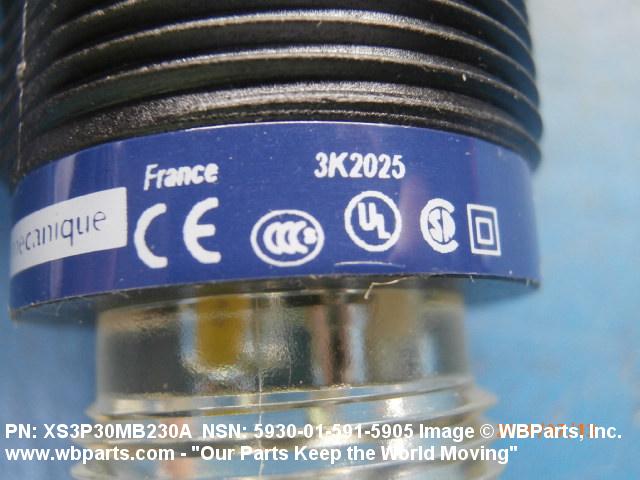

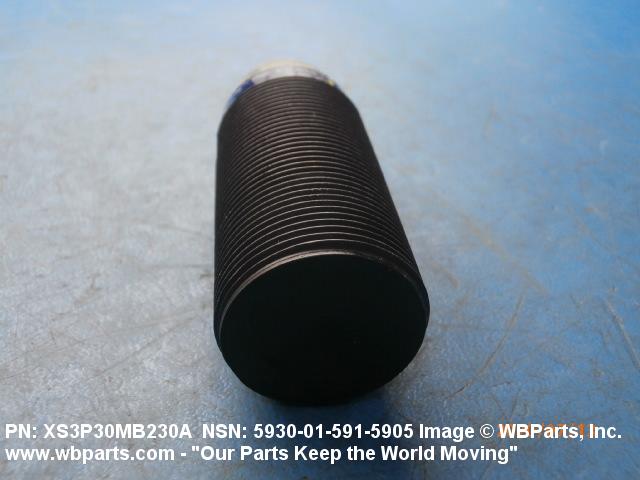

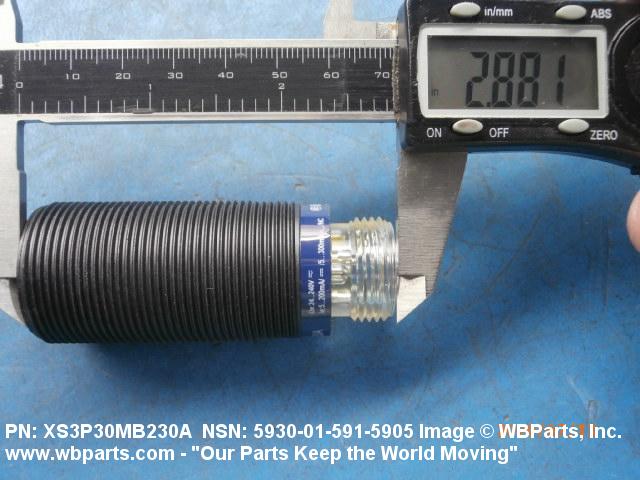

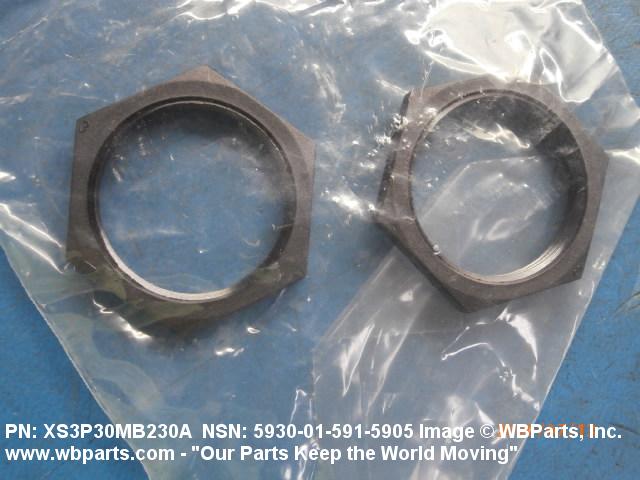

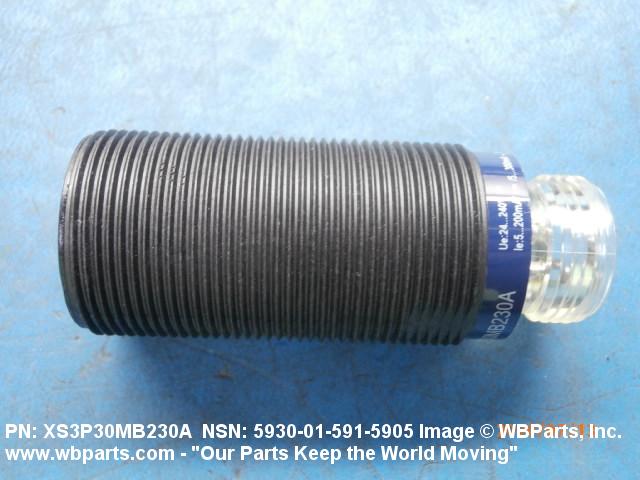

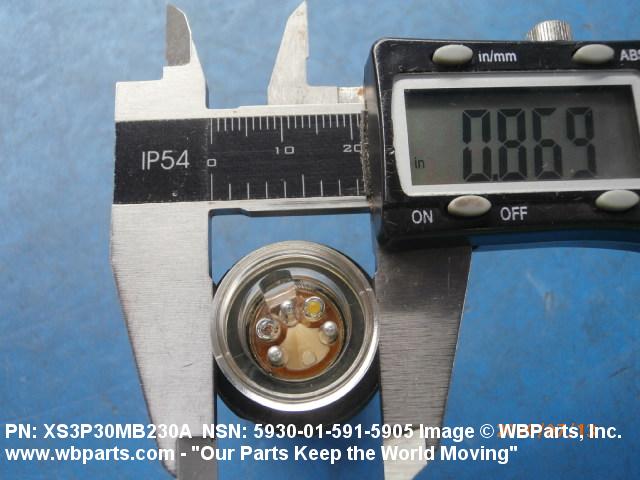

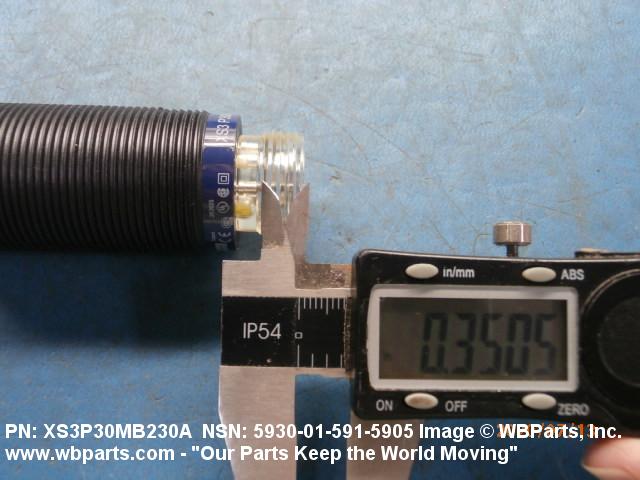

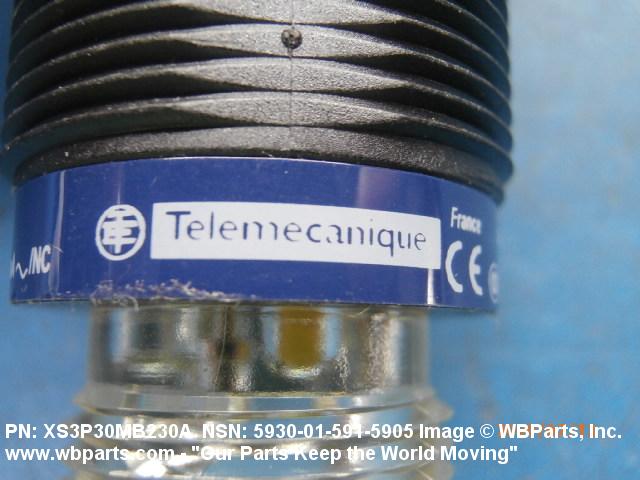

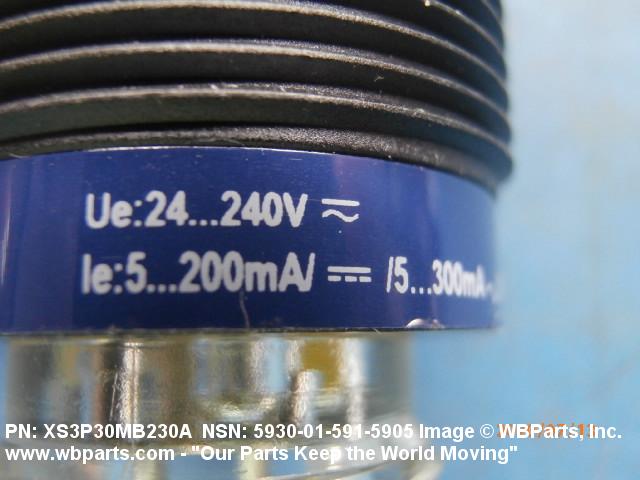

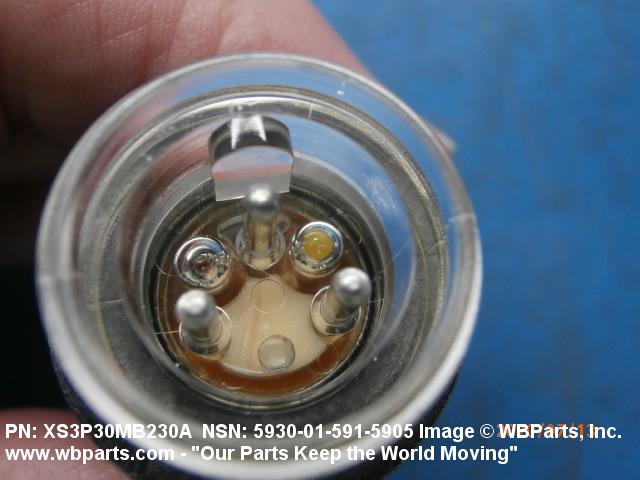

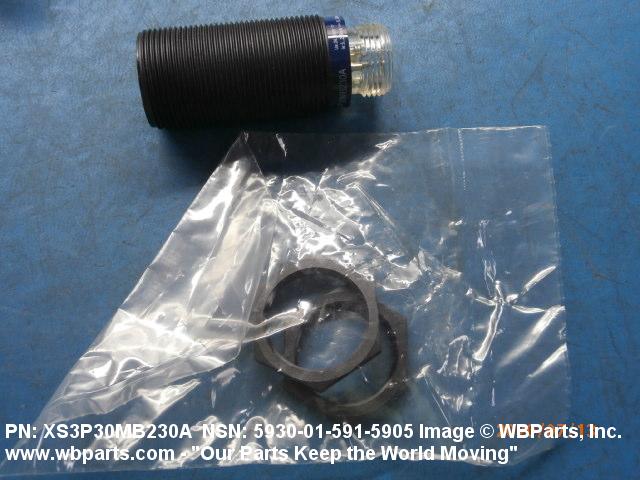

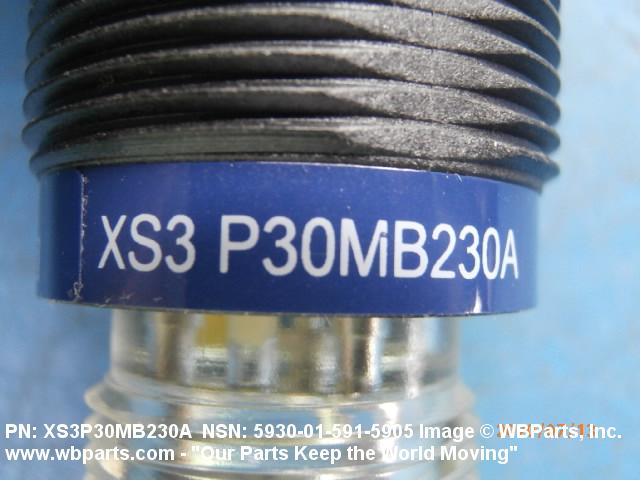

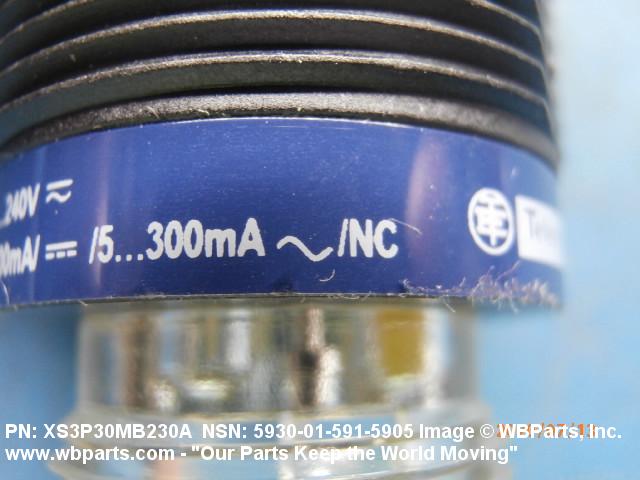

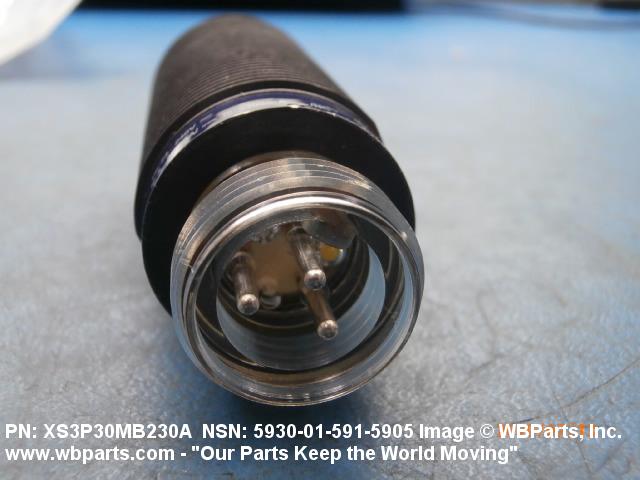

Drawings & Photos | NSN 5930-01-591-5905
Demand History | NSN 5930-01-591-5905
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-591-5905 | 2020-05-135 | 1 | United States |
| 5930-01-591-5905 | 2015-08-238 | 90 | US |
Cross Reference | NSN 5930-01-591-5905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| XS3P30MB230A | 8P800 | STEVEN ENGINEERING INCORPORATED DIV CORPORATE HEADQUARTERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-591-5905
Technical Data | NSN 5930-01-591-5905
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | CYLINDER ASSEMBLY,ACTUATING LINEAR, 3040-21-920-9055 |
| SPECIAL FEATURES | OPERATING FREQUENCY 200 HZ, 25 HZ AC/400 HZ DC; USABLE SENSING RANGE 0- 8 MM; MAX TIGHTENING TORQUE 20NM (26.6FT/LBS);STANDARD TARGET SIZE (STEEL) 30 MM X 30 MM; CABLE 18/30 MM, 3 WIRE, 22 AWG PVC; DIAMETER 30MM |
Restrictions/Controls & Freight Information | NSN 5930-01-591-5905
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5930-01-591-5905
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
