NSN 5935-00-004-0100 PC274, 00-004-0100, 000040100
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-004-0100 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: PC274, 5935-00-004-0100, 00-004-0100, 5935000040100, 000040100
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 MAY 1972 | 00-004-0100 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-004-0100
Cross Reference | NSN 5935-00-004-0100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PC274 | 92219 | TATTNALL COUNTY OF DBA TATTNALL COUNTY SHERIFFS OFFICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-004-0100
Technical Data | NSN 5935-00-004-0100
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 806A OCTAL |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | 26B PCB MOUNT |
| TERMINAL LENGTH | 0.215 INCHES NOMINAL |
| OVERALL HEIGHT | 0.813 INCHES NOMINAL |
| OVERALL DIAMETER | 1.063 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.500 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 8 PRINTED CIRCUIT |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

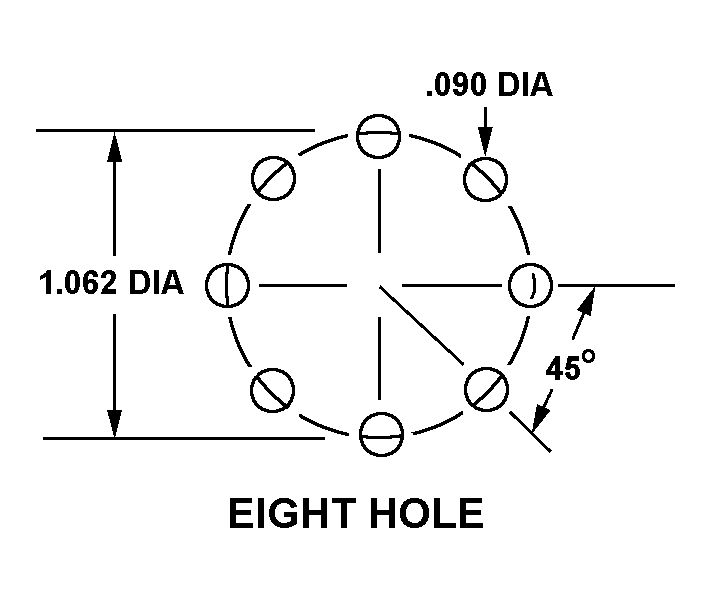

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 803E EIGHT HOLE |
| POLARIZATION TYPE | SLOT |
| MANUFACTURERS CODE | 92219 |
| DESIGN CONTROL REFERENCE | PC274 |
