NSN 5935-00-007-5444 CEC401214, CEC401-214 , CEC40121401
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-007-5444 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CEC401214, CEC401-214 , CEC40121401, CEC401-214-01 , 04-4674164 , 2876008 , 46875550011, 4687555-0011 , 5184678446ITEM25, 518-4678446ITEM25 , 56131308, 56-13-1308 , 65A7A792041SCK, 65A7A79-20-41SCK, 704-4674164 ITEM 15 , 7044674164ITEM15, 704467416BITEM22, 704-467416BITEM22 , 876961625ITEM25, 87696-1625ITEM25 , 5935-00-007-5444, 00-007-5444, 5935000075444, 044674164, 000075444
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JUL 1972 | 00-007-5444 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

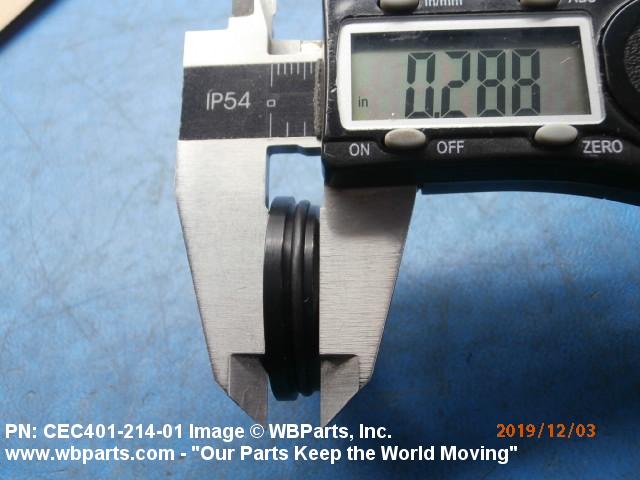

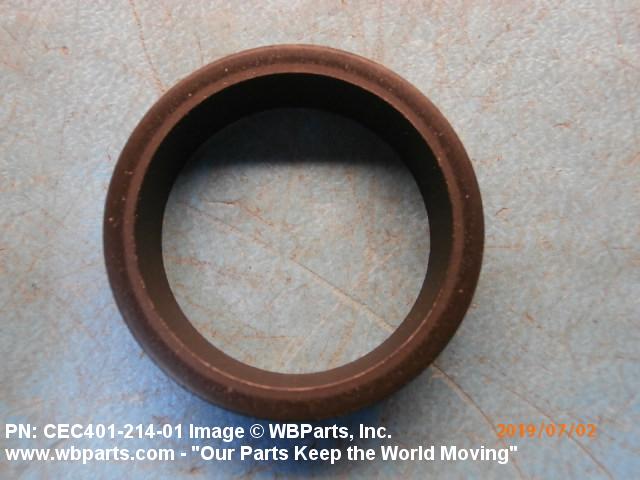

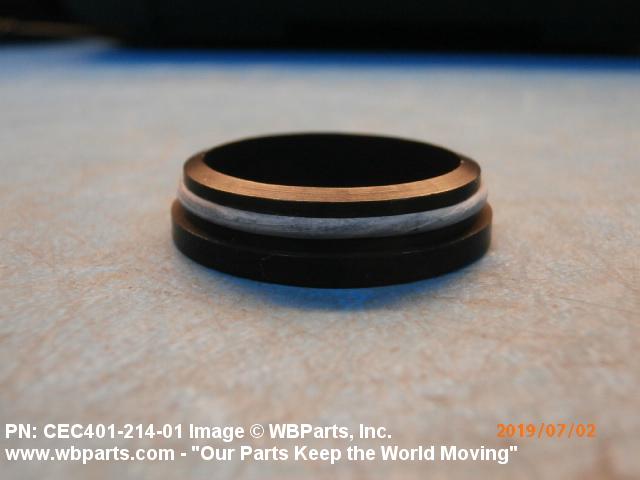

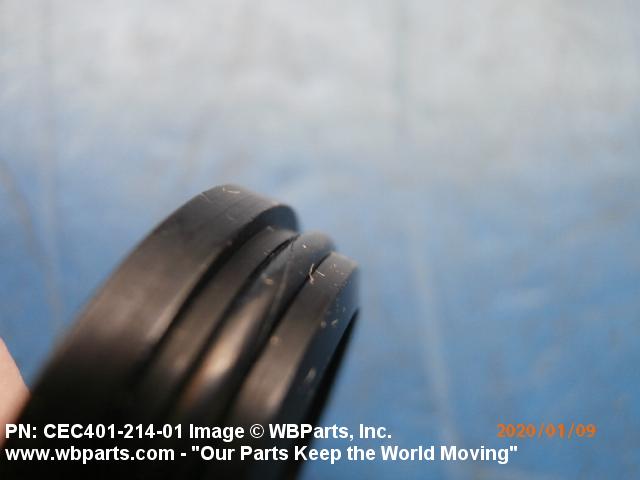

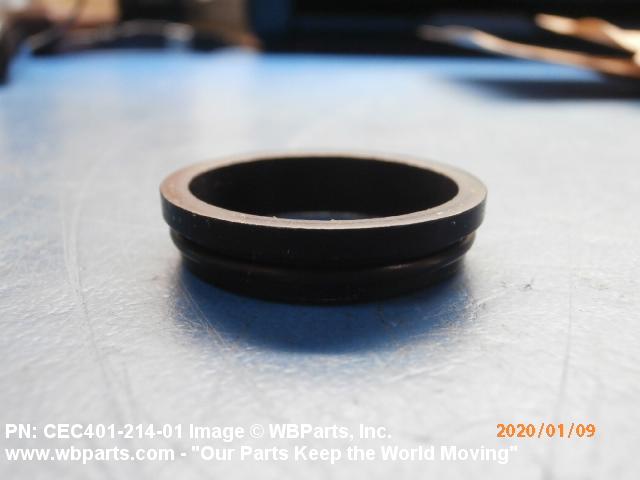

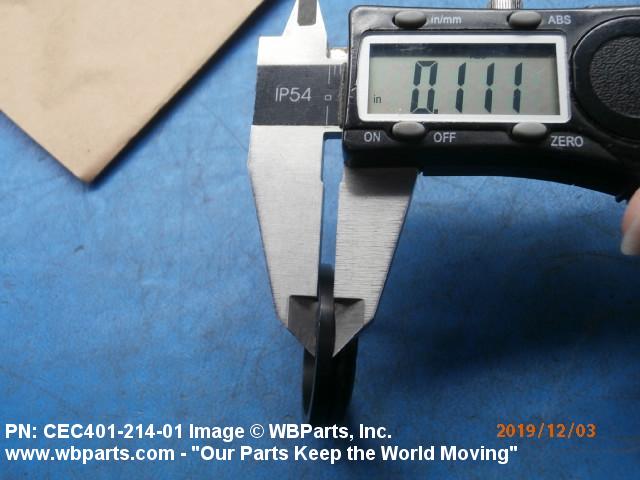

Drawings & Photos | NSN 5935-00-007-5444
Demand History | NSN 5935-00-007-5444
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CEC40121401 | 2019-11-310 | 3 | United States |
| CEC40121401 | 2019-06-179 | 5 | United States |
| CEC40121401 | 2019-04-116 | 11 | Canada |
| CEC40121401 | 2017-06-180 | 500 | us |
| CEC40121401 | 2011-03-90 | 800 | United States |
| CEC40121401 | 2007-09-256 | 200 | United States |
| CEC40121401 | 2007-02-51 | 30 | US |
Cross Reference | NSN 5935-00-007-5444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65A7A79-20-41SCK | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-007-5444
Related Products | NSN 5935-00-007-5444
Technical Data | NSN 5935-00-007-5444
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11G STRAIGHT SHAPE, EXTERNAL COUPLING W/STRAIN RELIEF |
| OVERALL LENGTH | 2.130 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.375 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.728 INCHES MAXIMUM |
| MOUNTING FACILITY THICKNESS | 0.060 INCHES NOMINAL |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| THREADED DEVICE TYPE | MOUNTING BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.188 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.830 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | ANODIZE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | BTAE 41 NUMBER 20 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SILICONE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 41 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | RHODIUM SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND MOISTURE RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL | RHODIUM |
| III PRECIOUS MATERIAL AND WEIGHT | 0.041 RHODIUM GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES RHODIUM |
Restrictions/Controls & Freight Information | NSN 5935-00-007-5444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | P | Item contains platinum family metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 685 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
