NSN 5935-00-083-6142 DM97007S310, DM9700-7S-310, EN10696
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-083-6142 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DM97007S310, DM9700-7S-310, EN10696, EN-10696, 5935-00-083-6142, 00-083-6142, 5935000836142, 000836142
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-083-6142 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

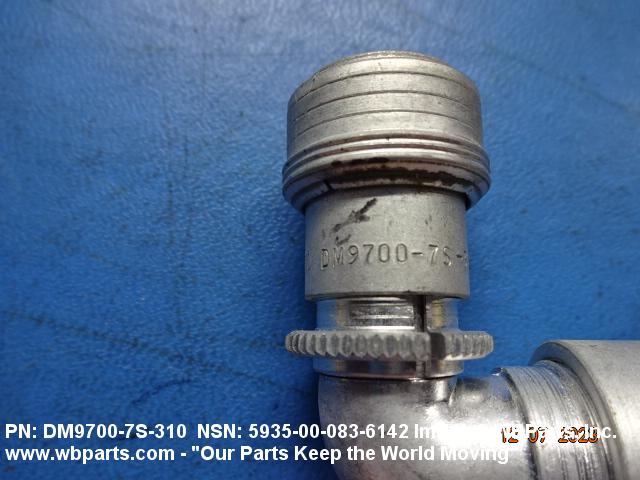

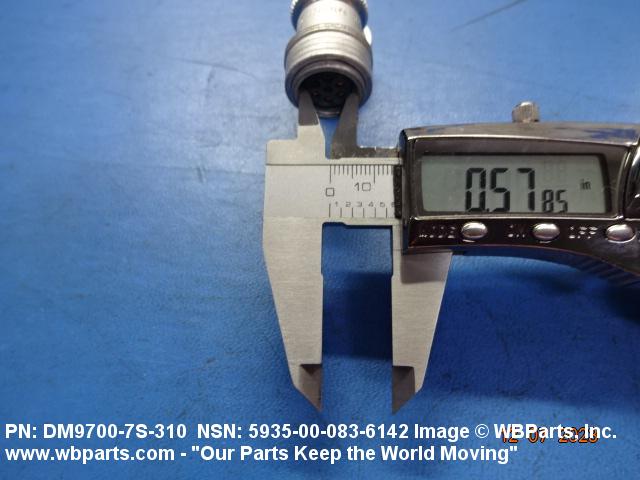

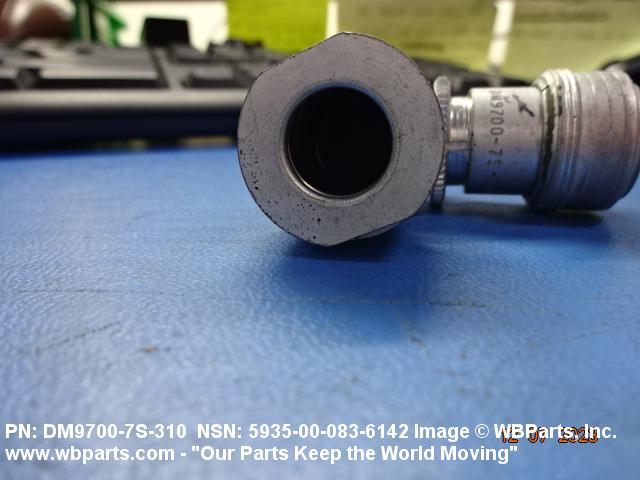

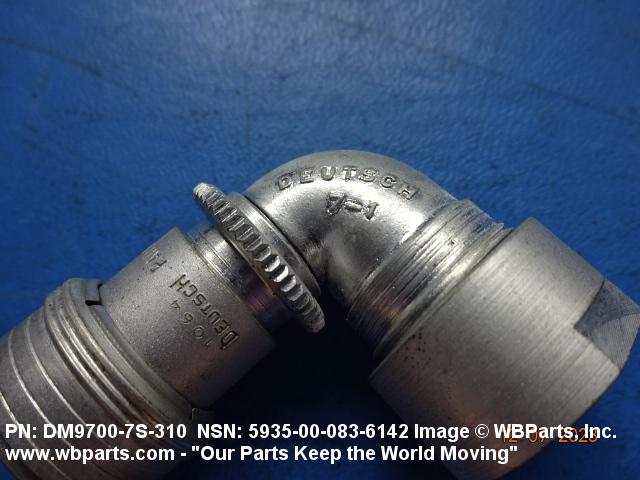

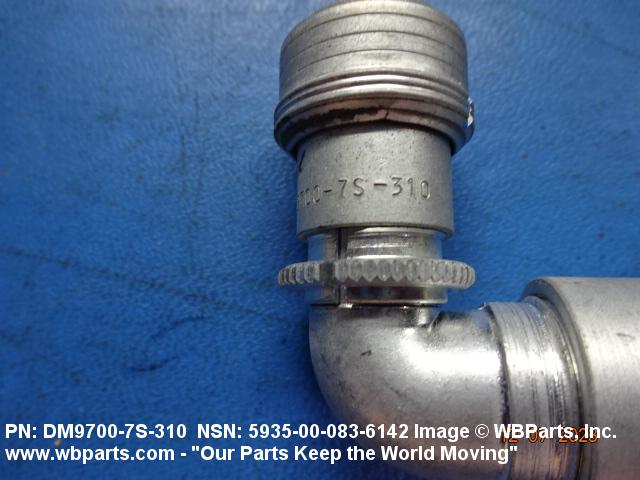

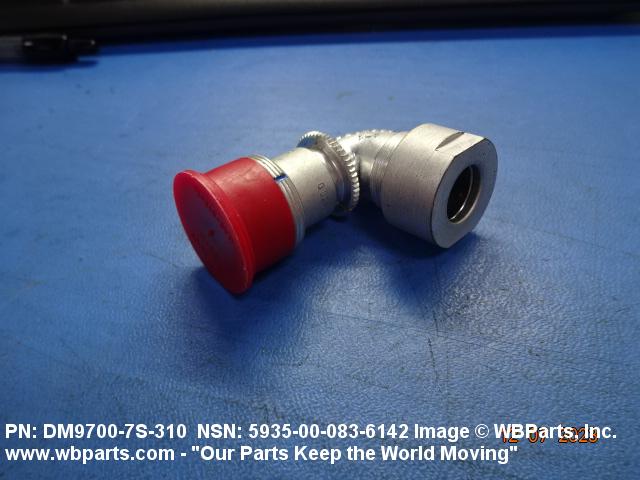

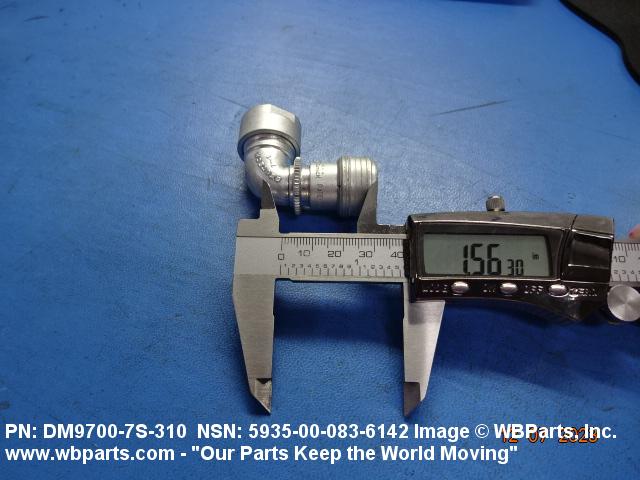

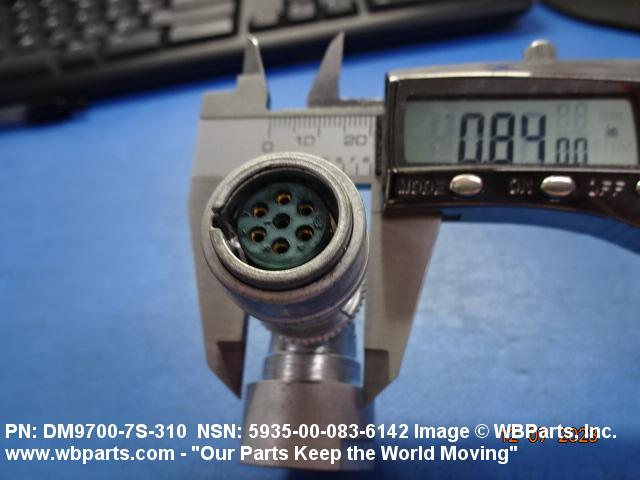

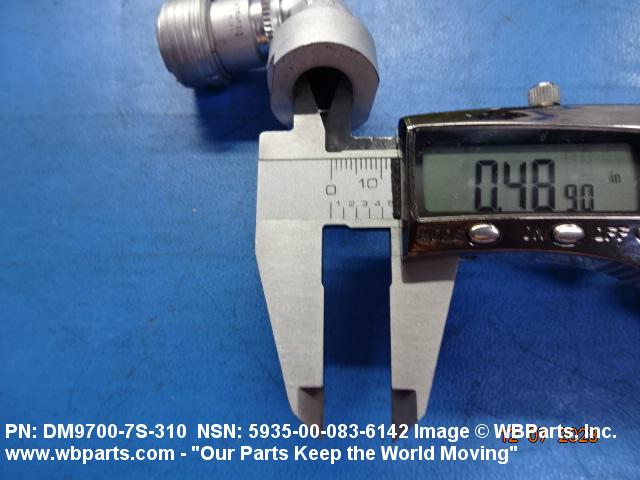

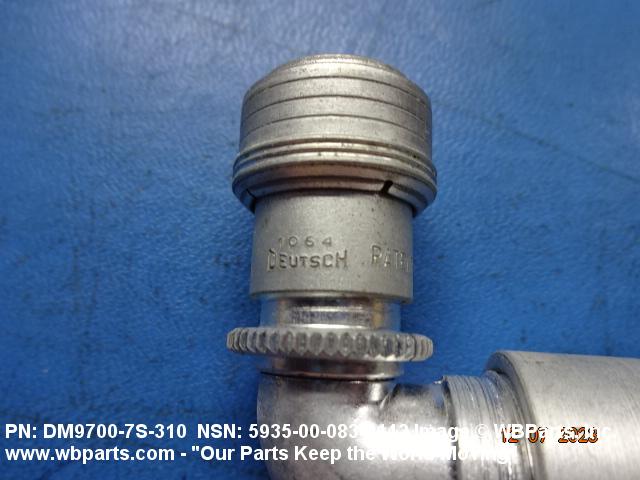

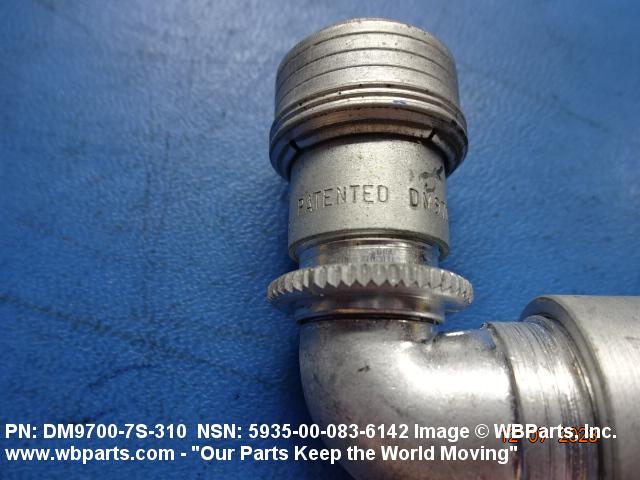

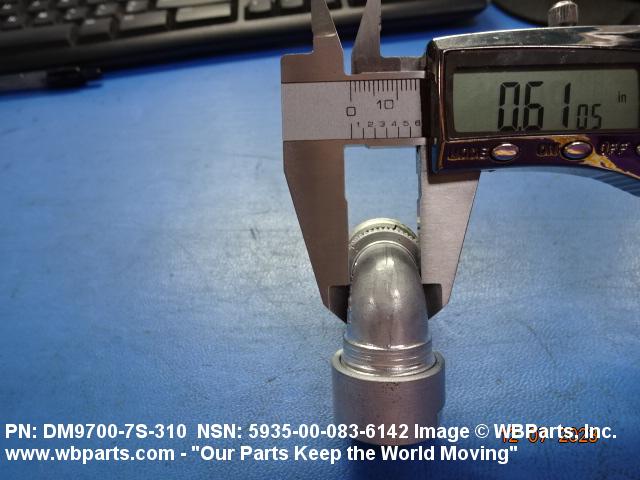

Drawings & Photos | NSN 5935-00-083-6142
Demand History | NSN 5935-00-083-6142
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-083-6142 | 2025-05-147 | 2 | US |
| 000836142 | 2025-04-113 | 3 | US |
| 5935-00-083-6142 | 2025-03-83 | 2 | US |
| 5935-00-083-6142 | 2023-11-313 | 1 | United States |
| 5935-00-083-6142 | 2023-08-235 | 6 | United States |
| 5935-00-083-6142 | 2023-08-233 | 6 | United States |
| DM97007S310 | 2023-08-229 | 6 | United States |
| DM9700-7S-310 | 2023-08-221 | 1 | DIBBS |
| DM9700-7S-310 | 2023-07-212 | 2 | DIBBS |
| DM9700-7S-310 | 2023-07-212 | 4 | DIBBS |
| DM9700-7S-310 | 2023-07-204 | 2 | DIBBS |
| DM9700-7S-310 | 2023-06-177 | 4 | DIBBS |
| DM9700-7S-310 | 2023-06-166 | 4 | DIBBS |
| DM9700-7S-310 | 2023-06-156 | 1 | DIBBS |
| DM9700-7S-310 | 2023-05-150 | 1 | DIBBS |
| DM9700-7S-310 | 2023-05-137 | 1 | DIBBS |
| DM9700-7S-310 | 2023-02-53 | 1 | DIBBS |
| DM9700-7S-310 | 2023-02-45 | 1 | DIBBS |
| DM9700-7S-310 | 2023-01-05 | 1 | DIBBS |
| DM9700-7S-310 | 2022-12-345 | 1 | DIBBS |
| DM9700-7S-310 | 2022-09-272 | 1 | DIBBS |
| DM9700-7S-310 | 2022-09-270 | 1 | DIBBS |
| 5935-00-083-6142 | 2022-09-250 | 2 | US |
| 5935-00-083-6142 | 2022-09-249 | 1 | US |
| DM9700-7S-310 | 2022-09-249 | 1 | DIBBS |
| DM9700-7S-310 | 2022-08-235 | 1 | DIBBS |
| DM9700-7S-310 | 2020-12-346 | 1 | DIBBS |
| DM9700-7S-310 | 2020-11-335 | 1 | DIBBS |
| DM9700-7S-310 | 2020-09-252 | 1 | DIBBS |
| DM9700-7S-310 | 2020-08-238 | 1 | DIBBS |
| DM9700-7S-310 | 2020-06-153 | 1 | DIBBS |
| DM9700-7S-310 | 2020-05-141 | 1 | DIBBS |
| DM97007S310 | 2019-12-338 | 2 | United States |
| 5935-00-083-6142 | 2019-11-316 | 2 | United States |
| 5935-00-083-6142 | 2019-09-256 | 2 | United States |
| DM97007S310 | 2019-09-255 | 1 | United States |
| 5935-00-083-6142 | 2019-07-203 | 1 | United States |
| 000836142 | 2019-06-157 | 1 | United States |
| 5935-00-083-6142 | 2019-06-155 | 2 | US |
| 5935-00-083-6142 | 2018-04-95 | 1 | DIBBS |
| 5935-00-083-6142 | 2017-02-57 | 1 | DIBBS |
| 5935-00-083-6142 | 2016-09-252 | 1 | DIBBS |
| 5935-00-083-6142 | 2013-11-310 | 1 | DIBBS |
| 5935-00-083-6142 | 2013-10-295 | 1 | DIBBS |
| 5935-00-083-6142 | 2013-03-69 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-083-6142
Related Products | NSN 5935-00-083-6142
Technical Data | NSN 5935-00-083-6142
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 15A ANGLE SHAPE WITH CABLE/CLAMP |

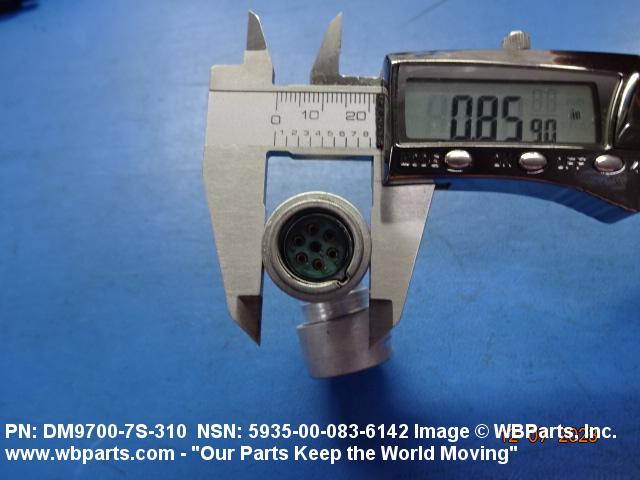

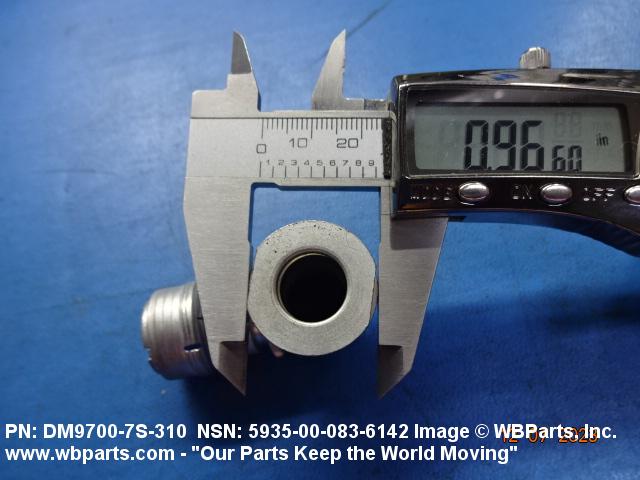

| OVERALL DIAMETER | 0.876 INCHES MINIMUM AND 0.936 INCHES MAXIMUM |

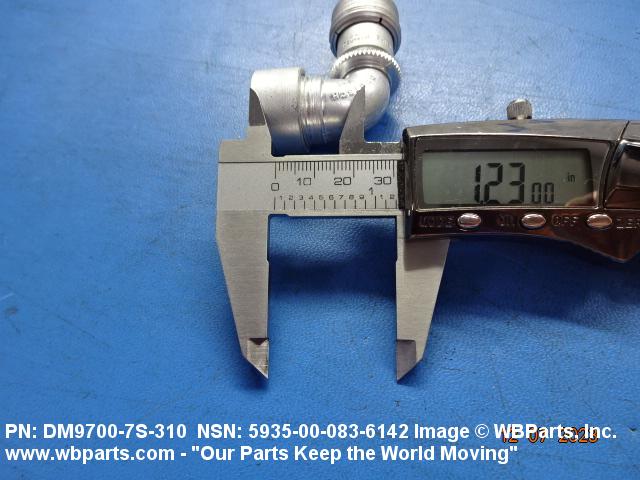

| DISTANCE FROM CENTERLINE TO CABLE END | 1.156 INCHES NOMINAL |
| BODY ANGLE IN DEG | 90.0 |
| CONNECTOR LOCKING METHOD | SNAP RING |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.450 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

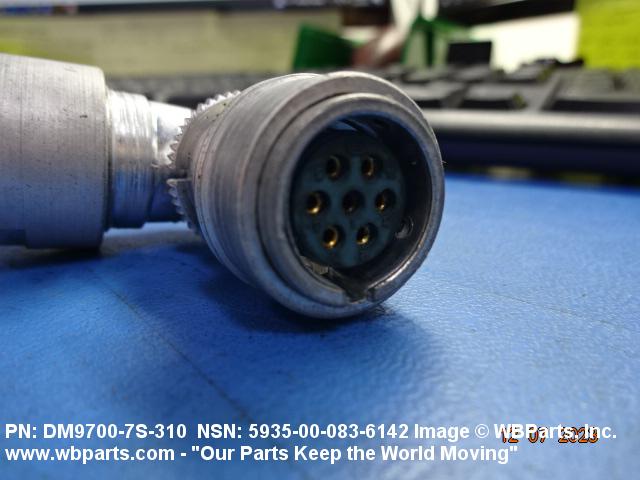

| CONTACT POSITION ARRANGEMENT STYLE | AHAD 7P SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 1,CL 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,GRADE E FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | SIDE SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-083-6142
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-083-6142
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
