Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-086-8922 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M2726/37-001, M272637001, M272637001SYM1099, M2726-37-001SYM1099., SYM 1099.1, SYM10991, MIL-DTL-2726/37 , MILDTL272637, MIL-R-2726/37, MILR272637, 0522722, 052272-2, 321-5871390 PC-14, 3215871390PC14, 9000S620274456SYMB0L1099M0D, 9000S6202-74456SYMB0L1099M0D, 5935-00-086-8922, 00-086-8922, 5935000868922, 000868922
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-086-8922 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

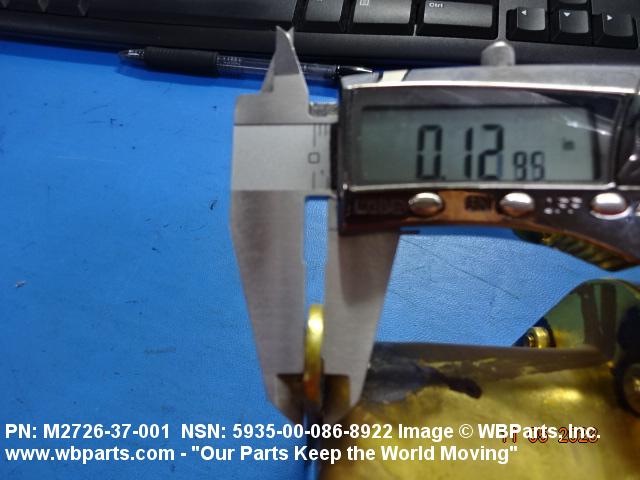

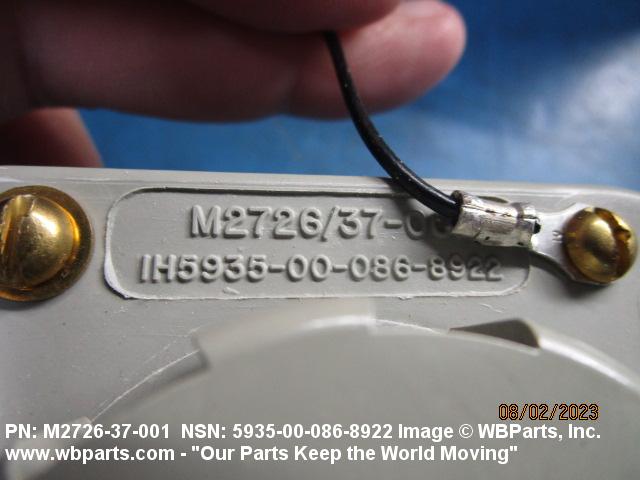

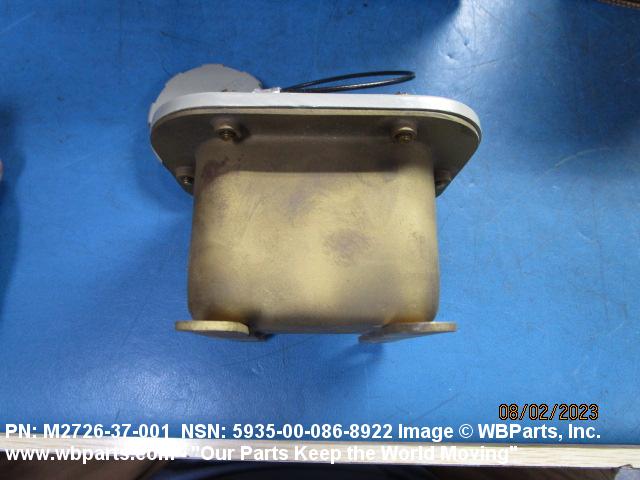

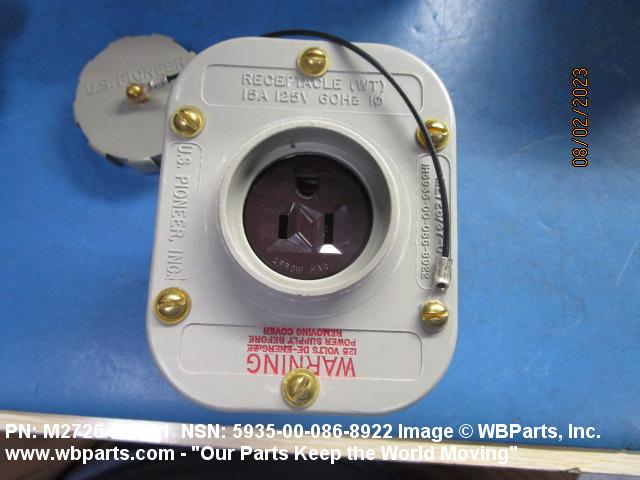

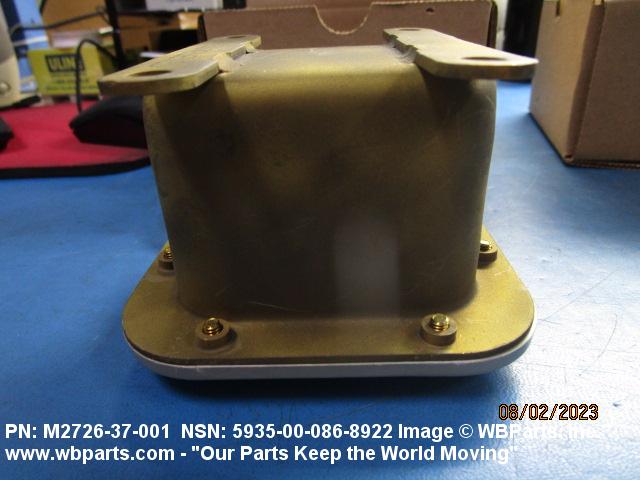

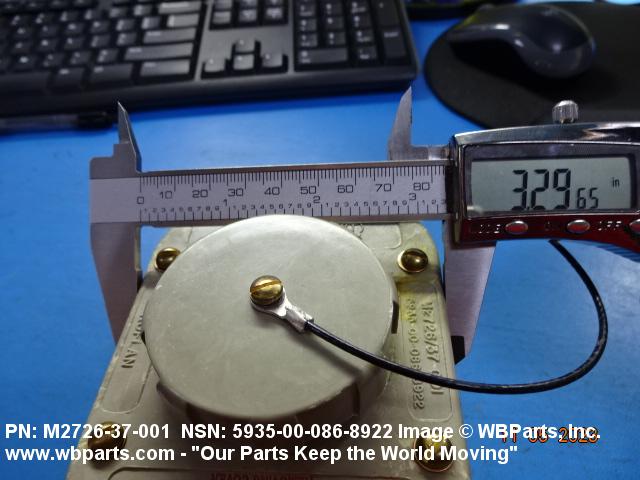

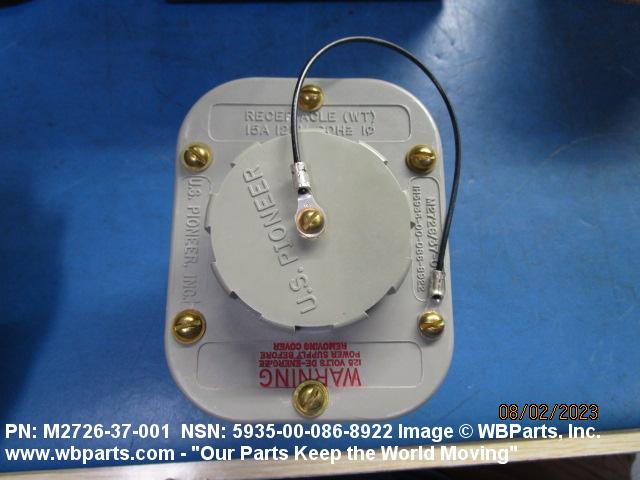

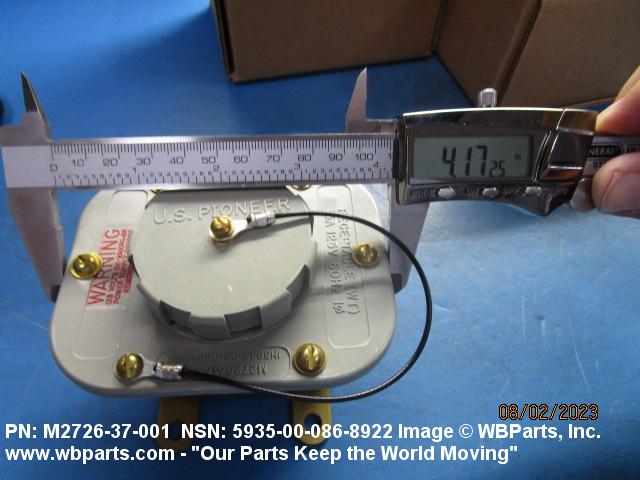

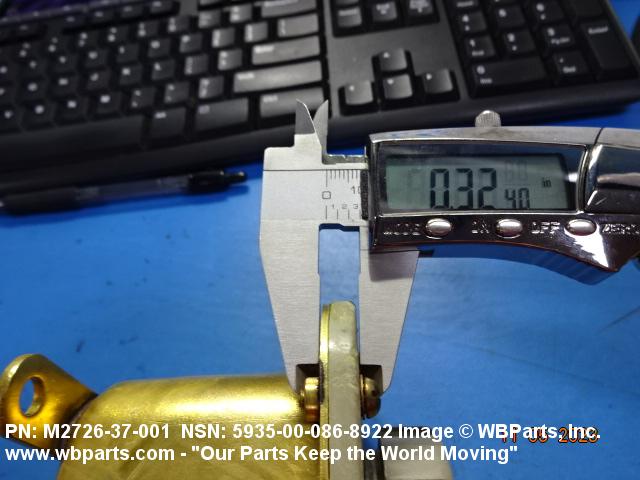

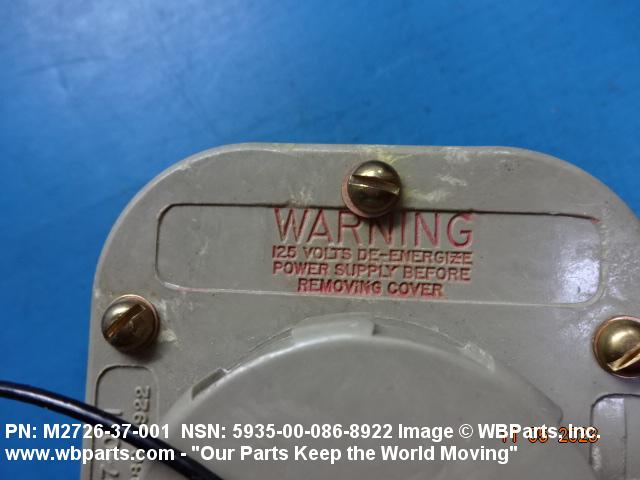

Drawings & Photos | NSN 5935-00-086-8922
Demand History | NSN 5935-00-086-8922
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-086-8922 | 2024-06-12 | 1 | US |
| 5935-00-086-8922 | 2024-03-25 | 1 | United States |
| 5935-00-086-8922 | 2023-12-12 | 234 | DIBBS |
| 5935-00-086-8922 | 2023-11-16 | 63 | US |
| 5935-00-086-8922 | 2023-10-24 | 1 | United States |
| 5935-00-086-8922 | 2023-08-21 | 1 | United States |
| 5935-00-086-8922 | 2023-07-21 | 2 | United States |
| 5935-00-086-8922 | 2023-07-18 | 2 | United States |
| 5935-00-086-8922 | 2023-06-29 | 254 | DIBBS |
| 5935-00-086-8922 | 2023-05-11 | 414 | DIBBS |
| 5935-00-086-8922 | 2023-04-17 | 6 | US |
| 5935-00-086-8922 | 2023-03-23 | 388 | DIBBS |
| M272637001 | 2022-08-16 | 4 | US |
| 5935-00-086-8922 | 2022-07-07 | 251 | DIBBS |
| 5935-00-086-8922 | 2022-05-12 | 1 | US |
| 5935-00-086-8922 | 2022-04-18 | 1 | us |
| 5935-00-086-8922 | 2022-01-27 | 294 | DIBBS |
| 5935-00-086-8922 | 2021-10-14 | 342 | DIBBS |
| 5935-00-086-8922 | 2021-08-13 | 14 | Taiwan |
| SYM10991 | 2021-04-06 | 1 | US |
| 5935-00-086-8922 | 2021-03-18 | 21 | US |
| 5935-00-086-8922 | 2021-01-14 | 8 | US |
| 5935-00-086-8922 | 2020-04-09 | 1590 | DIBBS |
| 5935-00-086-8922 | 2020-02-13 | 735 | DIBBS |
| 5935-00-086-8922 | 2019-07-20 | 1 | US |
| 5935-00-086-8922 | 2019-02-25 | 1 | US |
| 5935-00-086-8922 | 2018-08-23 | 517 | DIBBS |
| 5935-00-086-8922 | 2018-03-13 | 21 | United States |
| 5935-00-086-8922 | 2018-02-15 | 534 | DIBBS |
| 5935-00-086-8922 | 2018-01-24 | 1661 | DIBBS |
| 5935-00-086-8922 | 2017-08-13 | 1500 | DIBBS |
| 5935-00-086-8922 | 2017-07-23 | 261 | DIBBS |
| 5935-00-086-8922 | 2016-07-07 | 437 | DIBBS |
| 5935-00-086-8922 | 2016-04-28 | 491 | DIBBS |
| 5935-00-086-8922 | 2016-01-06 | 392 | DIBBS |
| 5935-00-086-8922 | 2015-10-25 | 424 | DIBBS |
| 5935-00-086-8922 | 2015-09-30 | 434 | DIBBS |
| 5935-00-086-8922 | 2015-07-30 | 348 | DIBBS |
| 5935-00-086-8922 | 2015-05-19 | 313 | DIBBS |
| M272637001 | 2014-07-16 | 10 | United States |
| 5935-00-086-8922 | 2014-04-03 | 667 | DIBBS |
| 5935-00-086-8922 | 2014-02-03 | 352 | DIBBS |
| 5935-00-086-8922 | 2013-12-25 | 1 | DIBBS |
| 5935-00-086-8922 | 2013-12-02 | 413 | DIBBS |
| 5935-00-086-8922 | 2013-10-02 | 425 | DIBBS |
| 5935-00-086-8922 | 2013-02-14 | 36 | US |
| 5935-00-086-8922 | 2011-10-13 | 327 | DIBBS |
| 5935-00-086-8922 | 2011-09-13 | 237 | DIBBS |
| 5935-00-086-8922 | 2011-01-10 | 328 | DIBBS |
| 5935-00-086-8922 | 2010-12-20 | 3 | US |
| 5935-00-086-8922 | 2010-11-04 | 231 | DIBBS |
| 5935-00-086-8922 | 2010-08-18 | 241 | DIBBS |
| 5935-00-086-8922 | 2010-05-10 | 350 | DIBBS |
| 5935-00-086-8922 | 2009-10-01 | 585 | DIBBS |
| 5935-00-086-8922 | 2009-07-22 | 242 | DIBBS |
| 5935-00-086-8922 | 2009-06-15 | 181 | DIBBS |
| 5935-00-086-8922 | 2009-02-06 | 256 | DIBBS |
| 5935-00-086-8922 | 2008-12-03 | 153 | DIBBS |
| 5935-00-086-8922 | 2008-11-10 | 6 | Brazil |
| 5935-00-086-8922 | 2008-07-03 | 29 | DIBBS |
| 5935-00-086-8922 | 2008-05-05 | 517 | DIBBS |
| 5935-00-086-8922 | 2008-02-15 | 355 | DIBBS |
| 5935-00-086-8922 | 2007-10-30 | 336 | DIBBS |
| 5935-00-086-8922 | 2007-10-30 | 493 | DIBBS |
Cross Reference | NSN 5935-00-086-8922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 052272-2 | 15823 | UNIFLITE INC |
| 321-5871390 PC-14 | 24900 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 9000S6202-74456SYMB0L1099M0D | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| M2726-37-001SYM1099. | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M2726/37-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-2726/37 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-2726/37 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SYM 1099.1 | 72144 | FIREYE, INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-00-086-8922
Related Products | NSN 5935-00-086-8922
5935-00-086-8923, 5935-00-086-8924, 5935-00-086-9031, 5935-00-086-9042, 5935-00-086-9142
Technical Data | NSN 5935-00-086-8922
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 22K WALL TYPE W/ OR W/O COVER |
| OVERALL LENGTH | 4.125 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.125 INCHES NOMINAL |
| OVERALL HEIGHT | 3.375 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.062 INCHES NOMINAL |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| SHELL TYPE | SPLIT |
| SHELL MATERIAL | ALUMINUM ALLOY |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ADEY 3,5-50,6-50 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC PHENOLIC SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14 TY CFI-5 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | U-SOCKET SINGLE MATING END 1ST CONTACT GROUPING FLAT SOCKET SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 15.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 125.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | NICKEL SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 CL 2,TY 6 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| TEST DATA DOCUMENT | 81349-MIL-R-2726 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-2726/37 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-2726/37 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M2726/37-001 |
Restrictions/Controls & Freight Information | NSN 5935-00-086-8922
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-086-8922
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
