NSN 5935-00-093-1054 DS073727SW059, DS07-37-27SW059, DS073727SW505
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-093-1054 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DS073727SW059, DS07-37-27SW059, DS073727SW505, DS07-37-27SW5-05, GC800RC3708SW, GC800R-C3708SW, RTS073727SW059, RTS07-37-27SW-059, 5935-00-093-1054, 00-093-1054, 5935000931054, 000931054
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 DEC 1972 | 00-093-1054 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-093-1054
Demand History | NSN 5935-00-093-1054
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DS07-37-27SW059 | 2025-06-171 | 1 | DIBBS |
| GC800R-C3708SW | 2025-06-171 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2025-06-171 | 1 | DIBBS |
| DS07-37-27SW059 | 2025-04-100 | 1 | DIBBS |
| GC800R-C3708SW | 2025-04-100 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2025-04-100 | 1 | DIBBS |
| DS07-37-27SW059 | 2024-07-200 | 1 | DIBBS |
| GC800R-C3708SW | 2024-07-200 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2024-07-200 | 1 | DIBBS |
| DS07-37-27SW059 | 2024-07-189 | 1 | DIBBS |
| GC800R-C3708SW | 2024-07-189 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2024-07-189 | 1 | DIBBS |
| DS07-37-27SW059 | 2022-06-157 | 1 | DIBBS |
| GC800R-C3708SW | 2022-06-157 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2022-06-157 | 1 | DIBBS |
| DS07-37-27SW059 | 2022-05-145 | 1 | DIBBS |
| GC800R-C3708SW | 2022-05-145 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2022-05-145 | 1 | DIBBS |
| DS07-37-27SW059 | 2022-01-27 | 1 | DIBBS |
| GC800R-C3708SW | 2022-01-27 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2022-01-27 | 1 | DIBBS |
| DS07-37-27SW059 | 2021-12-341 | 1 | DIBBS |
| GC800R-C3708SW | 2021-12-341 | 1 | DIBBS |
| RTS07-37-27SW-059 | 2021-12-341 | 1 | DIBBS |
Cross Reference | NSN 5935-00-093-1054
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DS07-37-27SW059 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| DS07-37-27SW5-05 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| GC800R-C3708SW | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| RTS07-37-27SW-059 | 076Z5 | ROBERT TECHNOLOGIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-093-1054
Technical Data | NSN 5935-00-093-1054
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 2.219 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.484 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.625 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 150.0 |
| MATING END QUANTITY | 1 |

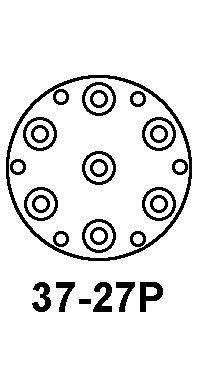

| CONTACT POSITION ARRANGEMENT STYLE | APAF 37-27P SINGLE MATING END |
