Product Details | TIP JACK
5935-00-104-9954 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: 5935-00-104-9954, 00-104-9954, 5935001049954, 001049954
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-104-9954 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-00-104-9954
Cross Reference | NSN 5935-00-104-9954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09-9201-1-03512 | 18310 | CONCORD ELECTRONICS, INC. |
| 100522 | 52542 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
| 119-437B | 83058 | TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV |
| 119437B | 71785 | CINCH CONNECTORS, INC. |
| 119437RED | 83058 | TRW ASSEMBLIES AND FASTENERS GROUP FASTENERS DIV |
| 133-85 | 88869 | EATON CORP ELECTRONIC INSTRUMENTATION DIV |
| 16600504-002 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 17-12098-3 | 04614 | TEXTRON SYSTEMS CORPORATION DBA TEXTRON DEFENSE SYSTEMS |
| 1706-3002 | 31160 | DATUM INC BANCOMM-TIMING DIV |
| 207-0020 | 54817 | AUTEK SYSTEMS CORP |
| 241251 | K0656 | BAE SYSTEMS (OPERATIONS) LTD |
| 3-582118-2 | 00779 | TYCO ELECTRONICS CORPORATION |
| 325-102 | 83330 | DIALIGHT CORPORATION |
| 325-102 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| 325-RED | 83330 | DIALIGHT CORPORATION |
| 325-RED | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| 360-0160-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 39024/11-02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 413378-2 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 4805-1024-002 | 96238 | DNE TECHNOLOGIES, INC. |
| 4879-125-2 | 61638 | ADVANCED INTERCONNECTIONS CORPORATION |
| 4879-143-2 | 61638 | ADVANCED INTERCONNECTIONS CORPORATION |
| 6625987-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 7209518P002 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7531065-2 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 7531065P0002 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 7531065P2 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 8041-15G4 | 91506 | AUGAT INC |
| A-1766RED | 27432 | VISUAL INFORMATION INSTITUTE INC DBA V I I CRAFT |
| A42494-1-2 | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| GX81-67-1G4 | 00779 | TYCO ELECTRONICS CORPORATION |
| L02685 | 16236 | DLA LAND AND MARITIME |
| M39021/11-02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39024/11-02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39024/11-02 | 83330 | DIALIGHT CORPORATION |
| M39024/11-02 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| MIL-C-39024-11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC39024/11C02 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| X8041-12-1G4 | 00779 | TYCO ELECTRONICS CORPORATION |
| X8041-12G4 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-104-9954
Technical Data | NSN 5935-00-104-9954
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.080 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 0.500 INCHES NOMINAL SINGLE FINGER |

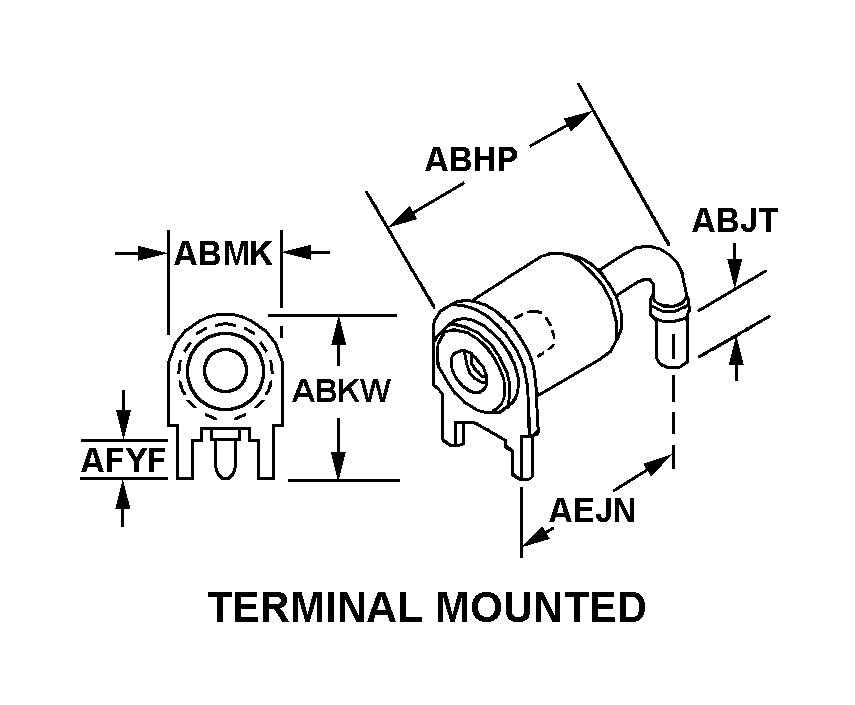

| BODY STYLE | 37 TERMINAL MOUNTED |
