NSN 5935-00-110-7735 MS181961, MS18196-1, MS18196T6
Product Details | ELECTRICAL CONNECTOR JACKSCREW
5935-00-110-7735 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Part Alternates: MS181961, MS18196-1, MS18196T6, M28748/3B000F1L, M287483B000F1L, MILC28748, MIL-C-28748, TBP11602404CD1, TBP1160-240-4CD1 , 30867628401, 30-867-6284-01, 3392141, 339214-1, 3522 500 09459, 352250009459, 66755002, 66755-002, 5935-00-110-7735, 00-110-7735, 5935001107735, 001107735
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 AUG 1968 | 00-110-7735 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |

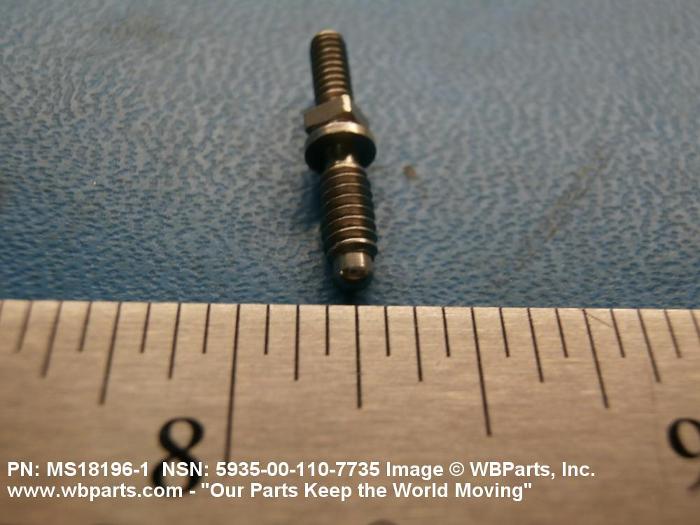

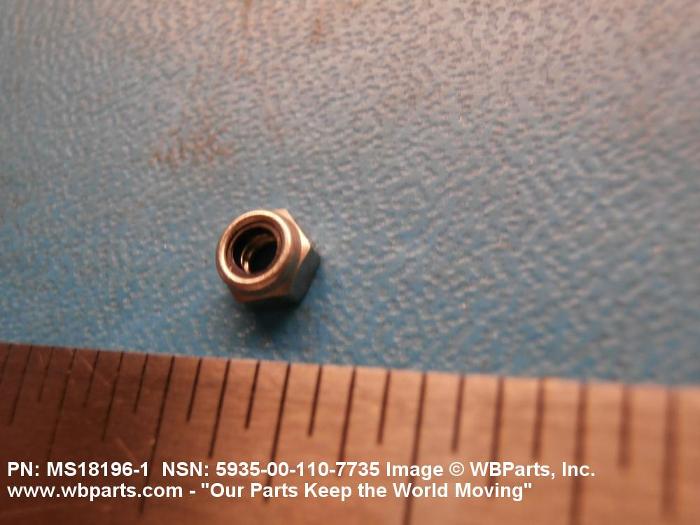

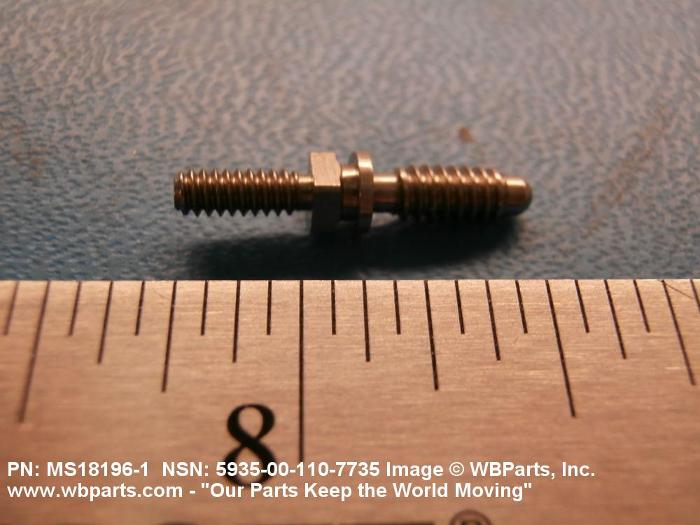

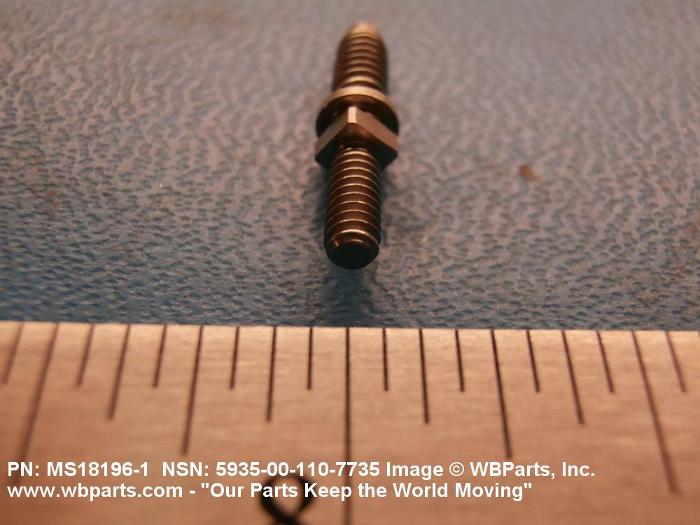

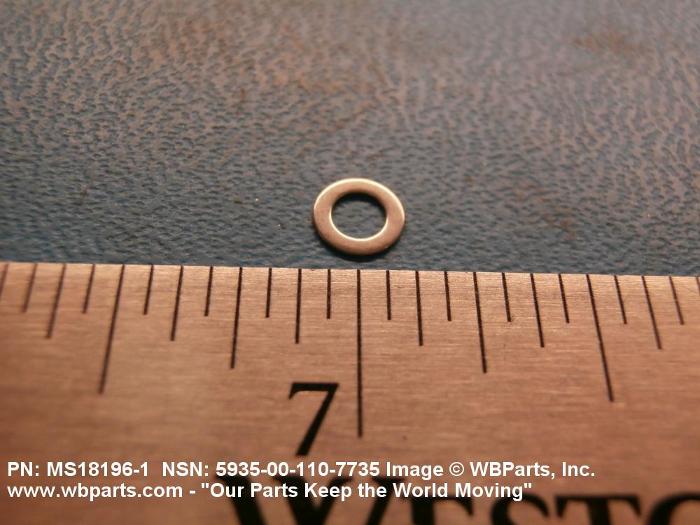

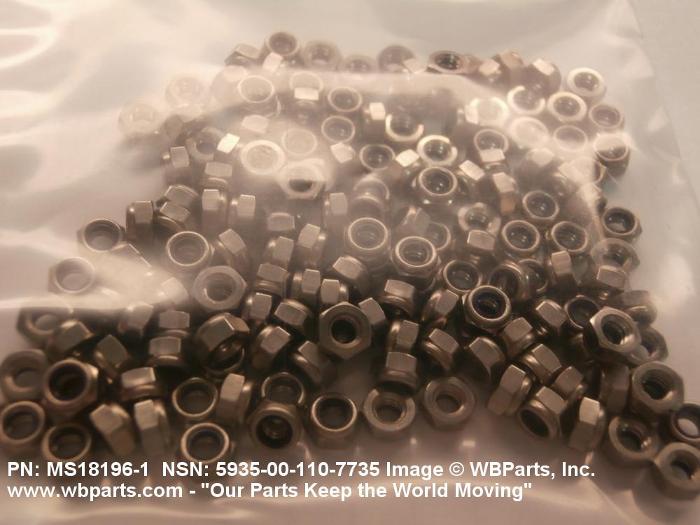

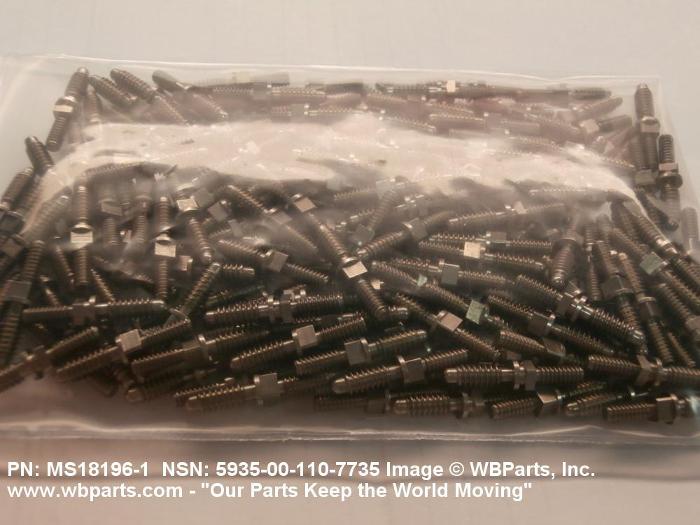

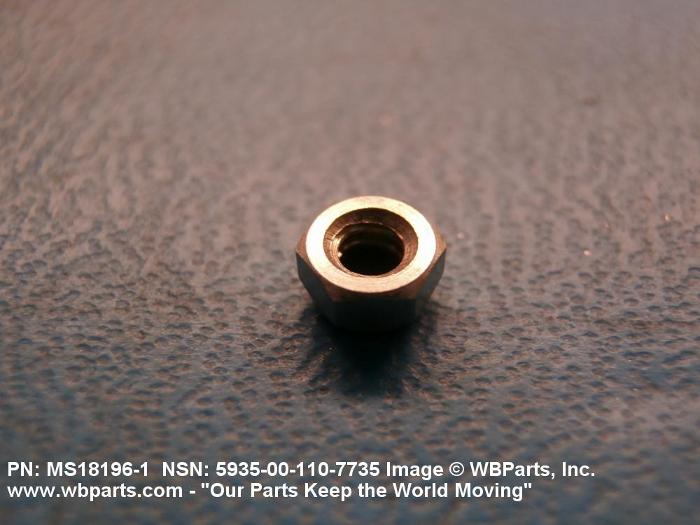

Drawings & Photos | NSN 5935-00-110-7735
Demand History | NSN 5935-00-110-7735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-110-7735 | 2024-08-227 | 466 | DIBBS |
| 5935-00-110-7735 | 2024-08-214 | 466 | DIBBS |
| MS181961 | 2014-08-213 | 90 | United States |
| 5935-00-110-7735 | 2012-12-347 | 160 | us |
| MS181961 | 2008-08-238 | 25 | United States |
Cross Reference | NSN 5935-00-110-7735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30-867-6284-01 | K5294 | GE AVIATION SYSTEMS LTD |
| 339214-1 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 339214-1 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 3522 500 09459 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 66755-002 | 88932 | NORTHROP GRUMMAN CORP PRECISION PRODUCTS PLANT |
| M28748/3B000F1L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-28748 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS18196-1 | 02549 | ASTREX ELECTRONICS INC. DIV TTI INC |
| MS18196-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS18196T6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-110-7735
Technical Data | NSN 5935-00-110-7735
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 12M THREADED STUD MOUNTED |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| OVERALL DIAMETER | 0.190 INCHES MAXIMUM |
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC AND UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES AND 0.138 INCHES |
| THREAD CLASS | 2A AND 2A |
| THREAD QUANTITY PER INCH | 40 AND 32 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| TEST DATA DOCUMENT | 81349-MIL-C-28748 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS18196 GOVERNMENT STANDARD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28748 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28748/3B000F1L |
Restrictions/Controls & Freight Information | NSN 5935-00-110-7735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
