NSN 5935-00-166-6032 M22249/27-2, M22249272, MIL-C-22249/27
Product Details | ELECTRICAL CONNECTOR INSERT
5935-00-166-6032 An insulating element with or without contact(s) designed to fit into an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; or CONNECTOR, RECEPTACLE, ELECTRICAL forming an integral liner or seat. Excludes INSULATOR (1), DISK; INSULATOR (1) PLATE; TERMINAL (1), FEEDTHRU and TERMINAL BOARD. See also CONNECTOR (as modified); CONNECTOR BODY (as modified); and INSERT MODULE, ELECTRICAL CONNECTOR.
Part Alternates: M22249/27-2, M22249272, MIL-C-22249/27, MILC2224927, 5935-00-166-6032, 00-166-6032, 5935001666032, 001666032
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09-FEB-73 | 00-166-6032 | 60653 ( INSERT, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-166-6032
Demand History | NSN 5935-00-166-6032
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-166-6032 | 2025-11-313 | 10 | DIBBS |
| 5935-00-166-6032 | 2025-09-246 | 10 | UM |
| 5935-00-166-6032 | 2025-09-244 | 10 | DIBBS |
| 5935-00-166-6032 | 2019-07-211 | 2 | US |
| 5935-00-166-6032 | 2014-04-92 | 2 | DIBBS |
| 5935-00-166-6032 | 2013-12-353 | 2 | DIBBS |
| 5935-00-166-6032 | 2013-10-294 | 2 | DIBBS |
| 5935-00-166-6032 | 2013-09-267 | 2 | DIBBS |
| 5935-00-166-6032 | 2012-06-159 | 1 | DIBBS |
| 5935-00-166-6032 | 2012-06-159 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-166-6032
Technical Data | NSN 5935-00-166-6032
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2P STRAIGHT SHAPE, ROUND |
| OVERALL HEIGHT | 1.372 INCHES NOMINAL |
| OVERALL DIAMETER | 4.498 INCHES MINIMUM AND 4.500 INCHES MAXIMUM |
| MATING END QUANTITY | 1 |

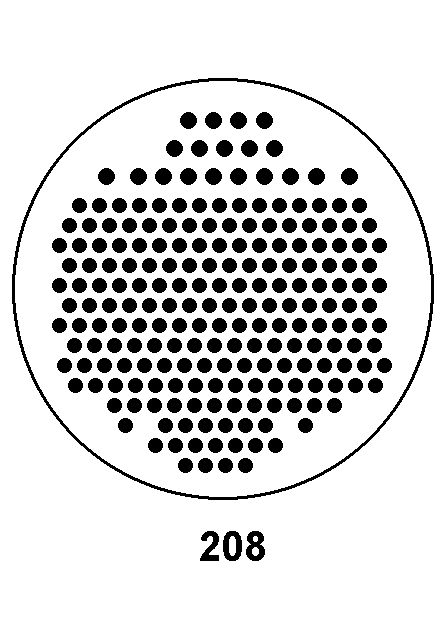

| CONTACT POSITION ARRANGEMENT STYLE | HAAB 208 SINGLE MATING END |
