NSN 5935-00-187-0624 B101164, B10116-4, BA101164
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-187-0624 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: B101164, B10116-4, BA101164, BA10116-4 , 7618835PT122, 89539, 89-539, 89X539, AR88, 2576171, 257-6171, 328A102, 328B537, 3576137, 357-6137, 35A003, 49767, 49767A, 51086705, 5-108670-5, 54B16022, 5935-00-187-0624, 00-187-0624, 5935001870624, 001870624
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-187-0624 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-187-0624
Cross Reference | NSN 5935-00-187-0624
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 257-6171 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 328A102 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 328A102 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 328B537 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 328B537 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 357-6137 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 35A003 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 49767 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 49767A | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5-108670-5 | 96795 | GOULD INSTRUMENT SYSTEMS INC |
| 54B16022 | 71785 | CINCH CONNECTORS, INC. |
| 7618835PT122 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 89-539 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 89X539 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| AR88 | 11447 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST |
| AR88 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| B10116-4 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| B10116-4 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| B10116-4 | 70408 | AT AND T CORP |
| B10116-4 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| BA10116-4 | 02660 | AMPHENOL CORP SPECTRA-STRIP/ITD |
| BA10116-4 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-187-0624
Technical Data | NSN 5935-00-187-0624
| Characteristic | Specifications |
|---|---|

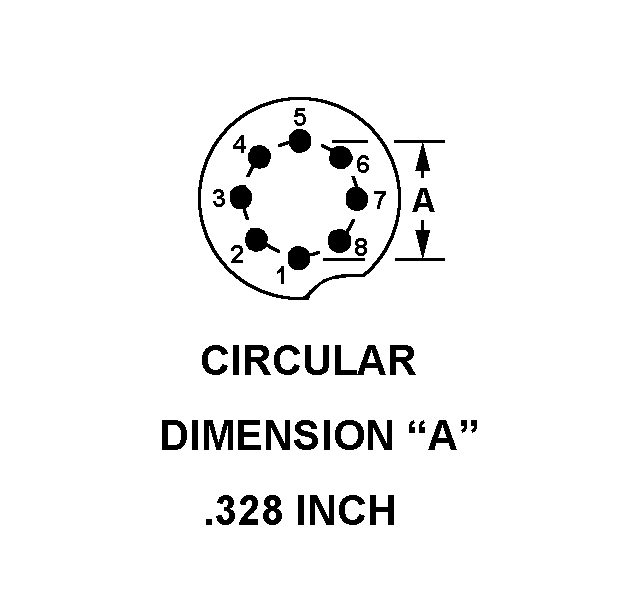

| CONTACT POSITION ARRANGEMENT STYLE | 823A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 8 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | TIN |
| BODY STYLE | 24B PCB MOUNT |
| OVERALL HEIGHT | 0.459 INCHES NOMINAL |
| OVERALL DIAMETER | 0.398 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.275 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 7 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

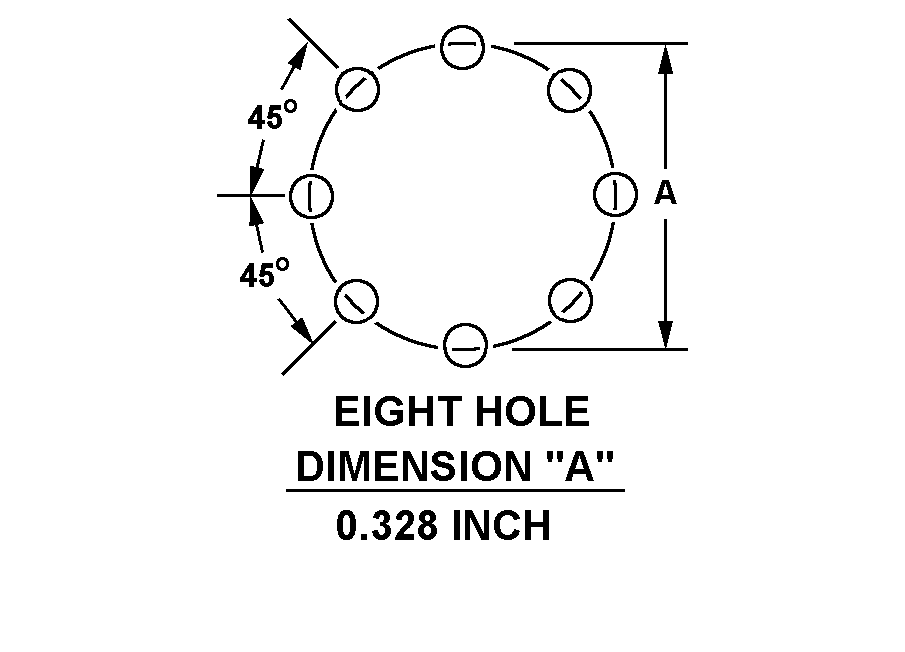

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 826E EIGHT HOLE |
