NSN 5935-00-201-7119 241, 292-0082-00, 8879
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-201-7119 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 241, 292-0082-00, 8879, 5935-00-201-7119, 00-201-7119, 5935002017119, 002017119, 292008200
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-201-7119 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-201-7119
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-201-7119
Related Products | NSN 5935-00-201-7119
Technical Data | NSN 5935-00-201-7119
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 205A IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | PHOSPHOR BRONZE OR BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | 44B CRYSTAL, TOP OR BOTTOM MOUNT |
| OVERALL LENGTH | 0.859 INCHES NOMINAL |
| OVERALL HEIGHT | 0.672 INCHES NOMINAL |
| OVERALL WIDTH | ANY ACCEPTABLE |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.297 INCHES NOMINAL |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | BODY THROUGH HOLE |

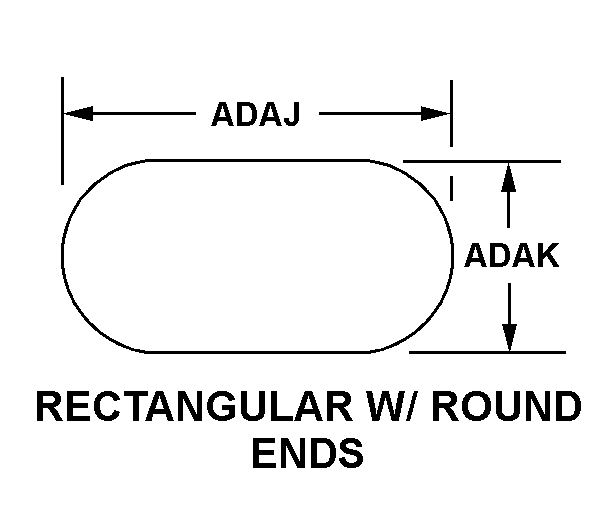

| MOUNTING HOLE STYLE | 23D RECTANGLAR W/ROUND ENDS |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 0.859 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | ANY ACCEPTABLE |
| POLARIZATION TYPE | CONTACT SHAPE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | CRYSTAL HOLDER |
Restrictions/Controls & Freight Information | NSN 5935-00-201-7119
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
