NSN 5935-00-201-8012 M641/7-1, M64171, MILJ6417
Product Details | TELEPHONE JACK
5935-00-201-8012 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: M641/7-1, M64171, MILJ6417, MILJ641-7, JJ048, JK48, 17332, 1733-2, 5935-00-201-8012, 00-201-8012, 5935002018012, 002018012
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-201-8012 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-00-201-8012
Demand History | NSN 5935-00-201-8012
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-201-8012 | 2017-01-27 | 1 | United States |
| 5935-00-201-8012 | 2010-06-176 | 75 | DIBBS |
| 5935-00-201-8012 | 2009-12-339 | 40 | DIBBS |
| 5935-00-201-8012 | 2009-03-64 | 76 | DIBBS |
| JJ048 | 2008-07-205 | 20 | US |
| 5935-00-201-8012 | 2008-02-50 | 17 | DIBBS |
| 5935-00-201-8012 | 2008-02-50 | 26 | DIBBS |
Cross Reference | NSN 5935-00-201-8012
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1733-2 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
| JJ048 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JK48 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| M641/7-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILJ641-7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-201-8012
Related Products | NSN 5935-00-201-8012
Technical Data | NSN 5935-00-201-8012
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TWO CONDUCTOR, TURRET TIP SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.078 INCHES MINIMUM AND 0.082 INCHES MAXIMUM SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 0.298 INCHES MINIMUM AND 0.318 INCHES MAXIMUM SINGLE FINGER |

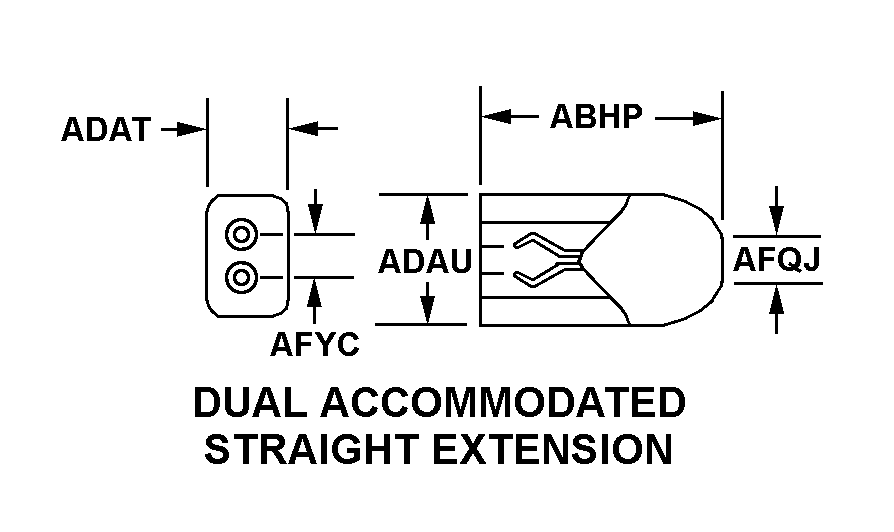

| BODY STYLE | 14 DUAL ACCOMMODATED STRAIGHT EXTENSION |
