5935-00-220-2213 - ELECTRICAL PLUG CONNECTOR, M2726/38-001, M272638001, SYM 1218.3

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-220-2213 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M2726/38-001, M272638001, SYM 1218.3, SYM12183, MIL-R-2726/38, MILR272638, P780060801, EJ11020, EJ-11020, 1218.3, 12183, 400-4789129 ITEM 840, 4004789129ITEM840, 5935-00-220-2213, 00-220-2213, 5935002202213, 002202213

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 FEB 1969	00-220-2213	01938 ( CONNECTOR, PLUG, ELECTRICAL )

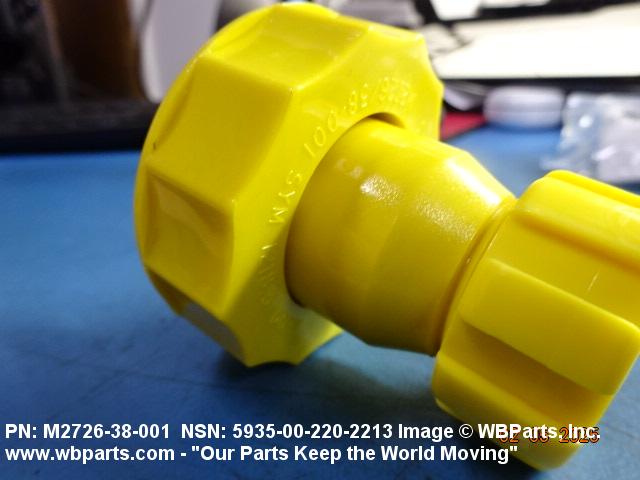

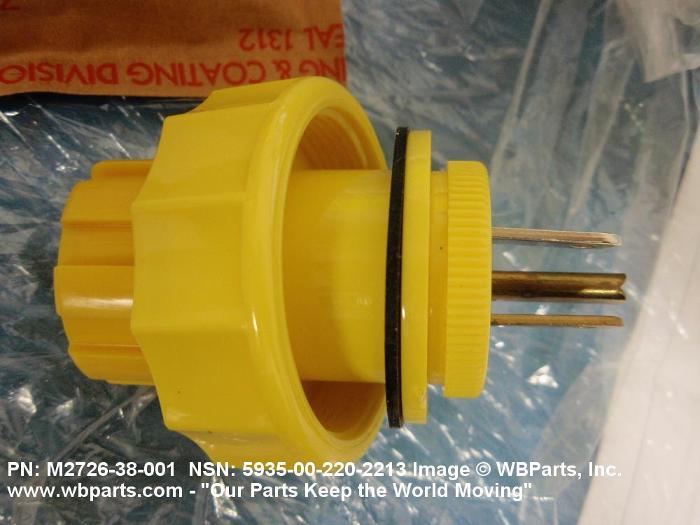

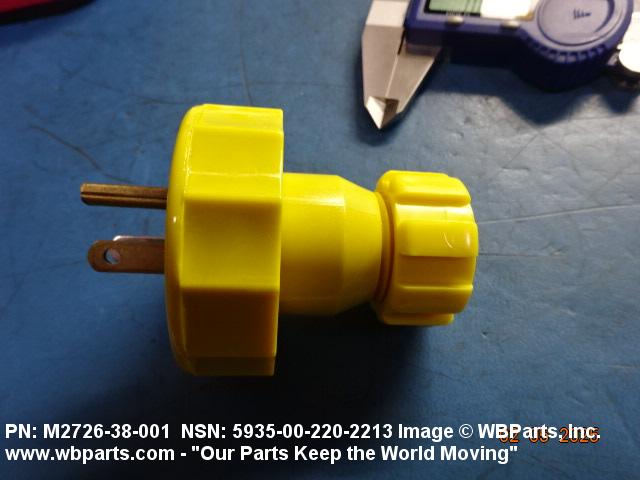

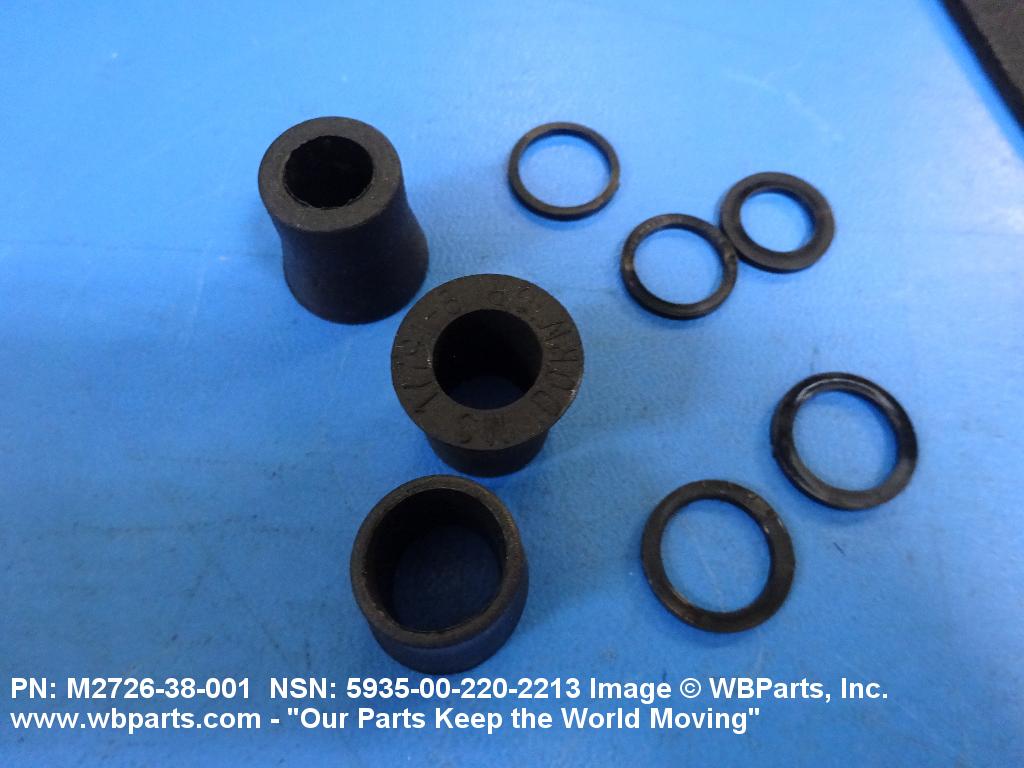

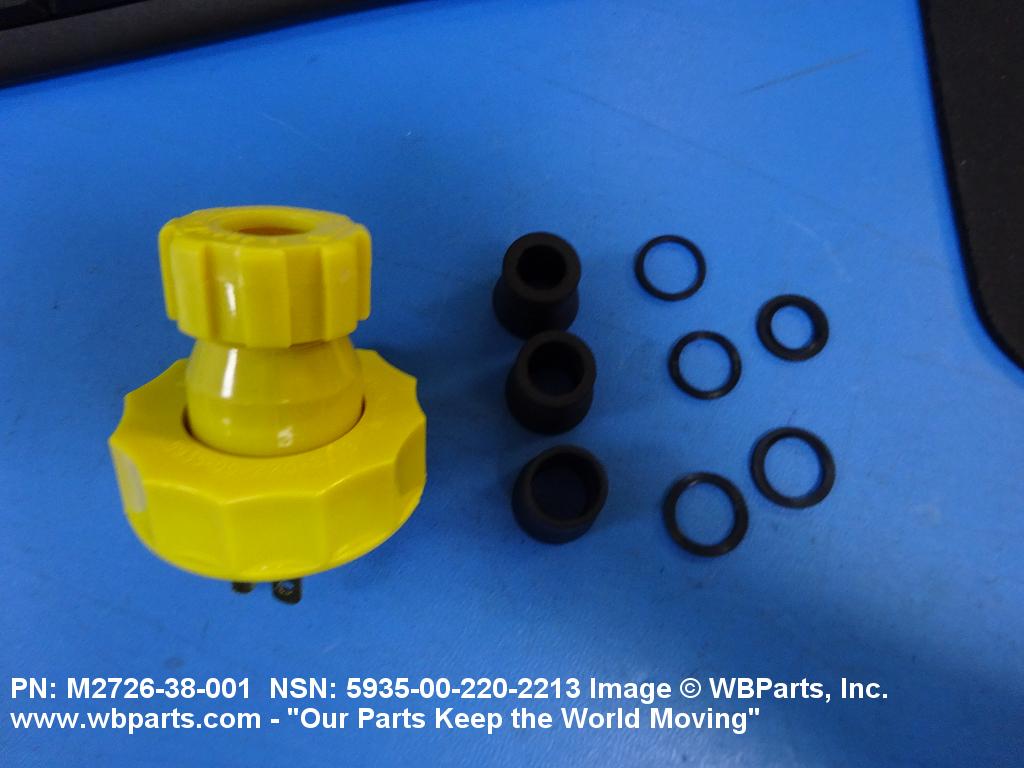

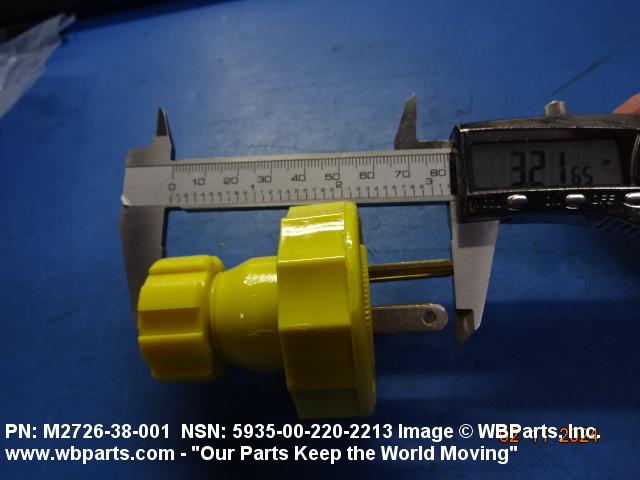

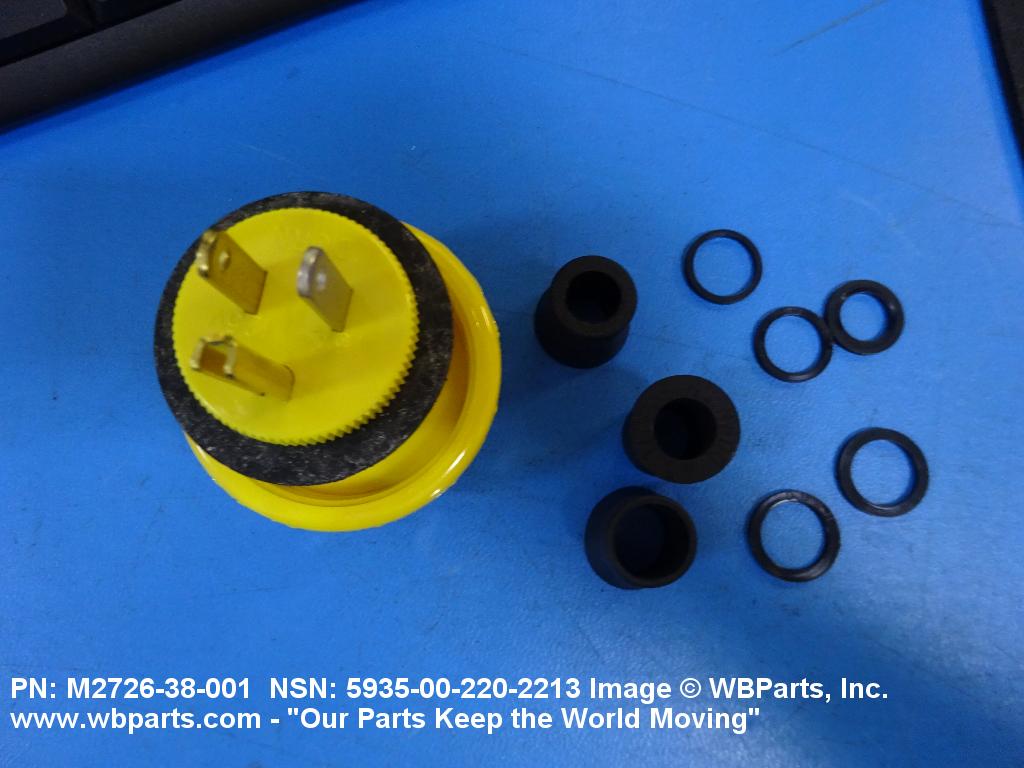

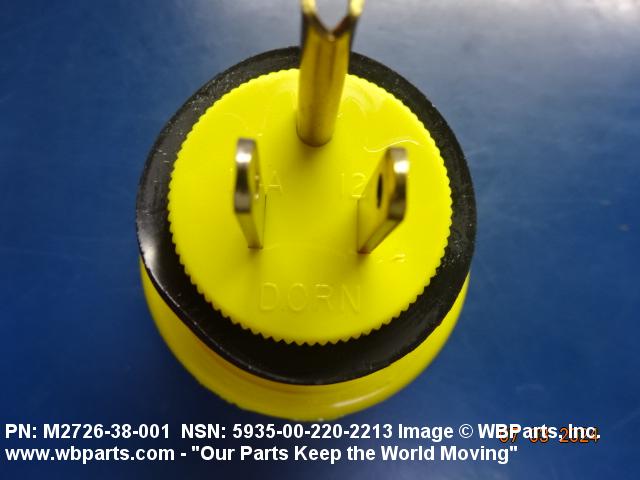

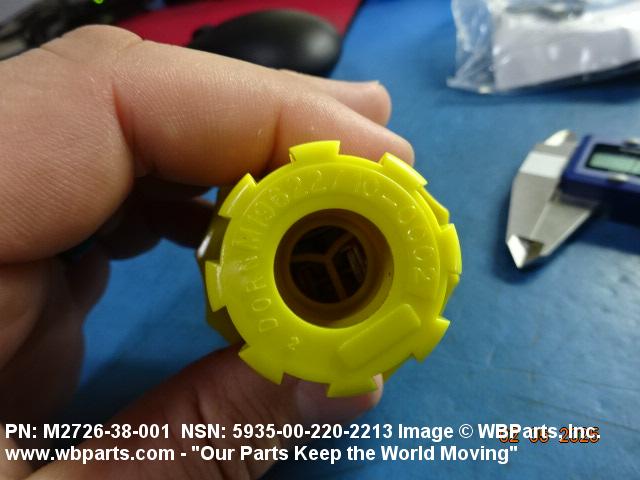

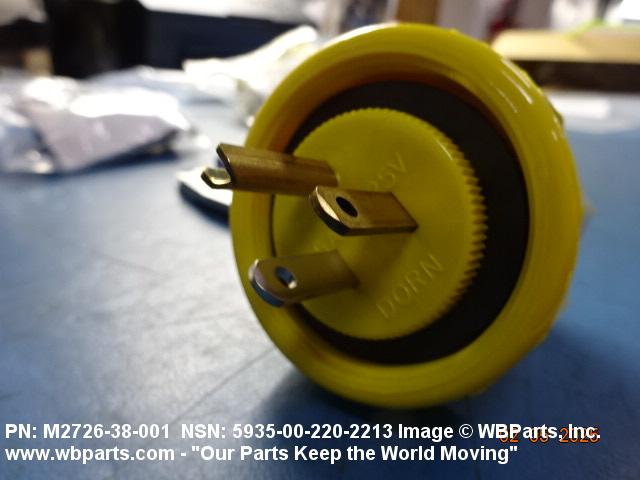

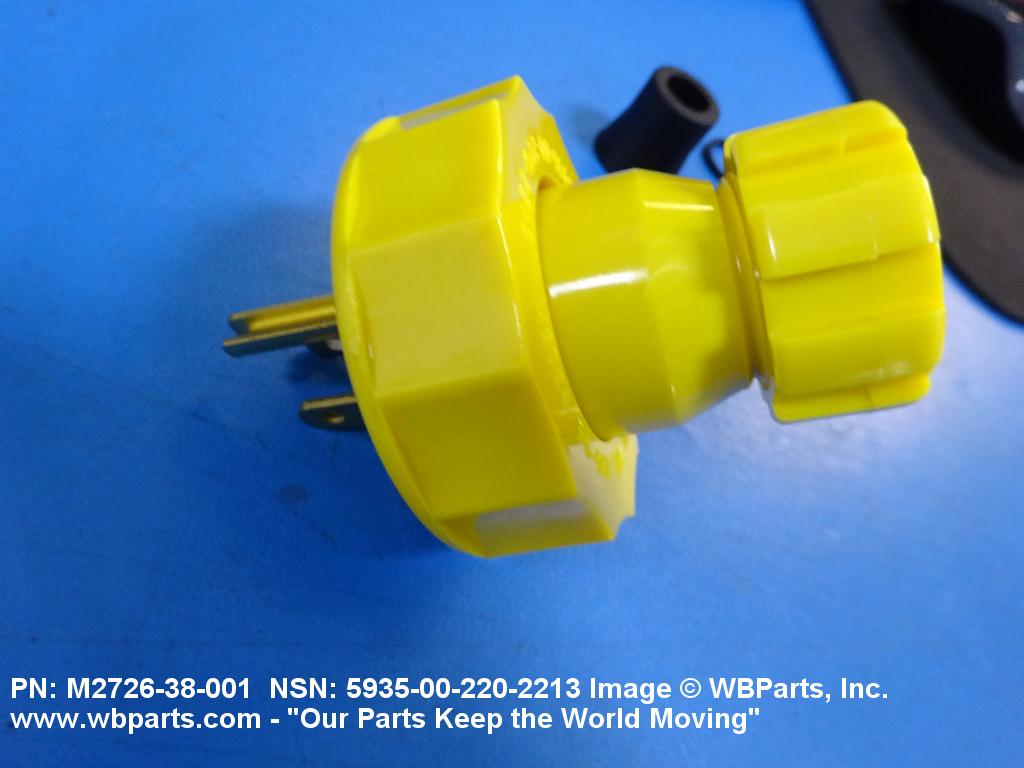

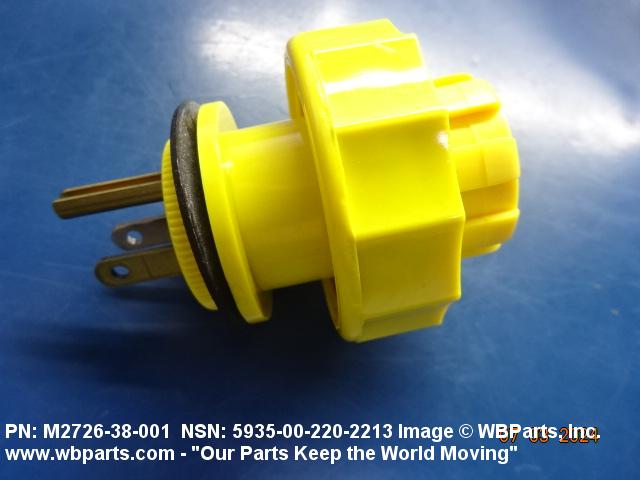

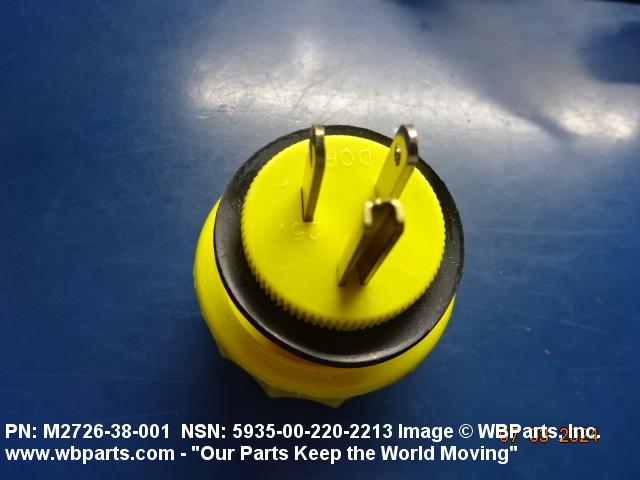

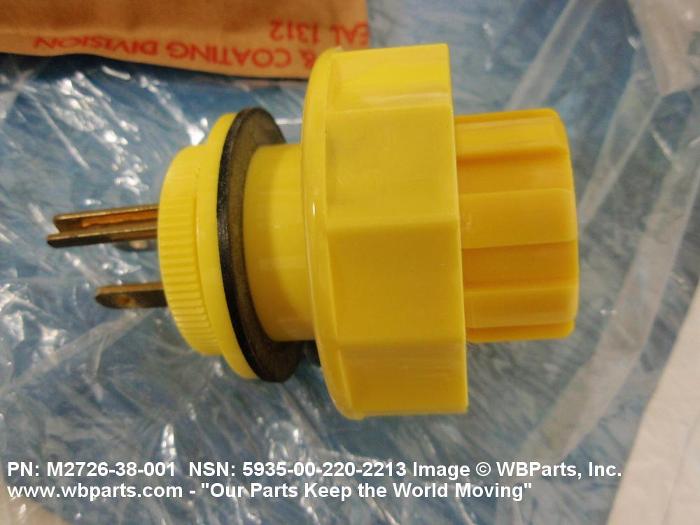

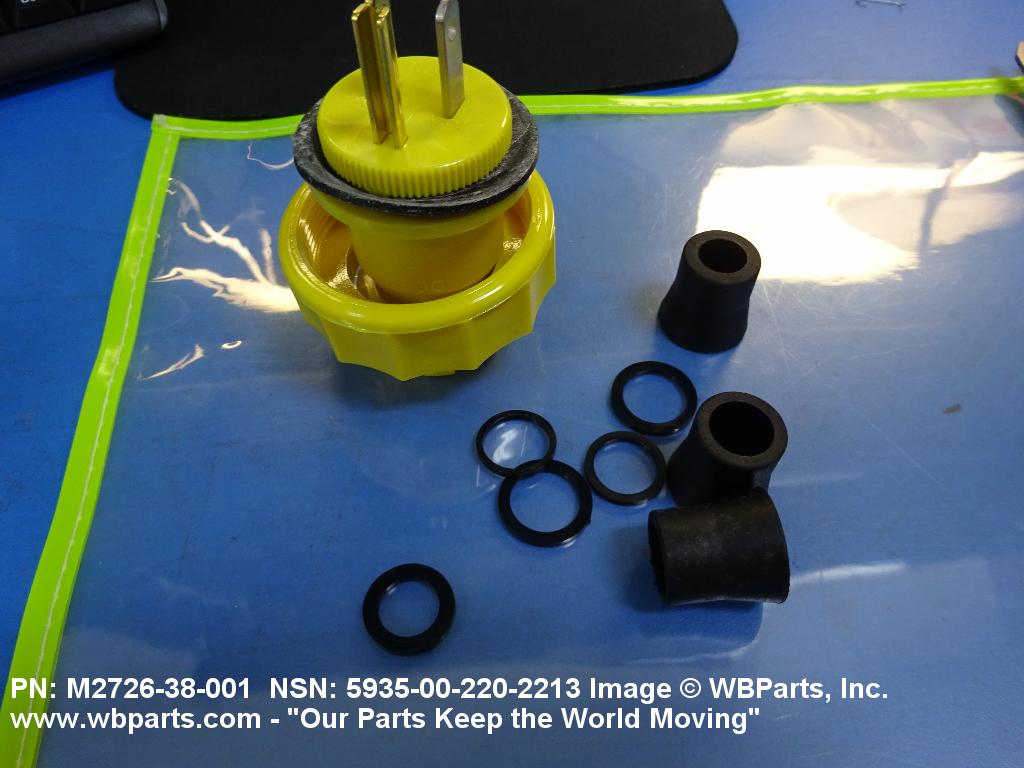

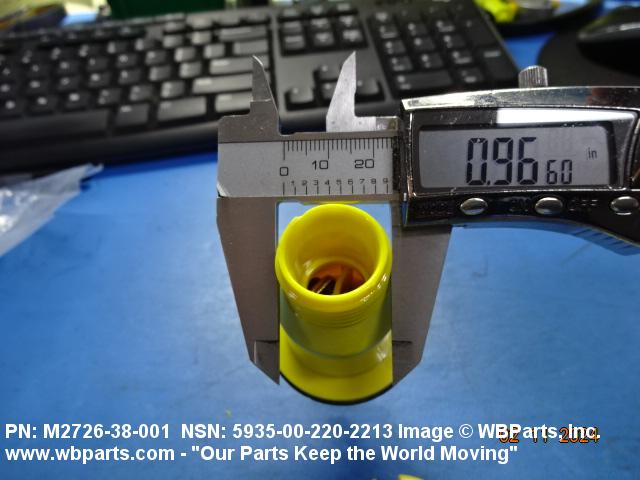

Drawings & Photos | NSN 5935-00-220-2213

Part Number	Request Date	QTY	Origin
5935-00-220-2213	2024-04-18	3	US
5935-00-220-2213	2024-01-26	1	US
5935-00-220-2213	2024-01-19	1	United States
5935-00-220-2213	2023-12-12	369	DIBBS
5935-00-220-2213	2023-04-20	394	DIBBS
5935-00-220-2213	2023-02-22	79	United States
5935-00-220-2213	2022-10-20	50	US
5935-00-220-2213	2022-06-23	1	US
5935-00-220-2213	2022-04-05	2	US
5935-00-220-2213	2022-04-01	40	United States
5935-00-220-2213	2022-03-29	80	United States
5935-00-220-2213	2022-02-22	20	United States
5935-00-220-2213	2022-02-01	2	US
5935-00-220-2213	2021-09-23	568	DIBBS
5935-00-220-2213	2021-09-22	535	DIBBS
5935-00-220-2213	2021-08-03	14	US
5935-00-220-2213	2021-05-12	4	US
5935-00-220-2213	2021-04-06	10	United States
5935-00-220-2213	2021-01-28	503	DIBBS
5935-00-220-2213	2020-03-31	10	US
5935-00-220-2213	2020-03-11	10	US
5935-00-220-2213	2020-03-10	10	United States
5935-00-220-2213	2019-04-15	4	US
5935-00-220-2213	2018-05-24	10	Taiwan
5935-00-220-2213	2018-05-23	1	CA
5935-00-220-2213	2018-05-10	341	DIBBS
5935-00-220-2213	2018-03-06	15	US
5935-00-220-2213	2017-12-13	15	us
5935-00-220-2213	2017-11-21	2874	DIBBS
5935-00-220-2213	2017-09-19	1625	United States
5935-00-220-2213	2017-09-14	1600	DIBBS
5935-00-220-2213	2017-07-06	5	US
5935-00-220-2213	2017-03-20	2	US
5935-00-220-2213	2016-07-11	1007	DIBBS
5935-00-220-2213	2015-09-21	865	DIBBS
5935-00-220-2213	2015-08-15	20	US
5935-00-220-2213	2015-03-25	1691	DIBBS
5935-00-220-2213	2015-02-18	5	US
5935-00-220-2213	2015-01-20	1079	DIBBS
5935-00-220-2213	2014-10-06	10	UK
5935-00-220-2213	2014-10-02	848	DIBBS
5935-00-220-2213	2014-09-22	10	US
5935-00-220-2213	2014-09-15	41	Taiwan
5935-00-220-2213	2014-09-09	6	US
5935-00-220-2213	2014-07-28	10	US
M272638001	2014-07-16	10	United States
5935-00-220-2213	2014-07-14	10	GU
5935-00-220-2213	2013-10-17	4	United States
5935-00-220-2213	2013-10-02	1600	DIBBS
5935-00-220-2213	2013-09-14	25	US
5935-00-220-2213	2013-08-15	660	DIBBS
5935-00-220-2213	2013-06-09	1450	DIBBS
5935-00-220-2213	2012-06-19	824	DIBBS
5935-00-220-2213	2012-02-21	711	DIBBS
5935-00-220-2213	2011-08-15	828	DIBBS
M272638001	2011-05-23	12	United States
5935-00-220-2213	2010-10-13	1900	DIBBS
M272638001	2010-06-24	1700	US
5935-00-220-2213	2010-06-22	1690	DIBBS
5935-00-220-2213	2009-08-27	1430	DIBBS
M272638001	2009-07-09	43	United States
5935-00-220-2213	2009-04-10	56	DIBBS
5935-00-220-2213	2009-03-02	1401	DIBBS
5935-00-220-2213	2008-11-10	10	Brazil
5935-00-220-2213	2007-04-09	3362	DIBBS

Cross Reference | NSN 5935-00-220-2213

Part Number	Cage Code	Manufacturer
1218.3	30753	YOUNG ENGINEERING COMPANY INC.
400-4789129 ITEM 840	53711	NAVAL SEA SYSTEMS COMMAND
EJ-11020	20722	THE ENTWISTLE COMPANY
M2726/38-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-2726/38	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
P780060801	16786	F E L CORP
SYM 1218.3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5935-00-220-2213

Compare

Related Products | NSN 5935-00-220-2213

5935-00-220-2236, 5935-00-220-2246, 5935-00-220-2288, 5935-00-220-2291, 5935-00-220-2293

Technical Data | NSN 5935-00-220-2213

Characteristic	Specifications
BODY STYLE	18C STRAIGHT SHAPE

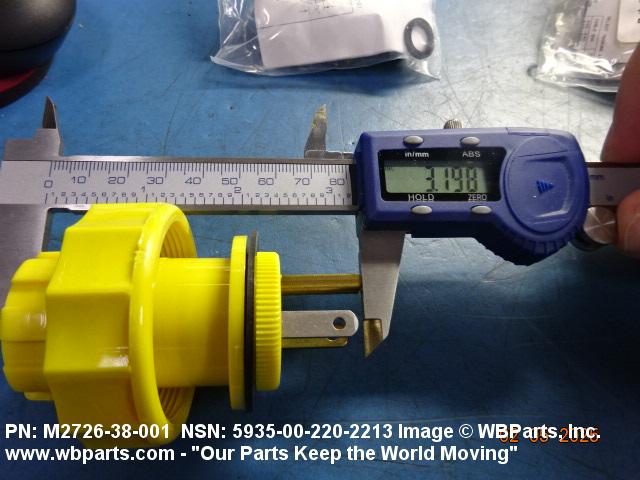

OVERALL HEIGHT	3.375 INCHES NOMINAL

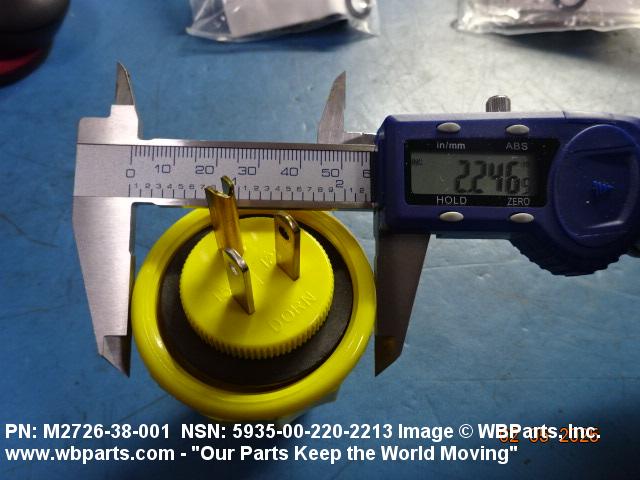

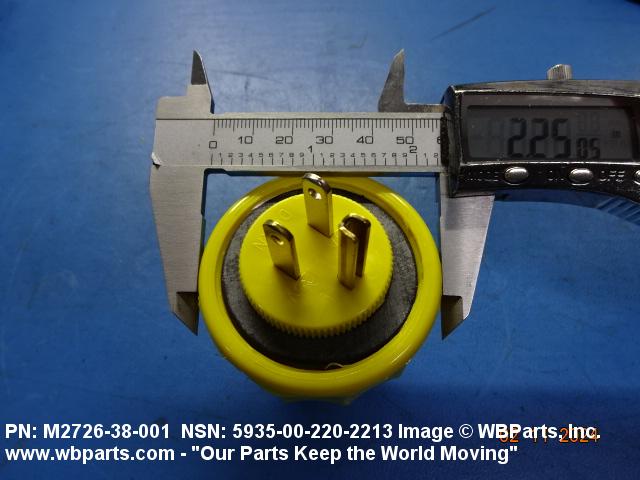

OVERALL DIAMETER	2.250 INCHES NOMINAL
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	1.062 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	28
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.375 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
POLARIZATION METHOD	CONTACT
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ADDS 3,5-15 SINGLE MATING END
INSERT MATERIAL	PLASTIC POLYCARBONATE SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	U-PIN SINGLE MATING END 1ST CONTACT GROUPING FLAT PIN SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	15.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	125.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	125.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	SCREW W/WIRE LOCK SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	WATERTIGHT
TEST DATA DOCUMENT	81349-MIL-R-2726 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-R-2726/38 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-R-2726/38
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M2726/38-001

Restrictions/Controls & Freight Information | NSN 5935-00-220-2213

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
