NSN 5935-00-243-8227 M83723/35N32R, M8372335N32, M83723-35N32
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-00-243-8227 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: M83723/35N32R, M8372335N32, M83723-35N32, M8372335N32F, M83723-35N32F, M8372335N32R, MIL-C-83723/35, MILC8372335, 5935-00-243-8227, 00-243-8227, 5935002438227, 002438227
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 MAR 1971 | 00-243-8227 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-243-8227
Cross Reference | NSN 5935-00-243-8227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M83723+35N32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723-35N32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723-35N32F | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723/35N32R | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-83723/35 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-243-8227
Technical Data | NSN 5935-00-243-8227
| Characteristic | Specifications |
|---|---|

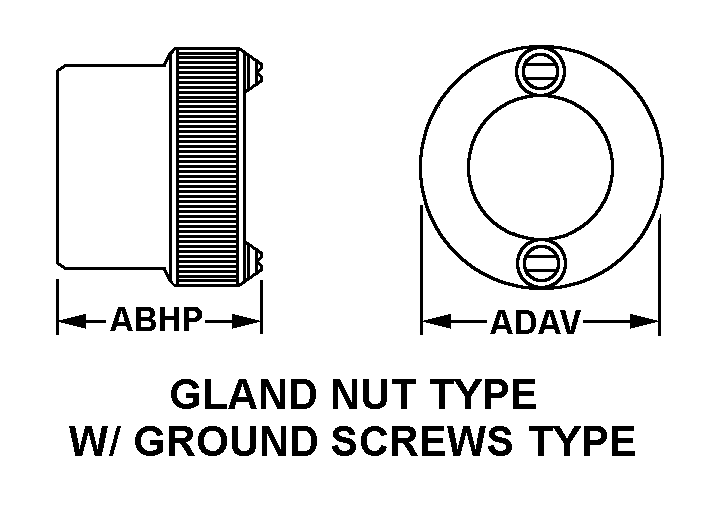

| STYLE DESIGNATOR | 8B GLAND NUT TYPE W/GROUND SCREWS TYPE |
| OVERALL LENGTH | ANY ACCEPTABLE |
| OVERALL DIAMETER | 2.280 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.705 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| SIZE DESIGNATION | 32 |
| TEST DATA DOCUMENT | 81349-MIL-C-83723 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-83723/35 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-83723/35 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83723/35N32R |
Restrictions/Controls & Freight Information | NSN 5935-00-243-8227
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061200 | CABLE CLAMPS/JOINTS NOI |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
