NSN 5935-00-247-8307 MS3147E2750S, MS3147E27-50S, MILC81703

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-247-8307 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3147E2750S, MS3147E27-50S, MILC81703, MIL-C-81703, 5935-00-247-8307, 00-247-8307, 5935002478307, 002478307

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	17 FEB 1969	00-247-8307	01938 ( CONNECTOR, PLUG, ELECTRICAL )

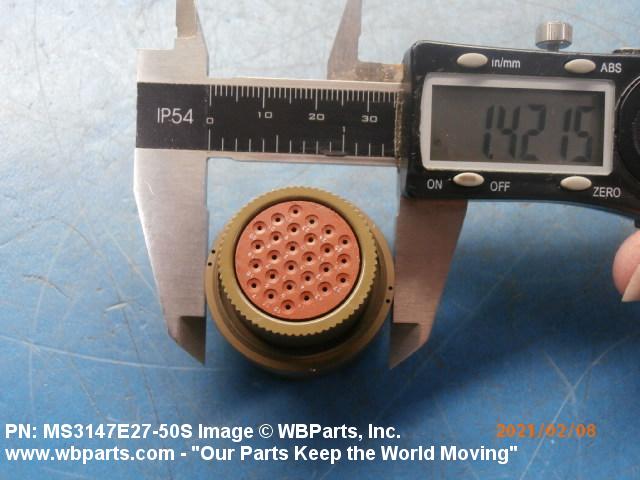

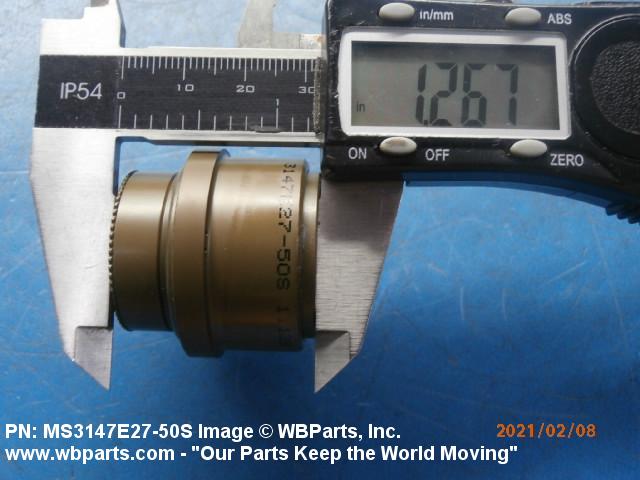

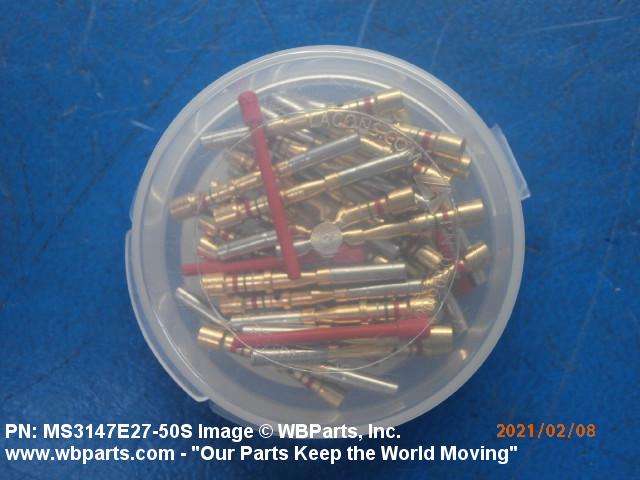

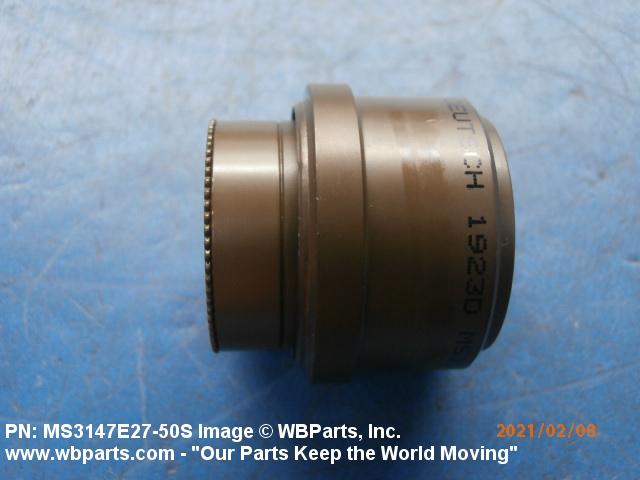

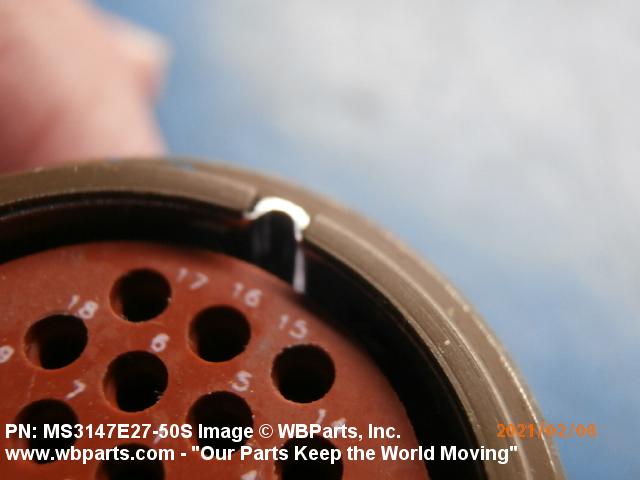

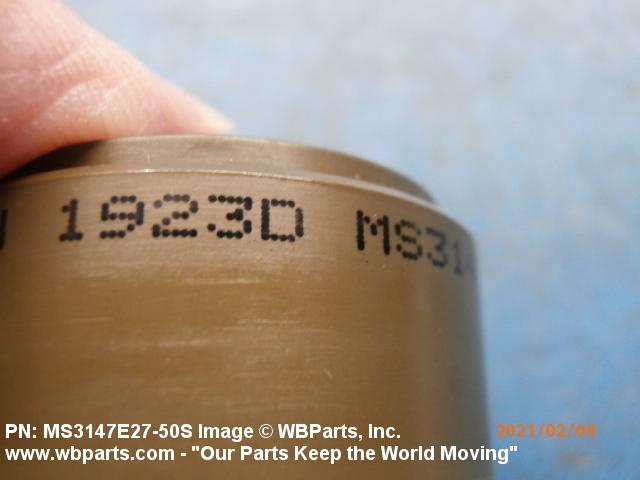

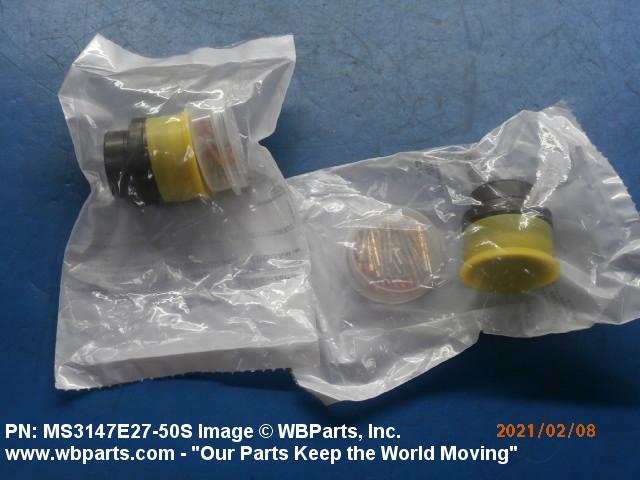

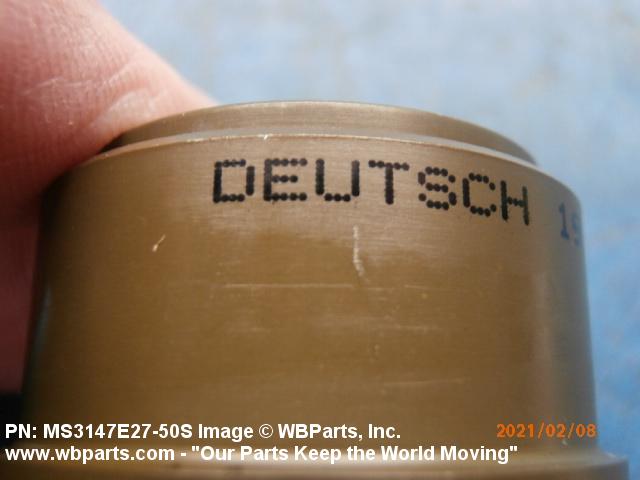

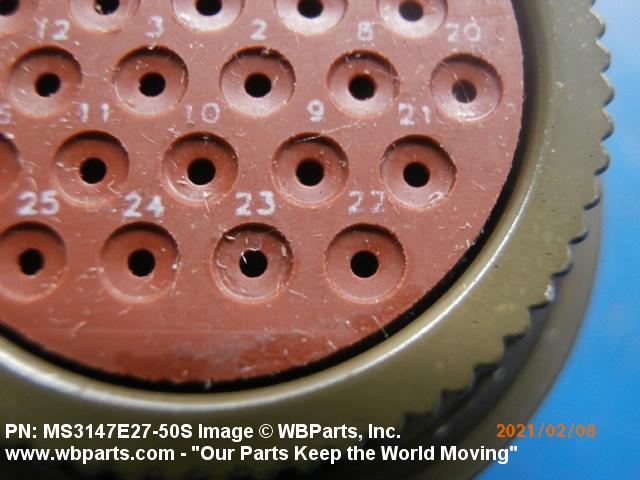

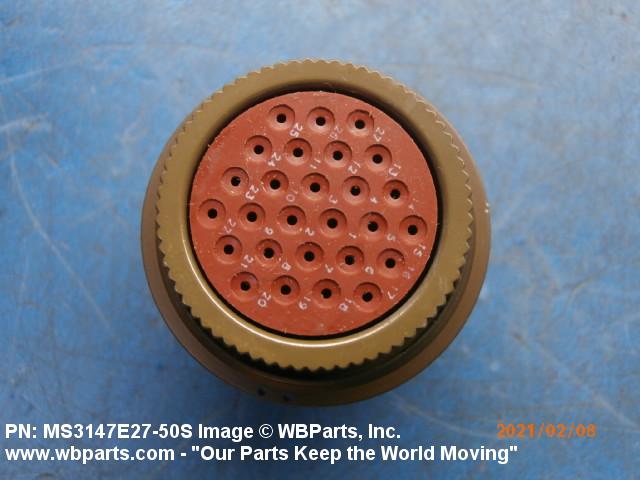

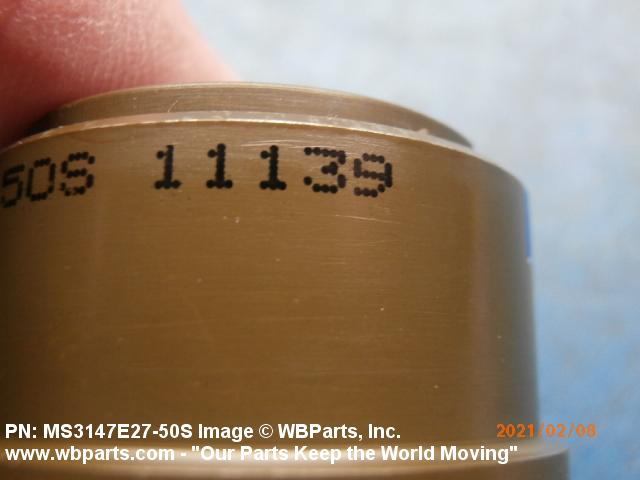

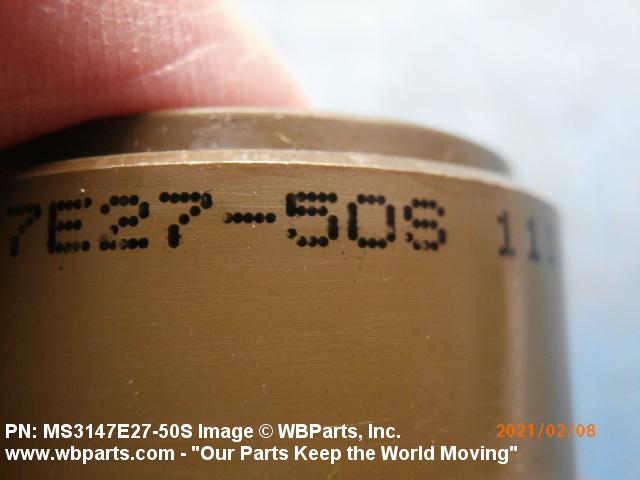

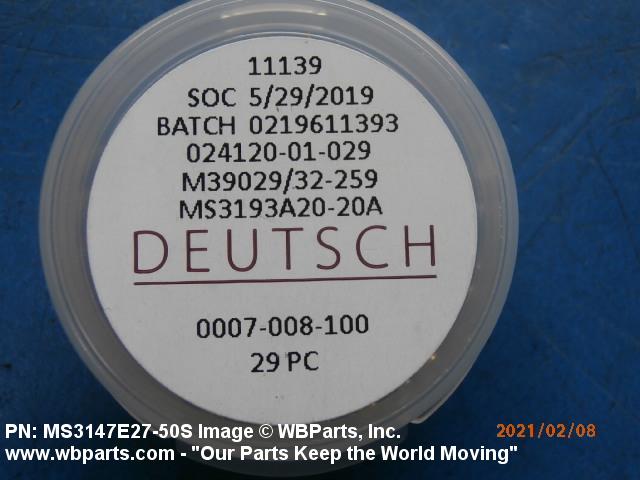

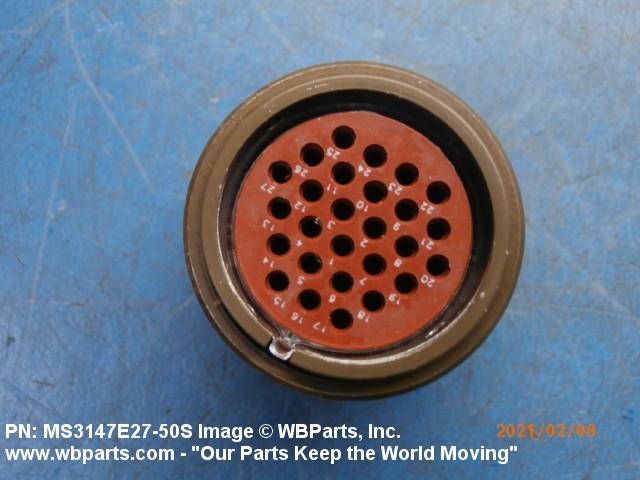

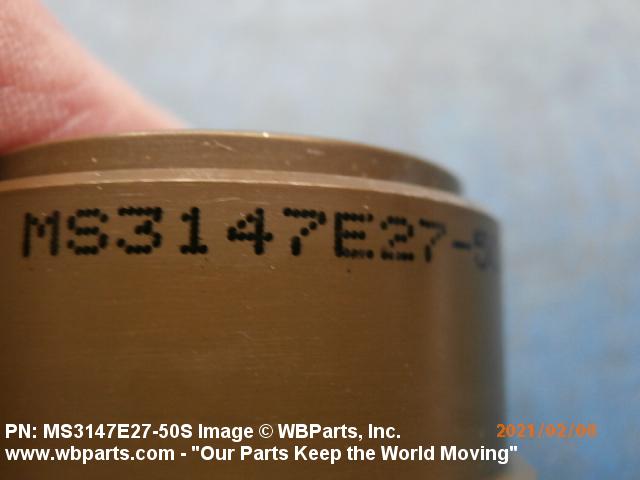

Drawings & Photos | NSN 5935-00-247-8307

Part Number	Request Date	QTY	Origin
5935-00-247-8307	2025-11-314	66	DIBBS
5935-00-247-8307	2025-10-301	66	DIBBS
5935-00-247-8307	2025-09-251	46	DIBBS
5935-00-247-8307	2025-08-238	46	DIBBS
5935-00-247-8307	2025-08-237	23	DIBBS
5935-00-247-8307	2025-08-224	23	DIBBS
5935-00-247-8307	2025-07-212	23	DIBBS
5935-00-247-8307	2025-07-201	23	DIBBS
5935-00-247-8307	2025-07-192	13	DIBBS
5935-00-247-8307	2025-06-181	13	DIBBS
5935-00-247-8307	2025-05-126	40	DIBBS
5935-00-247-8307	2025-04-111	40	DIBBS
5935-00-247-8307	2024-04-115	32	DIBBS
5935-00-247-8307	2024-04-100	32	DIBBS
5935-00-247-8307	2023-04-103	10	DIBBS
5935-00-247-8307	2023-03-68	48	DIBBS
5935-00-247-8307	2023-01-18	100	United States
MS3147E2750S	2022-08-236	10	US
5935-00-247-8307	2022-03-81	17	DIBBS
5935-00-247-8307	2021-03-87	16	DIBBS
MS3147E2750S	2021-03-77	1	US
MS3147E2750S	2020-10-295	3	United States
5935-00-247-8307	2019-12-349	50	DIBBS
5935-00-247-8307	2019-09-262	20	DIBBS
5935-00-247-8307	2019-01-24	10	DIBBS
MS3147E2750S	2018-10-304	4	United States
5935-00-247-8307	2018-07-207	20	DIBBS
5935-00-247-8307	2018-01-17	23	DIBBS
5935-00-247-8307	2017-09-248	2	US
5935-00-247-8307	2017-07-199	17	DIBBS
5935-00-247-8307	2017-06-180	17	DIBBS
5935-00-247-8307	2016-09-251	16	DIBBS
5935-00-247-8307	2016-05-143	25	DIBBS
5935-00-247-8307	2016-03-68	14	DIBBS
5935-00-247-8307	2015-09-273	15	DIBBS
5935-00-247-8307	2014-10-287	14	DIBBS
5935-00-247-8307	2013-09-259	5	IN
5935-00-247-8307	2012-11-325	0	DIBBS
MIL-C-81703	2012-04-100	5	South Korea
5935-00-247-8307	2012-03-61	5	DIBBS
5935-00-247-8307	2011-11-313	40	DIBBS
5935-00-247-8307	2011-10-279	15	DIBBS
5935-00-247-8307	2011-06-157	8	DIBBS
5935-00-247-8307	2011-05-150	2	CL
5935-00-247-8307	2010-11-312	15	DIBBS
5935-00-247-8307	2010-07-211	13	DIBBS
5935-00-247-8307	2010-07-189	2	US
5935-00-247-8307	2009-12-364	19	DIBBS
5935-00-247-8307	2008-12-365	25	DIBBS
5935-00-247-8307	2008-03-72	25	DIBBS
5935-00-247-8307	2007-12-344	25	DIBBS
5935-00-247-8307	2007-06-158	35	DIBBS

Cross Reference | NSN 5935-00-247-8307

Part Number	Cage Code	Manufacturer
MIL-C-81703	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3147E27-50S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-247-8307

Compare

Related Products | NSN 5935-00-247-8307

5935-00-247-8337, 5935-00-247-8341, 5935-00-247-8405, 5935-00-247-8406, 5935-00-247-8566

Technical Data | NSN 5935-00-247-8307

Characteristic	Specifications
BODY STYLE	9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL
OVERALL LENGTH	1.350 INCHES MAXIMUM
OVERALL DIAMETER	1.455 INCHES NOMINAL
CONNECTOR LOCKING METHOD	BALL
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD	KEY, MULTIPLE KEY GROOVE
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	BDAB 27-50 SINGLE MATING END
INCLUDED CONTACT QUANTITY	27 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT AND MOISTURE RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-81703 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3147 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.027 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACE GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-81703
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS3147E27-50S

Restrictions/Controls & Freight Information | NSN 5935-00-247-8307

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-247-8307

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
