NSN 5935-00-276-9390 MS3107A16S1P, MS3107A16S-1P, CA3107A16S1PA171

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-276-9390 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3107A16S1P, MS3107A16S-1P, CA3107A16S1PA171, CA3107A16S-1P-A171, MILC5015, MIL-C-5015, 973107A16S1P, 97-3107A-16S-1P, 5935-00-276-9390, 00-276-9390, 5935002769390, 002769390

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-276-9390	01938 ( CONNECTOR, PLUG, ELECTRICAL )

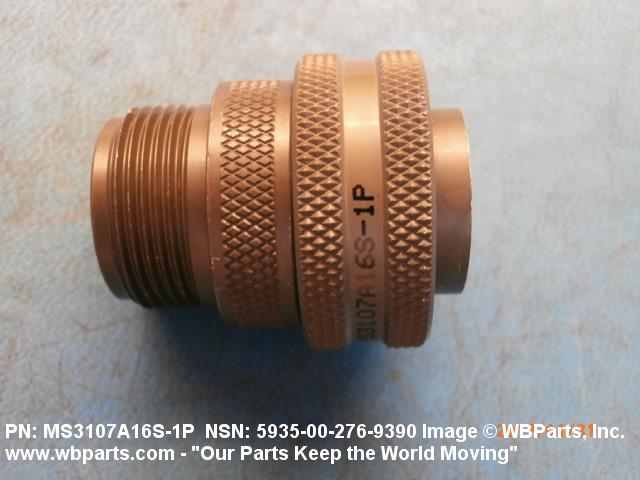

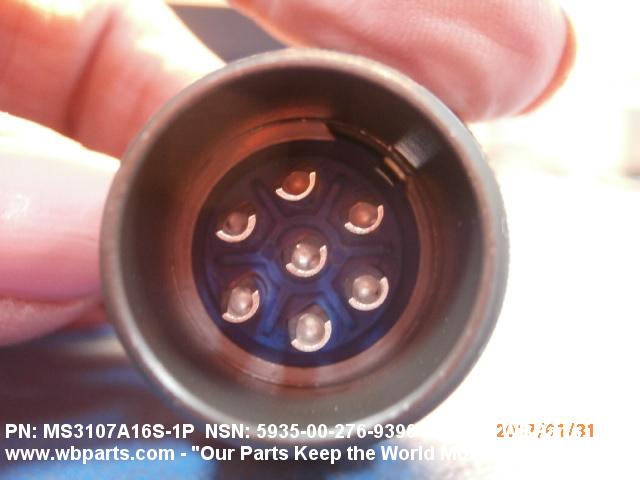

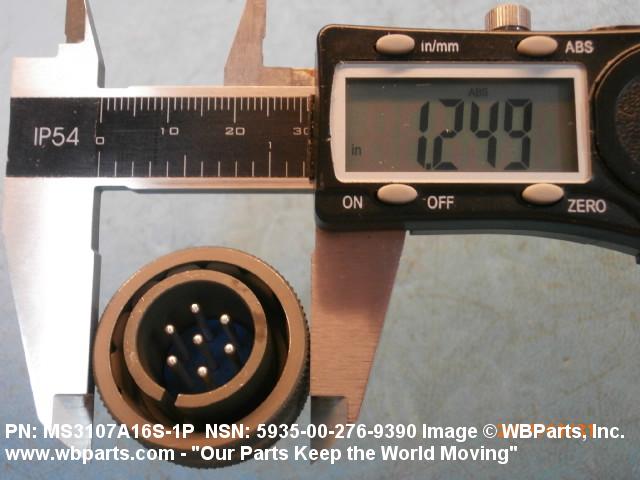

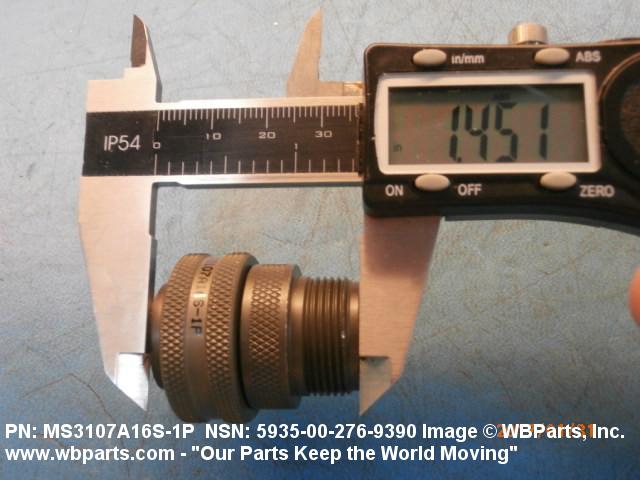

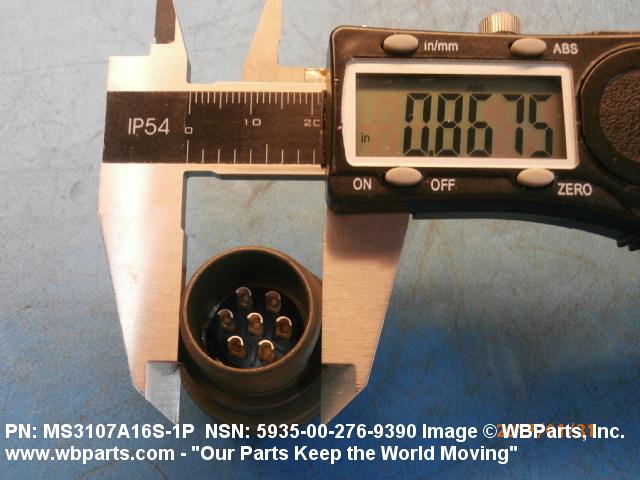

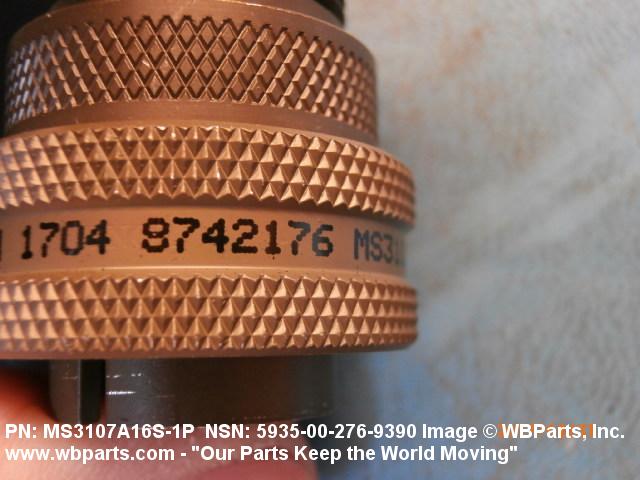

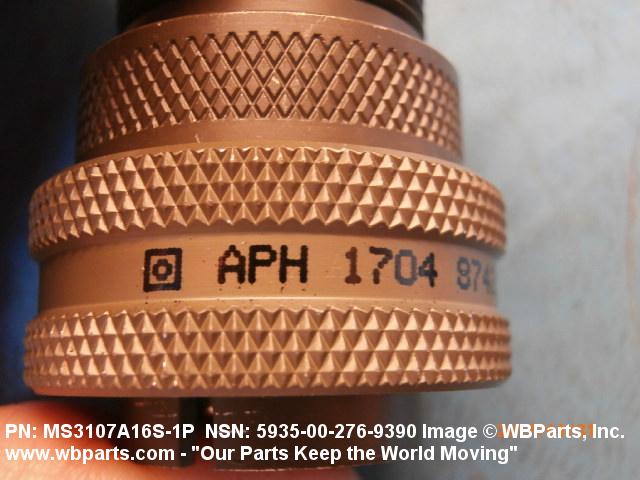

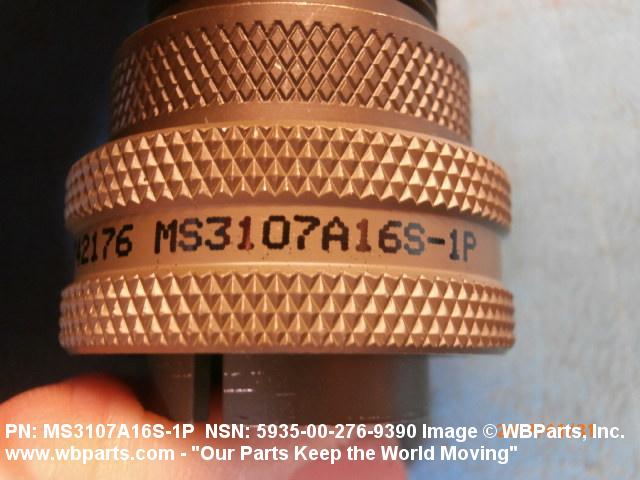

Drawings & Photos | NSN 5935-00-276-9390

Part Number	Request Date	QTY	Origin
97-3107A-16S-1P	2025-12-364	1585	DIBBS
97-3107A-16S-1P	2025-12-349	1585	DIBBS
97-3107A-16S-1P	2025-11-334	1004	DIBBS
97-3107A-16S-1P	2025-08-219	858	DIBBS
97-3107A-16S-1P	2024-06-154	833	DIBBS
5935-00-276-9390	2023-09-263	3	United States
97-3107A-16S-1P	2022-11-317	779	DIBBS
97-3107A-16S-1P	2022-06-153	487	DIBBS
97-3107A-16S-1P	2022-04-104	1008	DIBBS
5935-00-276-9390	2021-10-284	2	US
97-3107A-16S-1P	2020-01-08	1456	DIBBS
97-3107A-16S-1P	2019-12-335	1586	DIBBS
5935-00-276-9390	2018-10-277	233	DIBBS
5935-00-276-9390	2018-09-270	89	DIBBS
5935-00-276-9390	2018-08-242	10	US
5935-00-276-9390	2018-08-235	1433	DIBBS
5935-00-276-9390	2018-08-213	10	JP
5935-00-276-9390	2018-07-212	8	JP
5935-00-276-9390	2018-07-199	2	US
5935-00-276-9390	2018-03-88	875	DIBBS
5935-00-276-9390	2018-03-63	2208	DIBBS
5935-00-276-9390	2017-03-89	1058	DIBBS
5935-00-276-9390	2017-02-38	1605	DIBBS
5935-00-276-9390	2017-01-24	1	United States
5935-00-276-9390	2017-01-12	1	United States
5935-00-276-9390	2017-01-04	1	United States
5935-00-276-9390	2017-01-03	1	United Kingdom
5935-00-276-9390	2016-12-363	1	United Kingdom
5935-00-276-9390	2016-11-329	1517	DIBBS
5935-00-276-9390	2016-07-200	1421	DIBBS
5935-00-276-9390	2016-07-189	1421	DIBBS
5935-00-276-9390	2016-02-46	891	DIBBS
5935-00-276-9390	2015-12-343	172	DIBBS
5935-00-276-9390	2015-11-327	132	DIBBS
5935-00-276-9390	2015-11-312	832	DIBBS
5935-00-276-9390	2015-07-193	1222	DIBBS
5935-00-276-9390	2015-05-125	967	DIBBS
5935-00-276-9390	2015-03-61	792	DIBBS
5935-00-276-9390	2015-01-28	651	DIBBS
5935-00-276-9390	2014-10-303	1283	DIBBS
5935-00-276-9390	2014-04-106	1141	DIBBS
5935-00-276-9390	2013-12-356	799	DIBBS
5935-00-276-9390	2013-10-303	884	DIBBS
5935-00-276-9390	2013-05-143	1139	DIBBS
5935-00-276-9390	2012-12-360	858	DIBBS
5935-00-276-9390	2012-10-278	851	DIBBS
5935-00-276-9390	2012-09-248	607	DIBBS
5935-00-276-9390	2012-08-222	696	DIBBS
MS3107A16S1P	2012-03-81	1	TR
5935-00-276-9390	2011-05-131	870	DIBBS
5935-00-276-9390	2011-02-48	591	DIBBS
5935-00-276-9390	2010-11-305	798	DIBBS
5935-00-276-9390	2010-08-221	671	DIBBS
5935-00-276-9390	2009-05-148	788	DIBBS
MS3107A16S1P	2008-06-168	150	us
5935-00-276-9390	2008-03-78	50	US
5935-00-276-9390	2007-06-180	650	DIBBS
5935-00-276-9390	2007-06-163	433	DIBBS

Cross Reference | NSN 5935-00-276-9390

Part Number	Cage Code	Manufacturer
97-3107A-16S-1P	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
CA3107A16S-1P-A171	17549	ITT CANNON
MIL-C-5015	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3107A16S-1P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-276-9390

Compare

Related Products | NSN 5935-00-276-9390

5935-00-276-9391, 5935-00-276-9393, 5935-00-276-9395, 5935-00-276-9396, 5935-00-276-9399

Technical Data | NSN 5935-00-276-9390

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.688 INCHES MAXIMUM
OVERALL DIAMETER	1.750 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	SPRING FRICTION
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.875 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	20
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.375 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD	KEY, MULTIPLE KEY GROOVE
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AHAL 16S-1 SINGLE MATING END
INSERT MATERIAL	RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY	7 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND SILVER OR SILVER SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-S-365 FED SPEC 2ND TREATMENT RESPONSE OR QQ-S-365 FED SPEC 3RD TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF
TEST DATA DOCUMENT	81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3107 GOVERNMENT STANDARD
III OPERATING TEMP RATING	-55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM

Restrictions/Controls & Freight Information | NSN 5935-00-276-9390

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-276-9390

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
