NSN 5935-00-296-8810 K0319205NC13, K03-19-205NC13, K031920SN
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-296-8810 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: K0319205NC13, K03-19-205NC13, K031920SN, K03-19-20SN, QB829441, QB82944-1, 6013056, 7441856002, 7441856-002, 8813059, 0B829441, 0B82944-1, 105-123-520, 18501710, 185017-10, 19988, 20991013P7, 2099-1013P7, 5935-00-296-8810, 00-296-8810, 5935002968810, 002968810, 105123520
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-8810 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-296-8810
Demand History | NSN 5935-00-296-8810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| K031920SN | 2022-03-67 | 2 | FR |
| 5935-00-296-8810 | 2016-02-47 | 1 | United States |
| 5935-00-296-8810 | 2015-04-105 | 2 | United States |
| K031920SN | 2013-03-86 | 2 | United States |
| K031920SN | 2011-10-279 | 1 | CL |
Cross Reference | NSN 5935-00-296-8810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0B82944-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 105-123-520 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| 185017-10 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 19988 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 2099-1013P7 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 2099-1013P7 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 6013056 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6013056 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 6013056 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 7441856-002 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 8813059 | 19203 | PICATINNY ARSENAL |
| K03-19-205NC13 | 71468 | ITT CORPORATION DBA I T T CANNON |
| K03-19-20SN | 71468 | ITT CORPORATION DBA I T T CANNON |
| QB82944-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-296-8810
Technical Data | NSN 5935-00-296-8810
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 0.734 INCHES NOMINAL |
| OVERALL DIAMETER | 1.375 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ACME |
| NOMINAL THREAD SIZE | 1.188 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 6 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

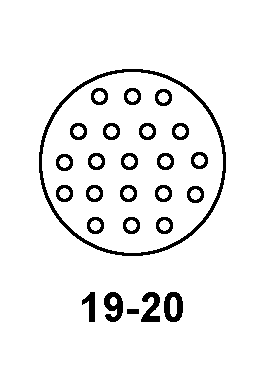

| CONTACT POSITION ARRANGEMENT STYLE | AWBC 19-20 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYAMIDE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END 1ST CONTACT GROUPING 17 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 1500.0 SINGLE MATING END 1ST CONTACT GROUPING 750.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-296-8810
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
