NSN 5935-00-304-1508 BSCDT2108, BSCDT210-8 , BSE4106
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-304-1508 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: BSCDT2108, BSCDT210-8 , BSE4106, BSE410-6, BSE4109, BSE410-9 , BSEL21010, BSEL210-10 , CX3826, CX3831, ST5M1271, ST5M1271002, ST5M1271-002, ST5M1271007, ST5M1271-007 , 5935-00-304-1508, 00-304-1508, 5935003041508, 003041508
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 OCT 1973 | 00-304-1508 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

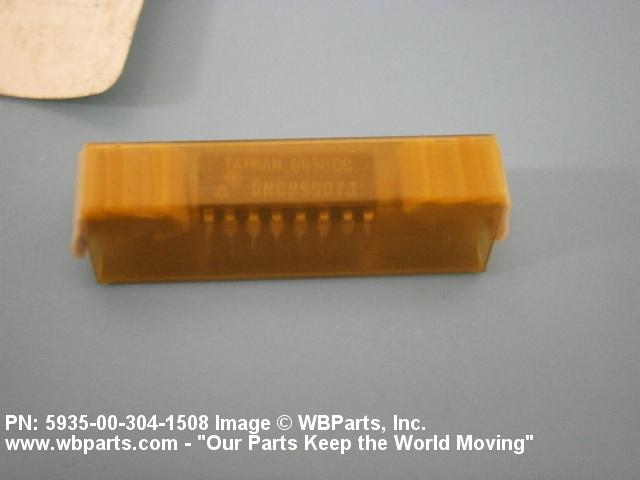

Drawings & Photos | NSN 5935-00-304-1508
Demand History | NSN 5935-00-304-1508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-304-1508 | 2025-03-90 | 1 | United States |
| BSE410-9 | 2024-06-172 | 100 | DIBBS |
| ST5M1271-002 | 2024-06-172 | 100 | DIBBS |
| BSE410-9 | 2024-06-161 | 100 | DIBBS |
| ST5M1271-002 | 2024-06-161 | 100 | DIBBS |
| BSE410-9 | 2023-06-173 | 57 | DIBBS |
| ST5M1271-002 | 2023-06-173 | 57 | DIBBS |
| BSE410-9 | 2023-02-47 | 42 | DIBBS |
| ST5M1271-002 | 2023-02-47 | 42 | DIBBS |
| BSE410-9 | 2020-01-23 | 63 | DIBBS |
| ST5M1271-002 | 2020-01-23 | 63 | DIBBS |
| 5935-00-304-1508 | 2017-12-339 | 23 | DIBBS |
| 5935-00-304-1508 | 2017-03-61 | 26 | DIBBS |
| 5935-00-304-1508 | 2015-01-06 | 50 | DIBBS |
| 5935-00-304-1508 | 2014-12-345 | 226 | DIBBS |
| 5935-00-304-1508 | 2014-11-334 | 226 | DIBBS |
| ST5M1271007 | 2014-11-324 | 18 | United States |
| 5935-00-304-1508 | 2014-10-300 | 10 | DIBBS |
| 5935-00-304-1508 | 2014-10-287 | 10 | DIBBS |
| 5935-00-304-1508 | 2014-09-266 | 91 | DIBBS |
| 5935-00-304-1508 | 2014-08-216 | 30 | United States |
| 5935-00-304-1508 | 2013-09-252 | 14 | DIBBS |
| 5935-00-304-1508 | 2013-07-212 | 161 | DIBBS |
| 5935-00-304-1508 | 2012-07-199 | 77 | DIBBS |
| 5935-00-304-1508 | 2011-11-320 | 6 | US |
| 5935-00-304-1508 | 2011-11-320 | 3 | United States |
| 5935-00-304-1508 | 2011-09-245 | 10 | DIBBS |
| 5935-00-304-1508 | 2010-07-188 | 4 | DIBBS |
| 5935-00-304-1508 | 2010-04-93 | 4 | DIBBS |
| 5935-00-304-1508 | 2007-10-298 | 13 | DIBBS |
| 5935-00-304-1508 | 2007-07-191 | 11 | DIBBS |
| 5935-00-304-1508 | 2006-07-193 | 31 | DIBBS |
Cross Reference | NSN 5935-00-304-1508
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-304-1508
Related Products | NSN 5935-00-304-1508
Technical Data | NSN 5935-00-304-1508
| Characteristic | Specifications |
|---|---|

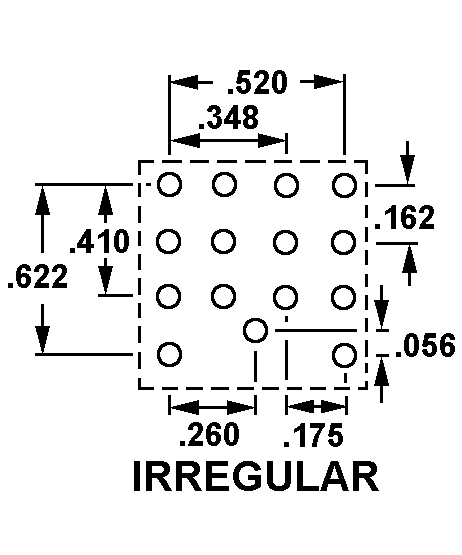

| CONTACT POSITION ARRANGEMENT STYLE | 1503A IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 15 |
| MISSING CONTACT DESIGNATION | ALL CONTACT POSITIONS |
| BODY STYLE | 74B IRREGULAR |
| OVERALL LENGTH | 2.530 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.030 INCHES MAXIMUM |
| OVERALL WIDTH | 1.300 INCHES MAXIMUM |
| BODY MATERIAL | STEEL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | RIM MOUNTING TOE CLAMPS |
Restrictions/Controls & Freight Information | NSN 5935-00-304-1508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-304-1508
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
