NSN 5935-00-320-6752 CA230499, CA2304-99, 230499

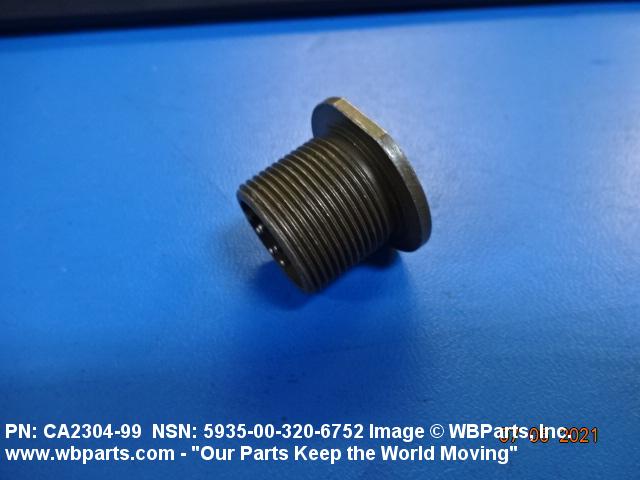

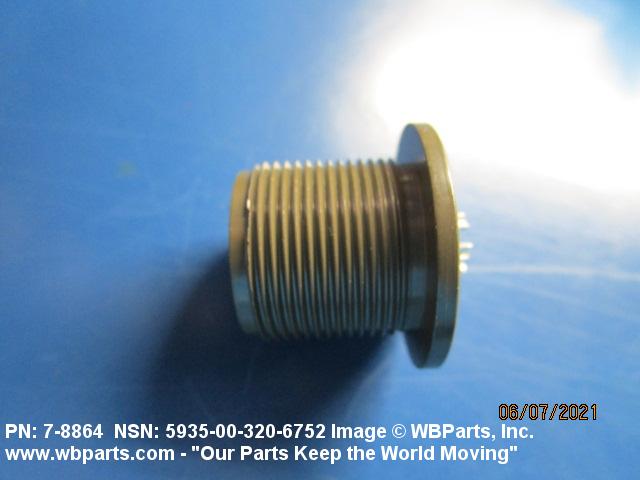

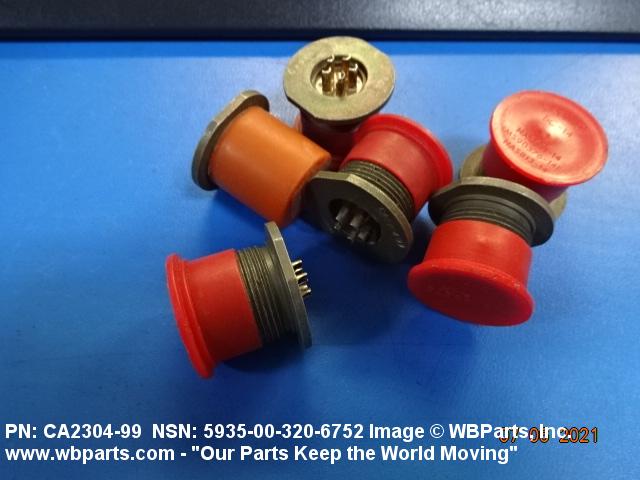

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-00-320-6752 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: CA230499, CA2304-99, 230499, 2304-99, 356AS142, 78864, 7-8864, 5935-00-320-6752, 00-320-6752, 5935003206752, 003206752

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 NOV 1973	00-320-6752	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

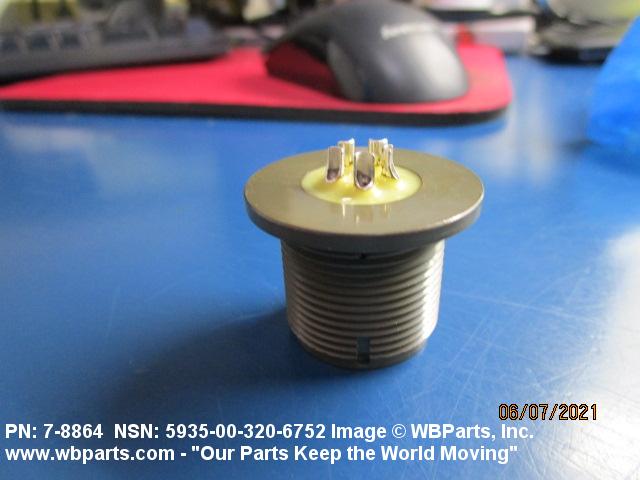

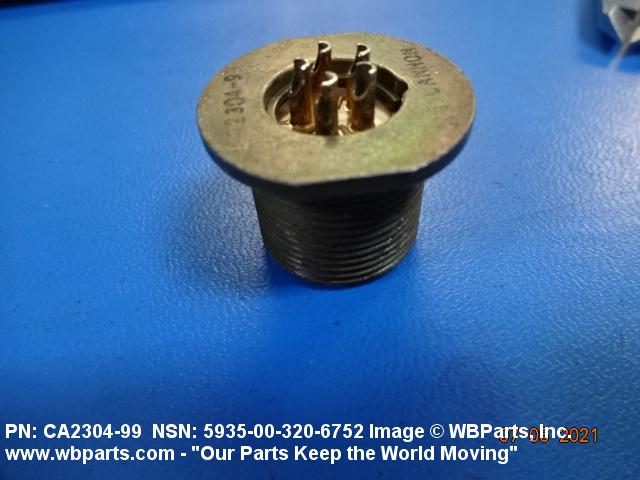

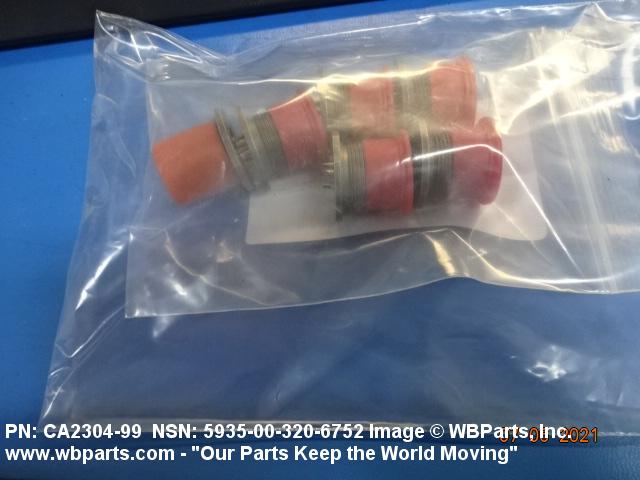

Drawings & Photos | NSN 5935-00-320-6752

Part Number	Request Date	QTY	Origin
7-8864	2024-09-270	52	DIBBS
CA2304-99	2024-09-270	52	DIBBS
5935-00-320-6752	2021-03-64	28	Thailand
5935-00-320-6752	2019-04-91	12	ID
5935-00-320-6752	2017-04-106	60	DIBBS
5935-00-320-6752	2013-01-31	37	DIBBS
5935-00-320-6752	2012-07-188	10	SG
5935-00-320-6752	2012-05-125	100	Greece
356AS142	2011-07-187	60	Brazil
5935-00-320-6752	2008-11-317	49	DIBBS
5935-00-320-6752	2008-10-281	68	DIBBS
5935-00-320-6752	2008-07-185	46	DIBBS
5935-00-320-6752	2008-05-127	5	DIBBS
5935-00-320-6752	2008-04-95	24	DIBBS

Cross Reference | NSN 5935-00-320-6752

Part Number	Cage Code	Manufacturer
2304-99	07345	HARVARD INDUSTRIES INC
356AS142	30003	NAVAL AIR SYSTEMS COMMAND

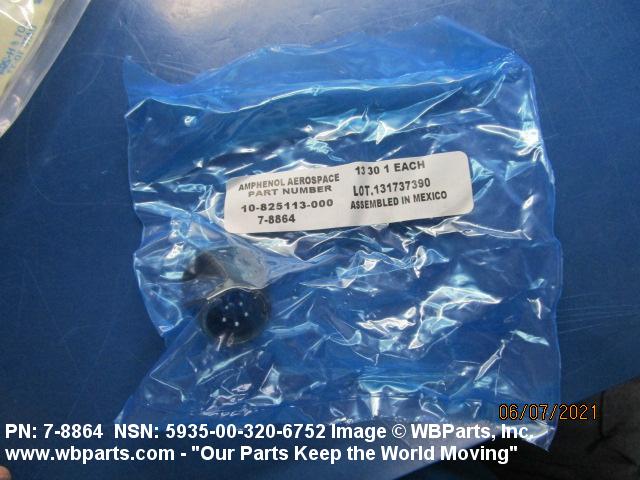

7-8864	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
7-8864	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
CA2304-99	71468	ITT CORPORATION DBA I T T CANNON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-320-6752

Compare

Related Products | NSN 5935-00-320-6752

5935-00-320-6824, 5935-00-320-6827, 5935-00-320-6834, 5935-00-320-6849, 5935-00-320-6993

Technical Data | NSN 5935-00-320-6752

Characteristic	Specifications
BODY STYLE	7G STRAIGHT SHAPE THREADED

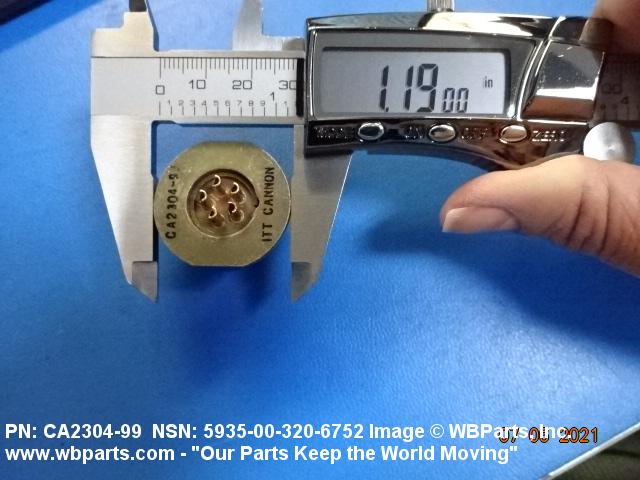

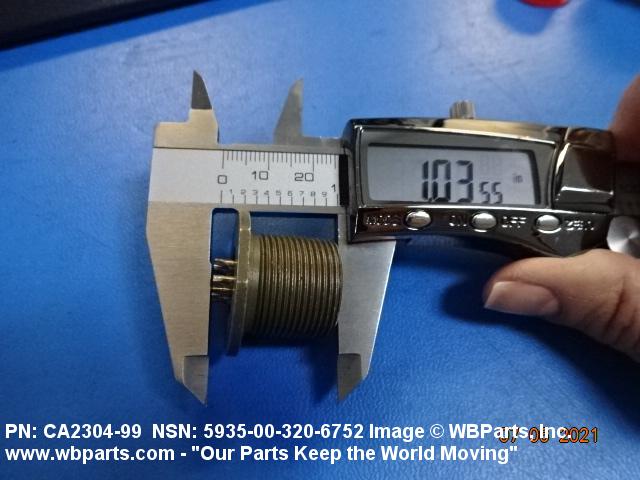

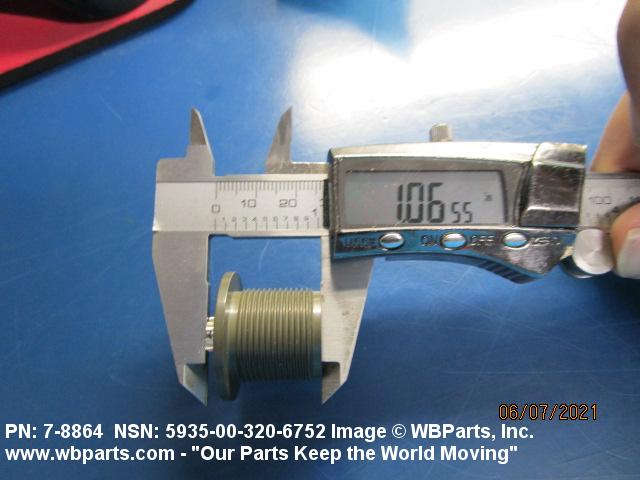

OVERALL LENGTH	1.030 INCHES NOMINAL

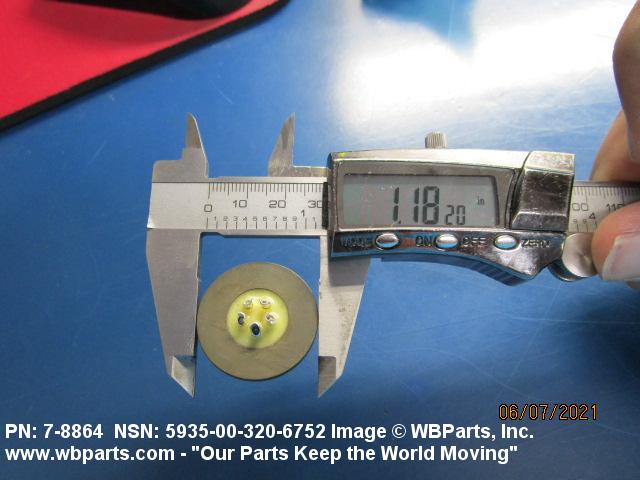

OVERALL DIAMETER	1.186 INCHES MINIMUM AND 1.194 INCHES MAXIMUM
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.760 INCHES NOMINAL

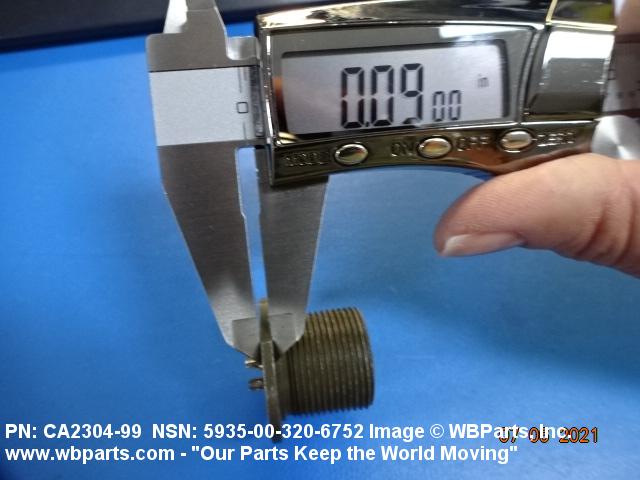

MOUNTING FACILITY THICKNESS	0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM
BUSHING ACCOMMODATION HOLE SHAPE	ROUND
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY AND MOUNTING BUSHING
THREAD SERIES DESIGNATOR	UNEF AND UNEF
NOMINAL THREAD SIZE	0.875 INCHES AND 0.875 INCHES
THREAD CLASS	2A AND 2B
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1

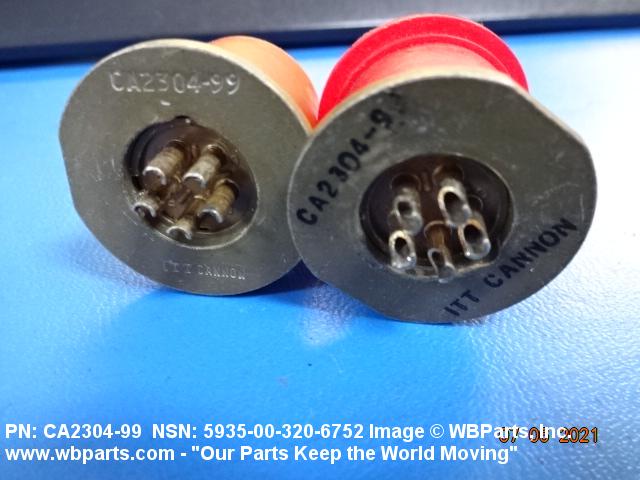

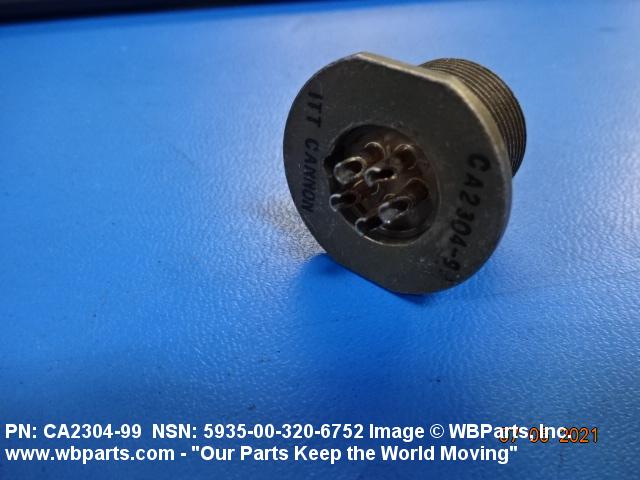

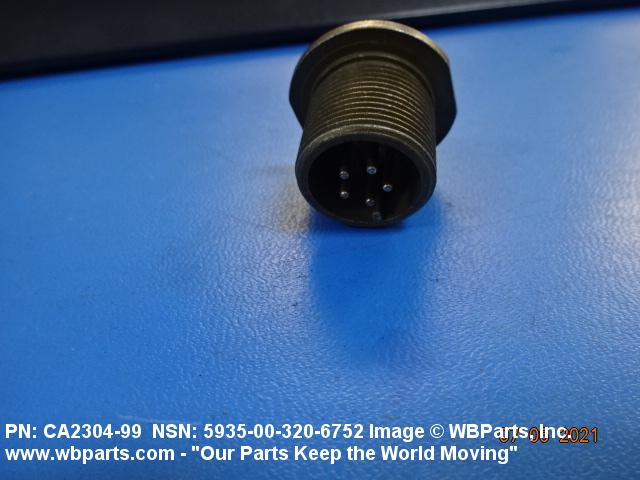

CONTACT POSITION ARRANGEMENT STYLE	AFAM 14S-5 SINGLE MATING END
INCLUDED CONTACT QUANTITY	5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING

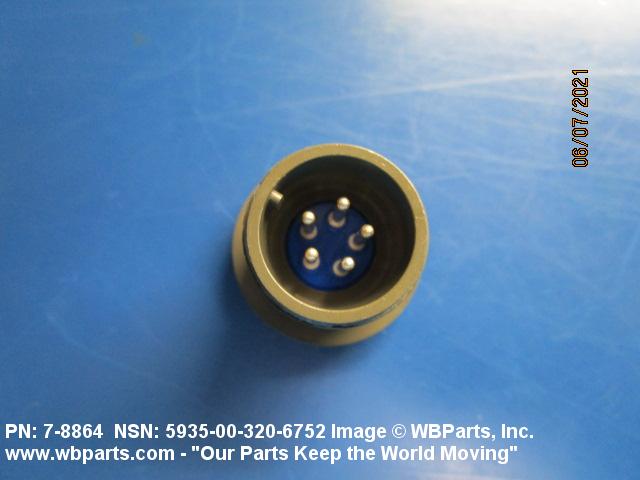

INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING

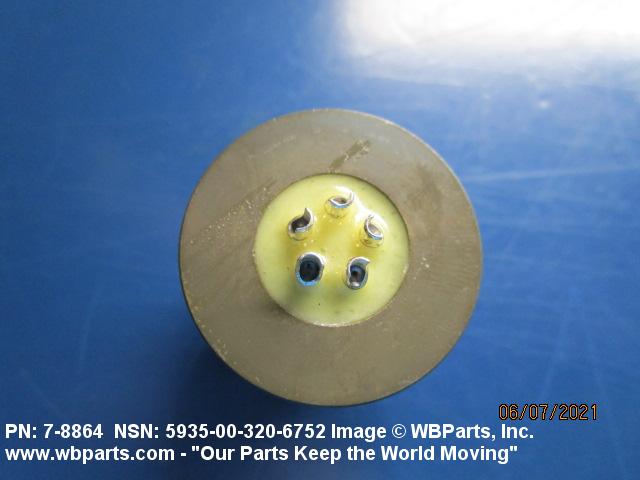

TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
