NSN 5935-00-322-4276 PL0012, 00-322-4276, 003224276
Product Details | TIP JACK
5935-00-322-4276 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: PL0012, 5935-00-322-4276, 00-322-4276, 5935003224276, 003224276
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-322-4276 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-00-322-4276
Cross Reference | NSN 5935-00-322-4276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PL0012 | 77221 | PHAOSTRON INSTRUMENT AND ELECTRONIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-322-4276
Technical Data | NSN 5935-00-322-4276
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.166 INCHES MAXIMUM SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 0.750 INCHES MAXIMUM SINGLE FINGER |

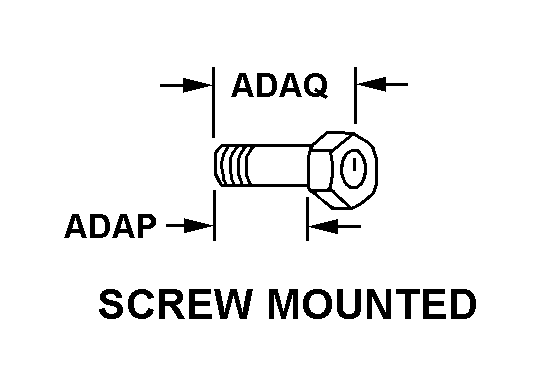

| BODY STYLE | 22 SCREW MOUNTED |
| MOUNTING BUSHING LENGTH | 1.400 INCHES MAXIMUM |
| BODY LENGTH | 1.500 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 TERMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BRASS BODY ANY ACCEPTABLE BUSHING ANY ACCEPTABLE CAP ANY ACCEPTABLE INSULATOR ANY ACCEPTABLE SPRING |
| SURFACE TREATMENT | ANY ACCEPTABLE SPRING |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | THREADED STUD |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| CAPACITANCE IN PICOFARADS | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5935-00-322-4276
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
