NSN 5935-00-345-7702 492104, 492-104, 00-345-7702
Product Details | TIP PLUG
5935-00-345-7702 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: 492104, 492-104, 5935-00-345-7702, 00-345-7702, 5935003457702, 003457702
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JAN 1968 | 00-345-7702 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-345-7702
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-345-7702
Technical Data | NSN 5935-00-345-7702
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER LENGTH | 0.500 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | 0.080 INCHES NOMINAL SINGLE FINGER |

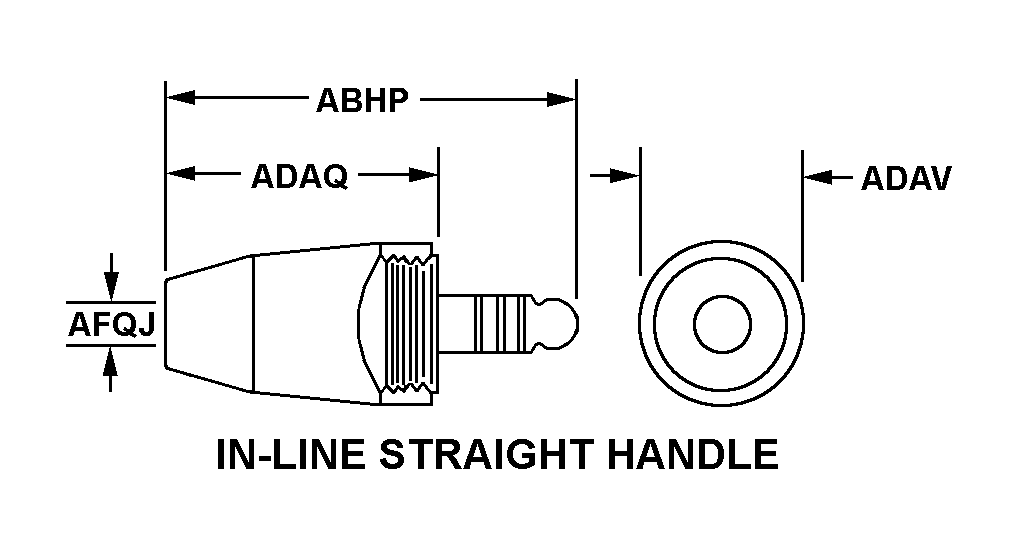

| BODY STYLE | 18 IN-LINE STRAIGHT HANDLE |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.156 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BRASS FINGER PLASTIC, POLYAMIDE HANDLE PLASTIC, POLYAMIDE INSULATOR ANY ACCEPTABLE TERMINAL |
| SURFACE TREATMENT | NICKEL FINGER |
| IDENTIFICATION CODE COLOR | GREEN |
| TERMINAL TYPE | WIRE WRAP |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | 12.0 |
| MANUFACTURERS CODE | 91967 |
| DESIGN CONTROL REFERENCE | 492-104 |
Restrictions/Controls & Freight Information | NSN 5935-00-345-7702
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-345-7702
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
