NSN 5935-00-433-6263 SRW205JV2, SRW-205JV2, 580R871H01
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-433-6263 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: SRW205JV2, SRW-205JV2, 580R871H01, 5935-00-433-6263, 00-433-6263, 5935004336263, 004336263
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUL 1970 | 00-433-6263 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-433-6263
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-433-6263
Technical Data | NSN 5935-00-433-6263
| Characteristic | Specifications |
|---|---|

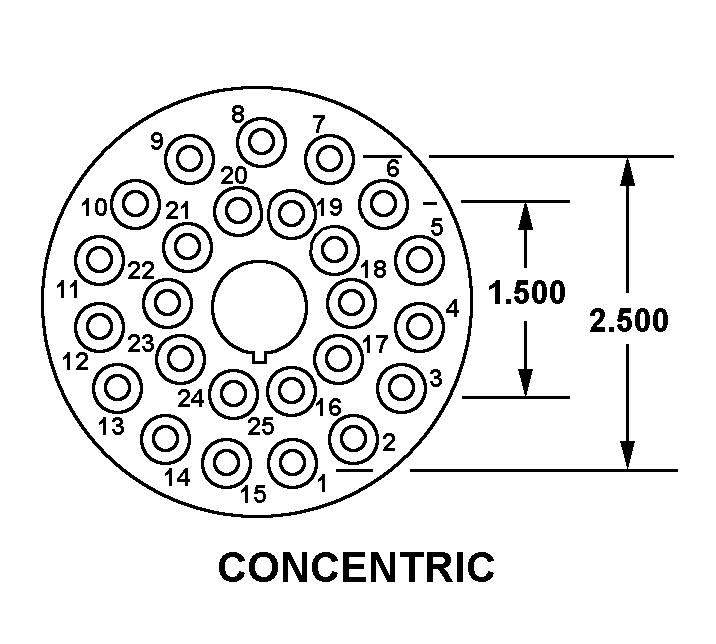

| CONTACT POSITION ARRANGEMENT STYLE | 2501A CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 25 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 38B TV TUBE MOUNT |
| OVERALL HEIGHT | 2.125 INCHES MINIMUM AND 2.155 INCHES MAXIMUM |
| OVERALL DIAMETER | 3.295 INCHES MINIMUM AND 3.325 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 25 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | TUBE |
| POLARIZATION TYPE | CENTER KEY HOLE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III CONTACT MAXIMUM VOLTAGE IN VOLTS AND CURRENT TYPE | 2500.0 AC AND 2500.0 DC |
| III FABRICATION METHOD | MOLDED |
| III CONTACT RESISTANCE IN OHMS | 0.050 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.025 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
