NSN 5935-00-440-9051 12000042, 1200-0042, 12063
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-440-9051 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 12000042, 1200-0042, 12063, 120-63, 5935-00-440-9051, 00-440-9051, 5935004409051, 004409051
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-440-9051 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-440-9051
Demand History | NSN 5935-00-440-9051
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12000042 | 2025-09-247 | 76 | United States |
| 5935-00-440-9051 | 2014-10-281 | 50 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-440-9051
Technical Data | NSN 5935-00-440-9051
| Characteristic | Specifications |
|---|---|

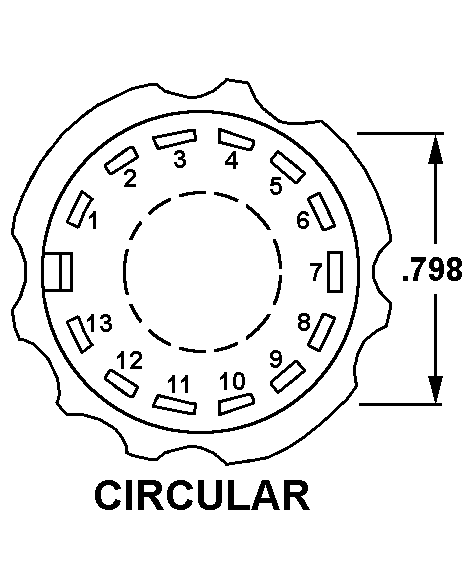

| CONTACT POSITION ARRANGEMENT STYLE | 1301A CIRCULAR |
| ACCOMMODATED CONTACT QUANTITY | 13 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | SILVER |
| BODY STYLE | 9B TOP MOUNT W/CENTER THRU HOLE |
| OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| OVERALL DIAMETER | 1.125 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | ANY ACCEPTABLE |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 13 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | 1D ROUND, BODY |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.000 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY QUALITY CONTROLLED FOR POLARIS |
| III SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 1LQK8 |
| DESIGN CONTROL REFERENCE | 1200-0042 |
Restrictions/Controls & Freight Information | NSN 5935-00-440-9051
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-440-9051
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
