NSN 5935-00-471-4498 00-471-4498, 004714498
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-471-4498 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 5935-00-471-4498, 00-471-4498, 5935004714498, 004714498
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-471-4498 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-471-4498
Cross Reference | NSN 5935-00-471-4498
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0280035P006 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 10220017 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1209-1-1 | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
| 24314 28022 | D8385 | THALES ELECTRONIC SYSTEMS GMBH DBA VERTEIDIGUNGSSYSTEME SEL GMBH |
| 300141-1 | 16848 | LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN |
| 482421-1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 482421-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 5265305-001 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 7180106 | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| 8000-DG19 | 91506 | AUGAT INC |
| 8000-DG2-5 | 01506 | GORHAM FIRE EQUIPMENT CO INC |
| 8000-DG2-5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 8000-DG2-5 | 91506 | AUGAT INC |
| 8000DG19 | 00779 | TYCO ELECTRONICS CORPORATION |
| 810AS482 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 968402-1 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| C10121-0001 | 04274 | ROSEMOUNT INC DBA FISHER ROSEMOUNT SERVICE AND |
| C10121-0001 | 59885 | ROSEMOUNT AEROSPACE INC. DBA A UTC AEROSPACE SYSTEMS COMPANY |
| G613016-2 | 01714 | LUCENT TECHNOLOGIES INC ADVANCED TECHNOLOGY SYSTEMS |
| G613016-2 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| X8000DG28 | 00779 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-471-4498
Technical Data | NSN 5935-00-471-4498
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 205A IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 2 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER |
| BODY STYLE | 63B TOP MOUNT W/HORIZONTAL CLAMP |
| OVERALL LENGTH | 1.192 INCHES NOMINAL |
| TERMINAL LENGTH | 0.109 INCHES MINIMUM |
| OVERALL HEIGHT | 0.440 INCHES MAXIMUM |
| OVERALL WIDTH | 0.860 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

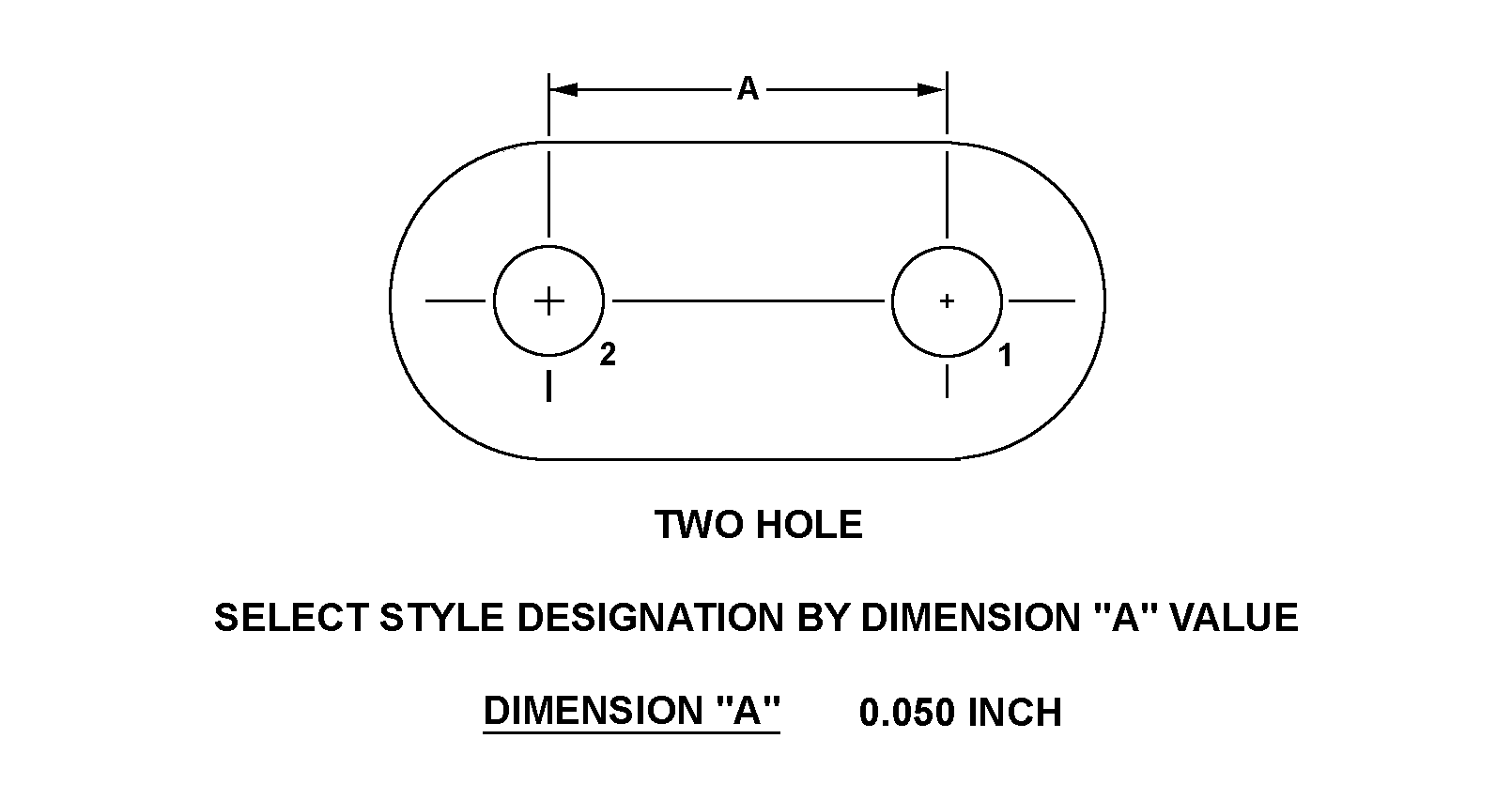

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 200E TWO HOLE |
| FURNISHED ITEMS AND QUANTITY | 1 CLIP |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5935-00-471-4498
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
