NSN 5935-00-478-7254 DCM17W5S, DCM17W5SA115C33, DCM17W5SC31
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-478-7254 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DCM17W5S, DCM17W5SA115C33, DCM17W5SC31, DCMM17W5S, GCM17W5S, GCM-17W5S, 01251-1286, 128C136H08, 1600608023, 16-00608-023, 17573387, 1757-3387, 2766067P049, 276-6067P049, 3P906754, 3P906759, 4141934005, 414-1934-005, 42361050000, 42361-050-00-0, 499-056-165, 555146.095//N, 555146095N, 5935-00-478-7254, 00-478-7254, 5935004787254, 012511286, 004787254, 499056165
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 JAN 1971 | 00-478-7254 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-478-7254
Cross Reference | NSN 5935-00-478-7254
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01251-1286 | 12848 | SOLRAC II INC |
| 128C136H08 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 16-00608-023 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| 1757-3387 | 08241 | LOCKHEED MARTIN CORP LOCKHEED MARTIN MISSION SYSTEMS |
| 276-6067P049 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 3P906754 | U5266 | THALES OPTRONICS STAINES LTD |
| 3P906759 | U5266 | THALES OPTRONICS STAINES LTD |
| 414-1934-005 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 42361-050-00-0 | K4556 | BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS |
| 42361-050-00-0 | KC1M9 | BAE SYSTEMS MARITIME SERVICESLIMITED |
| 499-056-165 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 555146.095//N | A0069 | SELEX ES SPA |
| 555146.095//N | A3026 | MARCONI MOBILE SPA EX ELMER SPA |
| DCM17W5S | 71468 | ITT CORPORATION DBA I T T CANNON |
| DCM17W5SA115C33 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DCM17W5SC31 | 71468 | ITT CORPORATION DBA I T T CANNON |
| DCMM17W5S | 71468 | ITT CORPORATION DBA I T T CANNON |
| DCMM17W5S | 71785 | CINCH CONNECTORS, INC. |
| GCM-17W5S | 25330 | COOPER CROUSE- HINDS, LLC DBA GENERAL CONNECTOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-478-7254
Technical Data | NSN 5935-00-478-7254
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16G STRAIGHT SHAPE |
| OVERALL LENGTH | 2.714 INCHES MINIMUM AND 2.744 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.663 INCHES NOMINAL |
| OVERALL WIDTH | 0.479 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 2.495 INCHES MINIMUM AND 2.505 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | MATING END |
| MATING END QUANTITY | 1 |

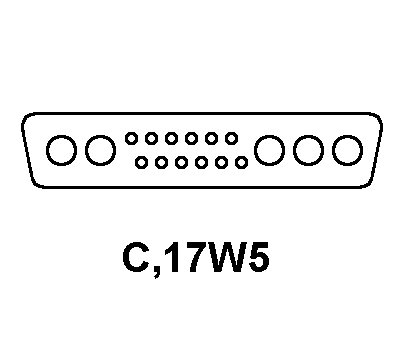

| CONTACT POSITION ARRANGEMENT STYLE | ATAJ C,17W5 SINGLE MATING END |
