NSN 5935-00-480-7948 M2726/73/001, M272673001, SYM 1215
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-480-7948 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M2726/73/001, M272673001, SYM 1215, SYM1215, MIL-DTL-2726/73, MILDTL272673, MIL-R-2726/73, MIL-R-2726/73-001, MILR272673, MILR272673001, 5935-00-480-7948, 00-480-7948, 5935004807948, 004807948
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 SEP 1970 | 00-480-7948 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

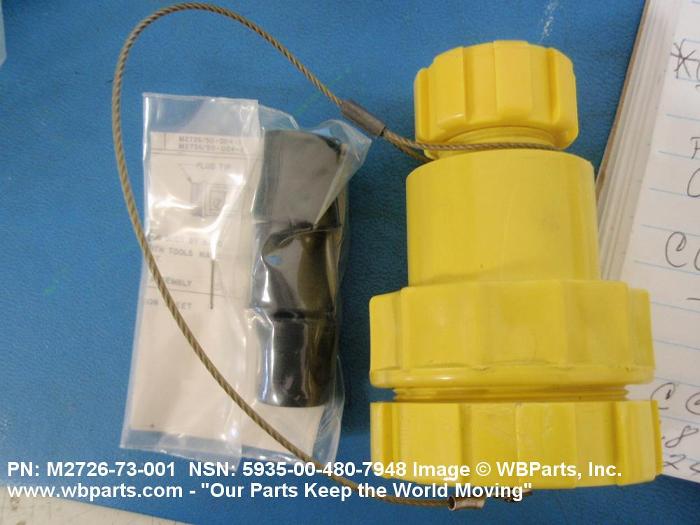

Drawings & Photos | NSN 5935-00-480-7948
Demand History | NSN 5935-00-480-7948
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-480-7948 | 2025-11-315 | 150 | DIBBS |
| 5935-00-480-7948 | 2022-10-279 | 183 | DIBBS |
| 5935-00-480-7948 | 2018-08-214 | 182 | DIBBS |
| 5935-00-480-7948 | 2016-06-154 | 198 | DIBBS |
| 5935-00-480-7948 | 2015-03-88 | 220 | DIBBS |
| 5935-00-480-7948 | 2014-09-258 | 41 | Taiwan |
| 5935-00-480-7948 | 2014-01-12 | 152 | DIBBS |
| 5935-00-480-7948 | 2013-09-254 | 128 | DIBBS |
| 5935-00-480-7948 | 2013-07-185 | 136 | DIBBS |
| 5935-00-480-7948 | 2013-05-141 | 108 | DIBBS |
| M272673001 | 2011-05-143 | 12 | United States |
| MILR272673 | 2010-06-175 | 1 | US |
| SYM1215 | 2010-06-175 | 1 | US |
| 5935-00-480-7948 | 2009-12-343 | 699 | DIBBS |
| 5935-00-480-7948 | 2009-11-334 | 2000 | DIBBS |
| 5935-00-480-7948 | 2009-10-275 | 15 | DIBBS |
| 5935-00-480-7948 | 2009-10-275 | 32 | DIBBS |
| 5935-00-480-7948 | 2009-10-275 | 72 | DIBBS |
| 5935-00-480-7948 | 2009-10-275 | 503 | DIBBS |
| 5935-00-480-7948 | 2009-04-114 | 9 | DIBBS |
| 5935-00-480-7948 | 2008-11-315 | 10 | Brazil |
Cross Reference | NSN 5935-00-480-7948
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M2726/73/001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-2726/73 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-2726/73 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-2726/73-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SYM 1215 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-480-7948
Related Products | NSN 5935-00-480-7948
Technical Data | NSN 5935-00-480-7948
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3A STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 2.875 INCHES NOMINAL |
| OVERALL DIAMETER | 2.250 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.875 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.375 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | PLASTIC POLYESTER |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ADDS 3,5-15 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYESTER SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-14,TYPE MAI-60 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 1 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 15.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 125.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-750,COMP A,SPRING FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | NICKEL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| FURNISHED ITEMS | CABLE BRACKET AND WIRE ROPE |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND VIBRATION PROOF AND WATERPROOF |
| TEST DATA DOCUMENT | 81349-MIL-R-2726 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-2726/73 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-2726/73 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-2726/73-001 |
Restrictions/Controls & Freight Information | NSN 5935-00-480-7948
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-480-7948
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
