NSN 5935-00-485-4914 MK242362130SN, MK24236-21-30SN, KM62130SNMK2
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-485-4914 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MK242362130SN, MK24236-21-30SN, KM62130SNMK2, KM6-21-30SNMK2, 5935-00-485-4914, 00-485-4914, 5935004854914, 004854914
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 MAY 1969 | 00-485-4914 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

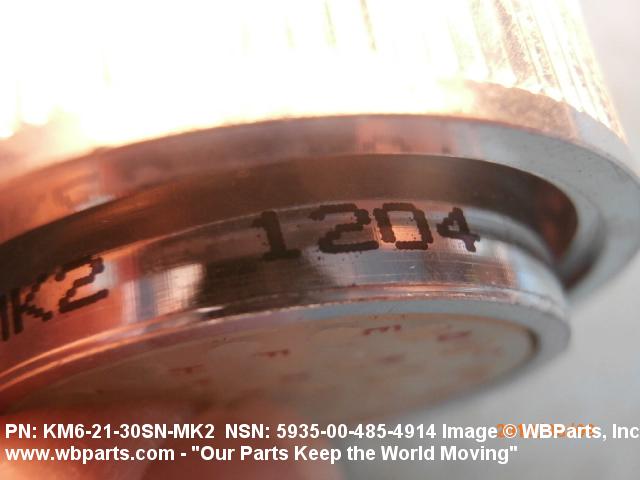

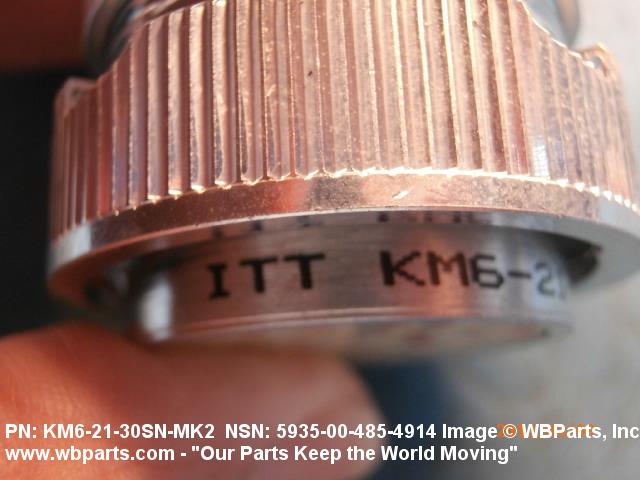

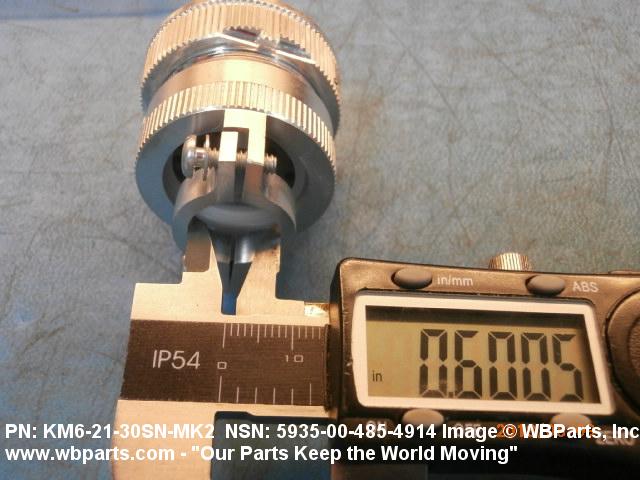

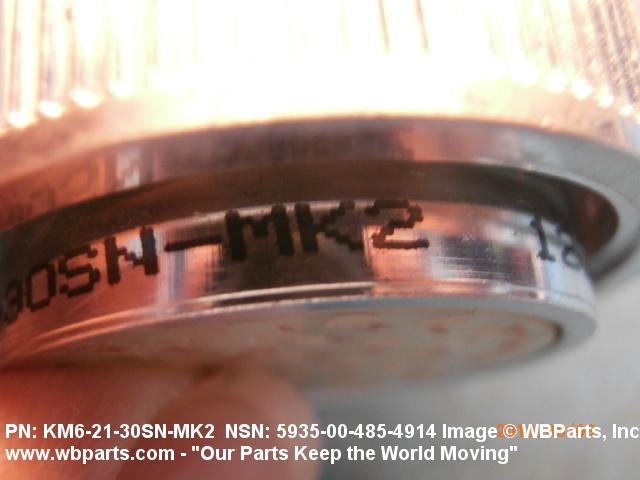

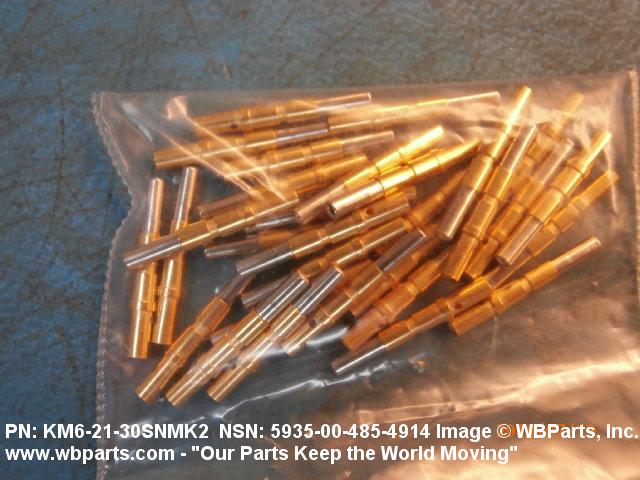

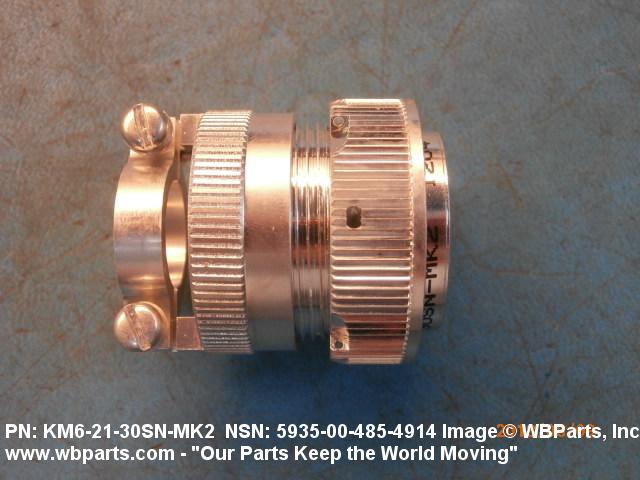

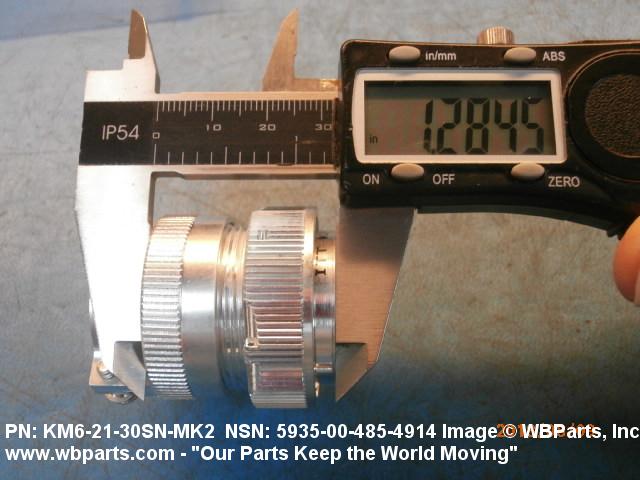

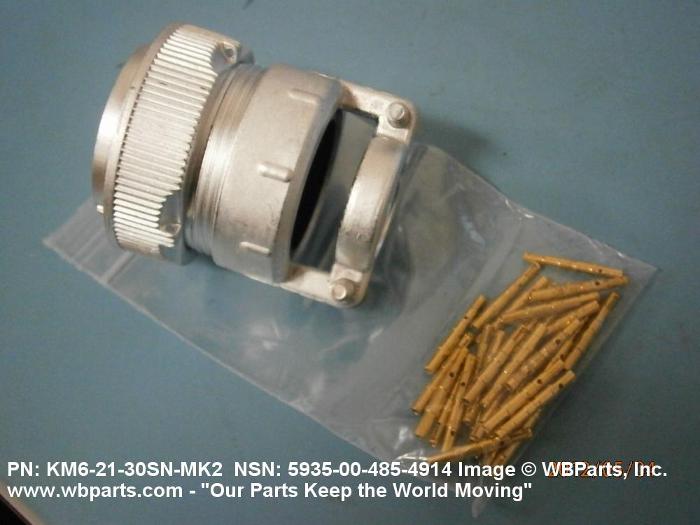

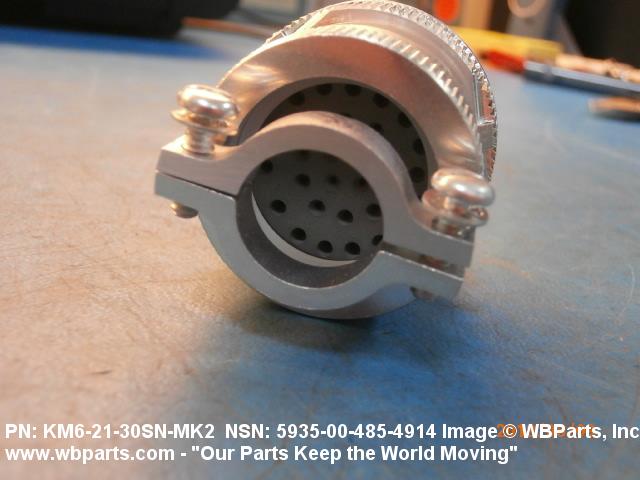

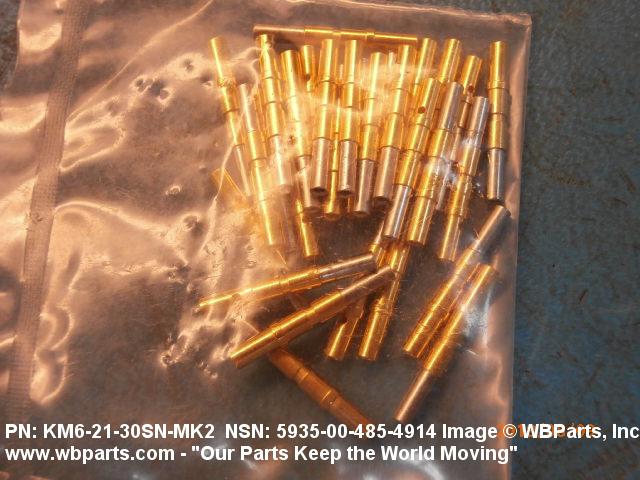

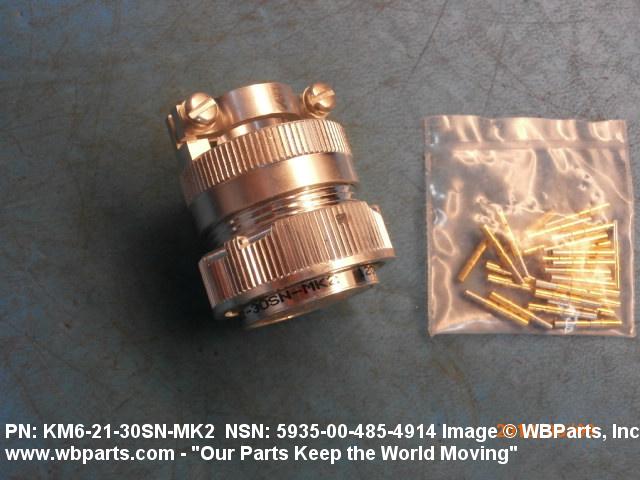

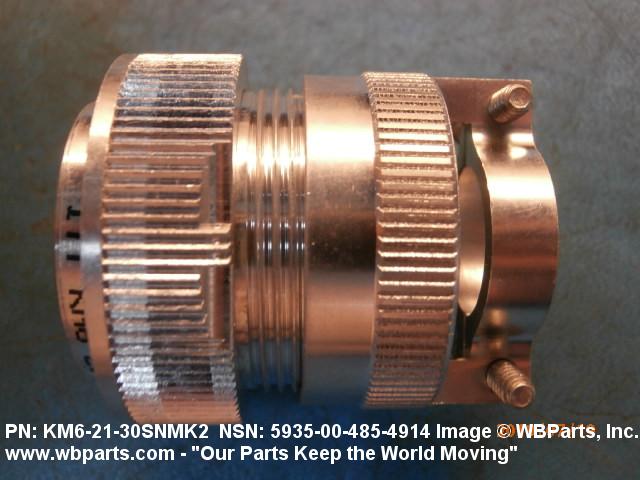

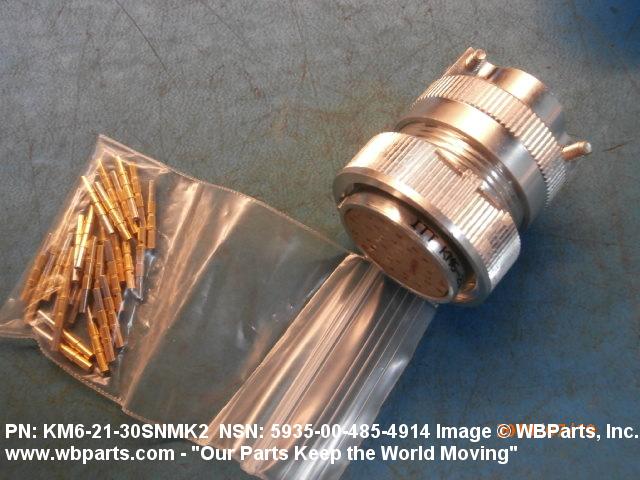

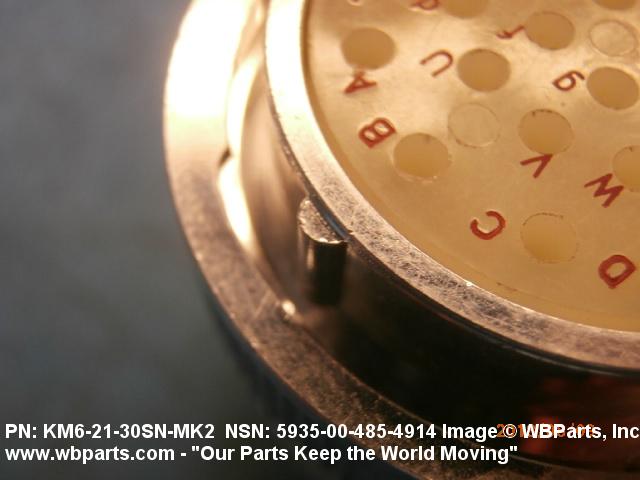

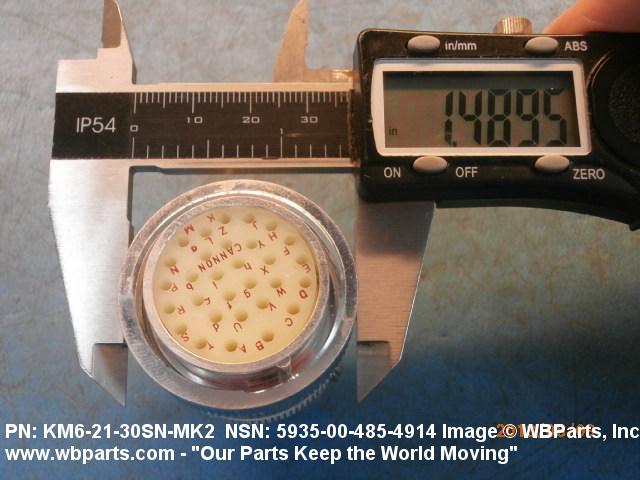

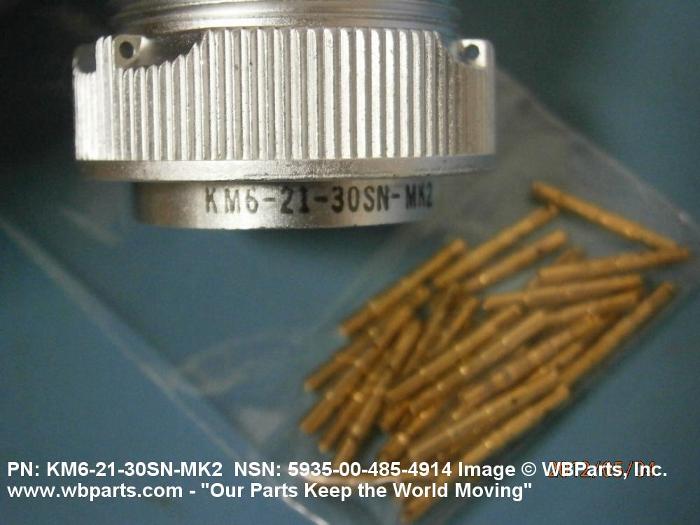

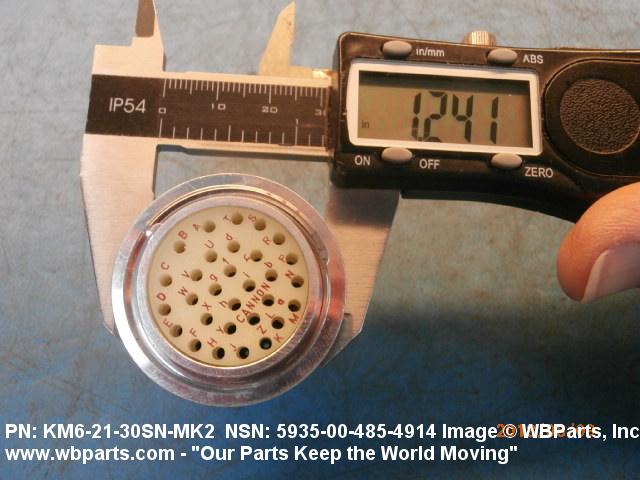

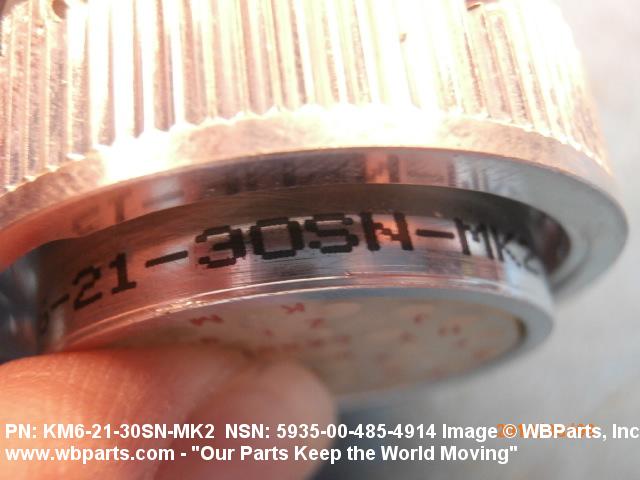

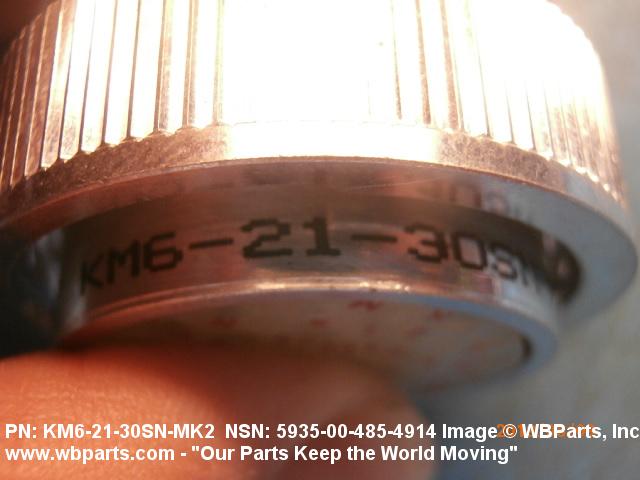

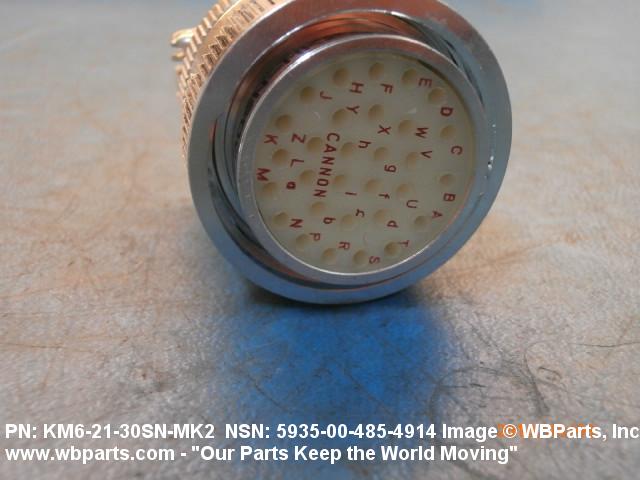

Drawings & Photos | NSN 5935-00-485-4914
Demand History | NSN 5935-00-485-4914
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-485-4914 | 2025-07-204 | 2 | US |
| KM62130SNMK2 | 2025-03-84 | 28 | United States |
| MK242362130SN | 2025-03-76 | 27 | United States |
| 5935-00-485-4914 | 2025-01-03 | 1 | US |
| 5935-00-485-4914 | 2025-01-03 | 1 | US |
| 5935-00-485-4914 | 2024-12-347 | 27 | Malaysia |
| 5935-00-485-4914 | 2024-09-270 | 10 | US |
| KM62130SNMK2 | 2024-09-269 | 1 | CO |
| KM62130SNMK2 | 2024-09-246 | 8 | CO |
| KM62130SNMK2 | 2024-09-246 | 10 | CO |
| 5935-00-485-4914 | 2024-06-179 | 4 | United States |
| 5935-00-485-4914 | 2023-05-143 | 1 | FR |
| 5935-00-485-4914 | 2022-12-355 | 2 | United States |
| 5935-00-485-4914 | 2022-08-236 | 14 | Malaysia |
| 5935-00-485-4914 | 2021-12-347 | 2 | Taiwan |
| 5935-00-485-4914 | 2021-12-340 | 2 | us |
| 5935-00-485-4914 | 2020-12-338 | 2 | United States |
| KM62130SNMK2 | 2020-11-310 | 2 | United States |
| 5935-00-485-4914 | 2020-10-279 | 2 | AU |
| 5935-00-485-4914 | 2019-06-167 | 1 | United States |
| 5935-00-485-4914 | 2019-05-143 | 1 | IL |
| 5935-00-485-4914 | 2019-02-51 | 1 | Israel |
| 5935-00-485-4914 | 2018-08-219 | 1 | Israel |
| 5935-00-485-4914 | 2018-08-218 | 2 | KR |
| 5935-00-485-4914 | 2017-05-150 | 3 | Japan |
| 5935-00-485-4914 | 2012-09-255 | 1 | Malaysia |
| KM62130SNMK2 | 2012-04-107 | 1 | United States |
| 5935-00-485-4914 | 2011-06-172 | 9 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-485-4914
Technical Data | NSN 5935-00-485-4914
| Characteristic | Specifications |
|---|---|
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED COUPLING NUT |
| SHELL MATERIAL | ALUMINUM ALLOY |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END 1ST CONTACT GROUPING 17 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 2400.0 SINGLE MATING END 1ST CONTACT GROUPING 1250.0 SINGLE MATING END 2ND CONTACT GROUPING |
| MANUFACTURERS CODE | 71468 |
| DESIGN CONTROL REFERENCE | KM6-21-30SNMK2 |
Restrictions/Controls & Freight Information | NSN 5935-00-485-4914
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-485-4914
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
