NSN 5935-00-488-3157 CRB122SA315, CRB12-2SA315, 739290
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-488-3157 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: CRB122SA315, CRB12-2SA315, 739290, 5935-00-488-3157, 00-488-3157, 5935004883157, 004883157
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 JUN 1969 | 00-488-3157 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-488-3157
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-488-3157
Technical Data | NSN 5935-00-488-3157
| Characteristic | Specifications |
|---|---|

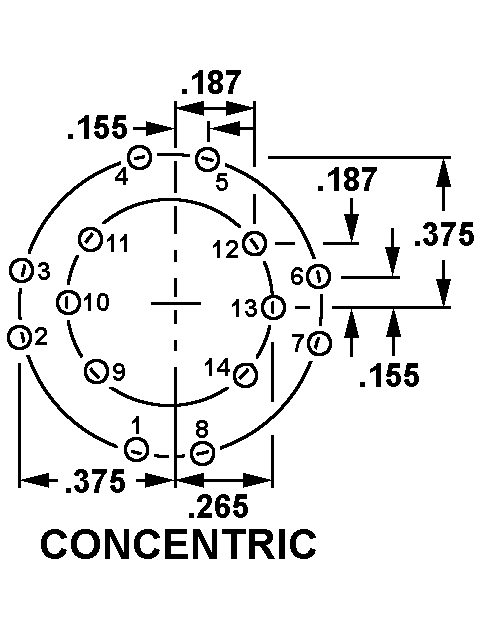

| CONTACT POSITION ARRANGEMENT STYLE | 1412A CONCENTRIC |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 1B TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.969 INCHES NOMINAL |
| OVERALL HEIGHT | 0.694 INCHES NOMINAL |
| OVERALL WIDTH | 1.281 INCHES NOMINAL |
| PROJECTION LENGTH BELOW MOUNTING SURFACE | 0.562 INCHES NOMINAL |
| BODY MATERIAL | CERAMIC |
| TERMINAL TYPE AND QUANTITY | 14 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | 8D ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 1.218 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.562 INCHES NOMINAL |
| POLARIZATION TYPE | COLORED DOT |
| TEST DATA DOCUMENT | 10001-73920 DRAWING |
