5935-00-493-5489 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: 571, 5935-00-493-5489, 00-493-5489, 5935004935489, 004935489
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 FEB 1970 | 00-493-5489 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-00-493-5489
Cross Reference | NSN 5935-00-493-5489
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 571 | 91833 | KEYSTONE ELECTRONICS CORP. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5935-00-493-5489
5935-00-493-5520, 5935-00-493-5522, 5935-00-493-5523, 5935-00-493-5526, 5935-00-493-5527
Technical Data | NSN 5935-00-493-5489
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD STEPPED SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.080 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | ANY ACCEPTABLE SINGLE FINGER |

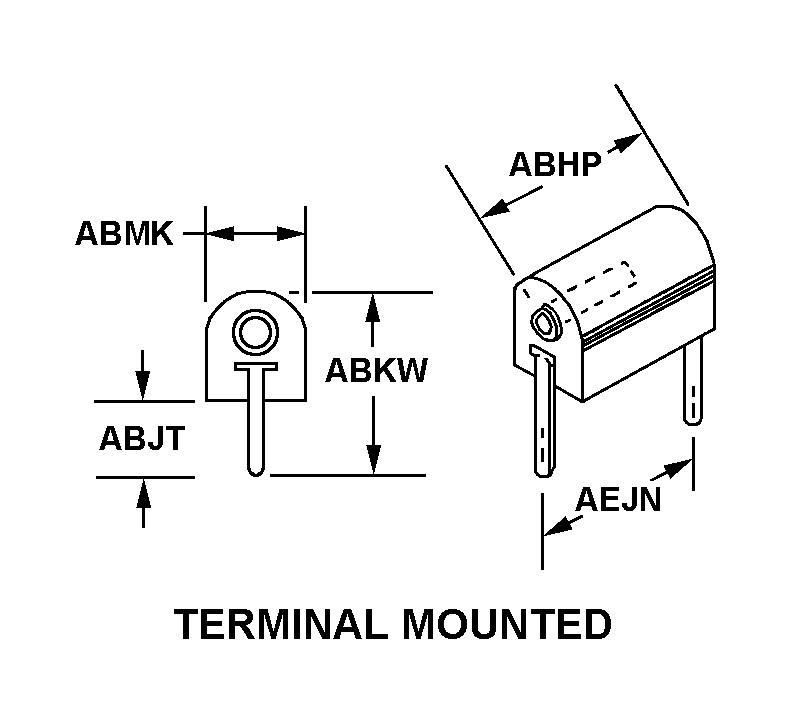

| BODY STYLE | 39 TERMINAL MOUNTED |
| OVERALL LENGTH | 0.437 INCHES NOMINAL |
| TERMINAL LENGTH | 0.344 INCHES NOMINAL |
| OVERALL HEIGHT | 0.656 INCHES NOMINAL |
| OVERALL WIDTH | 0.328 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.343 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TERMINAL |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | STEEL BODY BRASS SPRING |
| SURFACE TREATMENT | CADMIUM BODY NICKEL SPRING |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| CAPACITANCE IN PICOFARADS | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5935-00-493-5489
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-493-5489
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
5 EA : Each |
