NSN 5935-00-510-7429 GA51203L7, GA51203-L7 , X12400PEPKL3
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-510-7429 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: GA51203L7, GA51203-L7 , X12400PEPKL3, X-12400-PEPK-L3, 8017329, 5935-00-510-7429, 00-510-7429, 5935005107429, 005107429
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-510-7429 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-510-7429
Cross Reference | NSN 5935-00-510-7429
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8017329 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| GA51203-L7 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| GA51203-L7 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| GA51203-L7 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| X-12400-PEPK-L3 | 49367 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-510-7429
Technical Data | NSN 5935-00-510-7429
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 2.938 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.469 INCHES MINIMUM AND 3.531 INCHES MAXIMUM |
| OVERALL WIDTH | 3.469 INCHES MINIMUM AND 3.531 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.844 INCHES MINIMUM AND 2.906 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.844 INCHES MINIMUM AND 2.906 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-691,C0MP 2 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | PAINT |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

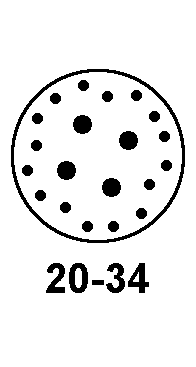

| CONTACT POSITION ARRANGEMENT STYLE | ASBZ 20-34 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END 1ST CONTACT GROUPING 12 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END 1ST CONTACT GROUPING ROUND PIN SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | PRESSURE PROOF |
| SPECIAL FEATURES | LIGHT BLUE COLOR |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.016 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-510-7429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
